Customized Color Wosheng 3 Axle 20 40 45 53 Ft Freezer Refrigerator Van Semi Trailer

Customized Color Wosheng 3 Axle 20 40 45 53 Ft Freezer Refrigerator Van Semi Trailer
Customized Color Wosheng 3 Axle 20 40 45 53 Ft Freezer Refrigerator Van Semi Trailer Customized Color Wosheng 3 Axle 20 40 45 53 Ft Freezer Refrigerator Van Semi Trailer Customized Color Wosheng 3 Axle 20 40 45 53 Ft Freezer Refrigerator Van Semi Trailer Customized Color Wosheng 3 Axle 20 40 45 53 Ft Freezer Refrigerator Van Semi Trailer Customized Color Wosheng 3 Axle 20 40 45 53 Ft Freezer Refrigerator Van Semi Trailer Customized Color Wosheng 3 Axle 20 40 45 53 Ft Freezer Refrigerator Van Semi Trailer

Large Image :  Customized Color Wosheng 3 Axle 20 40 45 53 Ft Freezer Refrigerator Van Semi Trailer

Product Details:
Place of Origin: Shandong, China
Brand Name: WS
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $20,000.00/sets 1-4 sets
Payment Terms: T/T, L/C
Contact Now

Customized Color Wosheng 3 Axle 20 40 45 53 Ft Freezer Refrigerator Van Semi Trailer

Description
Use: Truck Trailer Type: Semi-Trailer, Refrigerated Van Semi Trailer
Material: Steel, Q345B T700 Size: 13600x2600x4000mm
Max Payload: >30000 Kg Axles: 2/3/4 Axles
Tare Weight: 8.8 T Color: Customized Color
Painting: Customization Payload: Customization
Tire Specification: 12R22.5 Customized Rim: 9.0-22.5
Lead Time: 10 Days

Products Description
Customized Color Wosheng 3 Axle 20 40 45 53 Ft Freezer Refrigerator Van Semi Trailer 0

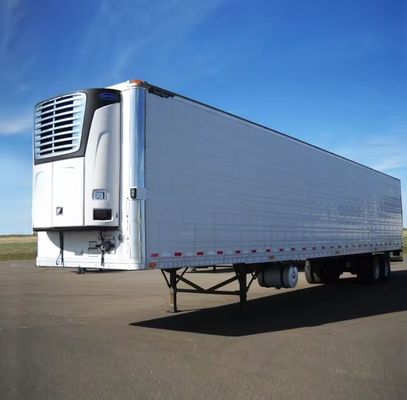

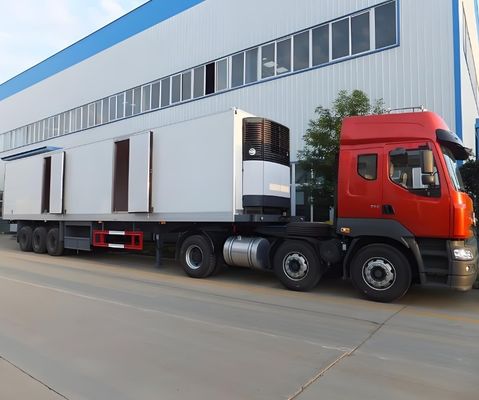

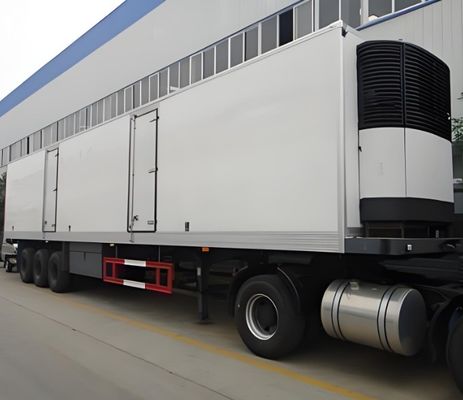

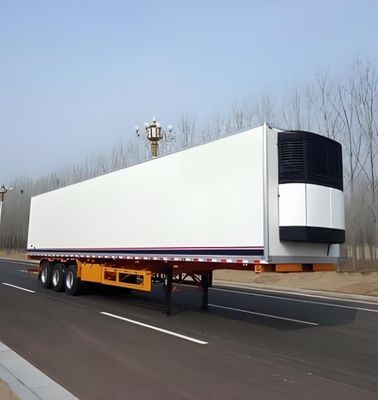

Refrigerated van semi trailer
Frozen van semi trailer is a kind of vehicle specially sued for transporting goods that need to be frozen or fresh-Keeping
Chassis: Based on the special vehicle chassis, including the walking part and heat insulation body

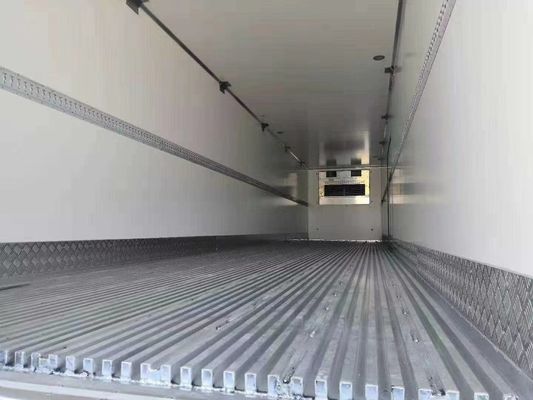

Heat Insulation body: usually made of polyurethane material, glass steel, color steel plate of stainless steel etc, to ensure that the temperature of the goods is not affected by the external environment

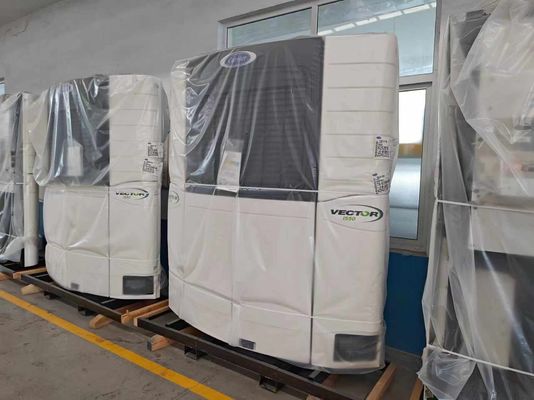

Refrigeration unit: including air compressor, condenser, evaporator and expansion valve, etc, to form a circulation system , constantly transfer the heat in the car to the surrounding atmosphere, to keep the car low temperature
Customized Color Wosheng 3 Axle 20 40 45 53 Ft Freezer Refrigerator Van Semi Trailer 1
Customized Color Wosheng 3 Axle 20 40 45 53 Ft Freezer Refrigerator Van Semi Trailer 2
Customized Color Wosheng 3 Axle 20 40 45 53 Ft Freezer Refrigerator Van Semi Trailer 3
Customized Color Wosheng 3 Axle 20 40 45 53 Ft Freezer Refrigerator Van Semi Trailer 4
Specification
Detail Specification
Items
Refrigerated van semi trailer
Tare Weight
8.8Tons (depends on final configuration)
Payload
30 tons or cutomizable
Size
13600x2600x4000mm (customizable)
Inside size
13280x2440x2547mm (customization)
Main Beam
Q345B/T700 steel
Height 500mm
Upper Plate is 14mm
Down plate is 16mm
Middle plate is 8mm or customization
Side Beam
12mm channel steel ( material is q235b steel)
Refrigerator
Carrier x 4 7300
Tank Thickness
5/7mm (customization)
Axles
13/16/20 tons, axle amount optional like 2/3/4 axles etc, axle brand optional like SAF, FUWA, BPW etc
King pin
2.00"(50#), bolting king pin, JOST  or another brand according to customer
Suspension
Mechanical suspension air suspension (American or Geman)
Leaf Spring
10pcs leaf spring, thickness 13mm. width 90mm
Landing Gear
28 Tons heavy duty, brand optional fuwa /jost etc
Tire specs
12R22.5/315 80R22.5/11R20/12R20 Choose freely
 Braking system
dual line brake system , Air chamber T30/30 3X40L gas storage drums
Rim
9.00-22.5 /8.00-20/8.5-20
ABS system
None or installed as your requirement.
Painting
Sanding , anti-corrosion , one primer paining add two layer top coat painting
Side Gurd
According to customer
Electrical system
24 volt electrical system 7 pin electrical connector, Parking stop, reverse, number plate and indicator lights, rear lights conform to european  standard, rear front and side reflectors
spare tire
Two set of heavy duty spare wheel carriers, indluding a riser
Tool Box
One Piece (1.0 x 5.0 m) with 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar
Color
According to customers requirements
Delivery
From China Port and carry by container ship, ro-ro ship or by bulk
Remark
Our senior engineer can design semi trailer as your request, and we accept OEM/ODM projects
Customized Color Wosheng 3 Axle 20 40 45 53 Ft Freezer Refrigerator Van Semi Trailer 5

Suspention - Anti-Tire Abrasion

Specially designed anti-Tire abrasion suspension system prevent tire deflection after loading and avoids tires to the maximum extent worn out. and easy to disassemble and maintain
Customized Color Wosheng 3 Axle 20 40 45 53 Ft Freezer Refrigerator Van Semi Trailer 6

bottom

stronger sturction
Customized Color Wosheng 3 Axle 20 40 45 53 Ft Freezer Refrigerator Van Semi Trailer 7

Axle suspension and brake system

BPW Fuwa worldwide best axles worki with WABCO brake valve, More effectively brake for safe and save tire cost , Fix quality springs and suspension , support longer service life, save maintain cost
Customized Color Wosheng 3 Axle 20 40 45 53 Ft Freezer Refrigerator Van Semi Trailer 8

Landing Gear

The warranty period of Chinese brand/JOST landing gear is more than 5 years. The gearbox uses low temperature premium chassis oil and is rated for service from -30°C to 120°C
Customized Color Wosheng 3 Axle 20 40 45 53 Ft Freezer Refrigerator Van Semi Trailer 9

Leaf Spring

Usually six sets, 10pcs leaf spring , 13mm thickness, 90mm width
Customized Color Wosheng 3 Axle 20 40 45 53 Ft Freezer Refrigerator Van Semi Trailer 10

Tire

use famous brand , or according to customer

Recommend Products
Customized Color Wosheng 3 Axle 20 40 45 53 Ft Freezer Refrigerator Van Semi Trailer 11
Customized Color Wosheng 3 Axle 20 40 45 53 Ft Freezer Refrigerator Van Semi Trailer 12
Customized Color Wosheng 3 Axle 20 40 45 53 Ft Freezer Refrigerator Van Semi Trailer 13
Customized Color Wosheng 3 Axle 20 40 45 53 Ft Freezer Refrigerator Van Semi Trailer 14
Customized Color Wosheng 3 Axle 20 40 45 53 Ft Freezer Refrigerator Van Semi Trailer 15
Customized Color Wosheng 3 Axle 20 40 45 53 Ft Freezer Refrigerator Van Semi Trailer 16
Customized Color Wosheng 3 Axle 20 40 45 53 Ft Freezer Refrigerator Van Semi Trailer 17
Customized Color Wosheng 3 Axle 20 40 45 53 Ft Freezer Refrigerator Van Semi Trailer 18
Customized Color Wosheng 3 Axle 20 40 45 53 Ft Freezer Refrigerator Van Semi Trailer 19
Customized Color Wosheng 3 Axle 20 40 45 53 Ft Freezer Refrigerator Van Semi Trailer 20
Customized Color Wosheng 3 Axle 20 40 45 53 Ft Freezer Refrigerator Van Semi Trailer 21
Customized Color Wosheng 3 Axle 20 40 45 53 Ft Freezer Refrigerator Van Semi Trailer 22
Company Profile
Customized Color Wosheng 3 Axle 20 40 45 53 Ft Freezer Refrigerator Van Semi Trailer 23
About us
Shandong Wosheng Special Vehicle Manufacturer Co., LTD.
Our Company mainly produce fence semi trailer, lowbed semi trailer , low fence semi trailer , rear dump semi trailer, container flat semi trailer, fuel oil semi trailer, etc all kinds of semi trailer, Our company have more than 20 years produce and exporting experience Quality is firstly, Credit is our base for business, Welcome to know us and build business relationship.
Customized Color Wosheng 3 Axle 20 40 45 53 Ft Freezer Refrigerator Van Semi Trailer 24
Customized Color Wosheng 3 Axle 20 40 45 53 Ft Freezer Refrigerator Van Semi Trailer 25
Factory :
Our factory commit to strict quality control and thoughtful customer service, our experienced staff can discuss your requirements at any time to ensure your full satisfaction. We not only want to be perfect in
appearance, but also pursue the delicacy of detail. We have advanced modern equipment, strong technical force to ensure customer satisfaction of products and timely delivery.
Customized Color Wosheng 3 Axle 20 40 45 53 Ft Freezer Refrigerator Van Semi Trailer 26
Packing and Loading
Customized Color Wosheng 3 Axle 20 40 45 53 Ft Freezer Refrigerator Van Semi Trailer 27
Container usually us 45 feet
Usually by bulk
Certification
Customized Color Wosheng 3 Axle 20 40 45 53 Ft Freezer Refrigerator Van Semi Trailer 28

we have obtained the World material Manufacturing Factory Certificate, 3C Certificate and ISO9000 Quality Management Certification. We are also a national high-tech enterprise and have obtained more than 30 invention patents and utility model patents.
Customized Color Wosheng 3 Axle 20 40 45 53 Ft Freezer Refrigerator Van Semi Trailer 29
Customized Color Wosheng 3 Axle 20 40 45 53 Ft Freezer Refrigerator Van Semi Trailer 30
We are your most reliable cooperation partner
We are a national high-tech enterprise and have obtained more than 30 invention patents and utility model patents. We have attracted customers from all over the world, whether choosing the current product from our catalog or seeking technical support for your application, you can talk to our customer service colleagues about your procurement needs.
High quality , factory lower price , good service !
Customized Color Wosheng 3 Axle 20 40 45 53 Ft Freezer Refrigerator Van Semi Trailer 31
FAQ

Q1. Are you a factory or trade company ? We are a comprehensive industrial and trade enterprise integrating product design, scientific research and development, production and sales. Welcome to visit our factory at any time.

Q2. Could you accept special design and specification? Sure of course. As we all know that the traffic regulations are different in different areas, our professional engineers will design and our well-trained staff will produce according to customer special requirements. Such as: special Size, special control, or OEM/ODM etc.

Q3. Are you looking for an agent? Yes, we're looking for the agent all over the world, you are welcome to contact us for further discussion.

Q4. How to control quality? We set up all process inspection and quality control standard, include raw materials, production process, finished products. Advanced equipment and standard inspection process ensure the quality.

Q5. what services can we provide? Accepted Delivery Terms: EXW, FOB, CFR, CIF
