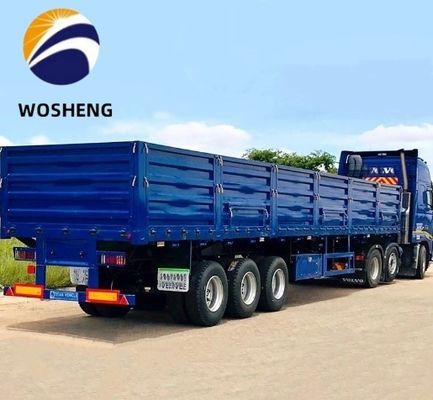

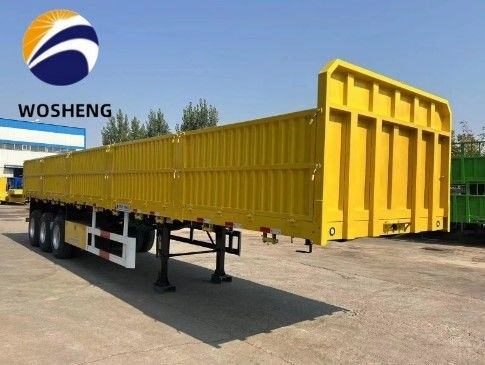

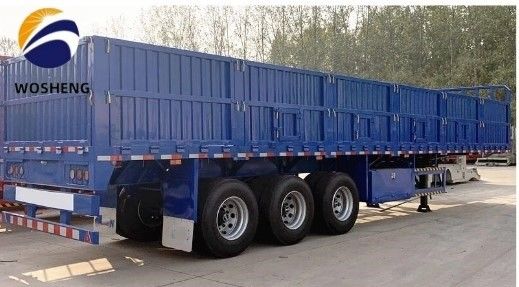

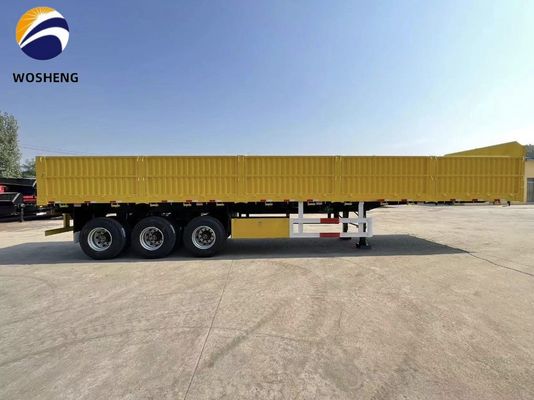

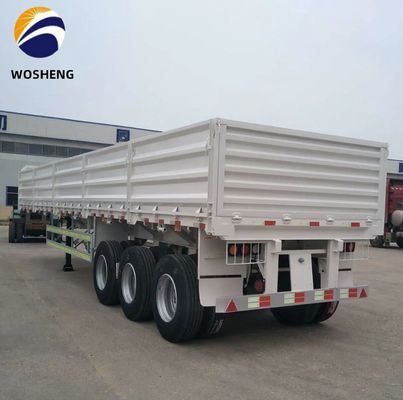

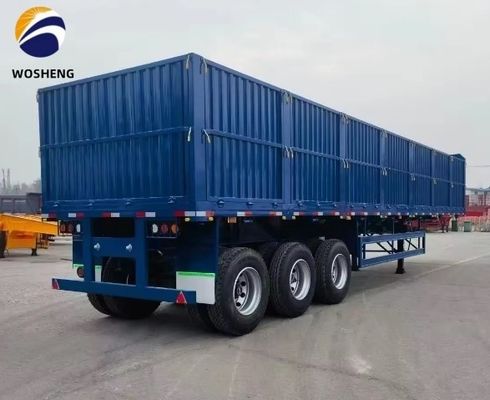

Fence Type Flatbed Semi Trailer with Drop Side Board Side Wall and Air Bag Suspension

Fence Type Flatbed Semi Trailer with Drop Side Board Side Wall and Air Bag Suspension
Fence Type Flatbed Semi Trailer with Drop Side Board Side Wall and Air Bag Suspension Fence Type Flatbed Semi Trailer with Drop Side Board Side Wall and Air Bag Suspension Fence Type Flatbed Semi Trailer with Drop Side Board Side Wall and Air Bag Suspension Fence Type Flatbed Semi Trailer with Drop Side Board Side Wall and Air Bag Suspension Fence Type Flatbed Semi Trailer with Drop Side Board Side Wall and Air Bag Suspension Fence Type Flatbed Semi Trailer with Drop Side Board Side Wall and Air Bag Suspension

Large Image :  Fence Type Flatbed Semi Trailer with Drop Side Board Side Wall and Air Bag Suspension

Product Details:
Place of Origin: Shandong, China
Brand Name: Yun Sheng
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $10,000.00/sets 1-4 sets
Payment Terms: T/T, L/C
Contact Now

Fence Type Flatbed Semi Trailer with Drop Side Board Side Wall and Air Bag Suspension

Description
Use: Truck Trailer Type: Semi-Trailer
Material: Steel Size: 12400x2610x1550mm
Max Payload: >30000 Kg Color: According To Customer
Size: 12400x2610x1550mm Or Customizable Lead Time: 10 Days
Tare Time: 7500kgs

Products Description
Fence Type Flatbed Semi Trailer with Drop Side Board Side Wall and Air Bag Suspension 0

1.Capable OF Rough Road Condition
International standard heavy duty chassis and running system applied to cope with rough roadcondition.
Fence Type Flatbed Semi Trailer with Drop Side Board Side Wall and Air Bag Suspension 1

2.Steel Structure
High tensile steel material and advanced design to achieve lower weight with high carrying capacity, reduce operation cost..
Fence Type Flatbed Semi Trailer with Drop Side Board Side Wall and Air Bag Suspension 2

3.Light Design
Lamp assembly uses advanced LED light, top quality PC and cast wire harness in dual circuit design.
Fence Type Flatbed Semi Trailer with Drop Side Board Side Wall and Air Bag Suspension 3

4.Suspension
Different types of suspension are designed for various operating condition, bogie suspension; air suspension;
mechanical suspension.
Fence Type Flatbed Semi Trailer with Drop Side Board Side Wall and Air Bag Suspension 4

5.The Frame
Wosheng trailer frame are beam through the structure, longitudinal beam using straight or gooseneck type. The web height is from 400mm to 550mm manganese plate welding, the rail is welded by automatic submerged welding, the frame is shot peening, and the beam is penetrated into the rail and welded as a whole.
Drawing
Fence Type Flatbed Semi Trailer with Drop Side Board Side Wall and Air Bag Suspension 5
Fence Type Flatbed Semi Trailer with Drop Side Board Side Wall and Air Bag Suspension 6
Specification
Wosheng Side Wall Semi Trailer
Trailer Application
Transport container, loose cargo, bulk cement, bulk rice, Coal etc
Trailer Model
2 Axles
3 Axles
4 Axles
Trailer Brand
Wosheng Trailer
Loading Capacity
30-60T
30T-80T
40T-100T
Product Size(L*W)
13000mm*2500mm
13000mm*2500mm
13000mm*2500mm
Sidewall Height
600mm-1700mm
600mm-1700mm
600mm-1700mm
OEM/ODM
Yes
Yes
Yes
Doors Opening Type
Multi choices
Multi choices
Multi choices
Main Beam Material
Q345/T700
Q345/T700
Q345/T700
Upper Plate Thickness
12mm
16mm
18mm
Middle Plate Thickness
6mm
10mm
12mm
Lower Plate Thickness
14mm
18mm
20mm
Height
500mm
500mm
500mm
Axles
13 Ton Wosheng/FUWA/BPW/Other
                                    Tire
12R22.5 Linglong/Triangle/Double-Coin/Bridgestone/Other
(8 Pieces)
(12 Pieces)
(16 Pieces)
                                  Rim
9.00*22.5 Steel/Aluminum
(8 Pieces)
(12 Pieces)
(16 Pieces)
Leaf Spring
90mm*13mm*10/90mm*16mm*10
Kin Pin
50#(2")/90#(3.5") JOST/Other Brand
Landing Gear
28 Tons Two Speed,JOST/Other Brand
Vehicle Painting
Electrophoresis paint
Above Information are VEHICLE Standard Spec.If customer want to change Spec.Please Let us know.
Fence Type Flatbed Semi Trailer with Drop Side Board Side Wall and Air Bag Suspension 7
Twist Lock:
If you have shipping container requirements you should inform us in advance, we will provide you with 12 sets of twistlocks.
Brake System:
T30/30 Spring brake chamber. WABCO valve,ABS/EBS system optional. dual line brake pipe.
Fence Type Flatbed Semi Trailer with Drop Side Board Side Wall and Air Bag Suspension 8
Fence Type Flatbed Semi Trailer with Drop Side Board Side Wall and Air Bag Suspension 9
Suspension:
Customers can choose mechanical suspension or air suspension.
Specially designed anti-Tire abrasion suspension system,Prevent tire offset after loading, maximally avoid tire
abrasion.Meanwhile,Easy to disassemble and maintain.
Axle:
BPW/FUWA/L1Axle Wosheng optional.
We usually choose Fuwa axles(Chinese best axles) . If you want , we can choose other axles.
Fence Type Flatbed Semi Trailer with Drop Side Board Side Wall and Air Bag Suspension 10
Fence Type Flatbed Semi Trailer with Drop Side Board Side Wall and Air Bag Suspension 11
Tire:
Double Coin/LingLong/Michelin/Triangle/
Bridgestone and other famous brand for choice.Better Performance in wear resistance.
Landing Gear:
The warranty period of Chinese brand/JOST landing gear is more than 5 years. The gearbox uses low temperature premium chassis oil and is rated for service from -30°C to 120°C.
Fence Type Flatbed Semi Trailer with Drop Side Board Side Wall and Air Bag Suspension 12
Fence Type Flatbed Semi Trailer with Drop Side Board Side Wall and Air Bag Suspension 13
Recommend Products
Fence Type Flatbed Semi Trailer with Drop Side Board Side Wall and Air Bag Suspension 14
Fence Type Flatbed Semi Trailer with Drop Side Board Side Wall and Air Bag Suspension 15
Fence Type Flatbed Semi Trailer with Drop Side Board Side Wall and Air Bag Suspension 16
Fence Type Flatbed Semi Trailer with Drop Side Board Side Wall and Air Bag Suspension 17
Fence Type Flatbed Semi Trailer with Drop Side Board Side Wall and Air Bag Suspension 18
Fence Type Flatbed Semi Trailer with Drop Side Board Side Wall and Air Bag Suspension 19
Fence Type Flatbed Semi Trailer with Drop Side Board Side Wall and Air Bag Suspension 20
Fence Type Flatbed Semi Trailer with Drop Side Board Side Wall and Air Bag Suspension 21
Fence Type Flatbed Semi Trailer with Drop Side Board Side Wall and Air Bag Suspension 22
Fence Type Flatbed Semi Trailer with Drop Side Board Side Wall and Air Bag Suspension 23
Fence Type Flatbed Semi Trailer with Drop Side Board Side Wall and Air Bag Suspension 24
Fence Type Flatbed Semi Trailer with Drop Side Board Side Wall and Air Bag Suspension 25
Company Profile
Fence Type Flatbed Semi Trailer with Drop Side Board Side Wall and Air Bag Suspension 26
About us
Shandong Wosheng Special Vehicle Manufacturer Co., LTD.
Our Company mainly produce fence semi trailer, lowbed semi trailer , low fence semi trailer , rear dump semi trailer, container flat semi trailer, fuel oil semi trailer, etc all kinds of semi trailer, Our company have more than 20 years produce and exporting experience Quality is firstly, Credit is our base for business, Welcome to know us and build business relationship.
Fence Type Flatbed Semi Trailer with Drop Side Board Side Wall and Air Bag Suspension 27
Factory :
Our factory commit to strict quality control and thoughtful customer service, our experienced staff can discuss your requirements at any time to ensure your full satisfaction. We not only want to be perfect in
appearance, but also pursue the delicacy of detail. We have advanced modern equipment, strong technical force to ensure customer satisfaction of products and timely delivery.
Fence Type Flatbed Semi Trailer with Drop Side Board Side Wall and Air Bag Suspension 28
Fence Type Flatbed Semi Trailer with Drop Side Board Side Wall and Air Bag Suspension 29
Fence Type Flatbed Semi Trailer with Drop Side Board Side Wall and Air Bag Suspension 30
Packing and Loading
Fence Type Flatbed Semi Trailer with Drop Side Board Side Wall and Air Bag Suspension 31
Container usually us 45 feet
Usually by bulk
Certification
Fence Type Flatbed Semi Trailer with Drop Side Board Side Wall and Air Bag Suspension 32

we have obtained the World material Manufacturing Factory Certificate, 3C Certificate and ISO9000 Quality Management Certification. We are also a national high-tech enterprise and have obtained more than 30 invention patents and utility model patents.
Fence Type Flatbed Semi Trailer with Drop Side Board Side Wall and Air Bag Suspension 33
Fence Type Flatbed Semi Trailer with Drop Side Board Side Wall and Air Bag Suspension 34
We are your most reliable cooperation partner
We are a national high-tech enterprise and have obtained more than 30 invention patents and utility model patents. We have attracted customers from all over the world, whether choosing the current product from our catalog or seeking technical support for your application, you can talk to our customer service colleagues about your procurement needs.
High quality , factory lower price , good service !
Fence Type Flatbed Semi Trailer with Drop Side Board Side Wall and Air Bag Suspension 35
FAQ

Q1. Are you a factory or trade company ? We are a comprehensive industrial and trade enterprise integrating product design, scientific research and development, production and sales. Welcome to visit our factory at any time.

Q2. Could you accept special design and specification? Sure of course. As we all know that the traffic regulations are different in different areas, our professional engineers will design and our well-trained staff will produce according to customer special requirements. Such as: special Size, special control, or OEM/ODM etc.

Q3. Are you looking for an agent? Yes, we're looking for the agent all over the world, you are welcome to contact us for further discussion.

Q4. How to control quality? We set up all process inspection and quality control standard, include raw materials, production process, finished products. Advanced equipment and standard inspection process ensure the quality.

Q5. what services can we provide? Accepted Delivery Terms: EXW, FOB, CFR, CIF
