Product Details:
|
| Use: | Truck Trailer | Type: | Semi-Trailer |
|---|---|---|---|
| Material: | Steel | Size: | 13900*2500*4000mm (customizable) |
| Max Payload: | 40tons | Product Name: | Curtain Side Van Semi Trailer |
| Axle: | 13T 16T BPW/FUWA | Color: | Customer's Request |
| Suspension System: | Mechanical /Air Suspension | Brake System: | Dual Line Brake System WABCO |
| Suspension: | Mechanical Suspension Air Suspension | Tire: | 11.00r20 12r22.5 315 385 |
| King Pin: | 50(2")/#90(3.5") | Leaf Spring: | 90(W)mm*13/16 (Thickness)mm*10(Layer) |
| Brake: | WABCO-ABS |

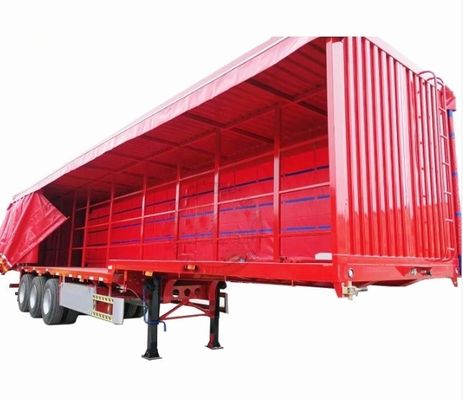

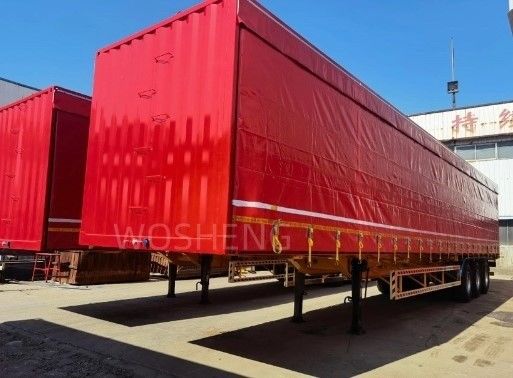

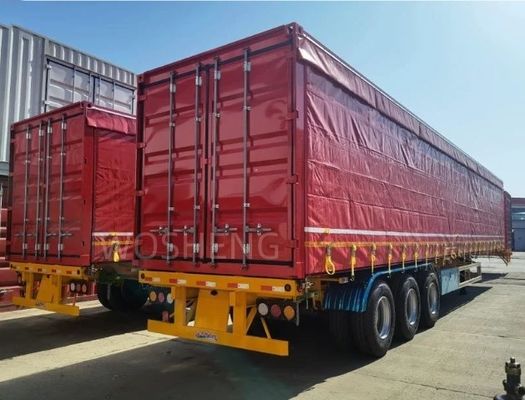

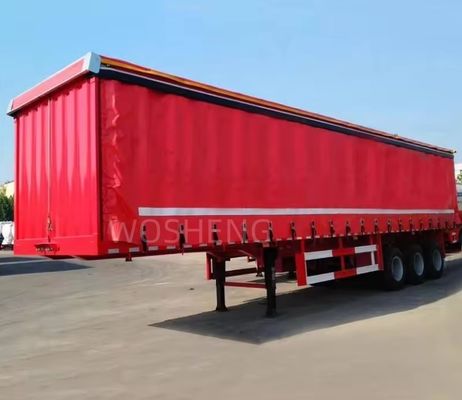

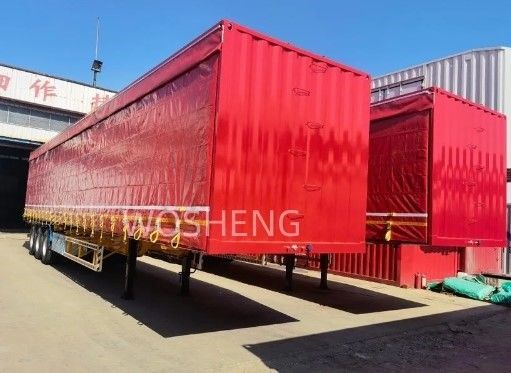

Trailer Model | 3 Axle Curtain Slider Semi Trailer |
Overall Dimension (Lx W x H)(mm) | 13900*2500*4000 (customizable) |
Tare Weight(KG) | 7000 |
Loading Weight( KG) | 40000 |
Total Weight(KG) | 50000 |
Axle Brand | 13Ton Axle FuWa Brand |
Axle Number | Three |
Wheelbase(mm) | 7450+1310+1310 |
Suspension system | Mechanical Suspension |
Steel Spring | 10/10/10 leaf spring suspension |
The material of Main beam | The height of the beam is 500mm, upper plate is14mm, down plate is 16mm, middle plate is 8mm. |
Side Beam | 18mm |
Platform plate | 3mm Diamond plate |
Curtain Height | 2000mm |
Slider | Manual operation |
Tire Type and quantity | 11.00r20 12r22.5 315 385 13units brand optional |
Traction Pin | 50(2")/#90(3.5") |
Spare Wheel Bracket | 1 pieces |
Tool Box | 1 Standard |
Landing Gear | 28ton |
Brake system | Dual Line braking system, WEBCO valve, with ABS |
Brake air chamber | Six big chamber |
Electrical system | 1. Voltage: 24v |
2. Receptacle: 7 ways (7 wire harness) | |
Side Guard | Tail lamp with turn signal, brake light & reflector, side lamp etc.One set 6-core standard Cable. Accept customization. |
Painting | Color as customer’s requirement |
Packing | Unpacked, Polish with wax before shipping |
Delivery way | From China port, and carry by container ship, ro-ro ship or bulk ship, the freight cost depends on the volume. |
