Product Details:
|
| Use: | Truck Trailer | Type: | Semi-Trailer |
|---|---|---|---|
| Material: | Steel | Size: | 13900*2500*4000mm (customizable) |

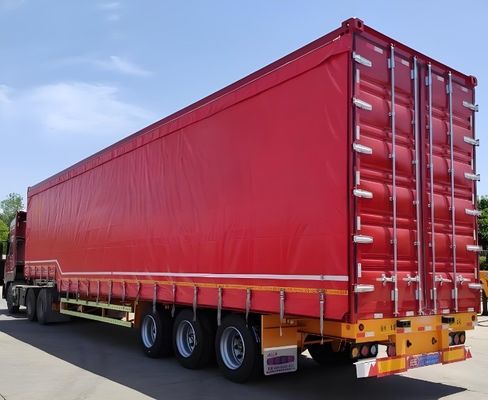

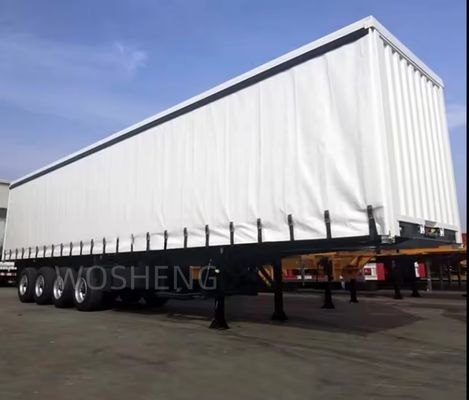

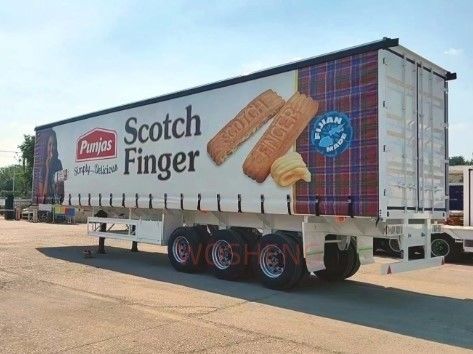

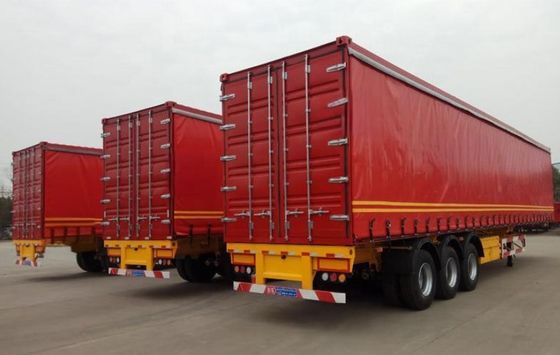

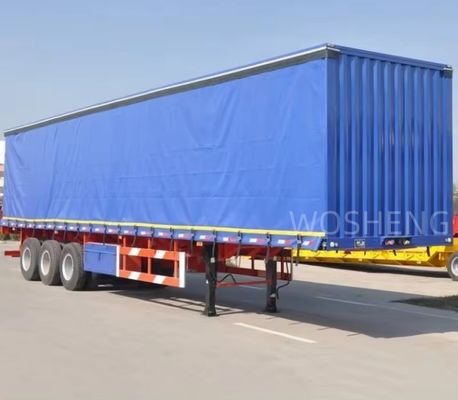

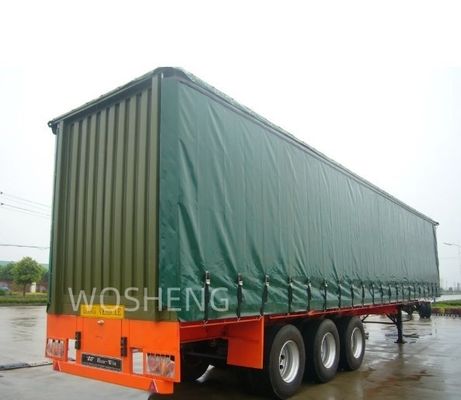

| Max Payload: | 50 Ton | Product Name: | Curtain Side Van Semi Trailer |
| Axle: | 13T 16T BPW/FUWA | Color: | Customer's Request |
| Suspension System: | Mechanical /Air Suspension | Brake System: | Dual Line Brake System WABCO |
| Suspension: | Mechanical Suspension Air Suspension | Tire: | 11.00r20 12r22.5 315 385 |
| King Pin: | 50(2")/#90(3.5") | Leaf Spring: | 90(W)mm*13/16 (Thickness)mm*10(Layer) |
| Brake: | WABCO-ABS |
Product Name | Skeleton Semi Trailer | |||
Dimension(Lx W x H)（mm） | Outside 12380×2480×1550mm (customizable) | |||
Tare weight(kg) | 6500 (depends on final configuration) | |||
Max Loading Capacity (kg) | 50000 （customizable) | |||
Main Beam | Q345B / T700 Steel Height 500mm upper plate is 14mm, down plate is 16mm, middle plate is 8mm. (customizable) | |||
Axles | 13/16/20 Ton. Axle amount optional like 2/3/4axles ..., Axle brand optional like SAF /FUWA/BPW etc | |||
Tire | 12.00R22.5/315 80R22.5/11.00R20/12.00R20(Brand optional) | |||
Rim | 9.00-22.5/8.00-20/8.50-20 | |||
King Pin | 2"(50mm)or3.5"(90mm) JOST or other brand optional | |||
Suspension | Mechanical Suspension Air Suspension(American or Geman) | |||
Leaf Spring | 90(w)mm*13/16(thickness)mm*10(layer) | |||
Landing Gear | 28t Heavy Duty Landing Gear. Brand optional FUWA/JOST etc. | |||
Twist-lock | 4/8/12 units (customizable) | |||
Brake System | Dual line brake system, Air chamber T30/30,3 X 40L gas storage drums | |||
ABS System | None or installed as your requirement. | |||
Electrical system | 1. Voltage: 24v waterproof 2. Receptacle: 7 ways (7 wire harness); LED light ( standard rear light, turn light, rear reflector, side light, side reflector etc.) | |||
Color | As per customer requirement | |||
Spare wheel bracket | 1 piece of Spare Wheel Bracket | |||
Tool box | 1 set of standard tool box equipped with 1 Tire spanner, 1gudgeon sleeve and 1 cranking bar | |||
Painting | Sand blasting before painting;one coats of primer, anti corrosion; two coat of finish painting | |||
Packing | Wax painting treatment to protect the vehicles from sea water, and the chassis greased to avoid rusting during shipping. | |||
Delivery | From China port, and carry by container ship, ro-ro ship or bulk ship, the freight cost depends on the volume. |
