Product Details:
|
| Use: | Truck Trailer, Truck Trailer | Type: | Semi-Trailer |
|---|---|---|---|
| Material: | Steel, Steel | Size: | 12400*2610*1550mm (customizable), 12400*2610*1550mm (customizable) |
| Max Payload: | >30000 Kg | Color: | Customization |
| Axle: | 13/16 Ton, 3 Axles FUWA | King Pin: | 2"(50mm)or3.5"(90mm) JOST Or Other Brand |
| Suspension: | Mechanical Suspension | Rim: | 9.00-22.5/8.00-20/8.5-20 |
| Tire: | 12.00R22.5(Brand Optional) |

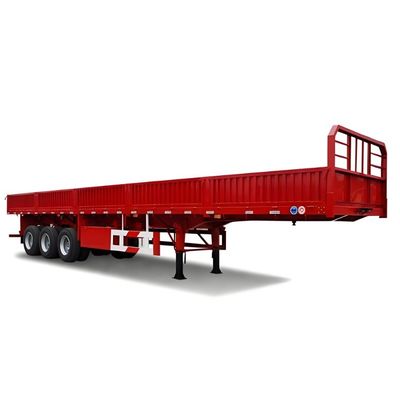

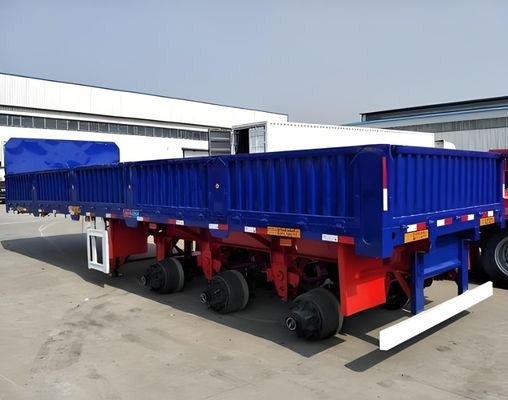

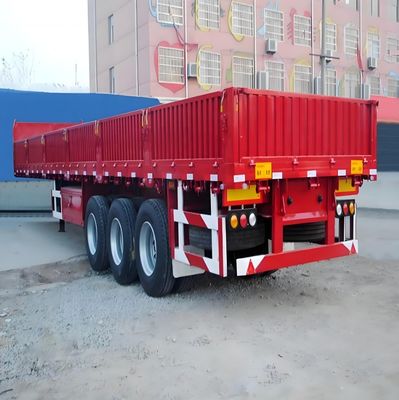

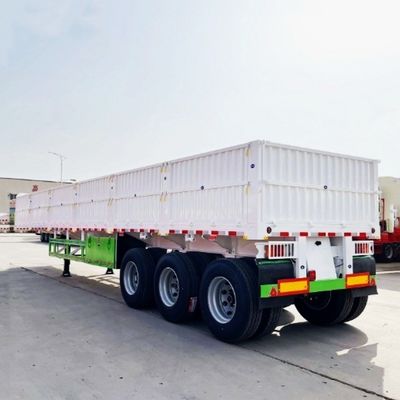

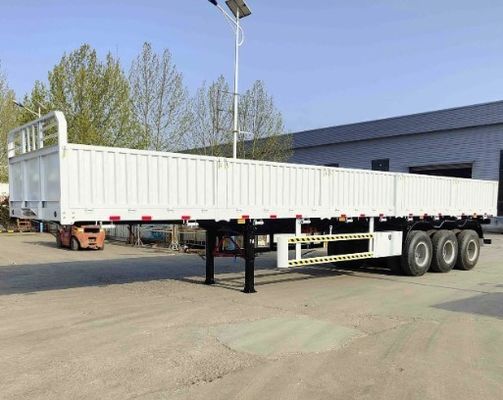

Product Name | Side wall Semi Trailer |
Dimension(Lx W x H)（mm） | 12400*2610*1550mm (customizable) |
Inside dimension | 12280mm*2300mm8600mm （customizable) |
Tare weight (kg) | 7500 (depends on final configuration) |
Max Loading Capacity (kg) | ＞30tons（customizable) |
Main Beam | Q345B / T700 Steel Height 500mm upper plate is 14mm, down plate is 16mm, middle plate is 8mm. (customizable) |
Side Beam | 16mm channel steel(material is Q235B steel) |
Bottom plate thickness (mm) | 3mm (customizable) |
Sidewall Thickness (mm) | 1.2mm (customizable) |

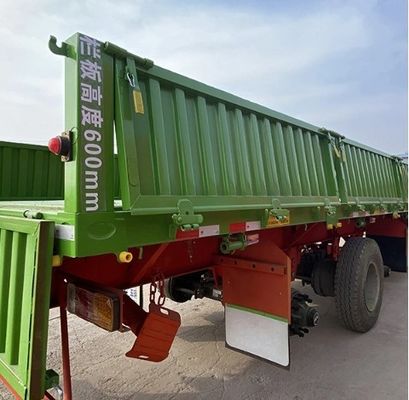

side wall height | 600mm (customizable) |
Axles | 13/16/20 Ton. Axle amount optional like 2/3/4axles ..., Axle brand optional like SAF /FUWA/BPW etc |
Tire | 12.00R22.5/315 80R22.5/11.00R20/12.00R20(Brand optional) |
Rim | 9.00-22.5/8.00-20/8.50-20 |
King Pin | 2"(50mm)or3.5"(90mm) JOST or other brand optional |
Suspension | Mechanical Suspension Air Suspension(American or Geman) |
Leaf Spring | 90(w)mm*13/16(thickness)mm*10(layer) |
Twist-lock | 12 units (customizable) |
Landing Gear | 28t Heavy Duty Landing Gear. Brand optional FUWA/JOST etc. |
Brake System | Dual line brake system, Air chamber T30/30, 3 X 40L gas storage drums |
ABS System | None or installed as your requirement. |
Electrical system | 1. Voltage: 24v waterproof 2. Receptacle: 7 ways (7 wire harness); LED light ( standard rear light, turn light, rear reflector, side light, side reflector etc.) |
Color | As per customer requirement |
Spare Wheel Bracket | 1 piece of Spare Wheel Bracket |
Tool box | 1 set of standard tool box equipped with 1 Tire spanner, 1 gudgeon sleeve and 1 cranking bar |
Painting | Sand blasting before painting;one coats of primer, anti- corrosion; two coat of finish painting; |
Packing | Wax painting treatment to protect the vehicles from sea water, and the chassis greased to avoid rusting during shipping. |
Delivery | From China port, and carry by container ship, ro-ro ship or bulk ship, the freight cost depends on the volume. |
Remarks | Our senior engineer can design semi trailer as your request, and we accept OEM/ODM projects. |
Electrical SYSTEM | 1. Voltage: 24v waterproof 2. Receptacle: 7 ways (7 wire harness); LED light ( standard rear light, turn light, rear reflector, side light, side reflector etc.) |
Spare Wheel Bracket | 1 piece of Spare Wheel Bracket |
Accessory | 1 set of standard tool box equipped with 1 Tire spanner, 1 gudgeon sleeve and 1 cranking bar |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosion prime,2 coats of final paint |
Packaging and delivery | Wax painting treatment to protect the vehicles from sea water, and the chassis greased to avoid rusting during shipping.From China port, and carry by container ship, ro-ro ship or bulk ship, the freight cost depends on the volume. |
remarks | Our senior engineer can design semi trailer as your request, and we accept OEM/ODM projects. |
