Product Details:
|
| Use: | Truck Trailer | Type: | Semi-Trailer |
|---|---|---|---|
| Material: | Steel | Size: | 13000*2550*2900mm |
| Max Payload: | >30000 Kg | Function: | Sand Stone Grain Transporting |
| Main Beam: | Q345B / T700 Steel | Color: | Customer's Request |
| Leaf Spring: | 90(w)mm*13/16(thickness)mm*10Layer | Brake System: | Dual Line Brake System |
| King Pin: | 2"(50mm)or3.5"(90mm) JOST Or Other Brand | Axle: | 13/16 Ton, 3 Axles FUWA/Wosheng |
| Suspension: | Mechanical Suspension | Landing Gear: | Heavy Duty Landing Gear 28t |
| Tire: | 12.00R22.5/11.00R20(Brand Optional) |
Loading Capacity | ＞30 tons |
Landing Gear | China brand standard 28Tons |
Receptacle | 7 ways (7 wire harness) |
Tool box | One piece 1m *0.5m*0.5m ( size can be customized) |
Manufacturer | Shandong Wosheng Special Vehicle Manufacturing Co.,Ltd |

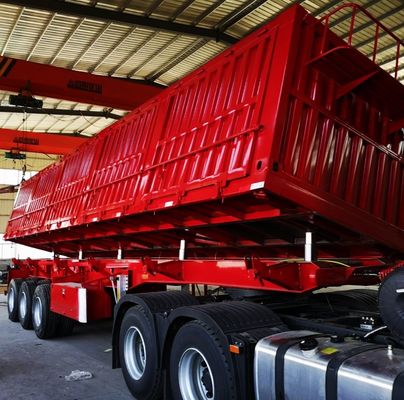

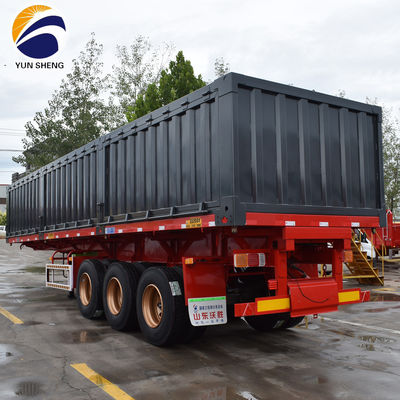

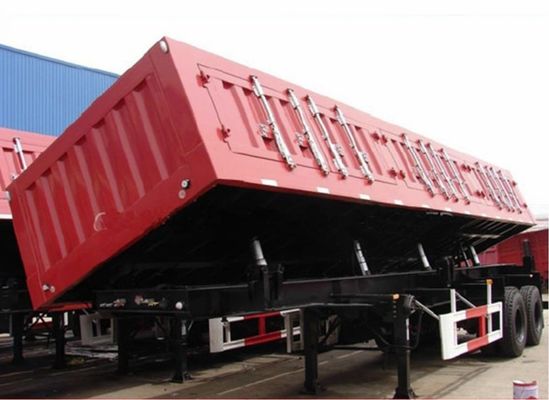

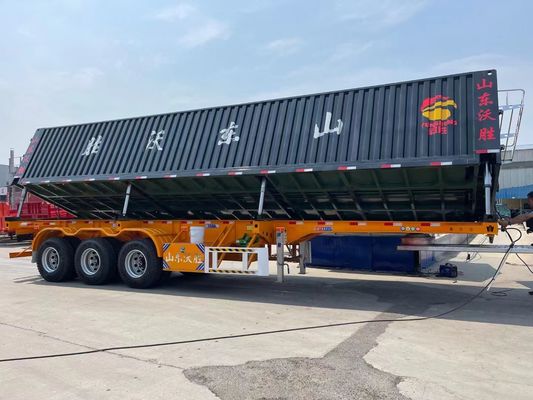

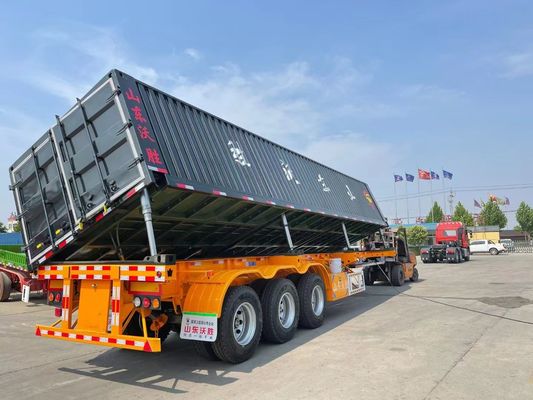

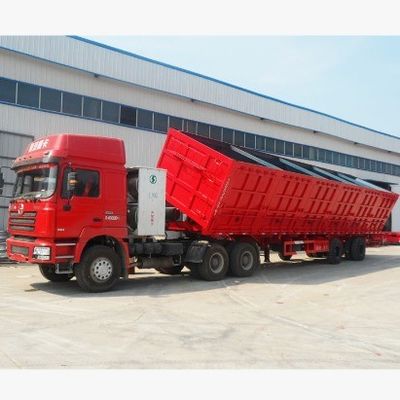

Type | Side Dump semi trailer |
Semi trailer Dimension | 13000*2550*2900mm(can be customized) |
Inside dimension | 12800mm*2350mm600mm （can be customized) |
Side wall height | 600mm |
Side wall thicknes(mm) | 1.5mm - 2.5mm Q235 steel |
Door | Vertical corrugated, 2mm thickness zinc-iron alloy bending parts. |
Door frame | 50*70*2 high strength pipe |
Tare weight | 8.5 tons |
Bottom plate thickness(mm) | 2mm zinc-rion alloy plate or 3mm plain plate |
Lifting system | 130 Hydraulic Lifting Cylinder |
Main beam | Q345B Steel Height: 500mm upper plate is 14mm middle plate is 8mm down plate is 16mm |
Axle | 13T/16T,FUWA/BPW/ WS etc |
Spring leaf | 90(w)mm*13/16(thickness)mm*10Layer |
King pin | 90# or 50# |
Landing Gear | China brand standard 28Tons |
Suspension | Mechanical suspension |
Rim | 9.00-22.5/8.00-20/8.5-20 |
Tire | 12.00R22.5/315 80R22.5/11.00R20/12.00R20 Various tire brands are available |
Braking system | WABCO RE 6 relay valve;T30/30+T30 Spring brake chamber, 45L air tank |
Tool box | One piece 1m *0.5m*0.5m (accept customized size) |
Spare wheel carrier | 1 set |
Painting | 1. Sand blasting processing clean rust 2.coat of anticorrosive prime, 3 coats of final paint 4.colors optional |
