Product Details:
|
| Use: | Truck Trailer | Type: | Semi-Trailer |
|---|---|---|---|
| Material: | Steel, Steel | Size: | 13000*2550*2900mm(customized) |

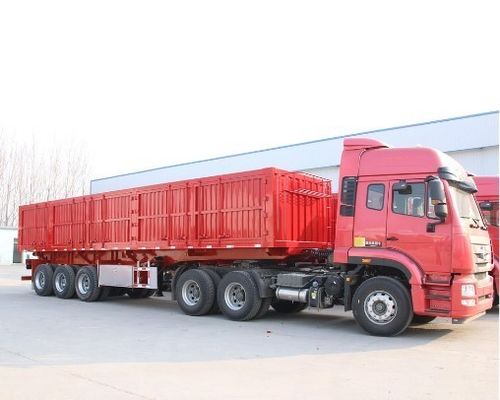

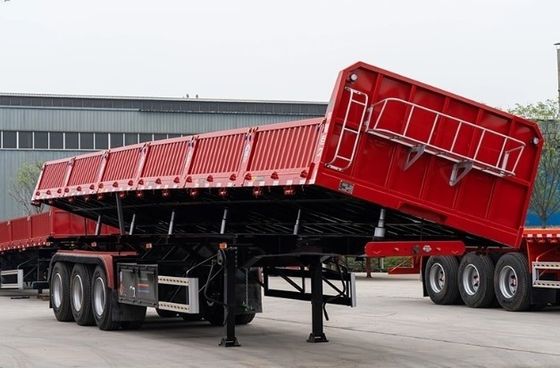

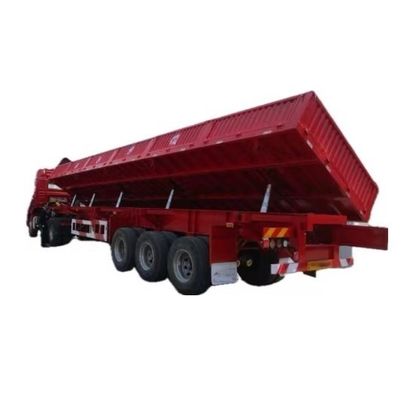

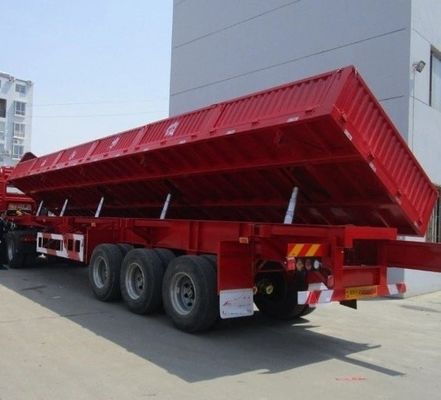

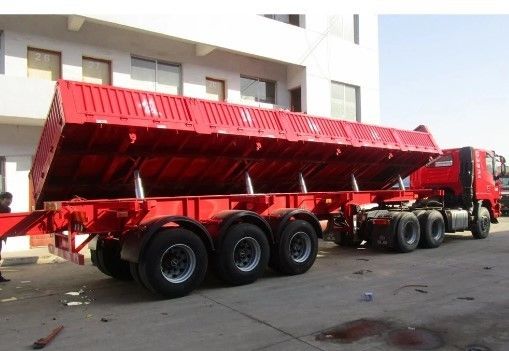

| Max Payload: | 30-100tons | Product Name: | Wosheng 3 Axles Side Dump Semi Trailer Side Tipper Trailer Truck |
| Use: | Truck Triler | Axle: | 13/16 Ton Fuwa/BPW/WOSHENG |
| Rim: | 9.00*22.5/8.00-20/8.5-20 | King Pin: | 2"(50mm)or3.5"(90mm) |
| Suspension: | Mechanical Suspension | Leaf Spring: | 90(w)mm*13/16(thickness)mm*10Layer |
| Condition: | New | Color: | Customers' Request |
Product Name | Wosheng 3 axles side dump semi trailer side tipper trailer truck |
Axle | 13T/16T, FUWA/BPW/WS etc |
Rim | 9.00*22.5/8.00-20/8.5-20 |
King Pin | 90# or 50# |
Loading Capacity | 30-100 ton |
Landing Gear | China brand standard 28Tons |
Receptacle | 7 ways (7 wire harness) |
Tool box | One piece 1m *0.5m*0.5m ( size can be customized) |
Manufacturer | Shandong Wosheng Special Vehicle Manufacturing Co.,Ltd |
Type | Side Dump semi trailer |
Semi trailer Dimension | 13000*2550*2900mm(can be customized) |
inside dimension | 12800mm*2350mm600mm （can be customized) |
side wall height | 600mm |
Side wall thicknes(mm) | 1.5mm - 2.5mm Q235 steel |
Door | Vertical corrugated, 2mm thickness zinc-iron alloy bending parts. |
Door Frame | 50*70*2 high strength pipe |
Tare Weight | 8.5 tons |
Bottom plate thickness(mm) | 2mm zinc-rion alloy plate or 3mm plain plate |
Lifting system | 130 Hydraulic Lifting Cylinder |
Main beam | Q345B Steel Height: 500mm upper plate is 14mm middle plate is 8mm down plate is 16mm |
Axle | 13T/16T,FUWA/BPW/ WS etc |
Spring leaf | 90(w)mm*13/16(thickness)mm*10Layer |
King pin | 90# or 50# |
Landing Gear | China brand standard 28Tons |
Suspension | Mechanical suspension |
Rim | 9.00-22.5/8.00-20/8.5-20 |
Tire | 12.00R22.5/315 80R22.5/11.00R20/12.00R20 Various tire brands are available |
Braking system | WABCO RE 6 relay valve;T30/30+T30 Spring brake chamber, 45L air tank |
Tool box | One piece of 1m *0.5m*0.5m (accept customized size) equipped with 1 Tire spanner, 1 gudgeon sleeve and 1 cranking bar |
Spare wheel carrier | 2 piece of Spare Wheel Bracket |
Packing | Wax painting treatment to protect the vehicles from sea water, and the chassis greased to avoid rusting during shipping. |
Delivery | From China port, and carry by container ship, ro-ro ship or bulk ship, the freight cost depends on the volume. |
Painting | 1. Sand blasting processing clean rust 2.coat of anticorrosive prime, 3 coats of final paint 4.colors optional |
