30-100 tons payload side tipping semi trailer 13000x2550x2900 for truck and bulk cargo

30-100 tons payload side tipping semi trailer 13000x2550x2900 for truck and bulk cargo
30-100 tons payload side tipping semi trailer 13000x2550x2900 for truck and bulk cargo 30-100 tons payload side tipping semi trailer 13000x2550x2900 for truck and bulk cargo 30-100 tons payload side tipping semi trailer 13000x2550x2900 for truck and bulk cargo 30-100 tons payload side tipping semi trailer 13000x2550x2900 for truck and bulk cargo 30-100 tons payload side tipping semi trailer 13000x2550x2900 for truck and bulk cargo 30-100 tons payload side tipping semi trailer 13000x2550x2900 for truck and bulk cargo

Large Image :  30-100 tons payload side tipping semi trailer 13000x2550x2900 for truck and bulk cargo

Product Details:
Place of Origin: Shandong, China
Brand Name: WS
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $9,000.00/sets 1-4 sets
Payment Terms: T/T, L/C
Contact Now

30-100 tons payload side tipping semi trailer 13000x2550x2900 for truck and bulk cargo

Description
Use: Truck Trailer Type: Semi-Trailer, Side Tipping Semi Trailer
Material: Steel, Q345B/T700 Size: 13000x2550x2900
Max Payload: >30000 Kg Axles: 2/3/4axles
Tare Weight: 8.5 T Color: Customized Color
Painting: Customization Payload: 100 T
Tire Specification: 12R22.5 Customized Rim: 9.0-22.5
Lead Time: 10 Days

Products Description
30-100 tons payload side tipping semi trailer 13000x2550x2900 for truck and bulk cargo 0

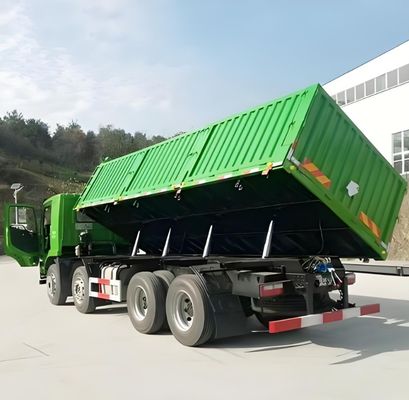

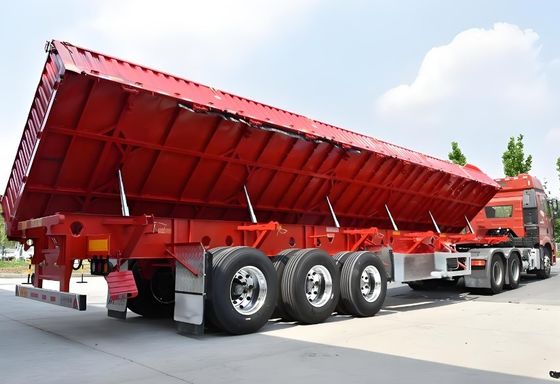

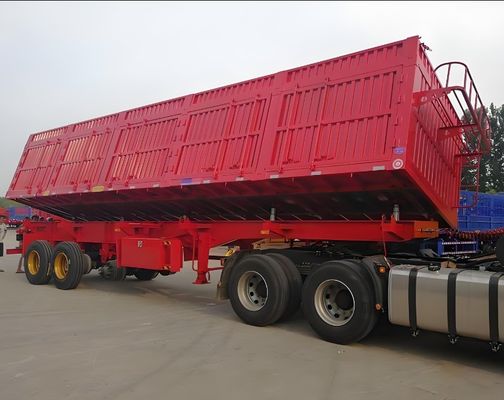

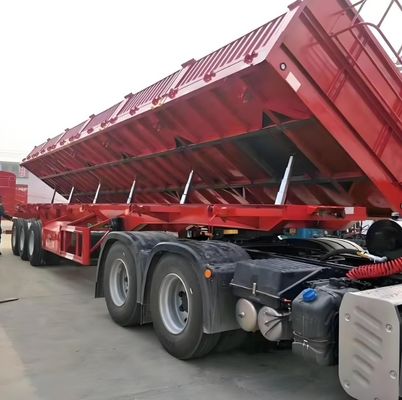

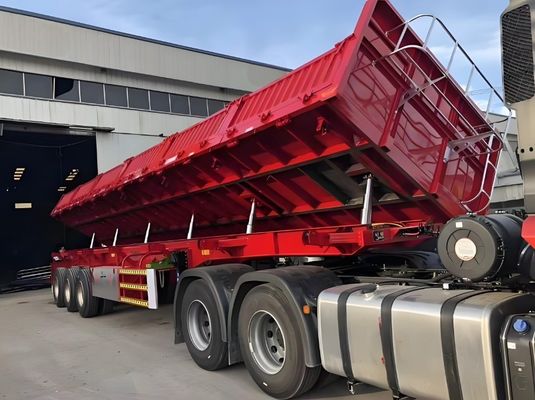

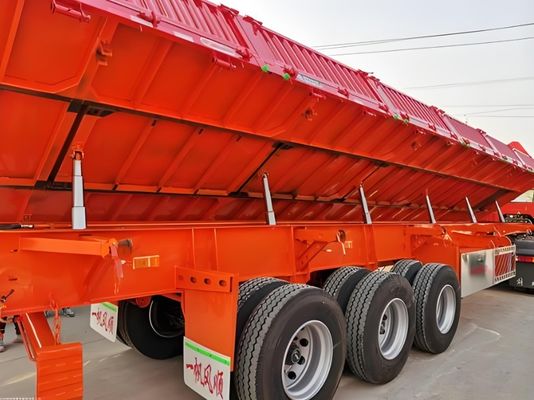

Side dump semi trailer
Side tipping dump semi trailer is a special transport vehicle, mainly used for transporting and unloading  bulk materials, such as sand , coal, construction wast etc. the biggest feature is that can quickly unload goods throng the rollover mechanism,.
30-100 tons payload side tipping semi trailer 13000x2550x2900 for truck and bulk cargo 1
30-100 tons payload side tipping semi trailer 13000x2550x2900 for truck and bulk cargo 2
30-100 tons payload side tipping semi trailer 13000x2550x2900 for truck and bulk cargo 3
Specification
Detail Specification
Items
side tipping dump semi trailer
Tare Weight
8.5 Tons (depends on final configuration)
Payload
30-100 tons or cutomizable
Size
13000x2550x2900(customizable)
Inside
12800x2350x600mm
Main Beam
Q345B/T700 steel
Height 500mm
Upper Plate is 14mm
Down plate is 16mm
Middle plate is 8mm or customization
Bottom plate thickness
2mm zinc-rion alloy plate or 3mm plain plate (customizable)
Sidewall Height
600mm (customization)
Sidewall Thickness
Thickness 1.5-2.5mm Q235 steel (customization)
Lifting system
130 hydraulic lifting cylinder
Axles
13/16/20 tons, axle amount optional like 2/3/4 axles etc, axle brand optional like SAF, FUWA, BPW etc
King pin
2.00"(50#), bolting king pin, JOST  or another brand according to customer
Suspension
Mechanical suspension air suspension (American or Geman)
Leaf Spring
Six sets of reliable famous brand , 10pcs leaf spring, thickness 13mm. width 90mm
Landing gear
28tons lifting capacity , Brand optinal FUWA/JOST etc can be choose
Tire specs
12R22.5/315 80R22.5/11R20/12R20 Choose freely
 Braking system
dual line brake system , Air chamber T30/30 3X40L gas storage drums
Rim
9.00-22.5 /8.00-20/8.5-20
ABS system
None or installed as your requirement.
Painting
Sanding , anti-corrosion , one primer paining add two layer top coat painting
Side Gurd
According to customer
Electrical system
24 volt electrical system 7 pin electrical connector, Parking stop, reverse, number plate and indicator lights, rear lights conform to european  standard, rear front and side reflectors
spare tire
Two set of heavy duty spare wheel carriers, indluding a riser
Tool Box
One Piece (1.0 x 5.0 m) with 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar
Color
According to customers requirements
Packing
Polish with wax before shipping
Delivery
From China Port and carry by container ship, ro-ro ship or by bulk
Remark
Our senior engineer can design semi trailer as your request, and we accept OEM/ODM projects
30-100 tons payload side tipping semi trailer 13000x2550x2900 for truck and bulk cargo 4

Suspention - Anti-Tire Abrasion

Specially designed anti-Tire abrasion suspension system prevent tire deflection after loading and avoids tires to the maximum extent worn out. and easy to disassemble and maintain
30-100 tons payload side tipping semi trailer 13000x2550x2900 for truck and bulk cargo 5

Reinforcement

The reinforcement at the fulcrum is very important , the more the fulcrum reinforcement, the higher the reliability, most of us use triangular three-dimensional reinforcement, more reinforcement points can make the rollover dump semi-trailer more robust in use
30-100 tons payload side tipping semi trailer 13000x2550x2900 for truck and bulk cargo 6

Axle suspension and brake system

BPW Fuwa worldwide best axles worki with WABCO brake valve, More effectively brake for safe and save tire cost , Fix quality springs and suspension , support longer service life, save maintain cost
30-100 tons payload side tipping semi trailer 13000x2550x2900 for truck and bulk cargo 7

Landing Gear

The warranty period of Chinese brand/JOST landing gear is more than 5 years. The gearbox uses low temperature premium chassis oil and is rated for service from -30°C to 120°C
30-100 tons payload side tipping semi trailer 13000x2550x2900 for truck and bulk cargo 8

Leaf Spring

Usually six sets, 10pcs leaf spring , 13mm thickness, 90mm width
30-100 tons payload side tipping semi trailer 13000x2550x2900 for truck and bulk cargo 9

Stronger instruction



Recommend Products
30-100 tons payload side tipping semi trailer 13000x2550x2900 for truck and bulk cargo 10
30-100 tons payload side tipping semi trailer 13000x2550x2900 for truck and bulk cargo 11
30-100 tons payload side tipping semi trailer 13000x2550x2900 for truck and bulk cargo 12
30-100 tons payload side tipping semi trailer 13000x2550x2900 for truck and bulk cargo 13
30-100 tons payload side tipping semi trailer 13000x2550x2900 for truck and bulk cargo 14
30-100 tons payload side tipping semi trailer 13000x2550x2900 for truck and bulk cargo 15
30-100 tons payload side tipping semi trailer 13000x2550x2900 for truck and bulk cargo 16
30-100 tons payload side tipping semi trailer 13000x2550x2900 for truck and bulk cargo 17
30-100 tons payload side tipping semi trailer 13000x2550x2900 for truck and bulk cargo 18
30-100 tons payload side tipping semi trailer 13000x2550x2900 for truck and bulk cargo 19
30-100 tons payload side tipping semi trailer 13000x2550x2900 for truck and bulk cargo 20
30-100 tons payload side tipping semi trailer 13000x2550x2900 for truck and bulk cargo 21
Company Profile
30-100 tons payload side tipping semi trailer 13000x2550x2900 for truck and bulk cargo 22
About us
Shandong Wosheng Special Vehicle Manufacturer Co., LTD.
Our Company mainly produce fence semi trailer, lowbed semi trailer , low fence semi trailer , rear dump semi trailer, container flat semi trailer, fuel oil semi trailer, etc all kinds of semi trailer, Our company have more than 20 years produce and exporting experience Quality is firstly, Credit is our base for business, Welcome to know us and build business relationship.
30-100 tons payload side tipping semi trailer 13000x2550x2900 for truck and bulk cargo 23
30-100 tons payload side tipping semi trailer 13000x2550x2900 for truck and bulk cargo 24
Factory :
Our factory commit to strict quality control and thoughtful customer service, our experienced staff can discuss your requirements at any time to ensure your full satisfaction. We not only want to be perfect in
appearance, but also pursue the delicacy of detail. We have advanced modern equipment, strong technical force to ensure customer satisfaction of products and timely delivery.
30-100 tons payload side tipping semi trailer 13000x2550x2900 for truck and bulk cargo 25
Packing and Loading
30-100 tons payload side tipping semi trailer 13000x2550x2900 for truck and bulk cargo 26
Container usually us 45 feet
Usually by bulk
Certification
30-100 tons payload side tipping semi trailer 13000x2550x2900 for truck and bulk cargo 27

we have obtained the World material Manufacturing Factory Certificate, 3C Certificate and ISO9000 Quality Management Certification. We are also a national high-tech enterprise and have obtained more than 30 invention patents and utility model patents.
30-100 tons payload side tipping semi trailer 13000x2550x2900 for truck and bulk cargo 28
30-100 tons payload side tipping semi trailer 13000x2550x2900 for truck and bulk cargo 29
We are your most reliable cooperation partner
We are a national high-tech enterprise and have obtained more than 30 invention patents and utility model patents. We have attracted customers from all over the world, whether choosing the current product from our catalog or seeking technical support for your application, you can talk to our customer service colleagues about your procurement needs.
High quality , factory lower price , good service !
30-100 tons payload side tipping semi trailer 13000x2550x2900 for truck and bulk cargo 30
FAQ

Q1. Are you a factory or trade company ? We are a comprehensive industrial and trade enterprise integrating product design, scientific research and development, production and sales. Welcome to visit our factory at any time.

Q2. Could you accept special design and specification? Sure of course. As we all know that the traffic regulations are different in different areas, our professional engineers will design and our well-trained staff will produce according to customer special requirements. Such as: special Size, special control, or OEM/ODM etc.

Q3. Are you looking for an agent? Yes, we're looking for the agent all over the world, you are welcome to contact us for further discussion.

Q4. How to control quality? We set up all process inspection and quality control standard, include raw materials, production process, finished products. Advanced equipment and standard inspection process ensure the quality.

Q5. what services can we provide? Accepted Delivery Terms: EXW, FOB, CFR, CIF
