Product Details:
|
| Use: | Truck Trailer | Type: | Semi-Trailer |
|---|---|---|---|
| Material: | Steel | Size: | 1300x3000x1700mm |
| Max Payload: | 120t | Color: | According To Customer |
| Axle: | 3/4 Axle Pcs | King Pin: | 50#(2") Welded On Plate (option 90#) |
| Rim: | 9.0-22.5 | Tire: | 12R22.5 Customi |
| Lead Time: | 15dyas | Suspension: | Air Or Mechanical |
| Brake System: | Air Drum Brake | Tare Weight: | 9500kgs |
| Condition: | New |
Detail Specification | ||

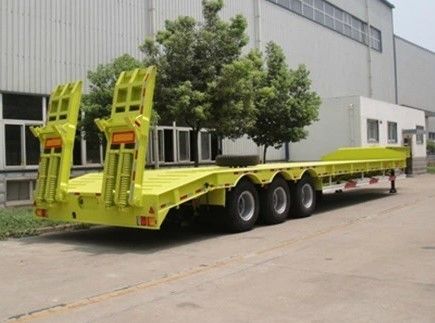

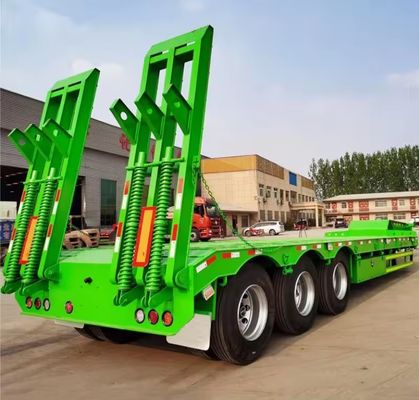

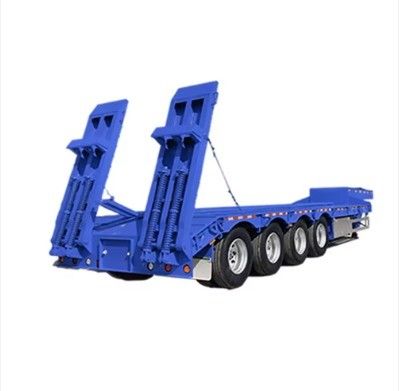

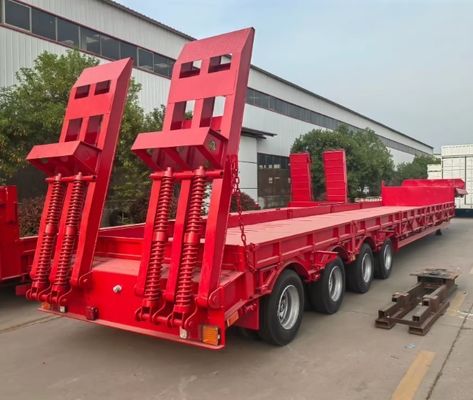

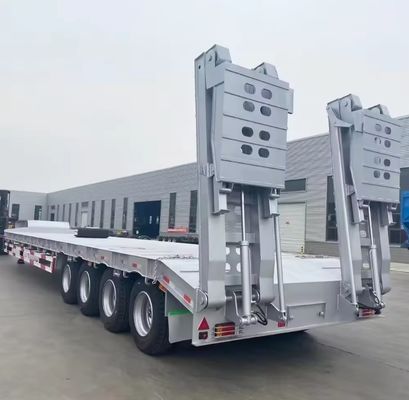

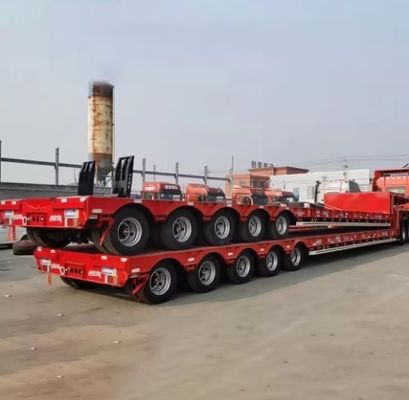

Items | lowbed semi trailer | |
Tare Weight | 9.5 Tons | |
Payload | 80 Tons | |
Size | 13-18x2.5x3.3m or customization | |
Frame | The height of the beam is 500mm, upper plate is 20mm, down plate is 20mm middle plate is 12mm, or accoding to customer's requirement | |
Platform plate | 4mm diamond plate | |
Axles | 3 axles, square axle with 13 tons capacity FUWA brand , or 2 4 5 axle can be choose | |
King pin | 2.00"(50#), bolting king pin, JOST brand | |
Suspension | Heavy duty type tri-axles suspension with equalizers. American design | |
Steel Spring | Six sets of reliable famous brand , 10pcs leaf spring, thickness 13mm. width 90mm | |
Landing gear | 28tons lifting capacity , two speed | |
Tire specs | 12R22.5 Triangle brand , or another brand according to customer | |
Rim | 9.00-22.5 brand according to customer | |
Paiting | Sanding , anti-corrosion , one primer paining add two layer top coat painting | |
Side Gurd | According to customer | |
Electrical system | One unit of 24v 7-pin ISO 1185 socket: LED light | |
spare tire | Two set of heavy duty spare wheel carriers, indluding a riser | |
Tool Box | One Piece (1.0 x 5.0 m) with 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar | |
