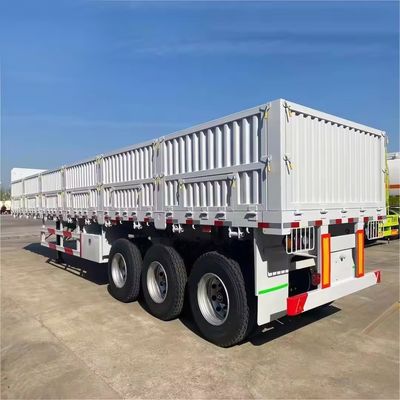

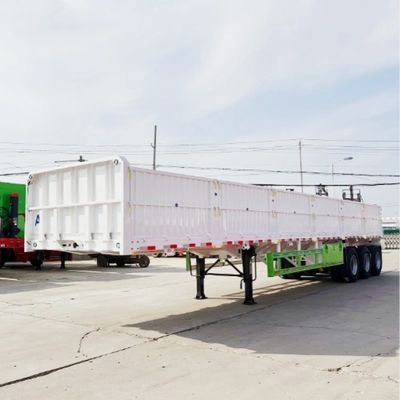

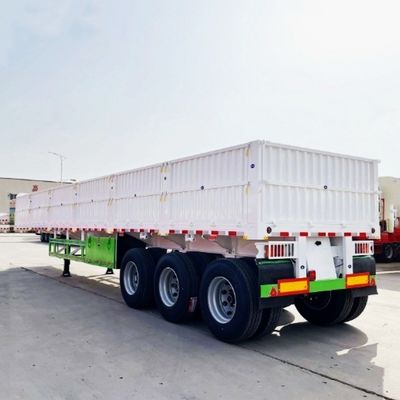

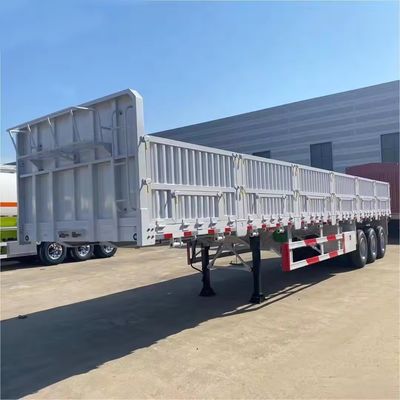

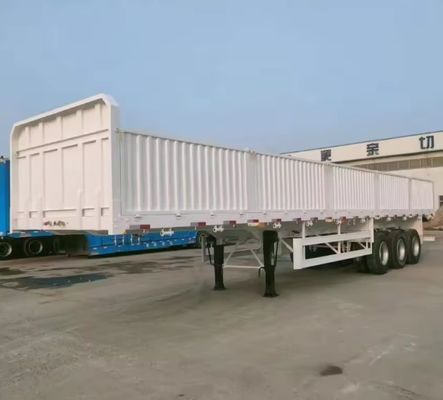

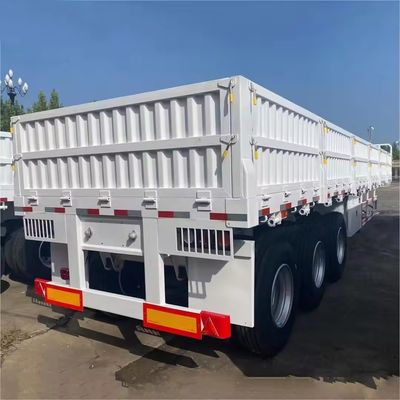

Product Details:
|
| Use: | Truck Trailer | Type: | Semi-Trailer |
|---|---|---|---|
| Material: | Steel | Size: | 12400X2500X3650mm |
| Max Payload: | 40-80ton | Usage: | Truck Trailer |
| Color: | Customer's Request | Landing Gear: | Two Speed 28t Heavy Duty Landing Gear |
| Suspension: | Mechanical Suspension | King Pin: | 2"(50mm)or3.5"(90mm) JOST Or Other Brand |
| Axle: | 13/16 Ton, 3 Axles FUWA | Tire: | 12.00R22.5(Brand Optional) |
| Brake System: | Wabco Re 6 Relay Valve T30/30 Spring Brake Chamber 3 X 40L Air Tanks |
Max payload | 40-80TON |
Dimension(L*W*H) | 12400*2610*1550mm |
Main Beam | Q345B / T700 Steel Height 500mm upper plate is 14mm, down plate is 16mm, middle plate is 8mm. (customizable) |
Side Beam | 16mm channel steel(material is Q235B steel) |
Leaf Spring | 90(w)mm*13(thickness)mm*10(layer) |
Landing Gear | 28t Heavy Duty Landing Gear. Brand optional FUWA/JOST etc. |
Brake System | 1. Voltage: 24v waterproof 2. Receptacle: 7 ways (7 wire harness); LED light ( standard rear light, turn light, rear reflector,side light, side reflector etc.) |
King Pin | 2"(50mm)or3.5"(90mm) JOST or other brand |
Axle | 13/16/20 Ton, 4 axles SAF /FUWA/BPW/WOSHENG |
Suspension | Mechanical Suspension Air Suspension(American or Geman) |
Tire | 12.00R22.5/315 80R22.5/11.00R20/12.00R20(Brand optional) |
Rim | 9.00-22.5/8.00-20/8.50-20 |
ABS System | installed as your requirement. |
Electrical SYSTEM | 1. Voltage: 24v waterproof 2. Receptacle: 7 ways (7 wire harness) |
Accessory | 1 set of standard tool box equipped with 1 Tire spanner, 1 gudgeon sleeve and 1 cranking bar |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosion prime,2 coats of final paint |
Packaging and delivery | Wax painting treatment to protect the vehicles from sea water, and the chassis greased to avoid rusting during shipping.From China port, and carry by container ship, ro-ro ship or bulk ship, the freight cost depends on the volume. |
remarks | Our senior engineer can design semi trailer as your request, and we accept OEM/ODM projects. |
