Product Details:
|
| Use: | Truck Trailer | Type: | Semi-Trailer |
|---|---|---|---|
| Material: | Steel | Size: | 12400X2500X3650mm |
| Max Payload: | 40-80ton | Usage: | Truck Trailer |
| Color: | Customer's Request | Landing Gear: | Two Speed 28t Heavy Duty Landing Gear |
| Suspension: | Mechanical Suspension | King Pin: | 2"(50mm)or3.5"(90mm) JOST Or Other Brand |
| Axle: | 13/16 Ton, 3 Axles FUWA | Tire: | 12.00R22.5(Brand Optional) |
| Brake System: | Wabco Re 6 Relay Valve T30/30 Spring Brake Chamber 3 X 40L Air Tanks |

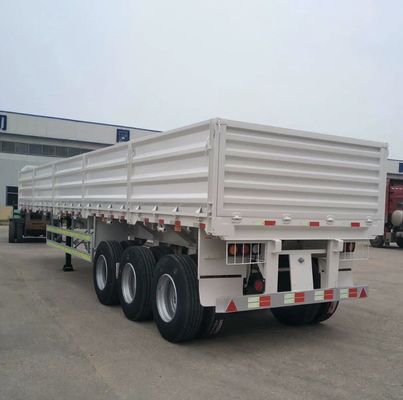

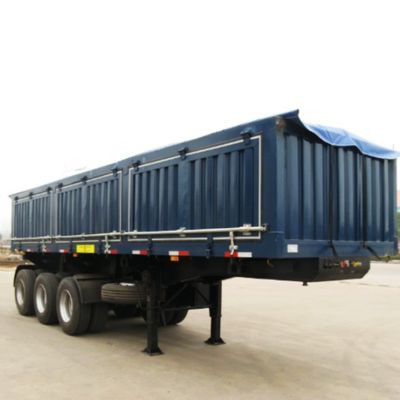

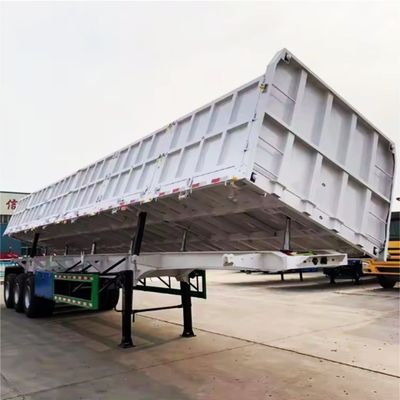

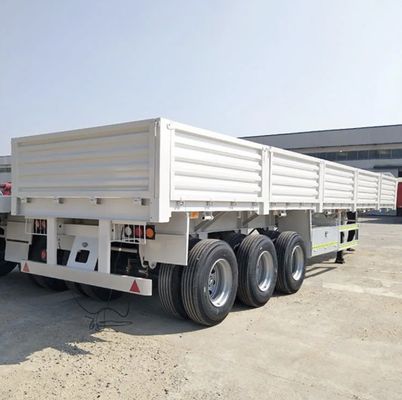

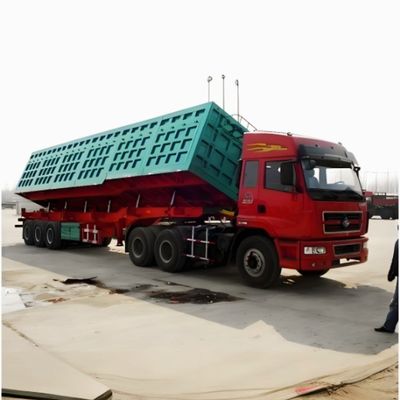

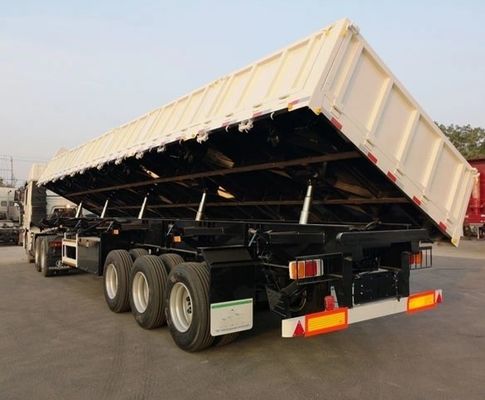

Product Name | Side wall semi trailer |
Tare Weight | 7.5 Tons (depends on final configuration) |
Payload | 50 tons or cutomizable |
Size | 12400x2610x1550mm (customizable) |
Inside size | 12280x2300x600mm (customization) |
Main Beam | Q345B/T700 steelHeight 500mm Upper Plate is 14mm Down plate is 16mm Middle plate is 8mm or customization |
Side Beam | 16mm channel steel ( material is q235b steel) |
Bottom Plate | 3mm Thickness ( customization) |
Sidewall Thickness | 1.5-2.5MM Q235 steel (customization) |
Sidewall Height | 600mm (customization) |
Axles | 13/16/20 tons, axle amount optional like 2/3/4 axles etc, axle brand optional like SAF, FUWA, BPW etc |
King pin | 2.00"(50#), bolting king pin, JOST or another brand according to customer |
Suspension | Mechanical suspension air suspension (American or Geman) |
Leaf Spring | 10pcs leaf spring, thickness 13mm. width 90mm |
Landing gear | 28tons lifting capacity , Brand optinal FUWA/JOST etc can be choose |
Twist-Lock | 12 units ( customization) |
Tire specs | 12R22.5/315 80R22.5/11R20/12R20 Choose freely |
Braking system | dual line brake system , Air chamber T30/30 3X40L gas storage drums |
Rim | 9.00-22.5 /8.00-20/8.5-20 |
ABS system | None or installed as your requirement. |
Painting | Sanding , anti-corrosion , one primer paining add two layer top coat painting |
Side Gurd | According to customer |
Electrical system | 24 volt electrical system 7 pin electrical connector, Parking stop, reverse, number plate and indicator lights, rear lights conform to european standard, rear front and side reflectors |
spare tire | Two set of heavy duty spare wheel carriers, indluding a riser |
Tool Box | One Piece (1.0 x 5.0 m) with 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar |
Color | According to customers requirements |
Delivery | From China Port and carry by container ship, ro-ro ship or by bulk |
Remark | Our senior engineer can design semi trailer as your request, and we accept OEM/ODM projects |
