Product Details:
|
| Use: | Truck Trailer, Truck Trailer | Type: | Semi-Trailer |
|---|---|---|---|
| Material: | Steel, Steel | Size: | 12400*2610*1550mm (customizable), 12400*2610*1550mm (customizable) |
| Max Payload: | >30000 Kg | Product Name: | Side Wall Semi Trailer |
| Color: | Customization | Axle: | 13/16 Ton, 3 Axles FUWA |
| King Pin: | 2"(50mm)or3.5"(90mm) JOST Or Other Brand | Suspension: | Mechanical Suspension |
| Rim: | 9.00-22.5/8.00-20/8.5-20 | Tire: | 12.00R22.5(Brand Optional) |
|

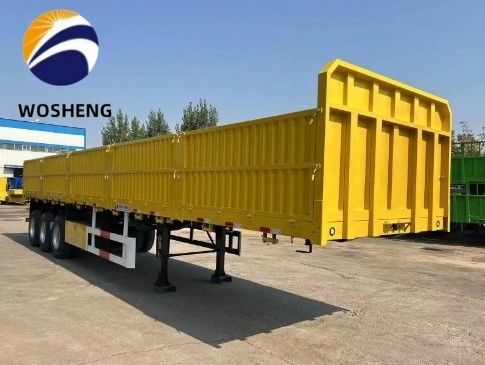

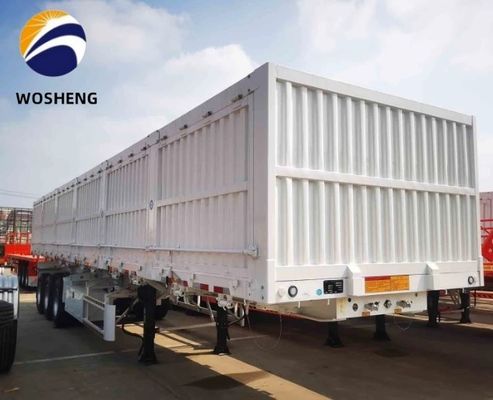

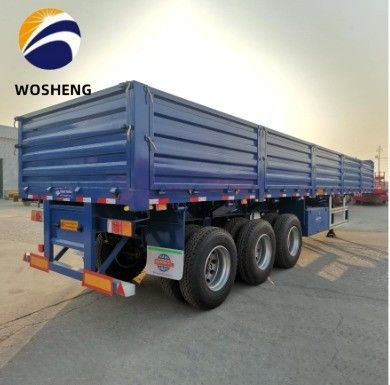

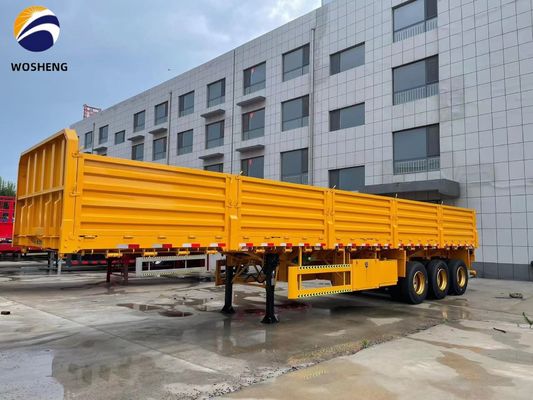

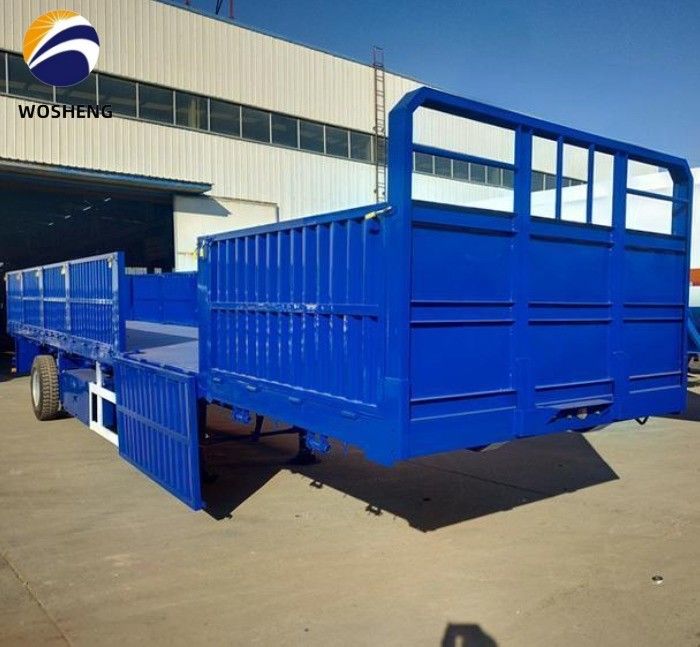

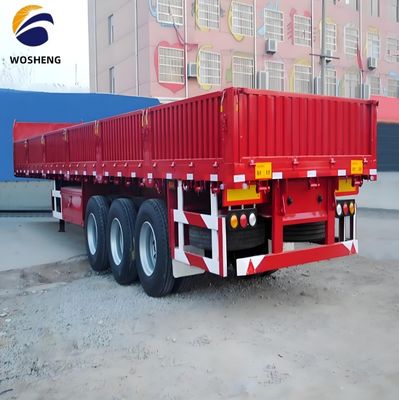

Wosheng Side Wall Semi Trailer
|
|
|
|
|||
|
Trailer Application
|
Transport container, loose cargo, bulk cement, bulk rice, Coal etc
|
|
|
|||
|
Trailer Model
|
2 Axles
|
3 Axles
|
4 Axles
|
|||
|
Trailer Brand
|
Wosheng Trailer
|
|
|
|||
|
Loading Capacity
|
30-60T
|
30T-80T
|
40T-100T
|
|||
|
Product Size(L*W)
|
13000mm*2500mm
|
13000mm*2500mm
|
13000mm*2500mm
|
|||
|
Sidewall Height
|
600mm-1700mm
|
600mm-1700mm
|
600mm-1700mm
|
|||
|
OEM/ODM
|
Yes
|
Yes
|
Yes
|
|||
|
Doors Opening Type
|
Multi choices
|
Multi choices
|
Multi choices
|
|||
|
Main Beam Material
|
Q345/T700
|
Q345/T700
|
Q345/T700
|
|||
|
Upper Plate Thickness
|
12mm
|
16mm
|
18mm
|
|||
|
Middle Plate Thickness
|
6mm
|
10mm
|
12mm
|
|||
|
Lower Plate Thickness
|
14mm
|
18mm
|
20mm
|
|||
|
Height
|
500mm
|
500mm
|
500mm
|
|||
|
Axles
|
13 Ton Wosheng/FUWA/BPW/Other
|
|
|
|||
|
Tire
|
12R22.5 Linglong/Triangle/Double-Coin/Bridgestone/Other
|
|
|
|||
|
|
(8 Pieces)
|
(12 Pieces)
|
(16 Pieces)
|
|||
|
Rim
|
9.00*22.5 Steel/Aluminum
|
|
|
|||
|
|
(8 Pieces)
|
(12 Pieces)
|
(16 Pieces)
|
|||
|
Leaf Spring
|
90mm*13mm*10/90mm*16mm*10
|
|
|
|||
|
Kin Pin
|
50#(2")/90#(3.5") JOST/Other Brand
|
|
|
|||
|
Landing Gear
|
28 Tons Two Speed,JOST/Other Brand
|
|
|
|||
|
Vehicle Painting
|
Electrophoresis paint
|
|
|
|||
|
Above Information are VEHICLE Standard Spec.If customer want to change Spec.Please Let us know.
|
|
|
|
|||
