Product Details:
|
| Use: | Truck Trailer | Type: | Semi-Trailer |
|---|---|---|---|
| Material: | Steel, Steel | Size: | 13000*2550*2900mm(customized) |
| Max Payload: | 30-100tons | Product Name: | Side Dump Semi Trailer |
| Use: | Truck Triler | Axle: | 13/16 Ton Fuwa/BPW/WOSHENG |
| SHIPPING: | Sea | Rim: | 9.00*22.5/8.00-20/8.5-20 |
| King Pin: | 2"(50mm)or3.5"(90mm) | Suspension: | Mechanical Suspension |
| MOQ: | 1 | Delivery Time: | 10 Days |

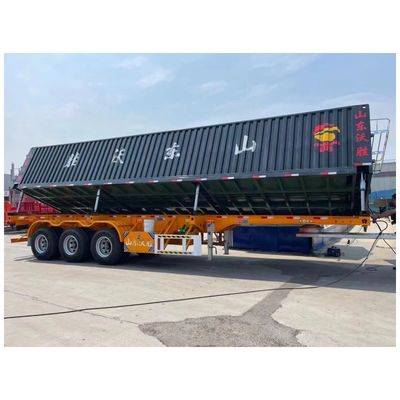

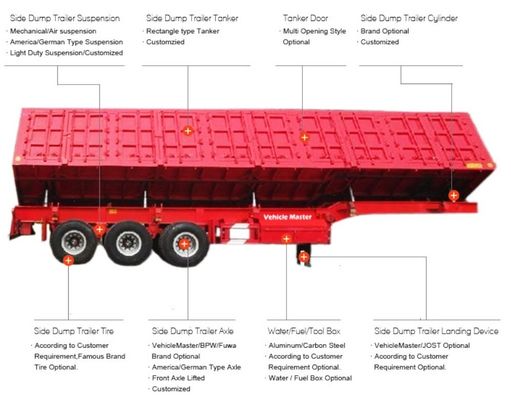

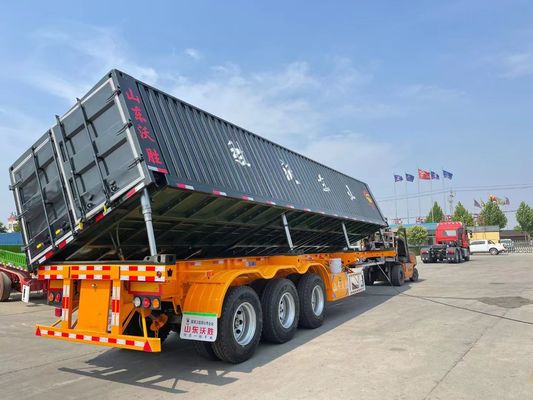

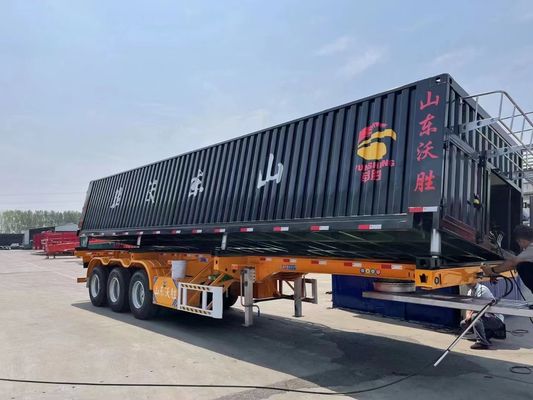

Product Name | Side Dump Semi Trailer | ||||
Dimension(Lx W x H)（mm） | 13000*2550*2900mm (customizable) | ||||
Inside dimension | 12800mm*2350mm*600mm （customizable) | ||||
Tare weight (kg) | 8500 (depends on final configuration) | ||||
Max Loading Capacity (kg) | 30000-100000 （customizable) | ||||
Main Beam | Q345B / T700 Steel Height 500mm upper plate is 14mm, down plate is 16mm, middle plate is 8mm. (customizable) | ||||
Bottom plate thickness (mm) | 2mm zinc-rion alloy plate or 3mm plain plate (customizable) | ||||
Sidewall Thickness (mm) | 1.5mm - 2.5mm Q235 steel (customizable) | ||||
side wall height | 600mm (customizable) | ||||
Lifting system | 130 Hydraulic Lifting Cylinder | ||||
Axles | 13/16/20 Ton. Axle amount optional like 2/3/4axles ..., Axle brand optional like SAF /FUWA/BPW etc | ||||
Tire | 12.00R22.5/315 80R22.5/11.00R20/12.00R20(Brand optional) | ||||
Rim | 9.00-22.5/8.00-20/8.50-20 | ||||
King Pin | 2"(50mm)or3.5"(90mm) JOST or other brand optional | ||||
Suspension | Mechanical Suspension Air Suspension(American or Geman) | ||||
Leaf Spring | 90(w)mm*13/16(thickness)mm*10(layer) | ||||
Landing Gear | 28t Heavy Duty Landing Gear. Brand optional FUWA/JOST etc. | ||||
Brake System | Dual line brake system, Air chamber T30/30, 3 X 40L gas storage drums | ||||
ABS System | None or installed as your requirement. | ||||
Electrical system | 1. Voltage: 24v waterproof 2. Receptacle: 7 ways (7 wire harness); LED light ( standard rear light, turn light, rear reflector, side light, side reflector etc.) | ||||
Color | As per customer requirement | ||||
Spare Wheel Bracket | 1 piece of Spare Wheel Bracket | ||||
Tool box | 1 set of standard tool box equipped with 1 Tire spanner, 1 gudgeon sleeve and 1 cranking bar | ||||
Painting | Sand blasting before painting;one coats of primer, anti- corrosion; two coat of finish painting; | ||||
Packing | Wax painting treatment to protect the vehicles from sea water, and the chassis greased to avoid rusting during shipping. | ||||
Delivery | From China port, and carry by container ship, ro-ro ship or bulk ship, the freight cost depends on the volume. | ||||
Remarks | Our senior engineer can design semi trailer as your request, and we accept OEM/ODM projects. | ||||
Pls kindly noted that pictures and configuration information are only for your reference.The final product can be made according to specific requirements. | |||||
