Product Details:
|
| Use: | Truck Trailer | Type: | Semi-Trailer |
|---|---|---|---|
| Material: | Steel | Size: | 9800x2500x3500mm |
| Max Payload: | 40-80 Ton | Function: | Sand Stone Grain Transporting |
| Main Beam: | Q345B / T700 Steel | Color: | Customer's Request |
| Leaf Spring: | 28t Heavy Duty Landing Gear | Brake System: | Dual Line Brake System |
| King Pin: | 2"(50mm)or3.5"(90mm) JOST Or Other Brand | Axle: | 13/16 Ton, 3 Axles FUWA/Wosheng |
| Suspension: | Mechanical Suspension | Landing Gear: | Heavy Duty Landing Gear 28t |
| Tire: | 12.00R22.5/11.00R20(Brand Optional) |

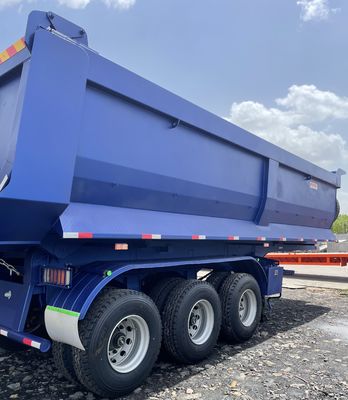

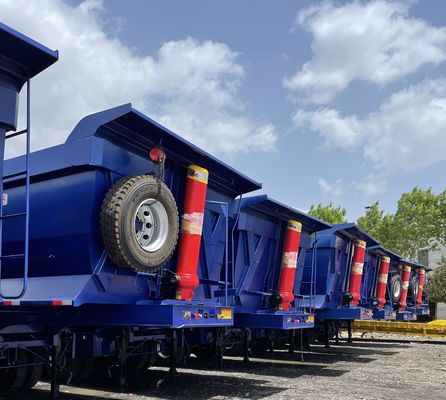

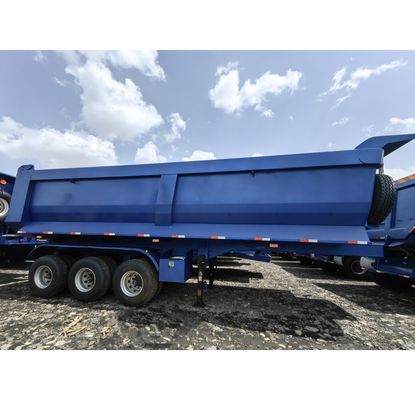

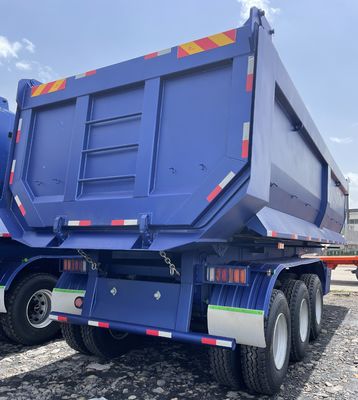

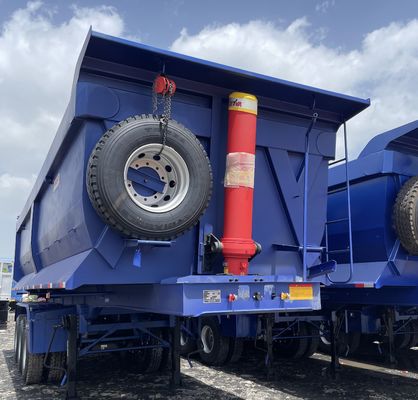

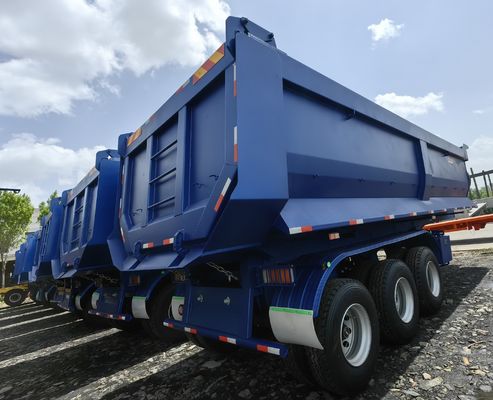

Products Name | Hydraulic Rear Dump Semi Trailer |
Max Payload | 35-60tons |
Size | 9800x2500x3500mm |
Main Beam | Q345/T700 Height 500mm upper plate is 14mm, down plate is 16mm, middle plate is 8mm. |
Leaf Spring | 90(w)mm*13/16(thickness)mm*10(layer) |
Landing Gear | 28t Heavy Duty Landing Gear |
Brake System | Dual line brake system |
Electrical SYSTEM | 1. Voltage: 24v waterproof 2. Receptacle: 7 ways (7 wire harness) |
King Pin | 2"(50mm)or3.5"(90mm) JOST or other brand |
Axle | 13/16 Ton, 3 axles FUWA/Wosheng |
Suspension | Mechanical Suspension |
Tire | 12.00R22.5/11.00R20(Brand optional) |
Rim | 8.00/9.00 |
Accessory | One tooling box with a set of standard trailer tool. |
Floor Plate Thickness | 6mm |
Sidewall Thickness | 4mm |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosion prime,2 coats of final paint |
Packaging and delivery | By sea transfer to Qingdao or Lianyungang Port, and carry by ro-ro ship or bulk cargo ship, the freight cost depends on the volume. |
Remarks | We can design model according to client's requirement |
