Product Details:
|
| Use: | Truck Trailer | Type: | Semi-Trailer |
|---|---|---|---|
| Material: | Steel | Size: | 12.38x2.48x1.55m |
| Max Payload: | 50 Tons | Color: | Customized Color |
| Tare Weight: | 6.5 Tons | Usage: | Container Transport |
| King Pin: | 2.00 Or 3.5 Inch Bolt In King Pin | Landing Gear: | 28ton/pc |
| Main Beam: | Q345B | Rim: | 9.0-20*12pcs 90# |
| Tire: | 12R22.5*12pcs | Lead Time: | 7 Days |
| Condition: | New |

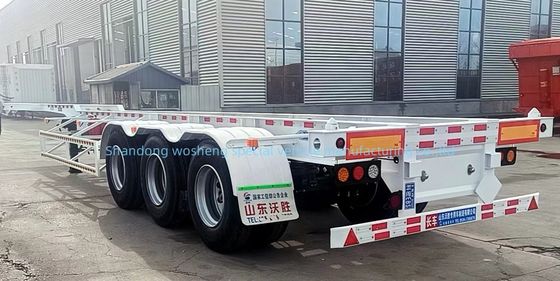

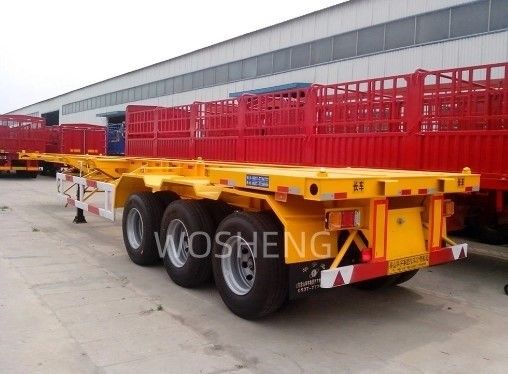

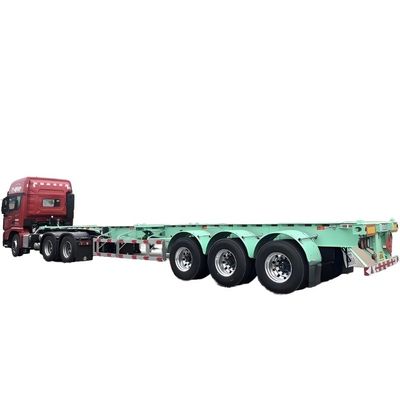

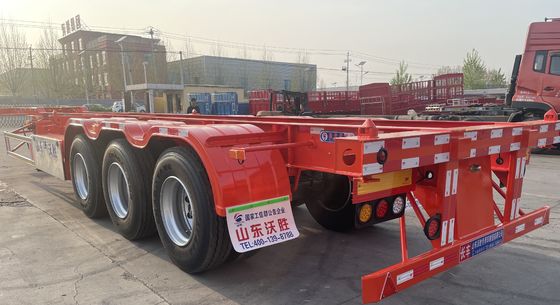

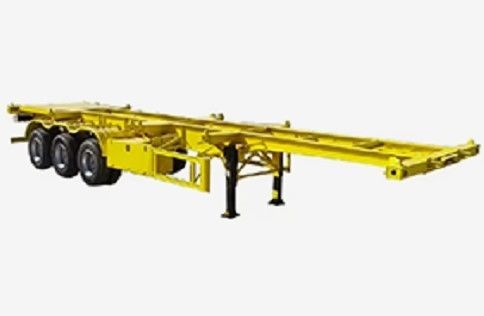

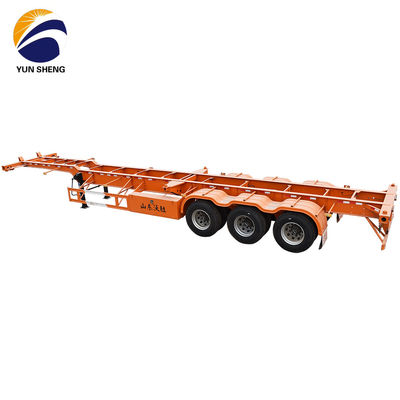

Detail Specification for skeleton semi trailer | ||
Items | skeleton semi trailer | |
Tare Weight | 7 Tons | |
Payload | 30-100Tons | |
Size | 12.85x2.6x1.55m | |
Frame | Main Beam: Opting for high strength Q345B steel, 520mm deep welded I-section main beams, Top flange thickness 14mm, Bottom flange thickness 16mm, Middle flage thickness 8mm | |
Cross Beam: Heavy duty thickened 10# channel steel | ||
Side Beam: Heavy duty 18# channel steel | ||
Axles | 3 axles, square axle with 13 tons capacity FUWA brand , or 2 axles 5 axles, can | |
King pin | 2.00"(50#), bolting king pin, JOST brand | |
Suspension | Heavy duty type tri-axles suspension with equalizers. American design | |
Steel Spring | Six sets of reliable famous brand , 10pcs leaf spring, thickness 13mm. width 90mm | |
Landing gear | 28tons lifting capacity , two speed | |
Tire specs | 12R22.5 Triangle brand , or another brand according to customer | |
Pneummatic Braking system | dual line pneumatic brake system, T 30 air chamber, 40 L air tanks, Emergency relay valve | |
Rim | 9.00-22.5 brand according to customer | |
Paiting | Sanding , anti-corrosion , one primer paining add two layer top coat painting | |
Side Gurd | According to customer | |
Electrical system | 24 volt electrical system 7 pin electrical connector, Parking stop, reverse, number plate and indicator lights, rear lights conform to european standard, rear front and side reflectors | |
spare tire | Two set of heavy duty spare wheel carriers, indluding a riser | |
Tool Box | One Piece (1.0 x 5.0 m) with 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar | |
