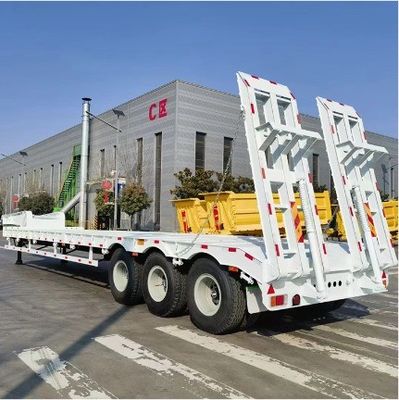

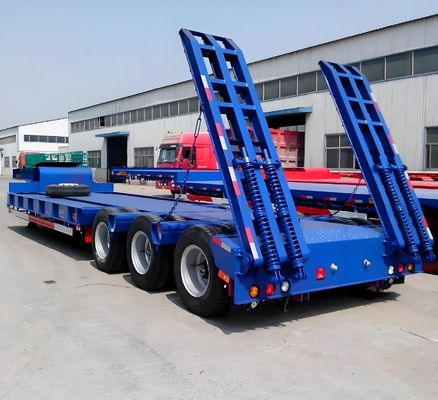

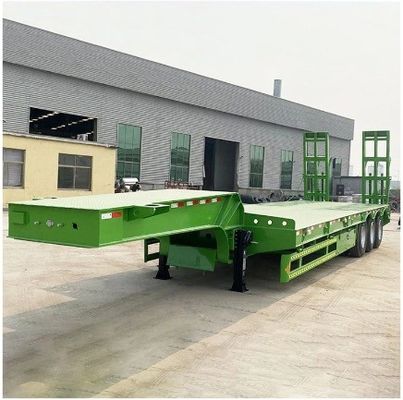

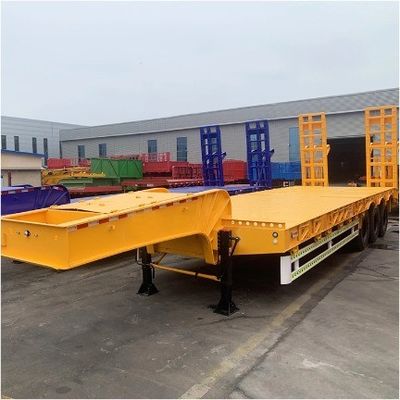

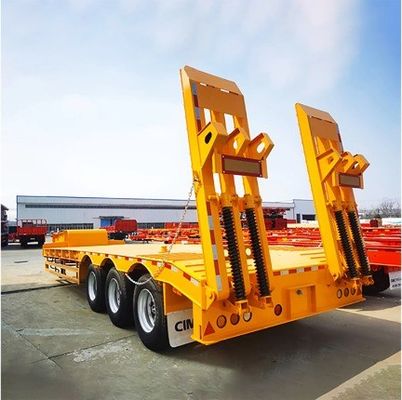

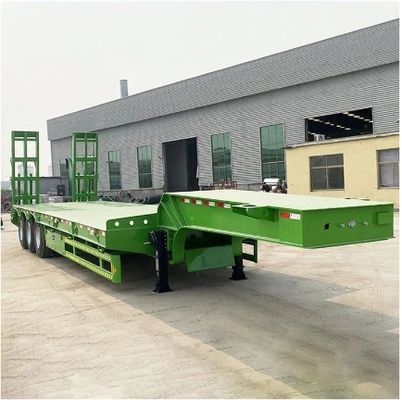

120 ton truck heavy duty max capacity lowboy lowbed semi-trailer with 12R22.5 tires

120 ton truck heavy duty max capacity lowboy lowbed semi-trailer with 12R22.5 tires
120 ton truck heavy duty max capacity lowboy lowbed semi-trailer with 12R22.5 tires 120 ton truck heavy duty max capacity lowboy lowbed semi-trailer with 12R22.5 tires 120 ton truck heavy duty max capacity lowboy lowbed semi-trailer with 12R22.5 tires 120 ton truck heavy duty max capacity lowboy lowbed semi-trailer with 12R22.5 tires 120 ton truck heavy duty max capacity lowboy lowbed semi-trailer with 12R22.5 tires 120 ton truck heavy duty max capacity lowboy lowbed semi-trailer with 12R22.5 tires

Large Image :  120 ton truck heavy duty max capacity lowboy lowbed semi-trailer with 12R22.5 tires

Product Details:
Place of Origin: Shandong, China
Brand Name: Wosheng
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $13,000.00/sets >=1 sets
Payment Terms: T/T, L/C
Contact Now

120 ton truck heavy duty max capacity lowboy lowbed semi-trailer with 12R22.5 tires

Description
Use: Truck Trailer Type: Semi-Trailer
Material: Steel Size: 13000x3000x3300
Max Payload: >50000 Kg Color: According To Customer
Axle: 3/4 Axle Pcs King Pin: 50#(2") Welded On Plate (option 90#)
Rim: 9.0-22.5 Tire: 12R22.5 Customi
Lead Time: 7dyas

Products Description
120 ton truck heavy duty max capacity lowboy lowbed semi-trailer with 12R22.5 tires 0
Lowbed semi trailer
Lowbed semi trailer have plate types, concave beam type and exposed tire type structure, its frame for the ladder, longitudinal beam section for the i-shape, with high stiffness, high strength characteristics.
The main plane of the frame and cargo platform is low, which ensures the smoothness of transportation.
120 ton truck heavy duty max capacity lowboy lowbed semi-trailer with 12R22.5 tires 1
120 ton truck heavy duty max capacity lowboy lowbed semi-trailer with 12R22.5 tires 2
Drawing
120 ton truck heavy duty max capacity lowboy lowbed semi-trailer with 12R22.5 tires 3
Specification
Wosheng  Lowbed Lowboy Semi Trailer(Customerize and OEM Service Available)
Product Name
2 axles lowbed semi trailer
3 axles lowbed semi trailer
4 axles lowbed semi trailer
Size（mm）
12500*3000*1100
13000*3000*1100
14000*3000*1100
Payload
40000KG
60000KG
80000KG
Plate
4mm checked plate
4mm checked plate
5mm checked plate
Axles
2 * 13ton capacity
(Brand optional)
3 * 13ton capacity
(Brand optional)
4 * 13ton capacity
(Brand optional)
Ladder
Hydraulic ladder or Mechanical spring ladder
Main beam
Height: 500mm, upper plate is 16mm, middle plate is 8mm, down plate is 18mm ;
Material is Q345B Steel.
Side beam
250mm I beam; 20mm channel steel ( Material is Q235steel ).
Bottom Platform
4mm thickness diamond steel plate
Suspension
Mechanical suspension (Air suspension optional)
Leaf spring
90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12
(specially intended for overseas markets)
Tire
12R22.5 / 11.00R20 8pcs (Other size optional)
Rim
9.00-22.5 / 11.00R20 8pcs (Other size optional)
Kin pin
2’’/3.5’’ bolt type
Landing gear
28 Ton two speed
Braking system
Double air chamber ,brake valve,45L air tanks ;ABS optional
Electrical
LED light , 7 ways ,24V
Accessory
One tooling box with a set of standard trailer tool
Painting
1.Sand blasting processing clean rust.
2.Coat of anticorrosive primer.
3.Coats of finish urethane paint.
4.Color as customer choice.
Other Descriptions
The cargo platform is lower than others, it is applicable for unsound road condition, and ensuring the stablenessof the
transportation.
Usage
It is applicable for the transportations of the mechanical equipment, large objects, highway construction equipment, large tanks,
power plant equipment or machine, and all sorts of steel products.
Other Specifications
It's concave structured with tyre appeared style, the height of the cargo's carrying platform from ground is 900mm, (ladders
belong to optional components), with the overall height of 1710 mm.
Remark
We can design model according to client's requirement
120 ton truck heavy duty max capacity lowboy lowbed semi-trailer with 12R22.5 tires 4
Axle
BPW/FUWA/Wosheng Brand
Axle optional.Integrated Advanced Low-Alloy Axle Beam,Whole Axle Beam No Welding process.Strong Carrying Capacity and high bending Strength.Axle maintenance-free could reach 3 Year/400,000 kilometers.
Ladder (1)and anti-skid chains:
This is Mechechinal Ladder
The function of the ladder anti-skid chain is to prevent the ladder from falling off, making it safer to use.
120 ton truck heavy duty max capacity lowboy lowbed semi-trailer with 12R22.5 tires 5
120 ton truck heavy duty max capacity lowboy lowbed semi-trailer with 12R22.5 tires 6
Ladder(2) Hydraulic :
Optional hydraulic ladder for more than 60 tons capacity,avoiding occupational injury when release ladder by manual operation.
Gooseneck Frame:
Gooseneck stiffeners increase the payload capacity of the low bed trailer.
120 ton truck heavy duty max capacity lowboy lowbed semi-trailer with 12R22.5 tires 7
120 ton truck heavy duty max capacity lowboy lowbed semi-trailer with 12R22.5 tires 8
Low bed platform:
The low bed platform uses patterned steel and welded anti-skid ribs to prevent equipment and goods from loosening and slipping.
Twist Lock:
It is also optionally available with container locks, which facilitates the transport of containers.
120 ton truck heavy duty max capacity lowboy lowbed semi-trailer with 12R22.5 tires 9
