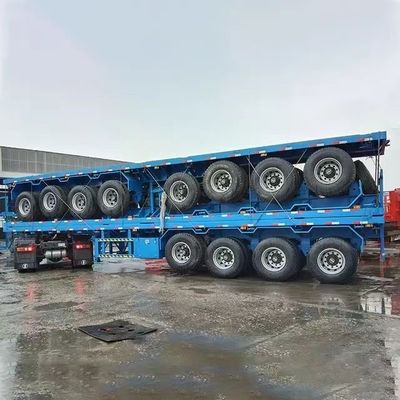

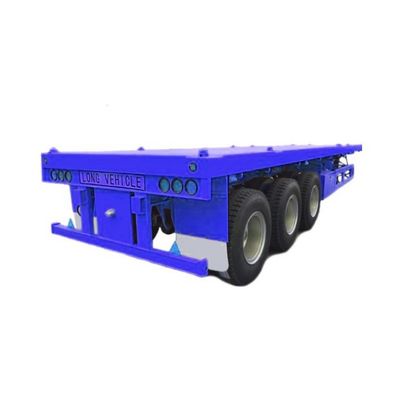

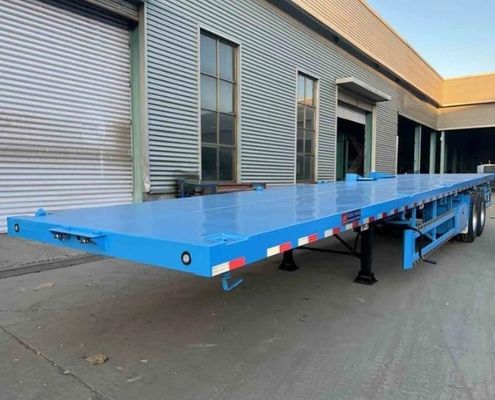

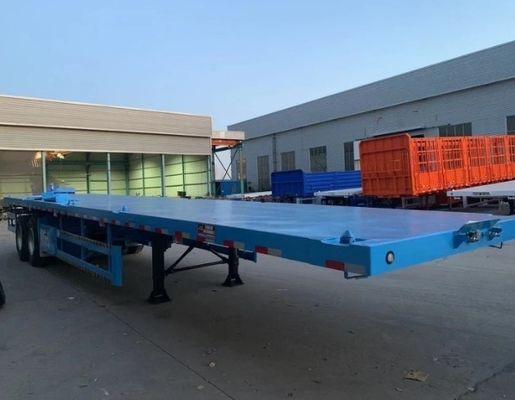

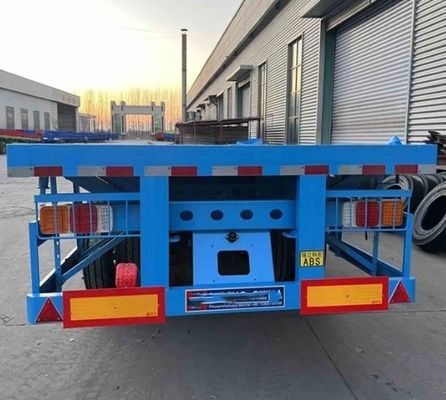

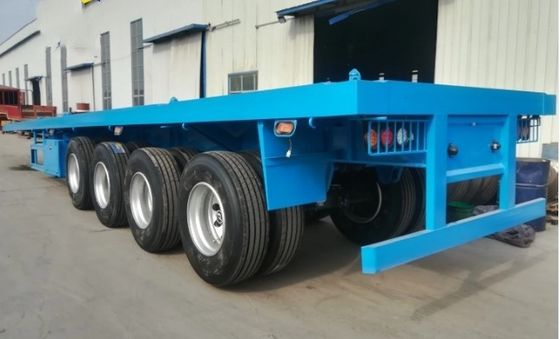

Customized Tri Axle Flatbed Trailer for Shipping Special Equipment Tire 12.00R22.5

Large Image : Customized Tri Axle Flatbed Trailer for Shipping Special Equipment Tire 12.00R22.5

Product Details:

Place of Origin:	Shandong China
Brand Name:	Wo Sheng

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$7,600.00/units 1-3 units
Payment Terms:	T/T, L/C

Contact Now

Customized Tri Axle Flatbed Trailer for Shipping Special Equipment Tire 12.00R22.5

Description

Use:	Truck Trailer	Type:	Semi-Trailer
Material:	Steel	Size:	12500x2500x1600-3100mm Or Customizable
Max Payload:	50tons	Function:	Transport 20ft 40ft Container
Main Beam:	Q345B, Height 0.5m, Upper /down/middle Plate Is 14/16/8mm	Color:	Customized Color
Leaf Spring:	90(w)mm13/16(thickness)mm10(layer)	King Pin:	2"(50mm)or3.5"(90mm)
Axle:	13ton*3 Axles	Suspension:	Mechanical Suspension
Landing Gear:	28t Heavy Duty Landing Gear	Tire:	12.00R22.5

Products Description

Flatbed Semi Trailer

Flatbed semi-trailers are usually used to transport 20FT/40FT container The lower the center of gravity, the better the stability and safety, the better the ability to transport super high loads and pass overhead obstacles.
According to the number of axles and the size of the tires, the load of the flatbed semi trailer is also different. The more the number of axles, the greater the load, and the load range is between 30-80 tons.

Specification

Products name	Flatbed Semi Trailer
Max payload	40-100TON
Size	12500x2500x1600-3100mm or customizable
Main Beam	Q345B Height 500mm upper plate is 14mm, down plate is 16mm, middle plate is 8mm.
Side Beam	Q235 16# channel steel
Leaf Spring	90(w)mm13/16(thickness)mm10(layer)
Landing Gear	28t Heavy Duty Landing Gear
Electrical System	1. Voltage: 24v waterproof 2. Receptacle: 7 ways (7 wire harness)
King Pin	2"(50mm)or3.5"(90mm)
Axle	13Ton, 3 axles
Suspension	Mechanical Suspension
Tire	12.00R22.5(Brand optional)
Rim	9.00-22.5
Bottom Platform	3mm diamond plate
Accessory	One tooling box with a set of standard trailer tool.
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosion prime,2 coats of final paint
Packaging and delivery	By sea transfer to Qingdao or Lianyungang Port, and carry by ro-ro ship or bulk cargo ship, the freight cost depends on the volume.
Remarks	We can design model according to client's requirement

Axle

BPW/FUWA/LEAO Axle optional.Integrated advanced low-alloy axle beam,Whole axle beam no welding process.strong carrying capacity and high bending strength.Axle maintenance-free could reach 3 year/400,000 kilometers.

Landing Gear

The warranty period of Chinese brand/JOST landing gear is more than 5 years. The gearbox uses low temperature premium chassis oil and is rated for service from -30°C to 120°C.

Leaf Spring

Usually 10pcs leaf spring , 13mm thickness, 90mm width.

Can customizable according to customer requirements.

Twist Lock

ISO standard twist locks are durable with unique design, which ensures the stability of containers and ease of loading and unloading.

Suspension and break system

Suspension: Germany Type or American Type Mechanical and Air bag suspension can be choose.

Brake System: T30/30 Spring brakechamber. WABCO valve,ABS/EBS system optional. dual line brake pipe.

Tire

Double Coin / Ling Long / Michelin / Triangle / Bridgestone and other famous brand for choice. Better Performance in wear resistance.

Packing and Loading

Company Profile

About us

Qingdao Wosheng Import and Export Co., Ltd., is a company engaged in semi-trailer, truck, used semi-trailer, used-truck, auto parts and new energy vehicles’ sales and service. Our factory is Shandong Wosheng Special vehicle manufacturing co.,ltd , which has nearly 8 years of production experience in the trailer industry. Please believe that our professional technology and manufacturing experience can help your transportation be safer and efficient. we can provide high quality products and competitive prices.

Factory

Our factory commit to strict quality control and thoughtful customer service, our experienced staff can discuss your requirements at any time to ensure your full satisfaction. We not only want to be perfect in appearance, but also pursue the delicacy of detail. We have advanced modern equipment, strong technical force to ensure customer satisfaction of products and timely delivery.

Why Choose Us

Shandong wosheng special vehicle manufacturing co.,ltd

Certifications

We are your most reliable cooperation partner

We are a national high-tech enterprise and have obtained more than 30 invention patents and utility model patents. We have attracted customers from all over the world, whether choosing the current product from our catalog or seeking technical support for your application, you can talk to our customer service colleagues about your procurement needs.

Exhibition

FAQ

1.Are you a factory or a trading company? We are factory,based in Shandong,China.There are total about 150-200 people in our factory.

2. What services can we provide? Accepted Delivery Terms: EXW,FOB, CFR, CIF Accepted Payment Currency: EUR,USD, CNY Accepted Payment Type:T/T,Western Union,Cash

3.Why should you choose us?

We are trailer manufacturer with more than 30 years' experience.we have professional technician and sales, good after-sale service and prompt response sales team.
