for the ladder, longitudinal beam section for the i-shape, with high stiffness, high strength characteristics.
The main plane of the frame and cargo platform is low, which ensures the smoothness of transportation.
|
Product Details:
|
| Use: | Truck Trailer | Type: | Semi-Trailer |
|---|---|---|---|
| Material: | Steel | Size: | 12500/13000/14000/16000x2500/3000x1100/3300mm |
| Max Payload: | 30TON/60TON/80TON/100TON OR CUSTOMER'S REQUEST | Function: | Transport Heavy Duty Equipment |
| Main Beam: | Q345B / T700 Steel | Color: | Customized Color |
| Leaf Spring: | 90(W)mm*13/16 (Thickness)mm*10(Layer) | Brake System: | Dual Line, Air Chamber T30/30,3 X 40L Gas Storage Drums |
| King Pin: | 2"(50mm)or3.5"(90mm) JOST Or Other Brand | Axle: | 13/16/20 Ton, 4 Axles SAF /FUWA/BPW/WOSHENG |
| Suspension: | Mechanical Suspension Air Suspension(American Or Geman) | Landing Gear: | 28t Heavy Duty Landing Gear FUWA/JOST/WOSHENG |
| Tire: | 12.00R22.5/315 80R22.5/11.00R20/12.00R20(Brand Optional) |

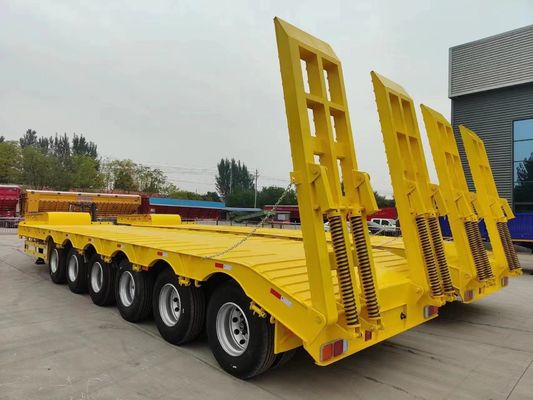

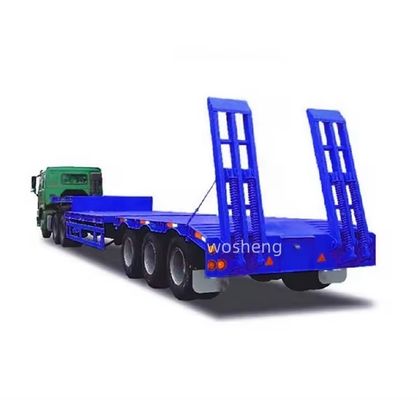

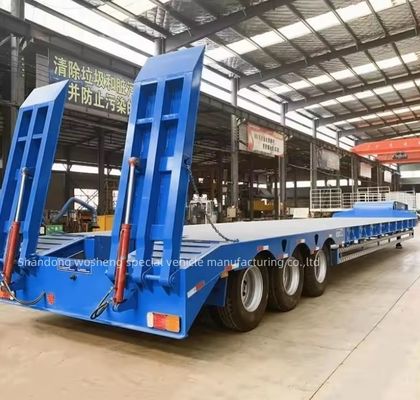

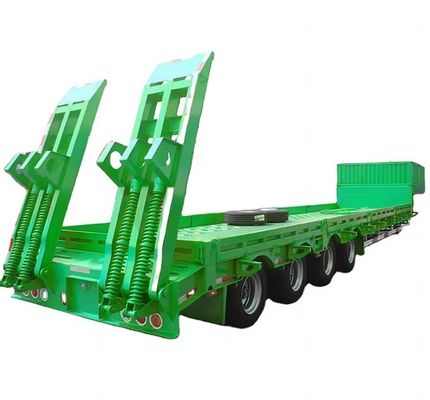

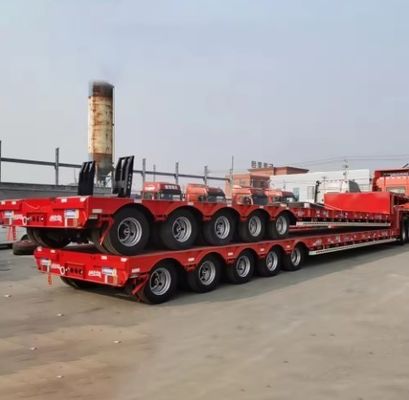

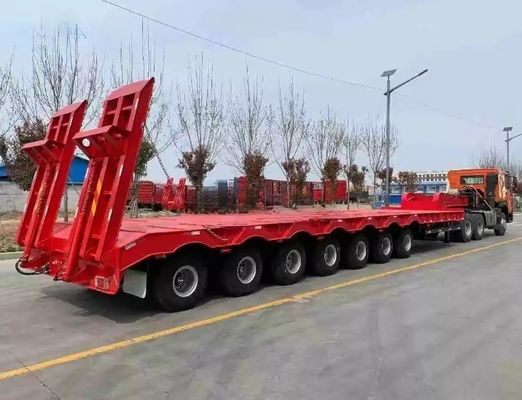

Products name | lowbed Semi Trailer |
Max payload | 40-100TON |
Size | 12500/13800/14000/16000x2500/3000x1100/3300mm or customizable |
Main Beam | Q345B upper plate is 16mm, down plate is 18mm, middle plate is 12 mm |
Side Beam | 20# channel steel |
Leaf Spring | 90(w)mm*13/16(thickness)mm*10(layer) |
Landing Gear | 28t Heavy Duty Landing Gear FUWA/JOST/WOSHENG |
Brake System | Dual line brake system, Air chamber T30/30, 3 X 40L gas storage drums |
King Pin | 2"(50mm)or3.5"(90mm) JOST or other brand |
Axle | 13/16/20 Ton, 4 axles SAF /FUWA/BPW/WOSHENG |
Suspension | Mechanical Suspension Air Suspension(American or Geman) |
Tire | 12.00R22.5/315 80R22.5/11.00R20/12.00R20(Brand optional) |
Rim | 9.00-22.5/8.00-20/8.50-20 |
Bottom Platform | 4mm diamond plate |
Electrical SYSTEM | 1. Voltage: 24v waterproof 2. Receptacle: 7 ways (7 wire harness) |
Accessory | One tooling box with a set of standard trailer tool. |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosion prime, 2 coats of final paint |
Packaging and delivery | Overland by truck/tractor, or by sea transfer to Qingdao,Tianjin or Lianyungang Port, and carry by ro-ro ship or bulk cargo ship, the freight cost depends on the volume. |
remarks | We can design model according to your requirement |
