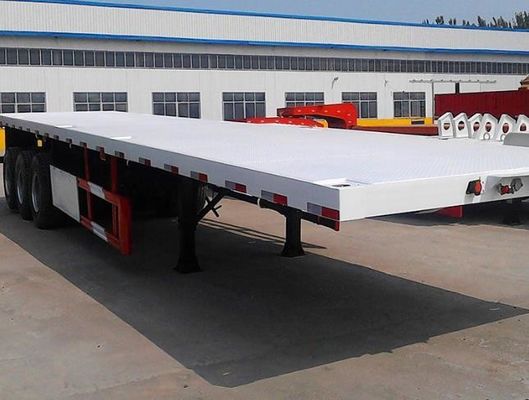

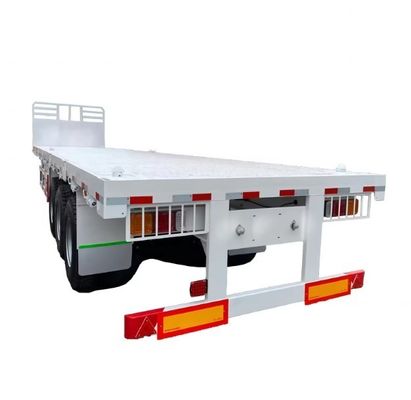

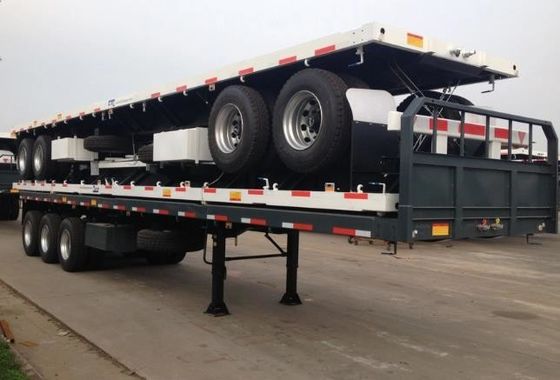

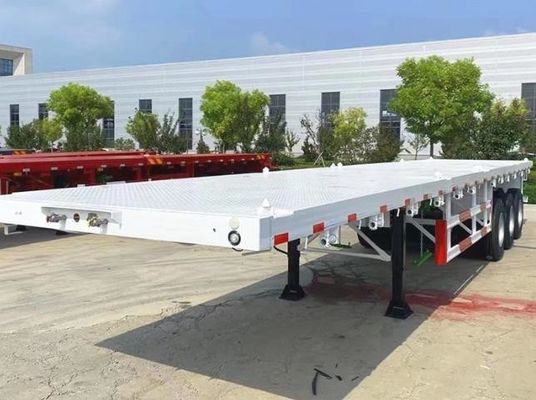

Best 20FT 40FT Container Chassis Flatbed Semi Trailer with 28t Heavy Duty Landing Gear

Certification
China Qingdao Wosheng Import and Export Co.,Ltd certification
China Qingdao Wosheng Import and Export Co.,Ltd certification
I'm Online Chat Now

Best 20FT 40FT Container Chassis Flatbed Semi Trailer with 28t Heavy Duty Landing Gear

Best 20FT 40FT Container Chassis Flatbed Semi Trailer with 28t Heavy Duty Landing Gear
Best 20FT 40FT Container Chassis Flatbed Semi Trailer with 28t Heavy Duty Landing Gear Best 20FT 40FT Container Chassis Flatbed Semi Trailer with 28t Heavy Duty Landing Gear Best 20FT 40FT Container Chassis Flatbed Semi Trailer with 28t Heavy Duty Landing Gear Best 20FT 40FT Container Chassis Flatbed Semi Trailer with 28t Heavy Duty Landing Gear Best 20FT 40FT Container Chassis Flatbed Semi Trailer with 28t Heavy Duty Landing Gear Best 20FT 40FT Container Chassis Flatbed Semi Trailer with 28t Heavy Duty Landing Gear

Large Image :  Best 20FT 40FT Container Chassis Flatbed Semi Trailer with 28t Heavy Duty Landing Gear

Product Details:
Place of Origin: Shandong China
Brand Name: Yun Sheng Flatbed semi trailer
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $4,200.00/units 1-1 units
Payment Terms: T/T, L/C

Best 20FT 40FT Container Chassis Flatbed Semi Trailer with 28t Heavy Duty Landing Gear

Description
Use: Truck Trailer Type: Semi-Trailer
Material: Steel Size: 12500x2500x1600-3100mm Or Customizable
Max Payload: 50tons Function: Transport 20ft 40ft Container
Main Beam: Q345B, Height 0.5m, Upper /down/middle Plate Is 14/16/8mm Color: Customized Color
Leaf Spring: 90(w)mm*13/16(thickness)mm*10(layer) King Pin: 2"(50mm)or3.5"(90mm)
Axle: 13ton*3 Axles Suspension: Mechanical Suspension
Landing Gear: 28t Heavy Duty Landing Gear Tire: 12.00R22.5

Products Description
Best 20FT 40FT Container Chassis Flatbed Semi Trailer with 28t Heavy Duty Landing Gear 0
3 Axles Flatbed Semi Trailer details
Flatbed semi-trailers are usually used to transport 20FT/40FT container The lower the center of gravity,
the better the stability and safety, the better the ability to transport super high loads and pass overhead obstacles.
According to the number of axles and the size of the tires, the load of the flatbed semi trailer is also different. The more the number of axles, the greater the load, and the load range is between 30-80 tons.
Specification
Best 20FT 40FT Container Chassis Flatbed Semi Trailer with 28t Heavy Duty Landing Gear 1
Product Name
Flatbed Semi Trailer
Dimension(Lx W x H)(mm)
outside 12400×2610×1550mm (customizable)
Tare weight (kg)
7000 (depends on final configuration)
Max Loading Capacity (kg)
50000 (customizable)
Main Beam
Q345B / T700 Steel Height 500mm
upper plate is 14mm,
down plate is 16mm,
middle plate is 8mm. (customizable)
Side Beam
Q235 16# channel steel (customizable)
Bottom Plate
3mm diamond plate (customizable)
Axles
13/16/20 Ton. Axle amount optional like 2/3/4/6axles ..., Axle brand optional like SAF /FUWA/BPW etc
Tire
12.00R22.5/315 80R22.5/11.00R20/12.00R20(Brand optional)
Rim
9.00-22.5/8.00-20/8.50-20
King Pin
2"(50mm)or3.5"(90mm) JOST or other brand optional
Suspension
Mechanical Suspension Air Suspension(American or Geman)
Leaf Spring
90(w)mm*13/16(thickness)mm*10(layer)
Landing Gear
28t Heavy Duty Landing Gear. Brand optional FUWA/JOST etc.
Twist-lock
4/8/12 units (customizable)
Brake System
Dual line brake system, Air chamber T30/30,
3 X 40L gas storage drums
ABS System
None or installed as your requirement.
Electrical system
1. Voltage: 24v waterproof 2. Receptacle: 7 ways (7 wire harness); LED light ( standard rear light, turn light, rear reflector,
side light, side reflector etc.)
Color
As per customer requirement
Spare Wheel Bracket
1 piece of Spare Wheel Bracket
Tool box
1 set of standard tool box equipped with 1 Tire spanner, 1 gudgeon sleeve and 1 cranking bar
Painting
Sand blasting before painting;one coats of primer, anti- corrosion; two coat of finish painting;
Packing
Wax painting treatment to protect the vehicles from sea water, and the chassis greased to avoid rusting during shipping.
Delivery
From China port, and carry by container ship, ro-ro ship or bulk ship, the freight cost depends on the volume.
Remarks
Our senior engineer can design semi trailer as your request, and we accept OEM/ODM projects.
Best 20FT 40FT Container Chassis Flatbed Semi Trailer with 28t Heavy Duty Landing Gear 2
Best 20FT 40FT Container Chassis Flatbed Semi Trailer with 28t Heavy Duty Landing Gear 3
Best 20FT 40FT Container Chassis Flatbed Semi Trailer with 28t Heavy Duty Landing Gear 4
Best 20FT 40FT Container Chassis Flatbed Semi Trailer with 28t Heavy Duty Landing Gear 5
Details Images
Best 20FT 40FT Container Chassis Flatbed Semi Trailer with 28t Heavy Duty Landing Gear 6

TWIST LOCK

Usually 20 ft is 4 sets locks, 40 ft with 12 sets. Customers can also change the number of locks according to their needs Customers can change the number of locks according to your own needs.
Best 20FT 40FT Container Chassis Flatbed Semi Trailer with 28t Heavy Duty Landing Gear 7

Landing Gear

The warranty period of Chinese brand/JOST landing
gear is more than 5 years. The gearbox uses low temperature premium chassis oil and is rated for
service from -30°C to 120°C.
Best 20FT 40FT Container Chassis Flatbed Semi Trailer with 28t Heavy Duty Landing Gear 8

Anti-Tire abrasion Suspension

Specially designed anti-Tire abrasion suspension system,Prevent tire offset after loading, maximally avoid tire
abrasion.Meanwhile,Easy to disassemble and maintain.
Best 20FT 40FT Container Chassis Flatbed Semi Trailer with 28t Heavy Duty Landing Gear 9

Axle
BPW/FUWA/LEAO Axle optional.

Integrated Advanced Low-Alloy Axle Beam,Whole
Axle Beam No Welding process.Strong Carrying
Capacity and high bending Strength.Axle
maintenance-free could reach 3 Year/400,000
kilometers.
Best 20FT 40FT Container Chassis Flatbed Semi Trailer with 28t Heavy Duty Landing Gear 10

Featured Tire

Double Coin / LingLong / Michelin / Triangle / Bridgestone and other famous brand for choice. Better Performance in wear resistance
Best 20FT 40FT Container Chassis Flatbed Semi Trailer with 28t Heavy Duty Landing Gear 11

Brake System

T30/30 Spring brake chamber. WABCO valve,
ABS/EBS system optional. dual line brake pipe.

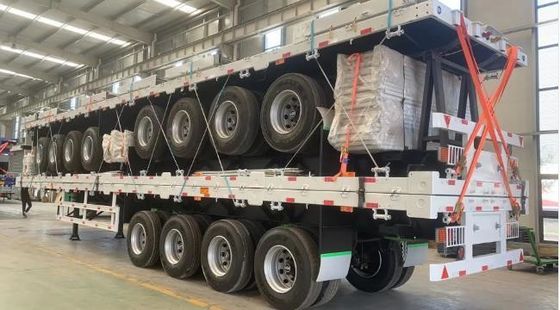

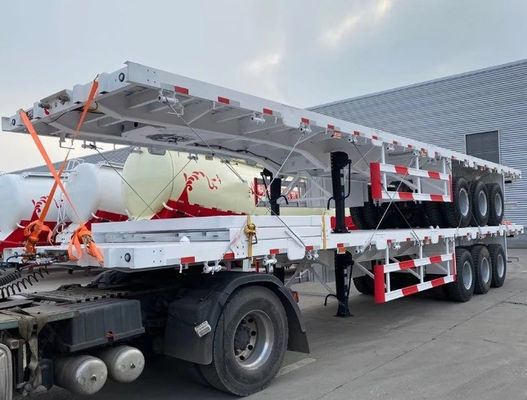

Packing and Loading
