Customizable Color and Size 50 Tons Capacity Container Truck Trailer for Commercial

Certification
China Qingdao Wosheng Import and Export Co.,Ltd certification
China Qingdao Wosheng Import and Export Co.,Ltd certification
I'm Online Chat Now

Customizable Color and Size 50 Tons Capacity Container Truck Trailer for Commercial

Customizable Color and Size 50 Tons Capacity Container Truck Trailer for Commercial
Customizable Color and Size 50 Tons Capacity Container Truck Trailer for Commercial Customizable Color and Size 50 Tons Capacity Container Truck Trailer for Commercial Customizable Color and Size 50 Tons Capacity Container Truck Trailer for Commercial Customizable Color and Size 50 Tons Capacity Container Truck Trailer for Commercial Customizable Color and Size 50 Tons Capacity Container Truck Trailer for Commercial Customizable Color and Size 50 Tons Capacity Container Truck Trailer for Commercial

Large Image :  Customizable Color and Size 50 Tons Capacity Container Truck Trailer for Commercial

Product Details:
Place of Origin: Shandong, China
Brand Name: WS
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $9,800.00/sets 1-4 sets
Payment Terms: T/T, L/C

Customizable Color and Size 50 Tons Capacity Container Truck Trailer for Commercial

Description
Use: Truck Trailer Type: Semi-Trailer, Flatbed Semi Trailer
Material: Steel, Q345B Size: 12400x2610x1550mm
Max Payload: >30000 Kg Axles: 2/3/4/5 Axles
Tare Weight: 7.0 T Color: Customized Color
Painting: Customization Payload: 50T
Tire Specification: 12R22.5 Customized Rim: 9.0-22.5
Lead Time: 10 Days

Products Description
Customizable Color and Size 50 Tons Capacity Container Truck Trailer for Commercial 0

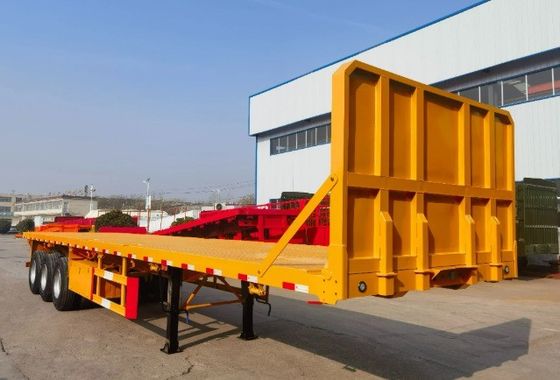

Flat bed semi trailer
Features: Flatbed plate semi -trailer is a kind of semi-trailer without wall and canopy, with simple structure and stong adaptability,
Application scenario: It is mainly used to transport various goods with unlimited length,width and height. such as construction materials, steel products and heavy machinery
Technological development: In recent years , with the application of light weight and strength materials , the loading capacity of plate semi trailer has been greatly improved
Customizable Color and Size 50 Tons Capacity Container Truck Trailer for Commercial 1
Customizable Color and Size 50 Tons Capacity Container Truck Trailer for Commercial 2
Customizable Color and Size 50 Tons Capacity Container Truck Trailer for Commercial 3
Customizable Color and Size 50 Tons Capacity Container Truck Trailer for Commercial 4
Drawing
Customizable Color and Size 50 Tons Capacity Container Truck Trailer for Commercial 5
Specification
Detail Specification for flatbed semi trailer
Items
Flat bed semi tailer
Tare Weight
9.5.0 Tons
Payload
60Tons
Size
12400x2610x1550 or customization
Frame
Main Beam: Opting for high strength Q345B steel, 520mm deep welded I-section main beams, Top flange thickness 14mm, Bottom flange
thickness 16mm, Middle flage thickness 8mm
Cross Beam: Heavy duty thickened 10# channel steel
Side Beam: Heavy duty 18# channel steel
Floor: 3mm thickness checkered plate
Axles
13/16/20 tons, axle amount optional like 2/3/4/5/6 axle ... axle brand optional like SAF/FHWA/BPW etc
King pin
2.00"(50#), bolting king pin, JOST brand
Suspension
Heavy duty type tri-axles suspension with equalizers. American design
Steel Spring
Six sets of reliable famous brand , 10pcs leaf spring, thickness 13mm. width 90mm
Landing gear
28tons lifting capacity , two speed
Tire specs
12R22.5 Triangle brand , or another brand according to customer
Rim
9.00-22.5 brand according to customer
Paiting
Sanding , anti-corrosion , one primer paining add two layer top coat painting
Side Gurd
According to customer
Electrical system
One unit of 24v 7-pin ISO 1185 socket: LED light
spare tire
Two set of heavy duty spare wheel carriers, indluding a riser
Tool Box
One Piece (1.0 x 5.0 m) with 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar
Customizable Color and Size 50 Tons Capacity Container Truck Trailer for Commercial 6

Suspention - Anti-Tire Abrasion

Specially designed anti-Tire abrasion suspension system prevent tire deflection after loading and avoids tires to the maximum extent worn out. and easy to disassemble and maintain
Customizable Color and Size 50 Tons Capacity Container Truck Trailer for Commercial 7

Twist Lock

ISO standard lock suitable worldwide container,additional protection switch avoid mistake opperate
Customizable Color and Size 50 Tons Capacity Container Truck Trailer for Commercial 8

Leaf Spring

Usually six sets, 10pcs leaf spring , 13mm thickness, 90mm width
Customizable Color and Size 50 Tons Capacity Container Truck Trailer for Commercial 9

Chassis Frame

It is mainly used to enhance the load-bearing capacity and overall rigidity of the vehicle body, ensure the stability and durability of the vehicle when transporting heavy-loaded items
Customizable Color and Size 50 Tons Capacity Container Truck Trailer for Commercial 10

Axle suspension and brake system

BPW Fuwa worldwide best axles worki with WABCO brake valve, More effectively brake for safe and save tire cost , Fix quality springs and suspension , support longer service life, save maintain cost
Customizable Color and Size 50 Tons Capacity Container Truck Trailer for Commercial 11

Landing Gear

The warranty period of Chinese brand/JOST landing gear is more than 5 years. The gearbox uses low temperature premium chassis oil and is rated for service from -30°C to 120°C
