Product Details:
|
| Use: | Truck Trailer | Type: | Semi-Trailer |
|---|---|---|---|
| Material: | Steel | Size: | 12500x2500x1600-3100mm Or Customizable |
| Max Payload: | 50tons | Function: | Transport 20ft 40ft Container |
| Main Beam: | Q345B, Height 0.5m, Upper /down/middle Plate Is 14/16/8mm | Color: | Customized Color |
| Leaf Spring: | 90(w)mm*13/16(thickness)mm*10(layer) | King Pin: | 2"(50mm)or3.5"(90mm) |
| Axle: | 13ton*3 Axles | Suspension: | Mechanical Suspension |
| Landing Gear: | 28t Heavy Duty Landing Gear | Tire: | 12.00R22.5 |

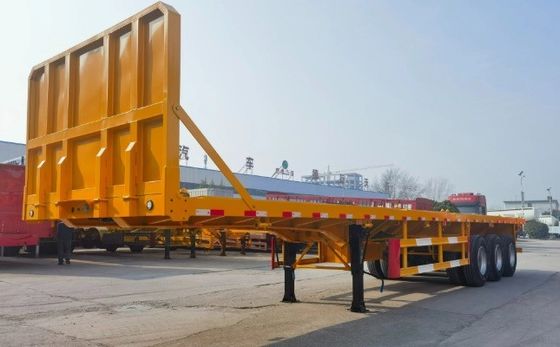

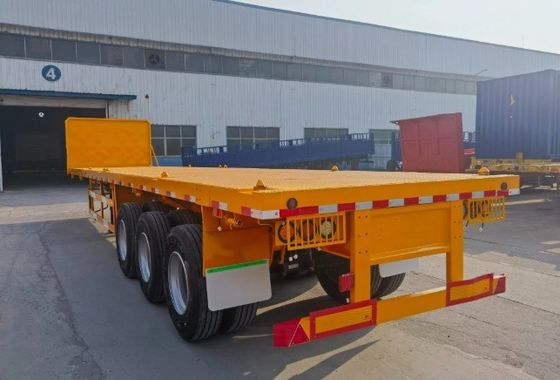

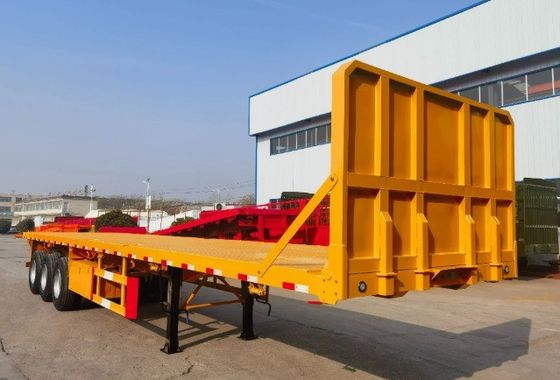

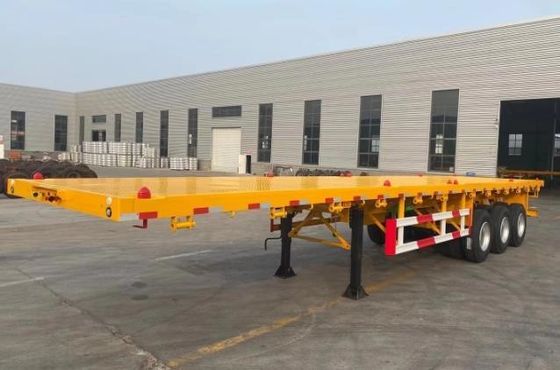

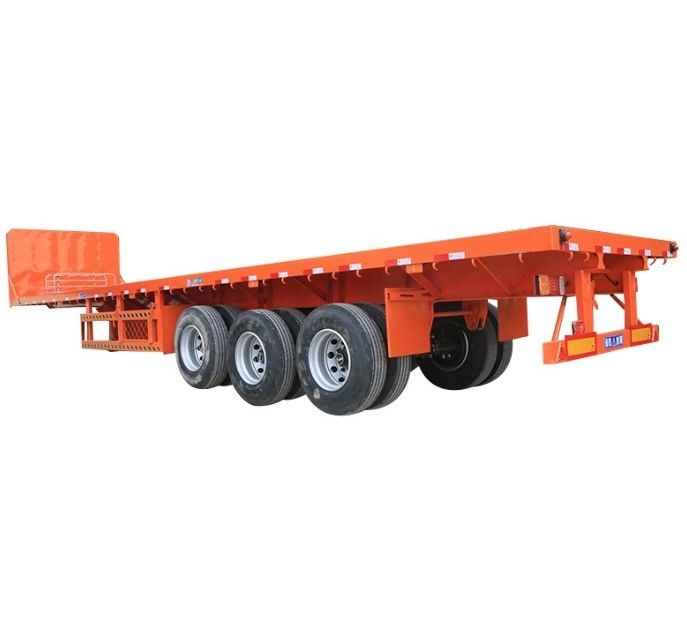

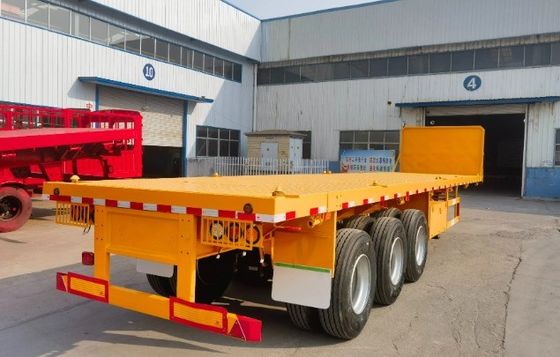

Products name | Flatbed Semi Trailer |
Max payload | 40-100TON |
Size | 12500x2500x1600-3100mm or customizable |
Main Beam | Q345B Height 500mm upper plate is 14mm, down plate is 16mm, middle plate is 8mm. |
Side Beam | Q235 16# channel steel |
Leaf Spring | 90(w)mm*13/16(thickness)mm*10(layer) |
Landing Gear | 28t Heavy Duty Landing Gear |
Electrical System | 1. Voltage: 24v waterproof 2. Receptacle: 7 ways (7 wire harness) |
King Pin | 2"(50mm)or3.5"(90mm) |
Axle | 13Ton, 3 axles |
Suspension | Mechanical Suspension |
Tire | 12.00R22.5(Brand optional) |
Rim | 9.00-22.5 |
Bottom Platform | 3mm diamond plate |
Accessory | One tooling box with a set of standard trailer tool. |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosion prime,2 coats of final paint |
Packaging and delivery | By sea transfer to Qingdao or Lianyungang Port, and carry by ro-ro ship or bulk cargo ship, the freight cost depends on the volume. |
Remarks | We can design model according to client's requirement |
