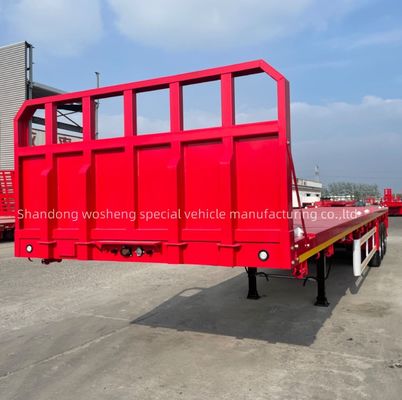

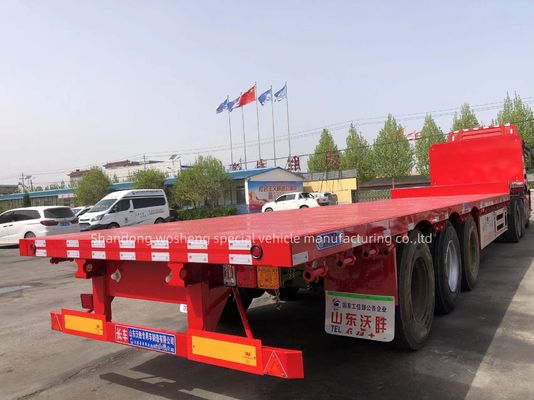

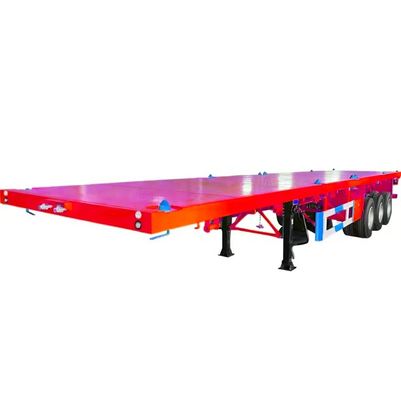

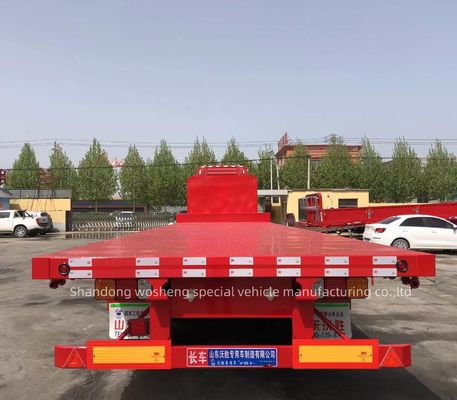

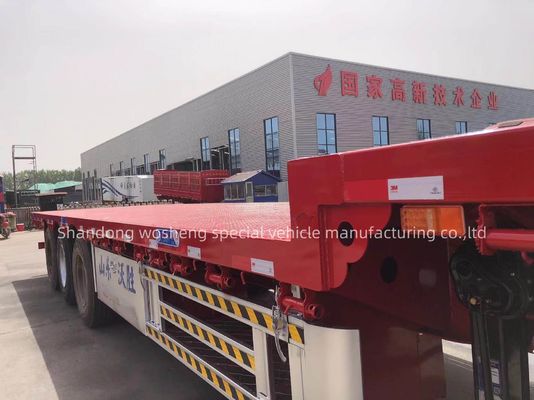

90mm13/16mm10 Layer Leaf Spring 40ft Flat Bed Trailer with Turnable Wheels in Dubai

Large Image : 90mm*13/16mm*10 Layer Leaf Spring 40ft Flat Bed Trailer with Turnable Wheels in Dubai

Product Details:

Place of Origin:	Shandong China
Brand Name:	Wo Sheng

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$7,600.00/units 1-3 units
Payment Terms:	T/T, L/C

Contact Now

90mm13/16mm10 Layer Leaf Spring 40ft Flat Bed Trailer with Turnable Wheels in Dubai

Description

Use:	Truck Trailer	Type:	Semi-Trailer
Material:	Steel	Size:	12500x2500x1600-3100mm Or Customizable
Max Payload:	50tons	Function:	Transport 20ft 40ft Container
Main Beam:	Q345B, Height 0.5m, Upper /down/middle Plate Is 14/16/8mm	Color:	Customized Color
Leaf Spring:	90(w)mm13/16(thickness)mm10(layer)	King Pin:	2"(50mm)or3.5"(90mm)
Axle:	13ton*3 Axles	Suspension:	Mechanical Suspension
Landing Gear:	28t Heavy Duty Landing Gear	Tire:	12.00R22.5

Products Description

Flatbed Semi Trailer

Flatbed semi-trailers are usually used to transport 20FT/40FT container The lower the center of gravity, the better the stability and safety, the better the ability to transport super high loads and pass overhead obstacles.
According to the number of axles and the size of the tires, the load of the flatbed semi trailer is also different. The more the number of axles, the greater the load, and the load range is between 30-80 tons.

Specification

Products name	Flatbed Semi Trailer
Max payload	40-100TON
Size	12500x2500x1600-3100mm or customizable
Main Beam	Q345B Height 500mm upper plate is 14mm, down plate is 16mm, middle plate is 8mm.
Side Beam	Q235 16# channel steel
Leaf Spring	90(w)mm13/16(thickness)mm10(layer)
Landing Gear	28t Heavy Duty Landing Gear
Electrical System	1. Voltage: 24v waterproof 2. Receptacle: 7 ways (7 wire harness)
King Pin	2"(50mm)or3.5"(90mm)
Axle	13Ton, 3 axles
Suspension	Mechanical Suspension
Tire	12.00R22.5(Brand optional)
Rim	9.00-22.5
Bottom Platform	3mm diamond plate
Accessory	One tooling box with a set of standard trailer tool.
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosion prime,2 coats of final paint
Packaging and delivery	By sea transfer to Qingdao or Lianyungang Port, and carry by ro-ro ship or bulk cargo ship, the freight cost depends on the volume.
Remarks	We can design model according to client's requirement

Axle

BPW/FUWA/LEAO Axle optional.Integrated advanced low-alloy axle beam,Whole axle beam no welding process.strong carrying capacity and high bending strength.Axle maintenance-free could reach 3 year/400,000 kilometers.

Landing Gear

The warranty period of Chinese brand/JOST landing gear is more than 5 years. The gearbox uses low temperature premium chassis oil and is rated for service from -30°C to 120°C.

Leaf Spring

Usually 10pcs leaf spring , 13mm thickness, 90mm width.

Can customizable according to customer requirements.

Twist Lock

ISO standard twist locks are durable with unique design, which ensures the stability of containers and ease of loading and unloading.

Suspension and break system

Suspension: Germany Type or American Type Mechanical and Air bag suspension can be choose.

Brake System: T30/30 Spring brakechamber. WABCO valve,ABS/EBS system optional. dual line brake pipe.

Tire

Double Coin / Ling Long / Michelin / Triangle / Bridgestone and other famous brand for choice. Better Performance in wear resistance.
