Mechanical Suspension 2-4 Axle 30-100T Container Trailer Flatbed Truck Trailer Wosheng

Mechanical Suspension 2-4 Axle 30-100T Container Trailer Flatbed Truck Trailer Wosheng
Mechanical Suspension 2-4 Axle 30-100T Container Trailer Flatbed Truck Trailer Wosheng Mechanical Suspension 2-4 Axle 30-100T Container Trailer Flatbed Truck Trailer Wosheng Mechanical Suspension 2-4 Axle 30-100T Container Trailer Flatbed Truck Trailer Wosheng Mechanical Suspension 2-4 Axle 30-100T Container Trailer Flatbed Truck Trailer Wosheng Mechanical Suspension 2-4 Axle 30-100T Container Trailer Flatbed Truck Trailer Wosheng Mechanical Suspension 2-4 Axle 30-100T Container Trailer Flatbed Truck Trailer Wosheng

Large Image :  Mechanical Suspension 2-4 Axle 30-100T Container Trailer Flatbed Truck Trailer Wosheng

Product Details:
Place of Origin: Shandong China
Brand Name: Wo Sheng
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $7,600.00/units 1-3 units
Payment Terms: T/T, L/C
Contact Now

Mechanical Suspension 2-4 Axle 30-100T Container Trailer Flatbed Truck Trailer Wosheng

Description
Use: Truck Trailer Type: Semi-Trailer
Material: Steel Size: 12500x2500x1600-3100mm Or Customizable
Max Payload: 50tons Function: Transport 20ft 40ft Container
Main Beam: Q345B, Height 0.5m, Upper /down/middle Plate Is 14/16/8mm Color: Customized Color
Leaf Spring: 90(w)mm*13/16(thickness)mm*10(layer) King Pin: 2"(50mm)or3.5"(90mm)
Axle: 13ton*3 Axles Suspension: Mechanical Suspension
Landing Gear: 28t Heavy Duty Landing Gear Tire: 12.00R22.5

Description of Flatbed Container Trailer
Mechanical Suspension 2-4 Axle 30-100T Container Trailer Flatbed Truck Trailer Wosheng 0

1.The Flatbed Container Trailer is the main product of our company. It's made of high stength full thickness Steel, titanium content 0.98‰, which ensure the toughness and strength of the beam and frame’s toughness and strength. The Max Loading Capacity: 30- 100 Tons
Mechanical Suspension 2-4 Axle 30-100T Container Trailer Flatbed Truck Trailer Wosheng 1
2.The main beam adopts fully automatic submerged arc welding, the whole vehicle is shot blasted and rust-proof, and the floor is a 3mm thick anti-skid plate
Mechanical Suspension 2-4 Axle 30-100T Container Trailer Flatbed Truck Trailer Wosheng 2

3.The whole frame of the flatbed trailer should be shot blasted to effectively eliminate welding residues. The vehicle body is electrophoretic coating, resistant to coating, and the coating effect can reach more than 10 years.
Mechanical Suspension 2-4 Axle 30-100T Container Trailer Flatbed Truck Trailer Wosheng 3

4.We adopt world famous brand of parts, like Fuwa axle, BPW axles, JOST landing gear, WABCO braking valve etc. The axles are equipped with WABCO emergency brake valves, and the double brake air chambers also widen the pads.
Mechanical Suspension 2-4 Axle 30-100T Container Trailer Flatbed Truck Trailer Wosheng 4
5.This kind of flat semi-trailer can be equipped with removable breast boards, columns, number of locks, etc. according to customer requirements. colums height can be asjusted
Specification
Mechanical Suspension 2-4 Axle 30-100T Container Trailer Flatbed Truck Trailer Wosheng 5
Mechanical Suspension 2-4 Axle 30-100T Container Trailer Flatbed Truck Trailer Wosheng 6
Wosheng 40Ton Flatbed Trailer 20/40/45/48ft Container Flatbed Semi-trailer Chassis
Product name
20 FT Flatbed Semi-trailer
40 FT Flatbed Semi-trailer
45 FT Flatbed Semi-trailer
Product Size
7000*2500*1570mm
12400* 2500*1570mm
13950*2500*1600mm
Axle
2 /3 Axles*13Ton FUWA/BPW/Leao/other
2 /3 Axles*13Ton FUWA/BPW/Leao/other
2 /3 Axles*13Ton FUWA/BPW/Leao/other
Application
1*20 ft Container or cargo Loading Loading
1*40ft/2*20 ft Container/Cargo Loading
1*40ft/1*45/2*20 ft Container / Cargo Loading
Capacity
20-60 Tons
30-80 Tons
30-100 Tons
Main Beam Material
Q345/T700
Q345/T700
Q345/T700
Upper Plate Thickness
12mm
14mm
16mm
Middle Plate Thickness
6mm
8mm
10mm
Down Plate Thickness
14mm
16mm
18mm
Height
500mm
Platform Thickness
3mm thick patterned steel plate
Leaf Spring
90mm*13mm*10/90mm*16mm*10layers
Kin Pin
50#(2")/90#(3.5") JOST/Other Brand
Landing Gear
28 Tons Two Speed,JOST/Other Brand
Twist Lock
4 Sets
12 Sets
12Sets
Suspension System
Mechanical or Air Suspension
Tire
12R22.5 (8/12 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/Other
Rim
9.00*22.5 (8/12 Pieces)
Tool Box
Steel or Aluminum
Painting
Electrophoresis paint
If you want to know more details,please contact us directly
Details Images
Mechanical Suspension 2-4 Axle 30-100T Container Trailer Flatbed Truck Trailer Wosheng 7
Twist Lock
Commercial 20ft with 8sets , 40ft 45ft with 12sets twist lock , also can adjust according to your requirement .
Landing gear
The warranty period of Wosheng brand or JOST landing gear is more than 5 years. The gearbox uses low temperature premium chassis oil and is rated for service from -30°C to 120°C
Mechanical Suspension 2-4 Axle 30-100T Container Trailer Flatbed Truck Trailer Wosheng 8
Mechanical Suspension 2-4 Axle 30-100T Container Trailer Flatbed Truck Trailer Wosheng 9
Brake System
T30/30 Spring brake chamber. WABCO valve,ABS/EBS system optional. dual line brake pipe.
Anti-Tire abrasion Suspension
Specially designed anti-Tire abrasion suspension system, Prevent tire offset after loading, maximally avoid tire abrasion.
Meanwhile, Easy to disassemble and maintain..
Mechanical Suspension 2-4 Axle 30-100T Container Trailer Flatbed Truck Trailer Wosheng 10
Mechanical Suspension 2-4 Axle 30-100T Container Trailer Flatbed Truck Trailer Wosheng 11
Axle:
BPW/FUWA/Wosheng Axle optional. Integrated Advanced Low-Alloy Axle Beam, Whole Axle Beam No Welding process. Strong Carrying Capacity and high bending Strength. Axle maintenance-free could reach 3 Year/400,000 kilometers.
Tool Box
Located on the side of the trailer without taking up too much space, it can store necessary maintenance tools, straps and safety equipment, made of durable materials and securely locks to keep the contents safe.
Mechanical Suspension 2-4 Axle 30-100T Container Trailer Flatbed Truck Trailer Wosheng 12
Mechanical Suspension 2-4 Axle 30-100T Container Trailer Flatbed Truck Trailer Wosheng 13
Tire
12.00R22.5/315 80R22.5/11.00R20/12.00R20 Brand can be choose freely , such as Double Coin / LingLong / Michelin / Triangle / Bridgestone and other famous brand for choice. Better Performance in wear
resistance

Recommend products
Mechanical Suspension 2-4 Axle 30-100T Container Trailer Flatbed Truck Trailer Wosheng 14
Mechanical Suspension 2-4 Axle 30-100T Container Trailer Flatbed Truck Trailer Wosheng 15
Mechanical Suspension 2-4 Axle 30-100T Container Trailer Flatbed Truck Trailer Wosheng 16
Mechanical Suspension 2-4 Axle 30-100T Container Trailer Flatbed Truck Trailer Wosheng 17
Mechanical Suspension 2-4 Axle 30-100T Container Trailer Flatbed Truck Trailer Wosheng 18
Mechanical Suspension 2-4 Axle 30-100T Container Trailer Flatbed Truck Trailer Wosheng 19
Mechanical Suspension 2-4 Axle 30-100T Container Trailer Flatbed Truck Trailer Wosheng 20
Mechanical Suspension 2-4 Axle 30-100T Container Trailer Flatbed Truck Trailer Wosheng 21
Mechanical Suspension 2-4 Axle 30-100T Container Trailer Flatbed Truck Trailer Wosheng 22
Mechanical Suspension 2-4 Axle 30-100T Container Trailer Flatbed Truck Trailer Wosheng 23
Mechanical Suspension 2-4 Axle 30-100T Container Trailer Flatbed Truck Trailer Wosheng 24
Mechanical Suspension 2-4 Axle 30-100T Container Trailer Flatbed Truck Trailer Wosheng 25
Company Profile
Mechanical Suspension 2-4 Axle 30-100T Container Trailer Flatbed Truck Trailer Wosheng 26
About us
Qingdao Wosheng Import and Export Co., Ltd., is a company engaged in semi-trailer, truck, used
semi-trailer, used-truck, auto parts and new energy vehicles’ sales and service. Our factory is
Shandong Wosheng Special vehicle manufacturing co.,ltd , which has nearly 8 years of production
experience in the trailer industry. Please believe that our professional technology and manufacturing
experience can help your transportation be safer and efficient. we can provide high quality products
and competitive prices.
Mechanical Suspension 2-4 Axle 30-100T Container Trailer Flatbed Truck Trailer Wosheng 27
Factory
Our factory commit to strict quality
control and thoughtful customer
service, our experienced staff can
discuss your requirements at any time
to ensure your full satisfaction. We
not only want to be perfect in
appearance, but also pursue the
delicacy of detail. We have advanced
modern equipment, strong technical
force to ensure customer satisfaction
of products and timely delivery.
Mechanical Suspension 2-4 Axle 30-100T Container Trailer Flatbed Truck Trailer Wosheng 28
Mechanical Suspension 2-4 Axle 30-100T Container Trailer Flatbed Truck Trailer Wosheng 29
Mechanical Suspension 2-4 Axle 30-100T Container Trailer Flatbed Truck Trailer Wosheng 30
Flatbed Trailer Features
The flatbed trailer has a reinforced frame made of high-strength steel HG60, a thickened floor, a reliable chassis and an efficient braking system.

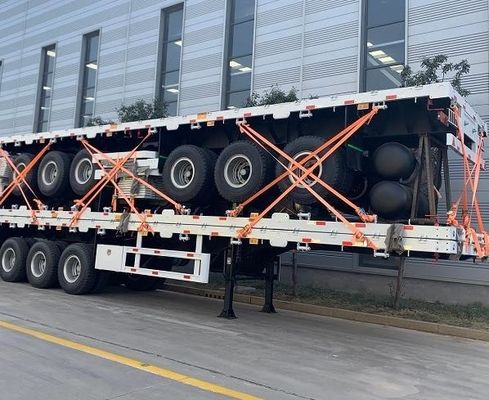

Packing and Loading
Mechanical Suspension 2-4 Axle 30-100T Container Trailer Flatbed Truck Trailer Wosheng 31
FAQ
Q1. Are you a factory or trade company ? We are a comprehensive industrial and trade enterprise integrating product design, scientific research
and development, production and sales. Welcome to visit our factory at any time.
Q2. Could you accept special design and specification? Sure of course. As we all know that the traffic regulations are different in different areas, our professional
engineers will design and our well-trained staff will produce according to customer special requirements.
Such as: special Size, special control, or OEM/ODM etc.
Q3. Are you looking for an agent? Yes, we're looking for the agent all over the world, you are welcome to contact us for further discussion.
Q4. How to control quality? We set up all process inspection and quality control standard, include raw materials, production process,
finished products. Advanced equipment and standard inspection process ensure the quality.
Q5. what services can we provide? Accepted Delivery Terms: EXW, FOB, CFR, CIF

Q6. What logistics ways we can work for shipment?
We can ship all trailer by various transportation tools
For 90% of our shipment, we will go by sea, to all main continents such as South America, Middle East,
Africa, Oceania etc, either by container or RoRo/Bulk Shipment.
For neighborhood countries of China, such as Russia, Tajikistan, Kazakhstan,Mongolia etc, we can
ship trucks by road or railway. For light spare parts in urgent demand, we can ship it by international
courier service, such as DHL, TNT, UPS, or Fedex.


Certifications
Mechanical Suspension 2-4 Axle 30-100T Container Trailer Flatbed Truck Trailer Wosheng 32
we have obtained the World material Manufacturing Factory Certificate, 3C Certificate and ISO9000
Quality Management Certification. We are also a national high-tech enterprise and have obtained
more than 30 invention patents and utility model patents.
Mechanical Suspension 2-4 Axle 30-100T Container Trailer Flatbed Truck Trailer Wosheng 33
Why Choose Us
Mechanical Suspension 2-4 Axle 30-100T Container Trailer Flatbed Truck Trailer Wosheng 34
We are your most reliable cooperation partner
We are a national high-tech enterprise and have obtained more than 30 invention patents and utility
model patents. We have attracted customers from all over the world, whether choosing the current
product from our catalog or seeking technical support for your application, you can talk to our
customer service colleagues about your procurement needs.
Mechanical Suspension 2-4 Axle 30-100T Container Trailer Flatbed Truck Trailer Wosheng 35
