Mechanical Suspension Tri-Axle Container Skeleton Semi Trailer with 50 ton Max Payload

Mechanical Suspension Tri-Axle Container Skeleton Semi Trailer with 50 ton Max Payload
Mechanical Suspension Tri-Axle Container Skeleton Semi Trailer with 50 ton Max Payload Mechanical Suspension Tri-Axle Container Skeleton Semi Trailer with 50 ton Max Payload Mechanical Suspension Tri-Axle Container Skeleton Semi Trailer with 50 ton Max Payload Mechanical Suspension Tri-Axle Container Skeleton Semi Trailer with 50 ton Max Payload Mechanical Suspension Tri-Axle Container Skeleton Semi Trailer with 50 ton Max Payload Mechanical Suspension Tri-Axle Container Skeleton Semi Trailer with 50 ton Max Payload

Large Image :  Mechanical Suspension Tri-Axle Container Skeleton Semi Trailer with 50 ton Max Payload

Product Details:
Place of Origin: SHANDONG CHINA
Brand Name: WO SHENG
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $8,000.00/units 1-3 units
Payment Terms: T/T, L/C
Contact Now

Mechanical Suspension Tri-Axle Container Skeleton Semi Trailer with 50 ton Max Payload

Description
Use: Truck Trailer Type: Semi-Trailer
Material: Steel Size: 12400x2500x1550mm
Max Payload: 50 Ton Function: Transport 40ft Container
Main Beam: Q345B Height 500mm Upper/down/middle Plate Are 14mm /16mm/8mm Color: Customer's Request
Leaf Spring: 90(w)mm*13/16(thickness)mm*10(layer) Brake System: Dual Line Braking System
King Pin: 2"(50mm)or3.5"(90mm) JOST Axle: 13Ton, 3 Axles FUWA
Suspension: Mechanical Suspension Landing Gear: Heavy Duty Landing Gear 28t
Tire: 12.00R22.5/315 80R22.5/11.00R20(Brand Optional)

Products Description

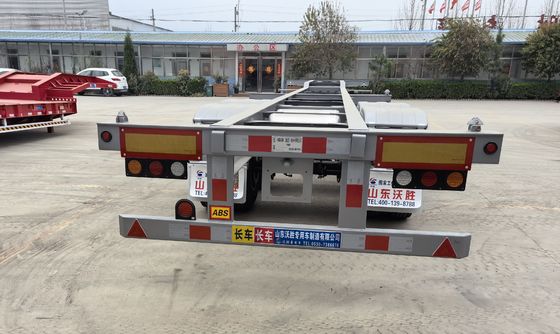

Mechanical Suspension Tri-Axle Container Skeleton Semi Trailer with 50 ton Max Payload 0
Container skeleton trailer
Container skeleton trailer is an semi trailer with standardizes size (customization) and steel skeleton structure, mainly used for transporting container. This model have simple structure , strong durability, can adapt to complex transportation environment, and is an important part of modern logistics transportation. It is widely used in various types of international shipping , railways road and other transportation occasions, can meet the transportation needs of different sizes and different shapes of containers

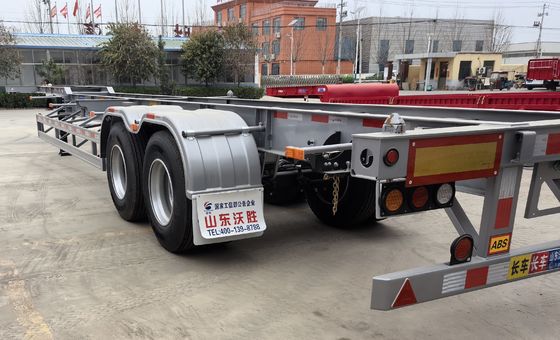

Mechanical Suspension Tri-Axle Container Skeleton Semi Trailer with 50 ton Max Payload 1

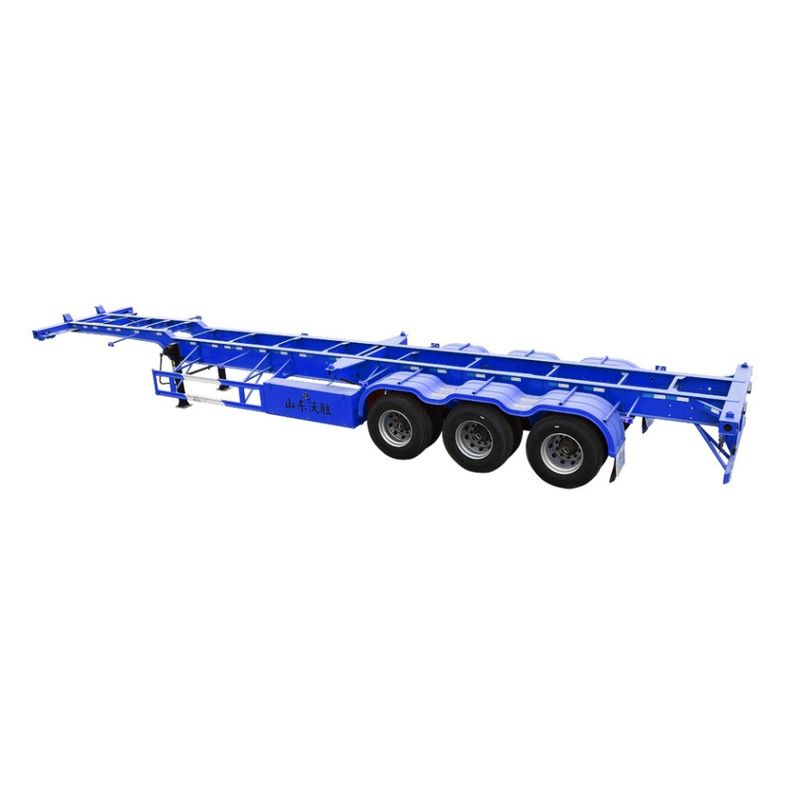

Mechanical Suspension Tri-Axle Container Skeleton Semi Trailer with 50 ton Max Payload 2

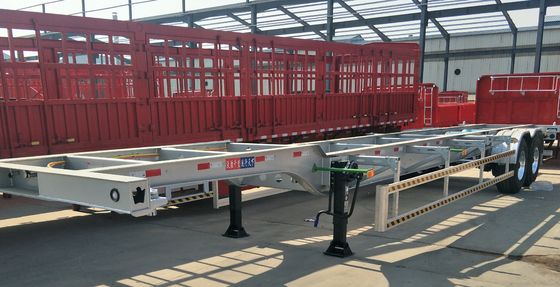

Mechanical Suspension Tri-Axle Container Skeleton Semi Trailer with 50 ton Max Payload 3

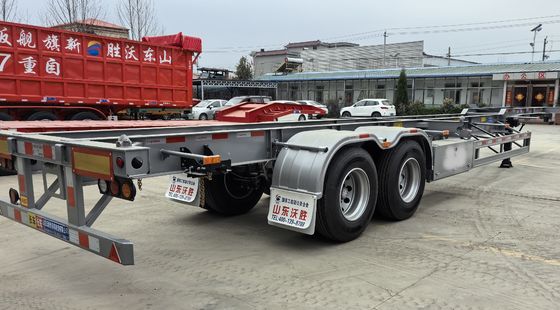

Mechanical Suspension Tri-Axle Container Skeleton Semi Trailer with 50 ton Max Payload 4
Drawing

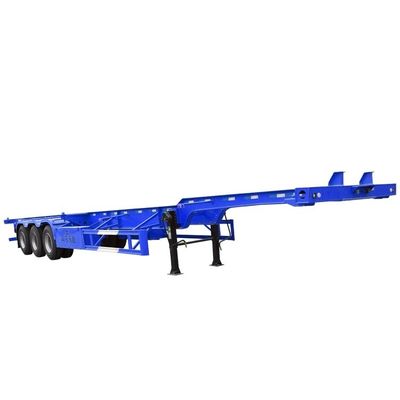

Mechanical Suspension Tri-Axle Container Skeleton Semi Trailer with 50 ton Max Payload 5
Specification
Detail Specification for skeleton semi trailer
Items
skeleton semi trailer
Tare Weight
7 Tons
Payload
30-100Tons
Size
12.85x2.6x1.55m
Frame
Main Beam: Opting for high strength Q345B steel, 520mm deep welded I-section main beams, Top flange thickness 14mm, Bottom flange
thickness 16mm, Middle flage thickness 8mm
Cross Beam: Heavy duty thickened 10# channel steel
Side Beam: Heavy duty 18# channel steel
Axles
3 axles, square axle with 13 tons capacity FUWA brand , or 2 axles 5 axles, can
King pin
2.00"(50#), bolting king pin, JOST brand
Suspension
Heavy duty type tri-axles suspension with equalizers. American design
Steel Spring
Six sets of reliable famous brand , 10pcs leaf spring, thickness 13mm. width 90mm
Landing gear
28tons lifting capacity , two speed
Tire specs
12R22.5 Triangle brand , or another brand according to customer
Pneummatic Braking system
dual line pneumatic brake system, T 30 air chamber, 40 L air tanks, Emergency relay valve
Rim
9.00-22.5 brand according to customer
Paiting
Sanding , anti-corrosion , one primer paining add two layer top coat painting
Side Gurd
According to customer
Electrical system
24 volt electrical system 7 pin electrical connector, Parking stop, reverse, number plate and indicator lights, rear lights conform to european  standard, rear front and side reflectors
spare tire
Two set of heavy duty spare wheel carriers, indluding a riser
Tool Box
One Piece (1.0 x 5.0 m) with 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar
Mechanical Suspension Tri-Axle Container Skeleton Semi Trailer with 50 ton Max Payload 6

Suspention - Anti-Tire Abrasion

Specially designed anti-Tire abrasion suspension system prevent tire deflection after loading and avoids tires to the maximum extent worn out. and easy to disassemble and maintain
Mechanical Suspension Tri-Axle Container Skeleton Semi Trailer with 50 ton Max Payload 7

Twist Losk:

ISO standard lock suitable worldwide container, additional protection switch avoid mistake opperate
Mechanical Suspension Tri-Axle Container Skeleton Semi Trailer with 50 ton Max Payload 8

Axle suspension and brake system

BPW Fuwa worldwide best axles worki with WABCO brake valve, More effectively brake for safe and save tire cost , Fix quality springs and suspension , support longer service life, save maintain cost
Mechanical Suspension Tri-Axle Container Skeleton Semi Trailer with 50 ton Max Payload 9

Landing Gear

The warranty period of Chinese brand/JOST landing gear is more than 5 years. The gearbox uses low temperature premium chassis oil and is rated for service from -30°C to 120°C
Mechanical Suspension Tri-Axle Container Skeleton Semi Trailer with 50 ton Max Payload 10

Leaf Spring

Usually six sets, 10pcs leaf spring , 13mm thickness, 90mm width
Mechanical Suspension Tri-Axle Container Skeleton Semi Trailer with 50 ton Max Payload 11

contruction

Main Beam: High strength Q345 or T700 steel material welded by submerged arc
Twist

Recommend Products
Mechanical Suspension Tri-Axle Container Skeleton Semi Trailer with 50 ton Max Payload 12
Mechanical Suspension Tri-Axle Container Skeleton Semi Trailer with 50 ton Max Payload 13
Mechanical Suspension Tri-Axle Container Skeleton Semi Trailer with 50 ton Max Payload 14
Mechanical Suspension Tri-Axle Container Skeleton Semi Trailer with 50 ton Max Payload 15
Mechanical Suspension Tri-Axle Container Skeleton Semi Trailer with 50 ton Max Payload 16
Mechanical Suspension Tri-Axle Container Skeleton Semi Trailer with 50 ton Max Payload 17
Mechanical Suspension Tri-Axle Container Skeleton Semi Trailer with 50 ton Max Payload 18
Mechanical Suspension Tri-Axle Container Skeleton Semi Trailer with 50 ton Max Payload 19
Mechanical Suspension Tri-Axle Container Skeleton Semi Trailer with 50 ton Max Payload 20
Mechanical Suspension Tri-Axle Container Skeleton Semi Trailer with 50 ton Max Payload 21
Mechanical Suspension Tri-Axle Container Skeleton Semi Trailer with 50 ton Max Payload 22
Mechanical Suspension Tri-Axle Container Skeleton Semi Trailer with 50 ton Max Payload 23
Company Profile
Mechanical Suspension Tri-Axle Container Skeleton Semi Trailer with 50 ton Max Payload 24
About us
Shandong Wosheng Special Vehicle Manufacturer Co., LTD.
Our Company mainly produce fence semi trailer, lowbed semi trailer , low fence semi trailer , rear dump semi trailer, container flat semi trailer, fuel oil semi trailer, etc all kinds of semi trailer, Our company have more than 20 years produce and exporting experience Quality is firstly, Credit is our base for business, Welcome to know us and build business relationship.
Mechanical Suspension Tri-Axle Container Skeleton Semi Trailer with 50 ton Max Payload 25
Mechanical Suspension Tri-Axle Container Skeleton Semi Trailer with 50 ton Max Payload 26
Factory :
Our factory commit to strict quality control and thoughtful customer service, our experienced staff can discuss your requirements at any time to ensure your full satisfaction. We not only want to be perfect in
appearance, but also pursue the delicacy of detail. We have advanced modern equipment, strong technical force to ensure customer satisfaction of products and timely delivery.
Mechanical Suspension Tri-Axle Container Skeleton Semi Trailer with 50 ton Max Payload 27
Packing and Loading
Mechanical Suspension Tri-Axle Container Skeleton Semi Trailer with 50 ton Max Payload 28
Container usually us 45 feet
Usually by bulk
Certification
Mechanical Suspension Tri-Axle Container Skeleton Semi Trailer with 50 ton Max Payload 29

we have obtained the World material Manufacturing Factory Certificate, 3C Certificate and ISO9000 Quality Management Certification. We are also a national high-tech enterprise and have obtained more than 30 invention patents and utility model patents.
Mechanical Suspension Tri-Axle Container Skeleton Semi Trailer with 50 ton Max Payload 30
Mechanical Suspension Tri-Axle Container Skeleton Semi Trailer with 50 ton Max Payload 31
We are your most reliable cooperation partner
We are a national high-tech enterprise and have obtained more than 30 invention patents and utility model patents. We have attracted customers from all over the world, whether choosing the current product from our catalog or seeking technical support for your application, you can talk to our customer service colleagues about your procurement needs.
High quality , factory lower price , good service !
Mechanical Suspension Tri-Axle Container Skeleton Semi Trailer with 50 ton Max Payload 32
FAQ

Q1. Are you a factory or trade company ? We are a comprehensive industrial and trade enterprise integrating product design, scientific research and development, production and sales. Welcome to visit our factory at any time.

Q2. Could you accept special design and specification? Sure of course. As we all know that the traffic regulations are different in different areas, our professional engineers will design and our well-trained staff will produce according to customer special requirements. Such as: special Size, special control, or OEM/ODM etc.

Q3. Are you looking for an agent? Yes, we're looking for the agent all over the world, you are welcome to contact us for further discussion.

Q4. How to control quality? We set up all process inspection and quality control standard, include raw materials, production process, finished products. Advanced equipment and standard inspection process ensure the quality.

Q5. what services can we provide? Accepted Delivery Terms: EXW, FOB, CFR, CIF
