40 Ft 2 3 Axles Flatbed Semi-Trailer Heavy-Duty and Sturdy Flatbed Trailers for Truck

40 Ft 2 3 Axles Flatbed Semi-Trailer Heavy-Duty and Sturdy Flatbed Trailers for Truck
40 Ft 2 3 Axles Flatbed Semi-Trailer Heavy-Duty and Sturdy Flatbed Trailers for Truck 40 Ft 2 3 Axles Flatbed Semi-Trailer Heavy-Duty and Sturdy Flatbed Trailers for Truck 40 Ft 2 3 Axles Flatbed Semi-Trailer Heavy-Duty and Sturdy Flatbed Trailers for Truck 40 Ft 2 3 Axles Flatbed Semi-Trailer Heavy-Duty and Sturdy Flatbed Trailers for Truck 40 Ft 2 3 Axles Flatbed Semi-Trailer Heavy-Duty and Sturdy Flatbed Trailers for Truck 40 Ft 2 3 Axles Flatbed Semi-Trailer Heavy-Duty and Sturdy Flatbed Trailers for Truck

Large Image :  40 Ft 2 3 Axles Flatbed Semi-Trailer Heavy-Duty and Sturdy Flatbed Trailers for Truck

Product Details:
Place of Origin: SHANDONG CHINA
Brand Name: WOSHENG flatbed semi-trailer
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $15,000.00/units 1-9 units
Payment Terms: T/T, L/C
Contact Now

40 Ft 2 3 Axles Flatbed Semi-Trailer Heavy-Duty and Sturdy Flatbed Trailers for Truck

Description
Use: Truck Trailer Type: Semi-Trailer
Material: Steel Size: 12400*2610*1550mm
Max Payload: 20T-80T

Products Description
40 Ft 2 3 Axles Flatbed Semi-Trailer Heavy-Duty and Sturdy Flatbed Trailers for Truck 0
40 Ft 2 3 Axles Flatbed Semi-Trailer Heavy-Duty and Sturdy Flatbed Trailers for Truck 1
20T-80T 3 axle cargo trailer flatbed semi-trailer for transport
Wosheng Flatbed semi-trailers are usually used to transport 20FT/40FT/45FT container. The lower the center of gravity, the better the stability and safety, the better the ability to transport super high loads and pass overhead obstacles. According to the number of axles and the size of the tires, the load of the flatbed semi trailer is also different. The more the number of axles, the greater the load, and the load range is between 30-80 tons.
40 Ft 2 3 Axles Flatbed Semi-Trailer Heavy-Duty and Sturdy Flatbed Trailers for Truck 2
40 Ft 2 3 Axles Flatbed Semi-Trailer Heavy-Duty and Sturdy Flatbed Trailers for Truck 3

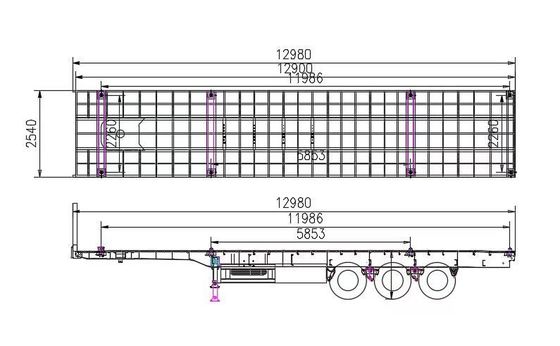

Specification
40 Ft 2 3 Axles Flatbed Semi-Trailer Heavy-Duty and Sturdy Flatbed Trailers for Truck 4
Product Name
Flatbed Semi Trailer
Dimension(Lx W x H)（mm）
outside 12400×2610×1550mm (customizable)
Front Guard Height (mm)
1550mm (customizable)
Tare weight (kg)
7000 (depends on final configuration)
Max Loading Capacity (kg)
50000 （customizable)
Main Beam
Q345B / T700 Steel Height 500mm
upper plate is 14mm,
down plate is 16mm,
middle plate is 8mm. (customizable)
Side Beam
Q235 16# channel steel (customizable)
Bottom Plate
3mm diamond plate (customizable)
Axles
13/16/20 Ton. Axle amount optional like 2/3/4/6axles ..., Axle brand optional like SAF /FUWA/BPW etc
Tire
12.00R22.5/315 80R22.5/11.00R20/12.00R20(Brand optional)
Rim
9.00-22.5/8.00-20/8.50-20
King Pin
2"(50mm)or3.5"(90mm) JOST or other brand optional
Suspension
Mechanical Suspension Air Suspension(American or Geman)
Leaf Spring
90(w)mm*13/16(thickness)mm*10(layer)
Landing Gear
28t Heavy Duty Landing Gear. Brand optional FUWA/JOST etc.
Twist-lock
4/8/12 units (customizable)
Brake System
Dual line brake system, Air chamber T30/30,
3 X 40L gas storage drums
ABS System
None or installed as your requirement.
Electrical system
1. Voltage: 24v waterproof 2. Receptacle: 7 ways (7 wire harness); LED light ( standard rear light, turn light, rear reflector,
side light, side reflector etc.)
Color
As per customer requirement
Spare Wheel Bracket
1 piece of Spare Wheel Bracket
Tool box
1 set of standard tool box equipped with 1 Tire spanner, 1 gudgeon sleeve and 1 cranking bar
Painting
Sand blasting before painting;one coats of primer, anti- corrosion; two coat of finish painting;
Packing
Wax painting treatment to protect the vehicles from sea water, and the chassis greased to avoid rusting during shipping.
Delivery
From China port, and carry by container ship, ro-ro ship or bulk ship, the freight cost depends on the volume.
Remarks
Our senior engineer can design semi trailer as your request, and we accept OEM/ODM projects.
Pls kindly noted that pictures and configuration information are only for your reference.The final product can be made according to specific requirements.
Details Images
40 Ft 2 3 Axles Flatbed Semi-Trailer Heavy-Duty and Sturdy Flatbed Trailers for Truck 5

Featured Tire

Double Coin / LingLong / Michelin / Triangle / Bridgestone and other famous brand for choice. Better Performance in wear resistance
40 Ft 2 3 Axles Flatbed Semi-Trailer Heavy-Duty and Sturdy Flatbed Trailers for Truck 6

Suspension and break system

Suspension: Germany Type or American Type Mechanical and Air bag suspension can be choose.
Brake System: T30/30 Spring brakechamber. WABCO valve,ABS/EBS system optional. dual line brake pipe.
40 Ft 2 3 Axles Flatbed Semi-Trailer Heavy-Duty and Sturdy Flatbed Trailers for Truck 7

Anti-Tire abrasion Suspension

Specially designed anti-Tire abrasion suspension system,Prevent tire offset after loading, maximally avoid tire
abrasion.Meanwhile,Easy to disassemble and maintain.
40 Ft 2 3 Axles Flatbed Semi-Trailer Heavy-Duty and Sturdy Flatbed Trailers for Truck 8

Axle
BPW/FUWA/LEAO Axle optional.

Integrated Advanced Low-Alloy Axle Beam,Whole
Axle Beam No Welding process.Strong Carrying
Capacity and high bending Strength.Axle
maintenance-free could reach 3 Year/400,000
kilometers.
40 Ft 2 3 Axles Flatbed Semi-Trailer Heavy-Duty and Sturdy Flatbed Trailers for Truck 9

TWIST LOCK

Usually 20 ft is 4 sets locks, 40 ft with 12 sets. Customers can also change the number of locks according to their needs Customers can change the number of locks according to your own needs.
40 Ft 2 3 Axles Flatbed Semi-Trailer Heavy-Duty and Sturdy Flatbed Trailers for Truck 10

Landing Gear

The warranty period of Chinese brand/JOST landing
gear is more than 5 years. The gearbox uses low temperature premium chassis oil and is rated for
service from -30°C to 120°C.

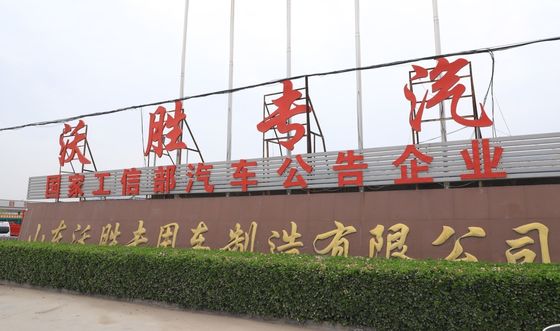

Company Profile
40 Ft 2 3 Axles Flatbed Semi-Trailer Heavy-Duty and Sturdy Flatbed Trailers for Truck 11
About us
Qingdao Wosheng Import and Export Co., Ltd., is a company engaged in semi-trailer, truck, used
semi-trailer, used-truck, auto parts and new energy vehicles’ sales and service. Our factory is
Shandong Wosheng Special vehicle manufacturing co.,ltd , which has nearly 8 years of production
experience in the trailer industry. Please believe that our professional technology and manufacturing
experience can help your transportation be safer and efficient. we can provide high quality products
and competitive prices.
40 Ft 2 3 Axles Flatbed Semi-Trailer Heavy-Duty and Sturdy Flatbed Trailers for Truck 12
40 Ft 2 3 Axles Flatbed Semi-Trailer Heavy-Duty and Sturdy Flatbed Trailers for Truck 13

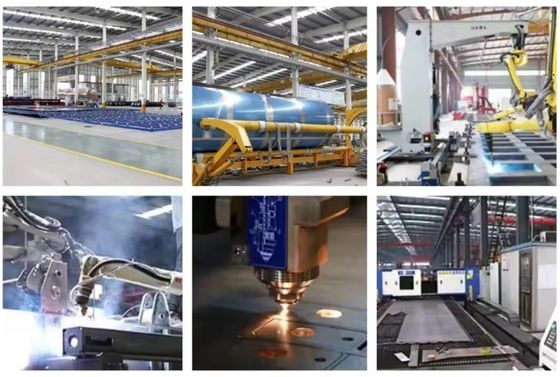

Factory
Our factory commit to strict quality
control and thoughtful customer
service, our experienced staff can
discuss your requirements at any time
to ensure your full satisfaction. We
not only want to be perfect in
appearance, but also pursue the
delicacy of detail. We have advanced
modern equipment, strong technical
force to ensure customer satisfaction
of products and timely delivery.
40 Ft 2 3 Axles Flatbed Semi-Trailer Heavy-Duty and Sturdy Flatbed Trailers for Truck 14

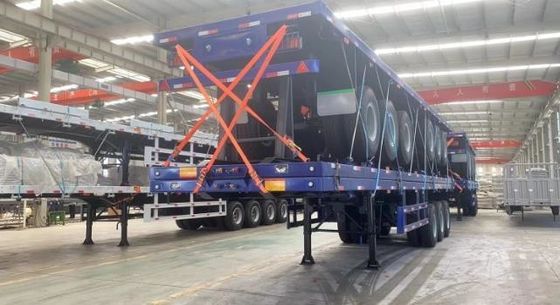

Packing and Loading
40 Ft 2 3 Axles Flatbed Semi-Trailer Heavy-Duty and Sturdy Flatbed Trailers for Truck 15
Certifications
40 Ft 2 3 Axles Flatbed Semi-Trailer Heavy-Duty and Sturdy Flatbed Trailers for Truck 16
We have obtained the World material Manufacturing Factory Certificate, 3C Certificate and ISO9000, Quality Management Certification. We are also a national high-tech enterprise and have obtained more than 30 invention patents and utility model patents.
40 Ft 2 3 Axles Flatbed Semi-Trailer Heavy-Duty and Sturdy Flatbed Trailers for Truck 17
Why Choose Us
40 Ft 2 3 Axles Flatbed Semi-Trailer Heavy-Duty and Sturdy Flatbed Trailers for Truck 18
We are your most reliable cooperation partner
We are a national high-tech enterprise and have obtained more than 30 invention patents and utility
model patents. We have attracted customers from all over the world, whether choosing the current
product from our catalog or seeking technical support for your application, you can talk to our
customer service colleagues about your procurement needs.
40 Ft 2 3 Axles Flatbed Semi-Trailer Heavy-Duty and Sturdy Flatbed Trailers for Truck 19
FAQ
Q1. Are you a factory or trade company ? We are a comprehensive industrial and trade enterprise integrating product design, scientific research
and development, production and sales. Welcome to visit our factory at any time.
Q2. Could you accept special design and specification? Sure of course. As we all know that the traffic regulations are different in different areas, our professional
engineers will design and our well-trained staff will produce according to customer special requirements.
Such as: special Size, special control, or OEM/ODM etc.
Q3. Are you looking for an agent? Yes, we're looking for the agent all over the world, you are welcome to contact us for further discussion.
Q4. How to control quality? We set up all process inspection and quality control standard, include raw materials, production process,
finished products. Advanced equipment and standard inspection process ensure the quality.
Q5. What services can we provide? Accepted Delivery Terms: EXW, FOB, CFR, CIF

Q6. What logistics ways we can work for shipment?
We can ship all trailer by various transportation tools
For 90% of our shipment, we will go by sea, to all main continents such as South America, Middle East,
Africa, Oceania etc, either by container or RoRo/Bulk Shipment.
For neighborhood countries of China, such as Russia, Tajikistan, Kazakhstan,Mongolia etc, we can
ship trucks by road or railway. For light spare parts in urgent demand, we can ship it by international
courier service, such as DHL, TNT, UPS, or Fedex.
