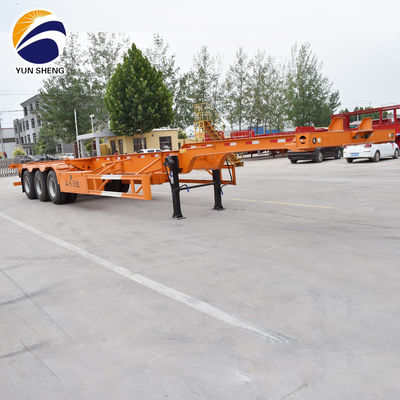

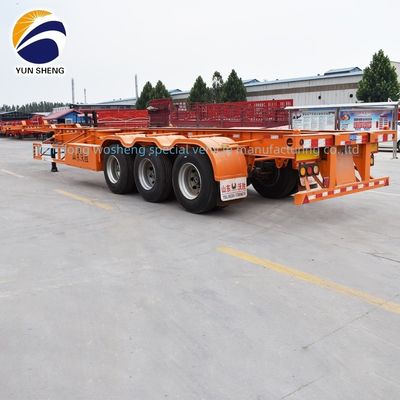

3 Axle Container Skeleton Semi Trailer with 50 Tons Payload and 6.5 Tons Tare Weight

3 Axle Container Skeleton Semi Trailer with 50 Tons Payload and 6.5 Tons Tare Weight
3 Axle Container Skeleton Semi Trailer with 50 Tons Payload and 6.5 Tons Tare Weight 3 Axle Container Skeleton Semi Trailer with 50 Tons Payload and 6.5 Tons Tare Weight 3 Axle Container Skeleton Semi Trailer with 50 Tons Payload and 6.5 Tons Tare Weight 3 Axle Container Skeleton Semi Trailer with 50 Tons Payload and 6.5 Tons Tare Weight 3 Axle Container Skeleton Semi Trailer with 50 Tons Payload and 6.5 Tons Tare Weight 3 Axle Container Skeleton Semi Trailer with 50 Tons Payload and 6.5 Tons Tare Weight

Large Image :  3 Axle Container Skeleton Semi Trailer with 50 Tons Payload and 6.5 Tons Tare Weight

Product Details:
Place of Origin: Shandong, China
Brand Name: Yunsheng
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $6,000.00/sets 1-4 sets
Payment Terms: T/T, L/C
Contact Now

3 Axle Container Skeleton Semi Trailer with 50 Tons Payload and 6.5 Tons Tare Weight

Description
Use: Truck Trailer Type: Semi-Trailer
Material: Steel Max Payload: >30000 Kg
Color: According To Customer Usage: Loading Container, Bagged Cemment, Steel And Equipment Etc
Lead Time: 15 Days Tare Weigh: 6.5 Tons
Size: 12380x2480x1550mm Axles: 2/3/4 Axles
Factory: Wo Sheng Loading Capacity: 50 Tons
Leaf Spring: 10 Layers Wheel: 13pcs Or According Design Or Customer

Products Description
3 Axle Container Skeleton Semi Trailer with 50 Tons Payload and 6.5 Tons Tare Weight 0
Container skeleton trailer
Wosheng 2 axle 3Axle 20ft 40ft Skeleton Gooseneck Container Chassis trailer
***When using a container chassis trailer to transfer the goods, it can be directly loaded in the consignor's warehouse and transported to the consignee's warehouse for unloading. When changing vehicles and ships midway, there is no need to remove the cargo from the container and reload it.
*** It can be quickly loaded and unloaded, and can be directly and conveniently converted from one mode of transportation to another.
3 Axle Container Skeleton Semi Trailer with 50 Tons Payload and 6.5 Tons Tare Weight 1

1.The skeleton is the main product of our company, fully digesting and absorbing the characteristics of similar products at home
and abroad, with strong loading capacity and high reliability.
3 Axle Container Skeleton Semi Trailer with 50 Tons Payload and 6.5 Tons Tare Weight 2

2.The frame chassis of this series adopts the through-beam structure, and the frame structure includes straight and gooseneck types. The overall strength is high, the weight is light, the appearance is beautiful, and the use is safe and reliable.
3 Axle Container Skeleton Semi Trailer with 50 Tons Payload and 6.5 Tons Tare Weight 3

3.Using advanced manufacturing technology, submerged arc automatic welding is used for longitudinal beams, and shot blasting is performed on the whole frame to effectively eliminate welding residues.
3 Axle Container Skeleton Semi Trailer with 50 Tons Payload and 6.5 Tons Tare Weight 4

4.In the spraying process, advanced spraying powder and baking technology are used to ensure that the vehicle is not easy to rust and beautiful.
3 Axle Container Skeleton Semi Trailer with 50 Tons Payload and 6.5 Tons Tare Weight 5

5.Wosheng's raw materials ensure the quality of the products, and the procurement, inspection and use are strictly in accordance with the requirements of the quality system, which ensures the good performance of the vehicle.
Drawing
3 Axle Container Skeleton Semi Trailer with 50 Tons Payload and 6.5 Tons Tare Weight 6
Wosheng Skeleton Container Trailer
20FT Skeleton Semi Trailer
40FT Skeleton Semi Trailer
45FT Skeleton Semi Trailer
Brand: Wosheng
Brand: Wosheng
Brand: Wosheng
2 Axles/3 Axles
3 Axles/ 4 Axles
3 Axles/ 4 Axles
20ft Container Loading
1*40ft/2*20ft Container Loading
1*45ft/1*40ft/2*20ft Container Loading
Loading Capacity: 20-50 Tons
Loading Capacity: 30-80 Tons
Loading Capacity: 30-80 Tons
Type: Gooseneck or Tandem
Type: Gooseneck or Tandem
Type: Gooseneck or Tandem
Main Bean
Material: Q345/T700
Material: Q345/T700
Material: T700
Upper Plate Thickness: 12mm
Upper Plate Thickness: 14mm
Upper Plate Thickness: 10mm
Middle Plate Thickness: 6mm
Middle Plate Thickness: 6mm
Middle Plate Thickness: 5mm
Lower Plate Thickness: 12mm
Lower Plate Thickness: 16mm
Lower Plate Thickness: 10mm
Height: 500mm
Height: 500mm
Height: 420mm
Dimension
L*W*H: 7000mm*2480mm*1560mm
L*W*H: 12400mm*2480mm*1580mm
L*W*H: 13950mm*2500mm*1600mm
Axle
2/3 Axles *13 Ton
VEHCILE MASTER/FUWA/BPW
3/4 Axles *13 Ton
VEHCILE MASTER/FUWA/BPW
3/4 Axles *13/16 Ton
VEHCILE MASTER/FUWA/BPW
Tire
12R22.5 (8/12 Pieces)
Linglong/Triangle/Double
Coin/Bridgestone
12R22.5 (12/16 Pieces)
Linglong/Triangle/Double
Coin/Bridgestone
12R22.5 (12/16 Pieces)
Linglong/Triangle/Double
Coin/Bridgestone
Rim
9.00*22.5 (8/12 Pieces)
Steel/Aluminum
9.0*22.5 (12/16 Pieces)
Steel/Aluminum
9.00*22.5 (12/16 Pieces)
Steel/Aluminum
Leaf Spring
90mm*13mm*10 Pieces
90mm*16mm*10 Pieces
90mm*13mm*10 Pieces
90mm*16mm*10 Pieces
90mm*13mm*10 Pieces
90mm*16mm*10 Pieces
King Pin
#50 (2")/#90 (3.5")
JOST/Other Brand
#50 (2")/#90 (3.5")
JOST/Other Brand
#50 (2")/#90 (3.5")
JOST/Other Brand
Landing Gear
28 Tons Two Speed
JOST/Other Brand
28 Tons Two Speed
JOST/Other Brand
28 Tons Two Speed
JOST/Other Brand
Twist Lock
4 Sets
12 Sets
12 Sets
Painting
Electrophoresis Painting
Electrophoresis Painting
Electrophoresis
Specification
3 Axle Container Skeleton Semi Trailer with 50 Tons Payload and 6.5 Tons Tare Weight 7
LEAO Moisture-proof LED lights:

Equipped with LED moisture-proof lamps to prevent short circuits and ensure the safety of vehicles transportation at night.
Landing Gear:
The warranty period of Chinese brand/JOST landing gear is more than 5 years. The gearbox uses low temperature premlum chassis oil and is rated for service from -30°C to 120°C.
3 Axle Container Skeleton Semi Trailer with 50 Tons Payload and 6.5 Tons Tare Weight 8
3 Axle Container Skeleton Semi Trailer with 50 Tons Payload and 6.5 Tons Tare Weight 9
Axle:
WPW/FUWA/Wosheng Axle Optional. Integrated Advanced Low-Alloy Axle Beam,Whole Axle Beam No Welding process.Strong Carrying Capacity
and high bending Strength.Axle maintenance-free could reach 3 Year/400,000 kilometers
Twist Lock:
Vehicle Master's twist locks are durable with unique design, which ensures the stability of containers and ease of loading and unloading.
3 Axle Container Skeleton Semi Trailer with 50 Tons Payload and 6.5 Tons Tare Weight 10
3 Axle Container Skeleton Semi Trailer with 50 Tons Payload and 6.5 Tons Tare Weight 11
Suspension and break system:
Suspension: Germany Type or America Type Mechanical and Air bag suspension can be choose.
Specially designed anti-Tire abrasion suspension system, prevent tire offset after loading, maximally avoid tire abrasion.
Meanwhile, Easy to disassemble and maintain.
Brake system: T30/30 Spring brake chamber. WABCO valve,ABS/EBS system optional. dual line brake pipe.
