Product Details:
|
| Use: | Truck Trailer | Type: | Semi-Trailer |
|---|---|---|---|
| Material: | Steel | Size: | 12400x2500x1550mm(CUSTOMIZABLE) |
| Max Payload: | 50 Ton | Function: | Transport 40ft Container |
| Main Beam: | Q345B Height 500mm Upper/down/middle Plate Are 14mm /16mm/8mm | Color: | Customer's Request |
| Leaf Spring: | 90(w)mm*13/16(thickness)mm*10(layer) | Brake System: | Dual Line Braking System |
| King Pin: | 2"(50mm)or3.5"(90mm) JOST | Axle: | 13Ton, 3 Axles FUWA |
| Suspension: | Mechanical Suspension | Landing Gear: | Heavy Duty Landing Gear 28t |
| Tire: | 12.00R22.5/315 80R22.5/11.00R20(Brand Optional) |

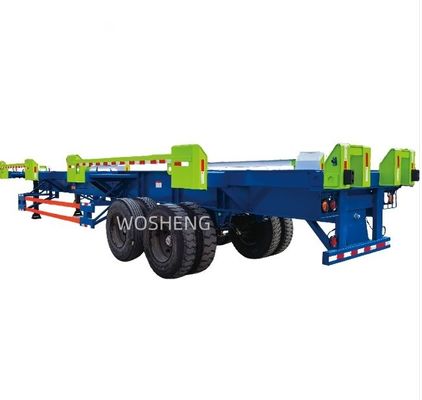

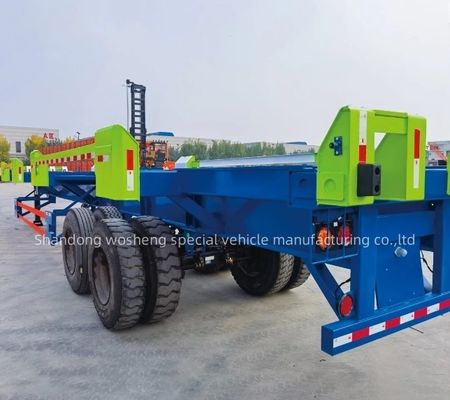

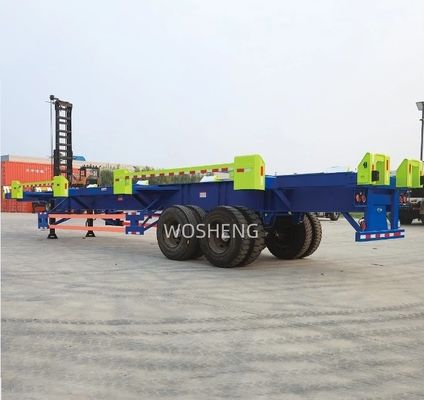

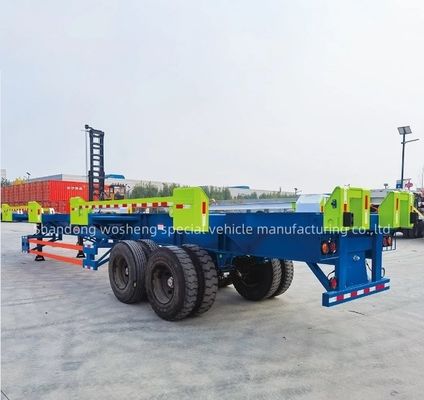

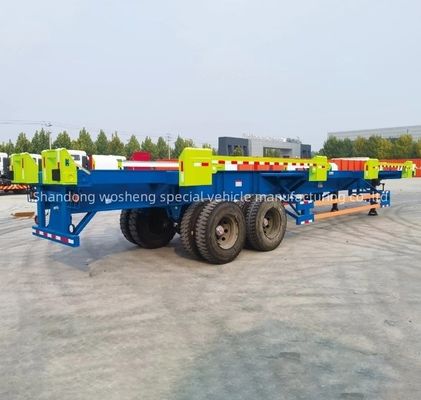

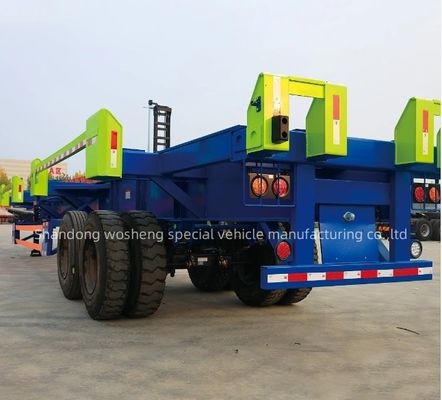

Products Name | 2 axle 20FT 40FT Container Skeleton Semi Trailer |
Max Payload | 50ton |
Size | 12400x2500x1550mm (CUSTOMIZABLE) |
Main Beam | Q345B Height 500mm upper plate is 14mm, down plate is 16mm, middle plate is 8mm. |
Leaf Spring | 90(w)mm*13/16(thickness)mm*10(layer) |
Landing Gear | 28t Heavy Duty Landing Gear |
Brake System | Dual line brake system |
Electrical SYSTEM | 1. Voltage: 24v waterproof 2. Receptacle: 7 ways (7 wire harness) |
King Pin | 2"(50mm)or3.5"(90mm) JOST |
Axle | 13Ton, 3 axles FUWA |
Suspension | Mechanical Suspension |
Tire | 12.00R22.5/315 80R22.5/11.00R20(Brand optional) |
Rim | 9.00-22.5 |
Accessory | One tooling box with a set of standard trailer tool. |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosion prime,2 coats of final paint |
Packaging and delivery | by sea transfer to Qingdao or Lianyungang Port, and carry by ro-ro ship or bulk cargo ship, the freight cost depends on the volume. |
remarks | We can design model according to client's requirement |
