40 FT 2 3 Axles Flatbed Semi Truck Trailer with Mechanical Suspension and 12R22.5 Tires

40 FT 2 3 Axles Flatbed Semi Truck Trailer with Mechanical Suspension and 12R22.5 Tires
40 FT 2 3 Axles Flatbed Semi Truck Trailer with Mechanical Suspension and 12R22.5 Tires 40 FT 2 3 Axles Flatbed Semi Truck Trailer with Mechanical Suspension and 12R22.5 Tires 40 FT 2 3 Axles Flatbed Semi Truck Trailer with Mechanical Suspension and 12R22.5 Tires 40 FT 2 3 Axles Flatbed Semi Truck Trailer with Mechanical Suspension and 12R22.5 Tires 40 FT 2 3 Axles Flatbed Semi Truck Trailer with Mechanical Suspension and 12R22.5 Tires 40 FT 2 3 Axles Flatbed Semi Truck Trailer with Mechanical Suspension and 12R22.5 Tires

Large Image :  40 FT 2 3 Axles Flatbed Semi Truck Trailer with Mechanical Suspension and 12R22.5 Tires

Product Details:
Place of Origin: Shandong, China
Brand Name: WOSHENG
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $9,000.00/units 1-9 units
Payment Terms: T/T, L/C
Contact Now

40 FT 2 3 Axles Flatbed Semi Truck Trailer with Mechanical Suspension and 12R22.5 Tires

Description
Use: Truck Trailer Type: Semi-Trailer
Material: Steel Size: 12400*2610*1550mm
Max Payload: 20T-80T Product Name: Flatbed Semi-trailer
Tare Weight: 20T-80T Axle: 4 Axle
Tire: 12R22.5 Suspension: Mechanical Suspension Air Suspension
King Pin: 2"(50mm) Or3.5"(90mm) Brake System: Dual Line Braking System

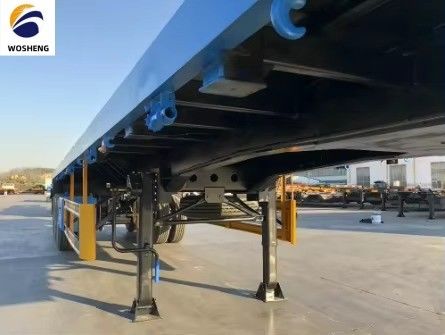

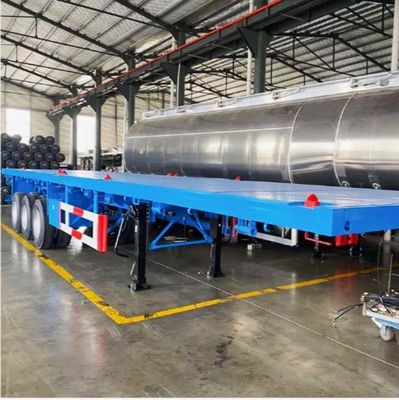

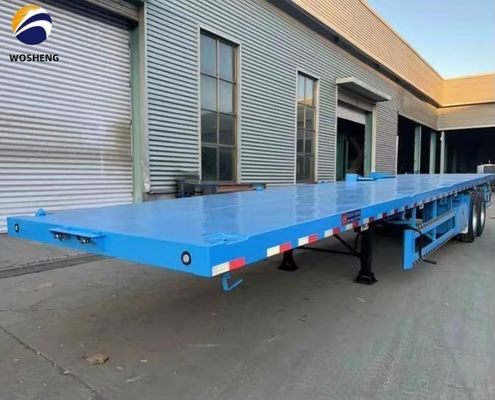

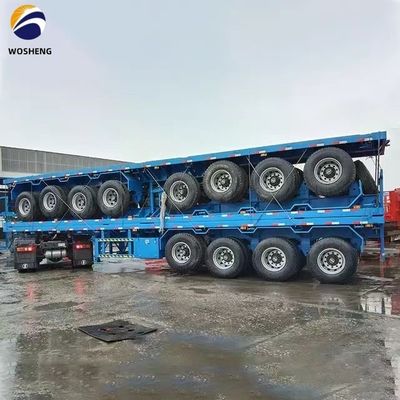

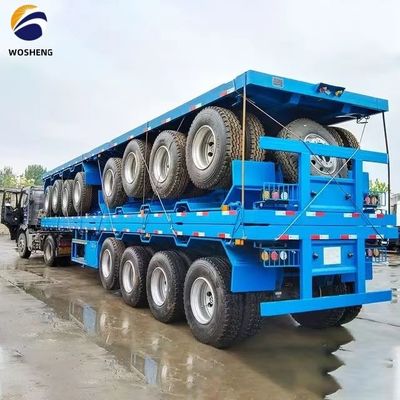

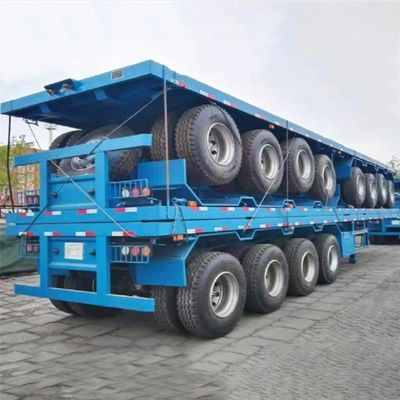

Products picture

3 axle cargo trailer flatbed semi-trailer

1.The Flatbed Container Trailer is the main product of our company. It's made of high stength full thickness Steel, titanium content 0.98‰, which ensure the toughness and strength of the beam and frame’s toughness and strength. The Max Loading Capacity:20- 100 Tons
40 FT 2 3 Axles Flatbed Semi Truck Trailer with Mechanical Suspension and 12R22.5 Tires 0
2.The main beam adopts fully automatic submerged arc welding, the whole vehicle is shot blasted and rust-proof, and the floor is a 3mm thick anti-skid plate
40 FT 2 3 Axles Flatbed Semi Truck Trailer with Mechanical Suspension and 12R22.5 Tires 1
3.The whole frame of the flatbed trailer should be shot blasted to effectively eliminate welding residues. The vehicle body is electrophoretic coating, resistant to coating, and the coating effect can reach more than 10+ years.
40 FT 2 3 Axles Flatbed Semi Truck Trailer with Mechanical Suspension and 12R22.5 Tires 2
40 FT 2 3 Axles Flatbed Semi Truck Trailer with Mechanical Suspension and 12R22.5 Tires 3
40 FT 2 3 Axles Flatbed Semi Truck Trailer with Mechanical Suspension and 12R22.5 Tires 4
Products Description
40 FT 2 3 Axles Flatbed Semi Truck Trailer with Mechanical Suspension and 12R22.5 Tires 5
Flatbed Semi Trailer Specification
20FT FLATBED SEMI TRAILER
40FT FLATBED SEMI TRAILER
45FT FLATBED SEMI TRAILER
Brand: Wosheng
Brand: Wosheng
Brand: Wosheng
2 Axles/3 Axles
2 Axles/3 Axles
3 Axles/4 Axles
20ft container or cargo loading
1*40ft/2*20ft Container or cargo loading
1*40ft/1*45ft container or cargo loading
Loading Capacity: 20 - 60 Tons
Loading Capacity: 30 - 80 Tons
Loading Capacity: 30 - 100 Tons
Gooseneck Type: Yes
Gooseneck Type: Yes
Gooseneck Type: Yes
Tandem Type: Yes
Tandem Type: Yes
Tandem Type: Yes
Main Beam
Material: Q345/T700
Material: Q345/T700
Material: Q345/T700
Upper Plate Thickness: 12mm
Upper Plate Thickness: 16mm
Upper Plate Thickness: 16mm
Middle Plate Thickness: 6mm
Middle Plate Thickness: 10mm
Middle Plate Thickness: 10mm
Lower Plate Thickness: 14mm
Lower Plate Thickness: 18mm
Lower Plate Thickness: 18mm
Height: 500mm
Height: 500mm
Height: 500mm
Platform Thickness: 2.5mm
Platform Thickness: 3mm
Platform Thickness: 3mm
Product Dimension
L 7000mm*W 2500mm*H 1570mm
L 12400mm*W 2500mm*H 1570mm
L 13950mm*W 2500mm*H 1600mm
Axles
2/3 Axles *13/16 Ton
WOSHENG/FUWA/BPW/Othe
2/3 Axles *13/16 Ton
WOSHENG/FUWA/BPW/Other
3/4 Axles *13/16 Ton
WOSHENG/FUWA/BPW/Other
Tire
12R22.5 (8/12 Pieces)
Linglong/Triangle/Double-Coin/Bridgestone/
Other Brand
12R22.5 (8/12 Pieces)
Linglong/Triangle/Double-Coin/Bridgestone/
Other Brand
12R22.5 (8/12 Pieces)
Linglong/Triangle/Double-Coin/Bridgestone/
Other Brand
Rim
9.00*22.5 (8/12 Pieces) Steel/Aluminum
9.00*22.5 (8/12 Pieces) Steel/Aluminum
9.00*22.5 (8/12 Pieces) Steel/Aluminum
Leaf Spring
90mm*13mm*10/90mm*16mm*10Pcs
90mm*13mm*10/90mm*16mm*10Pcs
90mm*13mm*10/90mm*16mm*10Pcs
King Pin
50#(2")/90#(3.5") JOST/Other Brand
50#(2")/90#(3.5") JOST/Other Brand
50#(2")/90#(3.5") JOST/Other Brand
Landing Gear
28 Ton Two Speed,JOST/Other Brand
28 Ton Two Speed,JOST/Other Brand
28 Ton Two Speed,JOST/Other Brand
Twist Lock
4 Sets
12 Sets
12 Sets
Vehicle Painting
Electrophoresis painting
Electrophoresis painting
Electrophoresis painting
40 FT 2 3 Axles Flatbed Semi Truck Trailer with Mechanical Suspension and 12R22.5 Tires 6
Landing Gear
JOST or Wosheng landing gear can be optioned made in aluminum or steel; designed to work under both high and low temperature in the range of 30℃ to 120℃.
Axle
BPW/FUWA/Wosheng Axle optional. Integrated Advanced Low-Alloy Axle Beam, Whole Axle Beam No Welding process. Strong Carrying Capacity and high bending Strength. Axle maintenance-free could reach 3 Year/400,000 kilometers.
40 FT 2 3 Axles Flatbed Semi Truck Trailer with Mechanical Suspension and 12R22.5 Tires 7
40 FT 2 3 Axles Flatbed Semi Truck Trailer with Mechanical Suspension and 12R22.5 Tires 8
Brake System
T30/30 Spring brake chamber. WABCO valve,ABS/EBS system optional. dual line brake pipe.
Anti-Tire abrasion Suspension
Specially designed anti-Tire abrasion suspension system, Prevent tire offset after loading, maximally avoid tire abrasion.
Meanwhile, Easy to disassemble and maintain.
40 FT 2 3 Axles Flatbed Semi Truck Trailer with Mechanical Suspension and 12R22.5 Tires 9
40 FT 2 3 Axles Flatbed Semi Truck Trailer with Mechanical Suspension and 12R22.5 Tires 10
Tool Box
Located on the side of the trailer without taking up too much space, it can store necessary maintenance tools, straps and safety equipment, made of durable materials and securely locks to keep the contents safe.
Recommend Products
40 FT 2 3 Axles Flatbed Semi Truck Trailer with Mechanical Suspension and 12R22.5 Tires 11
Company Profile
40 FT 2 3 Axles Flatbed Semi Truck Trailer with Mechanical Suspension and 12R22.5 Tires 12
40 FT 2 3 Axles Flatbed Semi Truck Trailer with Mechanical Suspension and 12R22.5 Tires 13
40 FT 2 3 Axles Flatbed Semi Truck Trailer with Mechanical Suspension and 12R22.5 Tires 14
About us
Shandong Wosheng Special Vehicle Manufacturer Co., LTD. Our company focuses on the development and production of semi-trailer, engaged in the semi-trailer industry has more than 20 years of rich experience, is a real set of trade and production as one of the manufacturers.our experienced staff can discuss your requirements at any time to ensure your full satisfaction. modern equipment, strong technical force to ensure customer satisfaction of products and timely delivery.
40 FT 2 3 Axles Flatbed Semi Truck Trailer with Mechanical Suspension and 12R22.5 Tires 15
40 FT 2 3 Axles Flatbed Semi Truck Trailer with Mechanical Suspension and 12R22.5 Tires 16
40 FT 2 3 Axles Flatbed Semi Truck Trailer with Mechanical Suspension and 12R22.5 Tires 17
Certification
40 FT 2 3 Axles Flatbed Semi Truck Trailer with Mechanical Suspension and 12R22.5 Tires 18
40 FT 2 3 Axles Flatbed Semi Truck Trailer with Mechanical Suspension and 12R22.5 Tires 19
40 FT 2 3 Axles Flatbed Semi Truck Trailer with Mechanical Suspension and 12R22.5 Tires 20
40 FT 2 3 Axles Flatbed Semi Truck Trailer with Mechanical Suspension and 12R22.5 Tires 21
40 FT 2 3 Axles Flatbed Semi Truck Trailer with Mechanical Suspension and 12R22.5 Tires 22
40 FT 2 3 Axles Flatbed Semi Truck Trailer with Mechanical Suspension and 12R22.5 Tires 23
40 FT 2 3 Axles Flatbed Semi Truck Trailer with Mechanical Suspension and 12R22.5 Tires 24
40 FT 2 3 Axles Flatbed Semi Truck Trailer with Mechanical Suspension and 12R22.5 Tires 25
40 FT 2 3 Axles Flatbed Semi Truck Trailer with Mechanical Suspension and 12R22.5 Tires 26
Packing and Shipping
40 FT 2 3 Axles Flatbed Semi Truck Trailer with Mechanical Suspension and 12R22.5 Tires 27
Exhibition
40 FT 2 3 Axles Flatbed Semi Truck Trailer with Mechanical Suspension and 12R22.5 Tires 28
We are your most reliable cooperation partner.
We are a national high-tech enterprise and have obtained more than 30 invention patents and utility model patents. We have attracted customers from all over the world, whether choosing the current product from our catalog or seeking technical support for your application, you can talk to our customer service colleagues about your procurement needs.
40 FT 2 3 Axles Flatbed Semi Truck Trailer with Mechanical Suspension and 12R22.5 Tires 29
FAQ

Q1. Are you a factory or trade company ? We are a comprehensive industrial and trade enterprise integrating product design, scientific research and development, production and sales. Welcome to visit our factory at any time.

Q2. Could you accept special design and specification? Sure of course. As we all know that the traffic regulations are different in different areas, our professional engineers will design and our well-trained staff will produce according to customer special requirements. Such as: special Size, special control, or OEM/ODM etc.

Q3. Are you looking for an agent? Yes, we're looking for the agent all over the world, you are welcome to contact us for further discussion.

Q4. How to control quality? We set up all process inspection and quality control standard, include raw materials, production process, finished products. Advanced equipment and standard inspection process ensure the quality.

Q5. what services can we provide? Accepted Delivery Terms: EXW, FOB, CFR, CIF
