Customizable 16-Wheel 4-Axles Low Bed Trailer in Oman 13-18m with Max Payload of 30TON

Customizable 16-Wheel 4-Axles Low Bed Trailer in Oman 13-18m with Max Payload of 30TON
Customizable 16-Wheel 4-Axles Low Bed Trailer in Oman 13-18m with Max Payload of 30TON Customizable 16-Wheel 4-Axles Low Bed Trailer in Oman 13-18m with Max Payload of 30TON Customizable 16-Wheel 4-Axles Low Bed Trailer in Oman 13-18m with Max Payload of 30TON Customizable 16-Wheel 4-Axles Low Bed Trailer in Oman 13-18m with Max Payload of 30TON Customizable 16-Wheel 4-Axles Low Bed Trailer in Oman 13-18m with Max Payload of 30TON Customizable 16-Wheel 4-Axles Low Bed Trailer in Oman 13-18m with Max Payload of 30TON

Large Image :  Customizable 16-Wheel 4-Axles Low Bed Trailer in Oman 13-18m with Max Payload of 30TON

Product Details:
Place of Origin: SHANDONG CHINA
Brand Name: WO SHENG
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $12,500.00/units 1-3 units
Payment Terms: T/T, L/C
Contact Now

Customizable 16-Wheel 4-Axles Low Bed Trailer in Oman 13-18m with Max Payload of 30TON

Description
Use: Truck Trailer Type: Semi-Trailer
Material: Steel Size: 12500/13000/14000/16000x2500/3000x1100/3300mm
Max Payload: 30TON/60TON/80TON/100TON OR CUSTOMER'S REQUEST Function: Transport Heavy Duty Equipment
Main Beam: Q345B / T700 Steel Color: Customized Color
Leaf Spring: 90(W)mm*13/16 (Thickness)mm*10(Layer) Brake System: Dual Line, Air Chamber T30/30,3 X 40L Gas Storage Drums
King Pin: 2"(50mm)or3.5"(90mm) JOST Or Other Brand Axle: 13/16/20 Ton, 4 Axles SAF /FUWA/BPW/WOSHENG
Suspension: Mechanical Suspension Air Suspension(American Or Geman) Landing Gear: 28t Heavy Duty Landing Gear FUWA/JOST/WOSHENG
Tire: 12.00R22.5/315 80R22.5/11.00R20/12.00R20(Brand Optional)

Products Description
Customizable 16-Wheel 4-Axles Low Bed Trailer in Oman 13-18m with Max Payload of 30TON 0

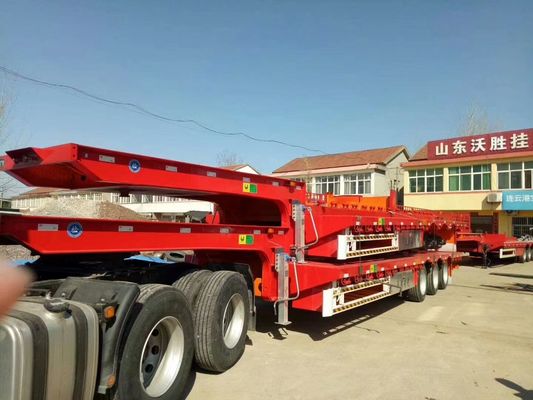

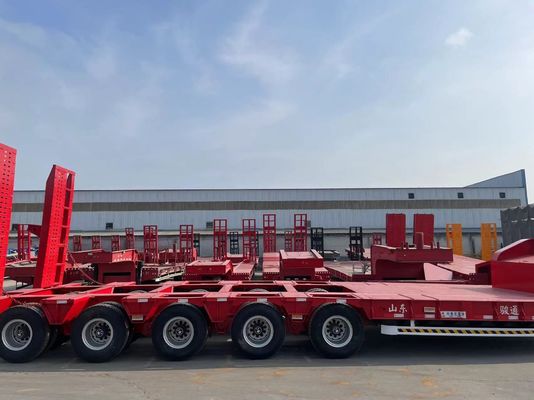

Lowbed semi trailer
Lowbed semi trailer have plate types, concave beam type and exposed tire type structure, its frame for the ladder, longitudinal beam section for the i-shape, with high stiffness, high strength characteristics.
The main plane of the frame and cargo platform is low, which ensures the smoothness of transportation.
Customizable 16-Wheel 4-Axles Low Bed Trailer in Oman 13-18m with Max Payload of 30TON 1
Customizable 16-Wheel 4-Axles Low Bed Trailer in Oman 13-18m with Max Payload of 30TON 2
Drawing
Customizable 16-Wheel 4-Axles Low Bed Trailer in Oman 13-18m with Max Payload of 30TON 3
Specification
Wosheng  Lowbed Lowboy Semi Trailer(Customerize and OEM Service Available)
Product Name
2 axles lowbed semi trailer
3 axles lowbed semi trailer
4 axles lowbed semi trailer
Size（mm）
12500*3000*1100
13000*3000*1100
14000*3000*1100
Payload
40000KG
60000KG
80000KG
Plate
4mm checked plate
4mm checked plate
5mm checked plate
Axles
2 * 13ton capacity
(Brand optional)
3 * 13ton capacity
(Brand optional)
4 * 13ton capacity
(Brand optional)
Ladder
Hydraulic ladder or Mechanical spring ladder
Main beam
Height: 500mm, upper plate is 16mm, middle plate is 8mm, down plate is 18mm ;
Material is Q345B Steel.
Side beam
250mm I beam; 20mm channel steel ( Material is Q235steel ).
Bottom Platform
4mm thickness diamond steel plate
Suspension
Mechanical suspension (Air suspension optional)
Leaf spring
90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12
(specially intended for overseas markets)
Tire
12R22.5 / 11.00R20 8pcs (Other size optional)
Rim
9.00-22.5 / 11.00R20 8pcs (Other size optional)
Kin pin
2’’/3.5’’ bolt type
Landing gear
28 Ton two speed
Braking system
Double air chamber ,brake valve,45L air tanks ;ABS optional
Electrical
LED light , 7 ways ,24V
Accessory
One tooling box with a set of standard trailer tool
Painting
1.Sand blasting processing clean rust.
2.Coat of anticorrosive primer.
3.Coats of finish urethane paint.
4.Color as customer choice.
Other Descriptions
The cargo platform is lower than others, it is applicable for unsound road condition, and ensuring the stablenessof the
transportation.
Usage
It is applicable for the transportations of the mechanical equipment, large objects, highway construction equipment, large tanks,
power plant equipment or machine, and all sorts of steel products.
Other Specifications
It's concave structured with tyre appeared style, the height of the cargo's carrying platform from ground is 900mm, (ladders
belong to optional components), with the overall height of 1710 mm.
Remark
We can design model according to client's requirement
Customizable 16-Wheel 4-Axles Low Bed Trailer in Oman 13-18m with Max Payload of 30TON 4
Axle
BPW/FUWA/Wosheng Brand
Axle optional.Integrated Advanced Low-Alloy Axle Beam,Whole Axle Beam No Welding process.Strong Carrying Capacity and high bending Strength.Axle maintenance-free could reach 3 Year/400,000 kilometers.

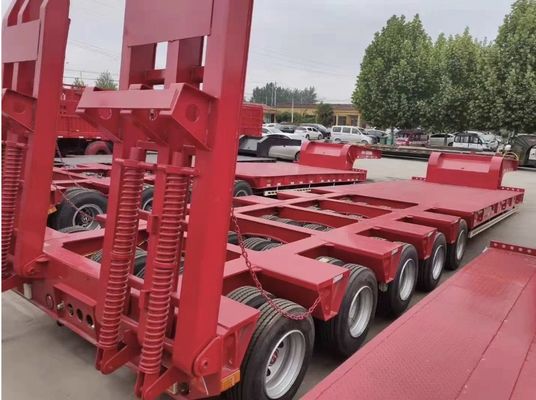

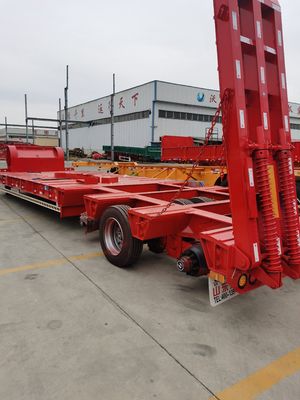

Ladder (1)and anti-skid chains:
This is Mechechinal Ladder
The function of the ladder anti-skid chain is to prevent the ladder from falling off, making it safer to use.
Customizable 16-Wheel 4-Axles Low Bed Trailer in Oman 13-18m with Max Payload of 30TON 5
Customizable 16-Wheel 4-Axles Low Bed Trailer in Oman 13-18m with Max Payload of 30TON 6

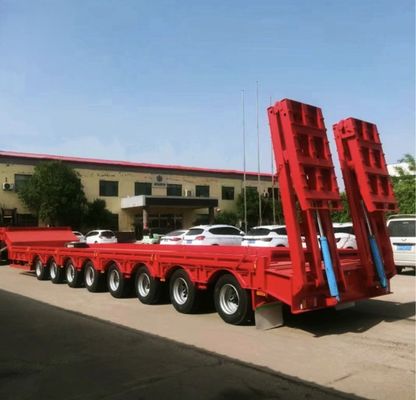

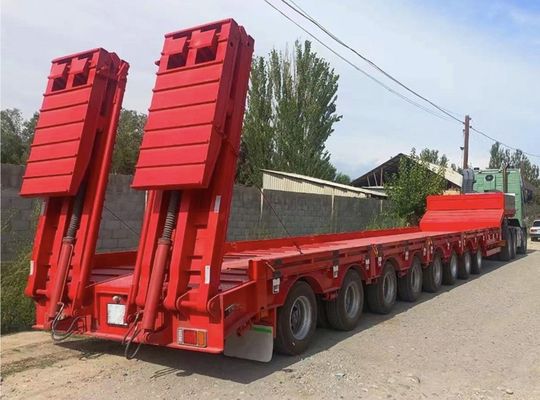

Ladder(2) Hydraulic :
Optional hydraulic ladder for more than 60 tons capacity,avoiding occupational injury when release ladder by manual operation.
Gooseneck Frame:
Gooseneck stiffeners increase the payload capacity of the low bed trailer.
Customizable 16-Wheel 4-Axles Low Bed Trailer in Oman 13-18m with Max Payload of 30TON 7
Customizable 16-Wheel 4-Axles Low Bed Trailer in Oman 13-18m with Max Payload of 30TON 8
Low bed platform:
The low bed platform uses patterned steel and welded anti-skid ribs to prevent equipment and goods from loosening and slipping.
Twist Lock:
It is also optionally available with container locks, which facilitates the transport of containers.
Customizable 16-Wheel 4-Axles Low Bed Trailer in Oman 13-18m with Max Payload of 30TON 9
Recommend Products
Customizable 16-Wheel 4-Axles Low Bed Trailer in Oman 13-18m with Max Payload of 30TON 10
Customizable 16-Wheel 4-Axles Low Bed Trailer in Oman 13-18m with Max Payload of 30TON 11
Customizable 16-Wheel 4-Axles Low Bed Trailer in Oman 13-18m with Max Payload of 30TON 12
Customizable 16-Wheel 4-Axles Low Bed Trailer in Oman 13-18m with Max Payload of 30TON 13
Customizable 16-Wheel 4-Axles Low Bed Trailer in Oman 13-18m with Max Payload of 30TON 14
Customizable 16-Wheel 4-Axles Low Bed Trailer in Oman 13-18m with Max Payload of 30TON 15
Customizable 16-Wheel 4-Axles Low Bed Trailer in Oman 13-18m with Max Payload of 30TON 16
Customizable 16-Wheel 4-Axles Low Bed Trailer in Oman 13-18m with Max Payload of 30TON 17
Customizable 16-Wheel 4-Axles Low Bed Trailer in Oman 13-18m with Max Payload of 30TON 18
Customizable 16-Wheel 4-Axles Low Bed Trailer in Oman 13-18m with Max Payload of 30TON 19
Customizable 16-Wheel 4-Axles Low Bed Trailer in Oman 13-18m with Max Payload of 30TON 20
Customizable 16-Wheel 4-Axles Low Bed Trailer in Oman 13-18m with Max Payload of 30TON 21
Company Profile
Customizable 16-Wheel 4-Axles Low Bed Trailer in Oman 13-18m with Max Payload of 30TON 22
About us
Shandong Wosheng Special Vehicle Manufacturer Co., LTD.
Our Company mainly produce fence semi trailer, lowbed semi trailer , low fence semi trailer , rear dump semi trailer, container flat semi trailer, fuel oil semi trailer, etc all kinds of semi trailer, Our company have more than 20 years produce and exporting experience Quality is firstly, Credit is our base for business, Welcome to know us and build business relationship.
Customizable 16-Wheel 4-Axles Low Bed Trailer in Oman 13-18m with Max Payload of 30TON 23
Customizable 16-Wheel 4-Axles Low Bed Trailer in Oman 13-18m with Max Payload of 30TON 24
Factory :
Our factory commit to strict quality control and thoughtful customer service, our experienced staff can discuss your requirements at any time to ensure your full satisfaction. We not only want to be perfect in
appearance, but also pursue the delicacy of detail. We have advanced modern equipment, strong technical force to ensure customer satisfaction of products and timely delivery.
Customizable 16-Wheel 4-Axles Low Bed Trailer in Oman 13-18m with Max Payload of 30TON 25
Packing and Loading
Customizable 16-Wheel 4-Axles Low Bed Trailer in Oman 13-18m with Max Payload of 30TON 26
Container usually us 45 feet
Usually by bulk
Certification
Customizable 16-Wheel 4-Axles Low Bed Trailer in Oman 13-18m with Max Payload of 30TON 27

we have obtained the World material Manufacturing Factory Certificate, 3C Certificate and ISO9000 Quality Management Certification. We are also a national high-tech enterprise and have obtained more than 30 invention patents and utility model patents.
Customizable 16-Wheel 4-Axles Low Bed Trailer in Oman 13-18m with Max Payload of 30TON 28
Customizable 16-Wheel 4-Axles Low Bed Trailer in Oman 13-18m with Max Payload of 30TON 29
We are your most reliable cooperation partner
We are a national high-tech enterprise and have obtained more than 30 invention patents and utility model patents. We have attracted customers from all over the world, whether choosing the current product from our catalog or seeking technical support for your application, you can talk to our customer service colleagues about your procurement needs.
High quality , factory lower price , good service !
Customizable 16-Wheel 4-Axles Low Bed Trailer in Oman 13-18m with Max Payload of 30TON 30
FAQ

Q1. Are you a factory or trade company ? We are a comprehensive industrial and trade enterprise integrating product design, scientific research and development, production and sales. Welcome to visit our factory at any time.

Q2. Could you accept special design and specification? Sure of course. As we all know that the traffic regulations are different in different areas, our professional engineers will design and our well-trained staff will produce according to customer special requirements. Such as: special Size, special control, or OEM/ODM etc.

Q3. Are you looking for an agent? Yes, we're looking for the agent all over the world, you are welcome to contact us for further discussion.

Q4. How to control quality? We set up all process inspection and quality control standard, include raw materials, production process, finished products. Advanced equipment and standard inspection process ensure the quality.

Q5. what services can we provide? Accepted Delivery Terms: EXW, FOB, CFR, CIF
