Product Details:
|
| Use: | Truck Trailer | Type: | Semi-Trailer |
|---|---|---|---|
| Material: | Steel | Size: | 9800x2500x3500mm |
| Max Payload: | 30-100T | Product Name: | Rear Dump Trailer |
| Function: | Sand Stone Grain Transporting | Main Beam: | Q345B / T700 Steel |
| Color: | Customer's Request | Leaf Spring: | 28t Heavy Duty Landing Gear |
| Brake System: | Dual Line Brake System | King Pin: | 2"(50mm)or3.5"(90mm) JOST Or Other Brand |
| Axle: | 13/16 Ton, 3 Axles FUWA/Wosheng | Suspension: | Mechanical Suspension |
| Landing Gear: | Heavy Duty Landing Gear 28t |
Product Name | Rear Dump Semi Trailer |
Application | Bulk Cargo Sand Ore Transport |
MOQ | 1 |
Delivery Time | Normal 10-15 days, according to the quantity you order |
Service | OEM / ODM service |
Color | According to customers requirements |

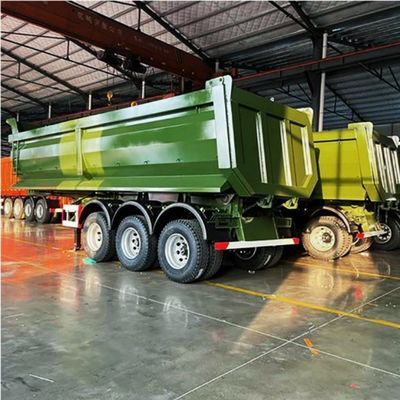

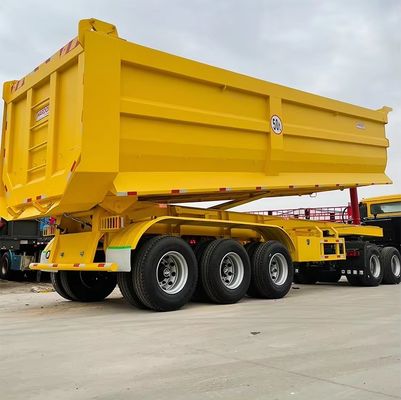

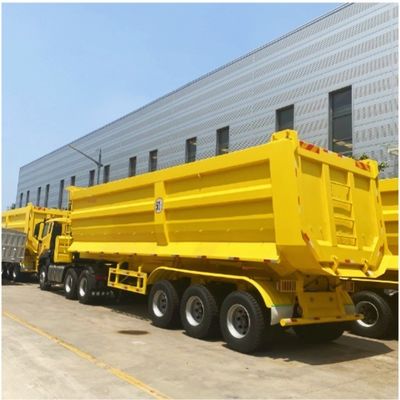

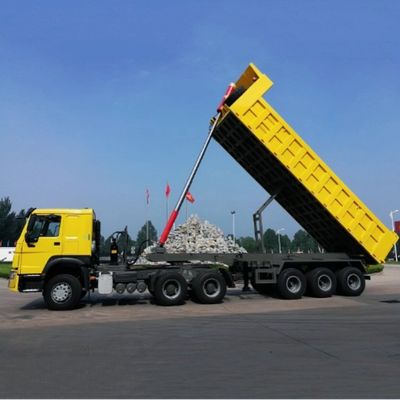

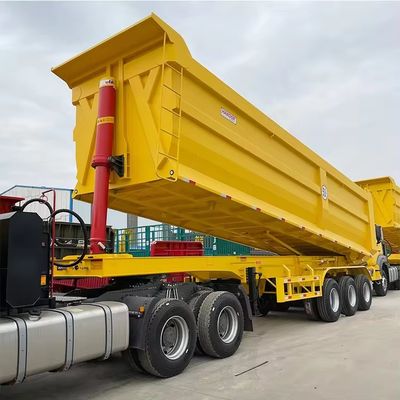

3 axle rear dump tipper or dumper semi trailer | |||||
Items | Rear Sump Semi Trailer | ||||
Tare Weight | 8.5 Tons (depends on final configuration) | ||||
Payload | 60 tons or cutomizable | ||||
Size | 9300x2500x3450mm (customizable) | ||||
Main Beam | Q345B/T700 steelHeight 500mm Upper Plate is 14mm Down plate is 16mm Middle plate is 8mm or customization | ||||
Floor Plate | Thickness 6mm | ||||
Sidewall | Thickness 4mm | ||||

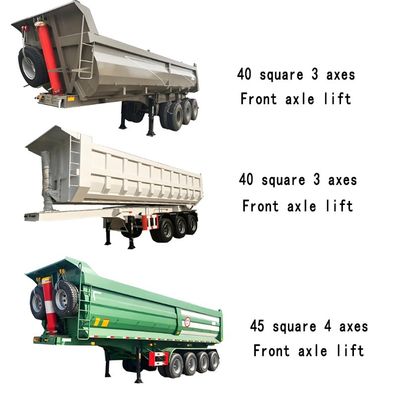

Axles | 13/16/20 tons, axle amount optional like 2/3/4 axles etc, axle brand optional like SAF, FUWA, BPW etc | ||||
King pin | 2.00"(50#), bolting king pin, JOST or another brand according to customer | ||||
Suspension | Mechanical suspension air suspension (American or Geman) | ||||
Leaf Spring | Six sets of reliable famous brand , 10pcs leaf spring, thickness 13mm. width 90mm | ||||
Landing gear | 28tons lifting capacity , Brand optinal FUWA/JOST etc can be choose | ||||
Tire specs | 12R22.5/315 80R22.5/11R20/12R20 Choose freely | ||||
Braking system | dual line brake system , Air chamber T30/30 3X40L gas storage drums | ||||
Rim | 9.00-22.5 /8.00-20/8.5-20 | ||||
ABS system | None or installed as your requirement. | ||||
Painting | Sanding , anti-corrosion , one primer paining add two layer top coat painting | ||||
Side Gurd | According to customer | ||||
Electrical system | 24 volt electrical system 7 pin electrical connector, Parking stop, reverse, number plate and indicator lights, rear lights conform to european standard, rear front and side reflectors | ||||
spare tire | Two set of heavy duty spare wheel carriers, indluding a riser | ||||
