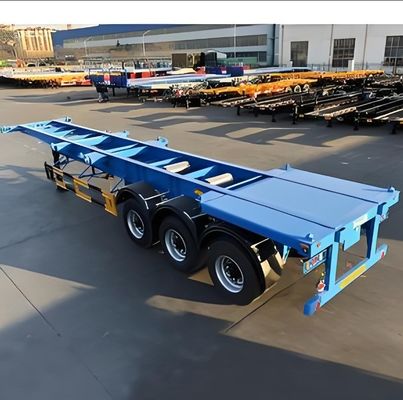

Wosheng Material Q345B T700 Container Chassis 3 Axle 4 Axle Truck Trailer for Shipping

Large Image : Wosheng Material Q345B T700 Container Chassis 3 Axle 4 Axle Truck Trailer for Shipping

Product Details:

Place of Origin:	Shandong, China
Brand Name:	WS

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$9,800.00/sets 1-4 sets
Payment Terms:	T/T, L/C

Contact Now

Wosheng Material Q345B T700 Container Chassis 3 Axle 4 Axle Truck Trailer for Shipping

Description

Use:	Truck Trailer	Type:	Semi-Trailer, Skeleton Semi Trailer
Material:	Steel, Q345B	Size:	12.38x2.48x1.55m
Max Payload:	>50000 Kg	Axles:	2/3/4/5 Axles
Tare Weight:	6.5 T	Color:	Customized Color
Painting:	Customization	Payload:	50 T
Tire Specification:	12R22.5 Customized	Rim:	9.0-22.5
Lead Time:	10 Days

Products Description

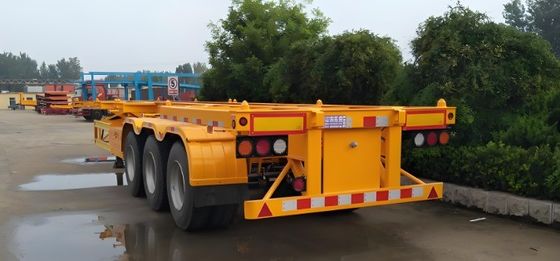

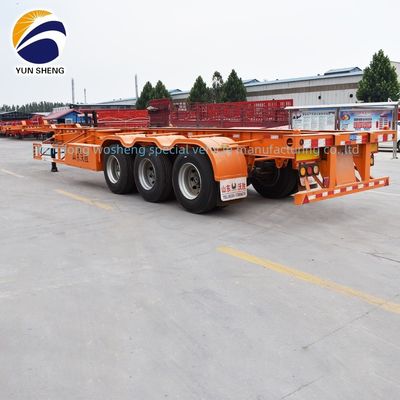

Container skeleton trailer

Container skeleton trailer is an semi trailer with standardizes size (customization) and steel skeleton structure, mainly used for transporting container. This model have simple structure , strong durability, can adapt to complex transportation environment, and is an important part of modern logistics transportation. It is widely used in various types of international shipping , railways road and other transportation occasions, can meet the transportation needs of different sizes and different shapes of containers

Specification

Drawing

Detail Specification for skeleton semi trailer
Items	skeleton semi trailer
Tare Weight	6.5 Tons
Payload	50Tons
Size	12380X2480X1550mm
Frame	Main Beam: Opting for high strength Q345B steel, 520mm deep welded I-section main beams, Top flange thickness 14mm, Bottom flange thickness 16mm, Middle flage thickness 8mm
		Cross Beam: Heavy duty thickened 10# channel steel
		Side Beam: Heavy duty 18# channel steel
Axles	13/16/20 ton. Axle amount optional like 2/3/4/5/6 axles etc, axle brand optinal like SaF /fuwa /BPW etc.
King pin	2.00"(50#), bolting king pin, JOST brand
Suspension	Heavy duty type tri-axles suspension with equalizers. American design
Steel Spring	Six sets of reliable famous brand , 10pcs leaf spring, thickness 13mm. width 90mm
Landing gear	28tons lifting capacity , two speed
Tire specs	12R22.5 Triangle brand , or another brand according to customer
Pneummatic Braking system	dual line pneumatic brake system, T 30 air chamber, 40 L air tanks, Emergency relay valve
Rim	9.00-22.5 brand according to customer
Paiting	Sanding , anti-corrosion , one primer paining add two layer top coat painting
Side Gurd	According to customer
Electrical system	24 volt electrical system 7 pin electrical connector, Parking stop, reverse, number plate and indicator lights, rear lights conform to european standard, rear front and side reflectors
spare tire	Two set of heavy duty spare wheel carriers, indluding a riser
Tool Box	One Piece (1.0 x 5.0 m) with 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar

Suspention - Anti-Tire Abrasion

Specially designed anti-Tire abrasion suspension system prevent tire deflection after loading and avoids tires to the maximum extent worn out. and easy to disassemble and maintain

Twist Losk:

ISO standard lock suitable worldwide container, additional protection switch avoid mistake opperate

Axle suspension and brake system

BPW Fuwa worldwide best axles worki with WABCO brake valve, More effectively brake for safe and save tire cost , Fix quality springs and suspension , support longer service life, save maintain cost

Landing Gear

The warranty period of Chinese brand/JOST landing gear is more than 5 years. The gearbox uses low temperature premium chassis oil and is rated for service from -30°C to 120°C

Leaf Spring

Usually six sets, 10pcs leaf spring , 13mm thickness, 90mm width

contruction

Main Beam: High strength Q345 or T700 steel material welded by submerged arc

Twist

About us

Shandong Wosheng Special Vehicle Manufacturer Co., LTD.

Our Company mainly produce fence semi trailer, lowbed semi trailer , low fence semi trailer , rear dump semi trailer, container flat semi trailer, fuel oil semi trailer, etc all kinds of semi trailer, Our company have more than 20 years produce and exporting experience Quality is firstly, Credit is our base for business, Welcome to know us and build business relationship.

Recommend Products

Company Profile

Factory :

Our factory commit to strict quality control and thoughtful customer service, our experienced staff can discuss your requirements at any time to ensure your full satisfaction. We not only want to be perfect in
appearance, but also pursue the delicacy of detail. We have advanced modern equipment, strong technical force to ensure customer satisfaction of products and timely delivery.

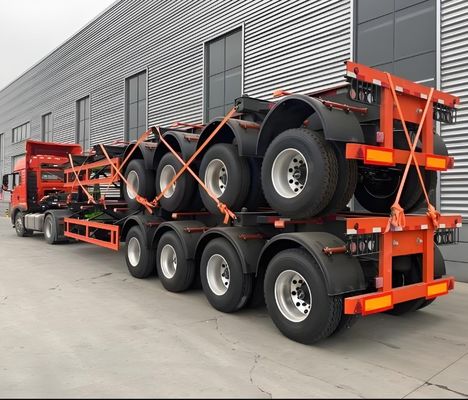

Packing and Loading

Container usually us 45 feet

Usually by bulk

Certification

we have obtained the World material Manufacturing Factory Certificate, 3C Certificate and ISO9000 Quality Management Certification. We are also a national high-tech enterprise and have obtained more than 30 invention patents and utility model patents.

We are your most reliable cooperation partner

We are a national high-tech enterprise and have obtained more than 30 invention patents and utility model patents. We have attracted customers from all over the world, whether choosing the current product from our catalog or seeking technical support for your application, you can talk to our customer service colleagues about your procurement needs.

High quality , factory lower price , good service !

FAQ

Q1. Are you a factory or trade company ? We are a comprehensive industrial and trade enterprise integrating product design, scientific research and development, production and sales. Welcome to visit our factory at any time.

Q2. Could you accept special design and specification? Sure of course. As we all know that the traffic regulations are different in different areas, our professional engineers will design and our well-trained staff will produce according to customer special requirements. Such as: special Size, special control, or OEM/ODM etc.

Q3. Are you looking for an agent? Yes, we're looking for the agent all over the world, you are welcome to contact us for further discussion.

Q4. How to control quality? We set up all process inspection and quality control standard, include raw materials, production process, finished products. Advanced equipment and standard inspection process ensure the quality.

Q5. what services can we provide? Accepted Delivery Terms: EXW, FOB, CFR, CIF
