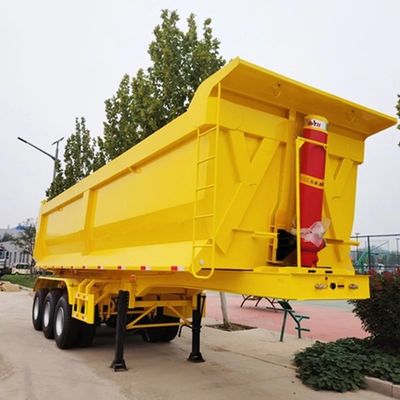

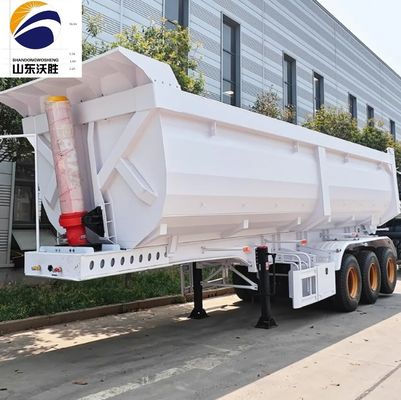

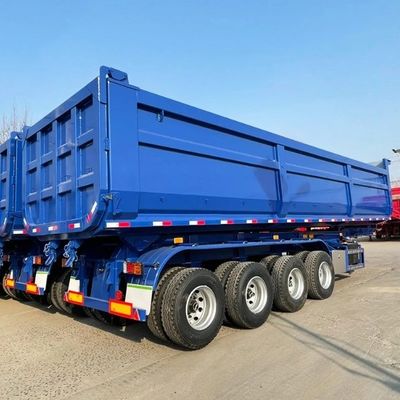

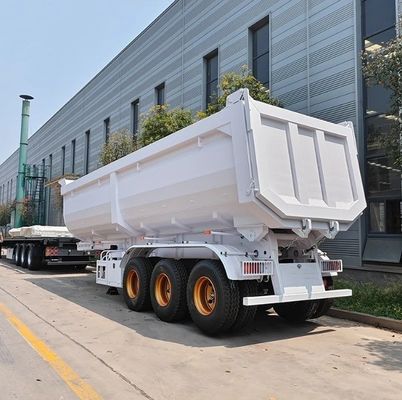

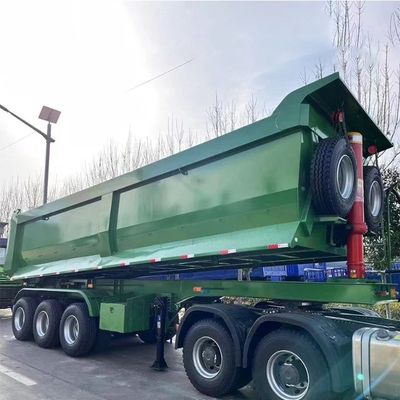

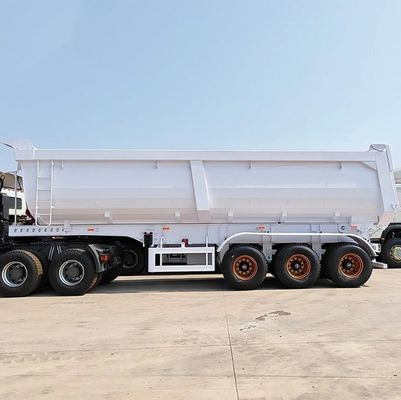

U-shaped Hydraulic Cylinder 3axle Dump Tipper Rear Dump Semi-trailer with Leaf Spring

U-shaped Hydraulic Cylinder 3axle Dump Tipper Rear Dump Semi-trailer with Leaf Spring
U-shaped Hydraulic Cylinder 3axle Dump Tipper Rear Dump Semi-trailer with Leaf Spring U-shaped Hydraulic Cylinder 3axle Dump Tipper Rear Dump Semi-trailer with Leaf Spring U-shaped Hydraulic Cylinder 3axle Dump Tipper Rear Dump Semi-trailer with Leaf Spring U-shaped Hydraulic Cylinder 3axle Dump Tipper Rear Dump Semi-trailer with Leaf Spring U-shaped Hydraulic Cylinder 3axle Dump Tipper Rear Dump Semi-trailer with Leaf Spring U-shaped Hydraulic Cylinder 3axle Dump Tipper Rear Dump Semi-trailer with Leaf Spring

Large Image :  U-shaped Hydraulic Cylinder 3axle Dump Tipper Rear Dump Semi-trailer with Leaf Spring

Product Details:
Place of Origin: SHANDONG CHINA
Brand Name: WO SHENG
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $13,350.00/units 1-9 units
Payment Terms: T/T, L/C
Contact Now

U-shaped Hydraulic Cylinder 3axle Dump Tipper Rear Dump Semi-trailer with Leaf Spring

Description
Use: Truck Trailer Type: Semi-Trailer
Material: Steel Size: 9800x2500x3500mm
Max Payload: 30-100T Product Name: Rear Dump Trailer
Function: Sand Stone Grain Transporting Main Beam: Q345B / T700 Steel
Color: Customer's Request Leaf Spring: 28t Heavy Duty Landing Gear
Brake System: Dual Line Brake System King Pin: 2"(50mm)or3.5"(90mm) JOST Or Other Brand
Axle: 13/16 Ton, 3 Axles FUWA/Wosheng Suspension: Mechanical Suspension
Landing Gear: Heavy Duty Landing Gear 28t

U-shaped Hydraulic Cylinder 3axle Dump Tipper Rear Dump Semi-trailer with Leaf Spring 0
Shandong Wosheng Semi Trailers
Qingdao Wosheng Import and Export Co., Ltd is a professional semi-trailer manufacturer with more than ten years of production experience. With a professional R & D team, we can according to your needs specializing in the production of customized high quality trailer. We provide the best quality, factory price, timely delivery and perfect after-sales. Please contact us if necessary.
Products Description
U-shaped Hydraulic Cylinder 3axle Dump Tipper Rear Dump Semi-trailer with Leaf Spring 1
High Quality 3 4 Axles Sand Stone Transport Hydraulic Rock Mining Tipper Rear Dump Semi Trailer For Construction
Wosheng Dump Semi Trailers are in great demand from customers, the proven product, which features reliable structure , great loading capacity, excellent power, reliable performance. This trailer model could meet the requirements of different road conditions, and could satisfy your need of long distance highway transportation.
U-shaped Hydraulic Cylinder 3axle Dump Tipper Rear Dump Semi-trailer with Leaf Spring 2

A rear dump trailer, also commonly referred to as a dump trailer or a dump bed trailer, is a specialized type of trailer designed for the efficient transportation and unloading of loose materials such as gravel, sand, dirt, aggregate, or even recyclable waste.
U-shaped Hydraulic Cylinder 3axle Dump Tipper Rear Dump Semi-trailer with Leaf Spring 3

This versatile piece of equipment is widely used in construction, landscaping, mining, agriculture, and various other industries where the need arises to transport and dispose of large quantities of bulk materials.A rear dump trailer is an essential tool for anyone involved in the transportation and disposal of bulk materials. Its unique dumping mechanism, combined with its versatility and durability, makes it a highly efficient and cost-effective solution for a wide range of applications.
U-shaped Hydraulic Cylinder 3axle Dump Tipper Rear Dump Semi-trailer with Leaf Spring 4
U-shaped Hydraulic Cylinder 3axle Dump Tipper Rear Dump Semi-trailer with Leaf Spring 5
Specification
U-shaped Hydraulic Cylinder 3axle Dump Tipper Rear Dump Semi-trailer with Leaf Spring 6
U-shaped Hydraulic Cylinder 3axle Dump Tipper Rear Dump Semi-trailer with Leaf Spring 7
Example of engineer drawing
We can design as per your requirements
Wosheng Rear Dump Tipper Semi Trailer
Application
Transport all kinds of Mineral/Coal/Stone/Sand/Cargo Loading
Model
2 axles tipper trailer
3 axles tipper trailer
4 axles tipper trailer
5-6 axles tipper trailer
Bucket capacity
25 cubic meters
30/35/40 cubic meters
40 cubic meters
45 cubic meters
Dimension （mm）
8500*2500*3500
10000x2500x3800
10500*2500*3900
11500*2500*3950
Rim and tires
12.00R22.5 tires
9.0-22.5 rims
12.00R22.5 tires
9.0-22.5 rims
315/80R22.5 tires
9.0-22.5 rims
12.00R20 tires
9.0-20


Lifting system
HYVA brand
FE/FC type cylinders
Diameter=191 mm
HYVA brand
FE/FC type cylinders
Diameter=191 mm
HYVA brand
FE/FC type cylinders
Diameter=202 mm
HYVA brand
FE/FC type cylinders
Diameter=214 mm
Tipping box
T700 / Hardox


Main Beams
T700 / Q345B double plate
Height:500mm
Upper Plate: 14mm
Middle Plate: 8mm
Lower Plate: 16mm
Axle
13T/16T FUWA / BPW / WOSHENG Own Brand
King Pin
JOST brand 2.0'' / 3.5'' bolt type king pin
Landing Gear
28T double speed JOST / TAIHUA brand
Suspension
Heavy duty mechanical suspension / Air bag / Bogies
Pneumatic Braking System
WABCO RE 6 relay valve
T30/30 air brake chamber
Spring leaf
90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12
(special for export market )
Light
LED light,24V,7ways(7 wire harness)

Tool Box
steel/aluminum
One piece,1m*0.5m*0.5m(Size can be choose freely)
Painting
1 coat of anticorrosive prime, 2coats of final paint
Any parts fitted could according to clients request, contact us to get more.
Details Images
U-shaped Hydraulic Cylinder 3axle Dump Tipper Rear Dump Semi-trailer with Leaf Spring 8
Brake System
T30/30 Spring brake chamber. WABCO valve, ABS/EBS system optional. dual line brake pipe.
U-shaped Hydraulic Cylinder 3axle Dump Tipper Rear Dump Semi-trailer with Leaf Spring 9
Front axle lifting and Tire
Double Coin / LingLong / Michelin / Triangle / Bridgestone and other famous brand for choice. Better Performance in wear resistance.
U-shaped Hydraulic Cylinder 3axle Dump Tipper Rear Dump Semi-trailer with Leaf Spring 10
Reinforcement side plate supporting design
U-shaped Hydraulic Cylinder 3axle Dump Tipper Rear Dump Semi-trailer with Leaf Spring 11
Tool box with enough important emergency tools
U-shaped Hydraulic Cylinder 3axle Dump Tipper Rear Dump Semi-trailer with Leaf Spring 12
Libricate counteraxle
U-shaped Hydraulic Cylinder 3axle Dump Tipper Rear Dump Semi-trailer with Leaf Spring 13
Hydraulic and Power takeoff box, No need to install power output device on the engine
U-shaped Hydraulic Cylinder 3axle Dump Tipper Rear Dump Semi-trailer with Leaf Spring 14
Tail light guard
U-shaped Hydraulic Cylinder 3axle Dump Tipper Rear Dump Semi-trailer with Leaf Spring 15
Hydraulic dust cover
U-shaped Hydraulic Cylinder 3axle Dump Tipper Rear Dump Semi-trailer with Leaf Spring 16
Axle :BPW/FUWA/Wosheng Axle optional.
Integrated Advanced Low-Alloy Axle Beam,Whole
Axle Beam No Welding process.Strong Carrying
Capacity and high bending Strength.Axle
maintenance-free could reach 3 Year/400,000
kilometers.
U-shaped Hydraulic Cylinder 3axle Dump Tipper Rear Dump Semi-trailer with Leaf Spring 17
Anti-Tire abrasion Suspension
Specially designed anti-Tire abrasion suspension system,Prevent tire offset after loading, maximally avoid tire abrasion.Meanwhile,Easy to disassemble and maintain.
Company Profile
U-shaped Hydraulic Cylinder 3axle Dump Tipper Rear Dump Semi-trailer with Leaf Spring 18
About us
Qingdao Wosheng Import and Export Co., Ltd., is a company engaged in semi-trailer, truck, used semi-trailer, used-truck, auto parts and new energy vehicles’ sales and service. Our factory is Shandong Wosheng Special vehicle manufacturing co.,ltd , which has nearly 8 years of production experience in the trailer industry. Please believe that our professional technology and manufacturing experience can help your transportation be safer and efficient. we can provide high quality products and competitive prices.
U-shaped Hydraulic Cylinder 3axle Dump Tipper Rear Dump Semi-trailer with Leaf Spring 19

Factory
Our factory commit to strict quality control and thoughtful customer service, our experienced staff can discuss your requirements at any time to ensure your full satisfaction. We not only want to be perfect in appearance, but also pursue the delicacy of detail. We have advanced modern equipment, strong technical force to ensure customer satisfaction of products and timely delivery.
U-shaped Hydraulic Cylinder 3axle Dump Tipper Rear Dump Semi-trailer with Leaf Spring 20
Certification
U-shaped Hydraulic Cylinder 3axle Dump Tipper Rear Dump Semi-trailer with Leaf Spring 21

We have obtained the World material Manufacturing Factory Certificate, 3C Certificate and ISO9000 Quality Management Certification. We are also a national high-tech enterprise and have obtained more than 30 invention patents and utility model patents.
U-shaped Hydraulic Cylinder 3axle Dump Tipper Rear Dump Semi-trailer with Leaf Spring 22
Our Advantages
U-shaped Hydraulic Cylinder 3axle Dump Tipper Rear Dump Semi-trailer with Leaf Spring 23
We are your most reliable cooperation partner
We are a national high-tech enterprise and have obtained more than 30 invention patents and utility model patents. We have attracted customers from all over the world, whether choosing the current product from our catalog or seeking technical support for your application, you can talk to our customer service colleagues about your procurement needs.
U-shaped Hydraulic Cylinder 3axle Dump Tipper Rear Dump Semi-trailer with Leaf Spring 24
Packing and Shipping
U-shaped Hydraulic Cylinder 3axle Dump Tipper Rear Dump Semi-trailer with Leaf Spring 25
FAQ
Q1. Are you a factory or trade company ?
We are a comprehensive industrial and trade enterprise integrating product design,scientific research and development, production and sales. Welcome to visit our factory at any time.

Q2. Could you accept special design and specification?
Sure of course. As we all know that the traffic regulations are different in different areas, our professional engineers will design and our well-trained staff will produce according to customer special requirements.
Such as: special Size, special control, or OEM/ODM etc.

Q3. Are you looking for an agent?
Yes, we're looking for the agent all over the world, you are welcome to contact us for further discussion.

Q4. How to control quality?
We set up all process inspection and quality control standard, include raw materials, production process, finished products. Advanced equipment and standard inspection process ensure the quality.

Q5. What services can we provide?
Accepted Delivery Terms: EXW, FOB, CFR, CIF

Q6. What logistics ways we can work for shipment?
We can ship all trailer by various transportation tools.
For 90% of our shipment, we will go by sea, to all main continents such as South America, Middle East, Africa, Oceania etc, either by container or RoRo/Bulk Shipment.
For neighborhood countries of China, such as Russia, Tajikistan, Kazakhstan,Mongolia etc, we can ship trucks by road or railway. For light spare parts in urgent demand, we can ship it by international courier service, such as DHL, TNT, UPS, or Fedex.
