Secure Transportation Container Semi Trailer With Twist Lock and Max Payload 30000 kg

Large Image : Secure Transportation Container Semi Trailer With Twist Lock and Max Payload 30000 kg

Product Details:

Place of Origin:	SHANDONG CHINA
Brand Name:	WO SHENG

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$11,800.00/units 1-3 units
Payment Terms:	T/T, L/C

Contact Now

Secure Transportation Container Semi Trailer With Twist Lock and Max Payload 30000 kg

Description

Use:	Truck Trailer	Type:	Semi-Trailer
Material:	Steel	Size:	12400x2500x1550mm
Max Payload:	>30000 Kg	Function:	Transport 40ft Container
Main Beam:	Q345B Height 500mm Upper/down/middle Plate Are 14mm /16mm/8mm	Color:	Customer's Request
Leaf Spring:	90(w)mm13/16(thickness)mm10(layer)	Brake System:	Dual Line Braking System
King Pin:	2"(50mm)or3.5"(90mm) JOST	Axle:	13Ton, 3 Axles FUWA
Suspension:	Mechanical Suspension	Landing Gear:	Heavy Duty Landing Gear 28t
Tire:	12.00R22.5/315 80R22.5/11.00R20(Brand Optional)

Products Description

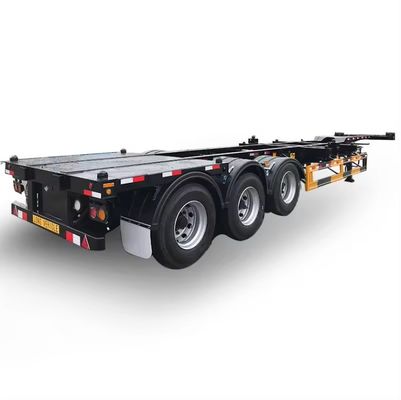

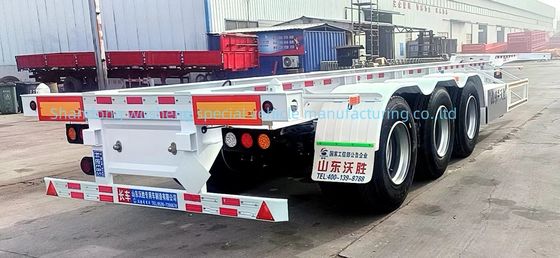

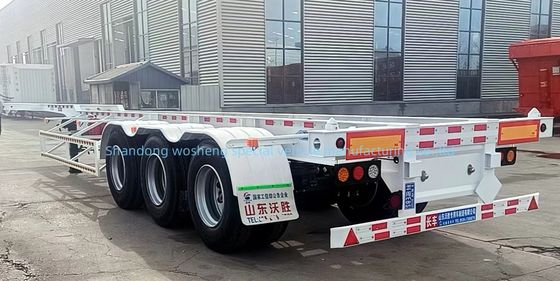

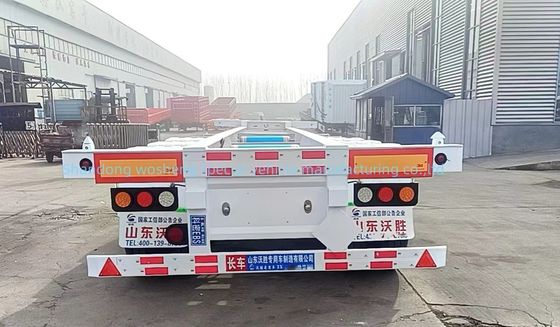

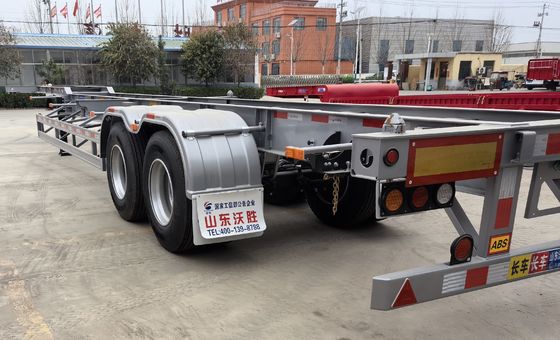

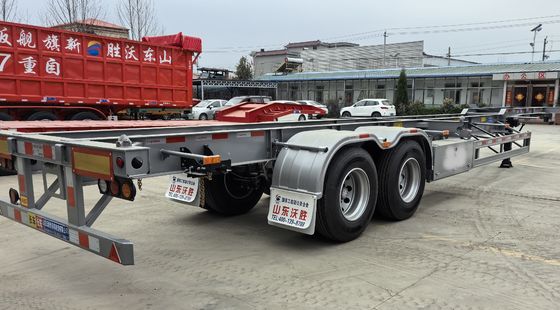

Skeleton Semi Trailer

Wosheng Skeleton Semi Trailer is an semi trailer with standardizes size (customization) and steel skeleton structure, mainly used for transporting container. This model have simple structure , strong durability, can adapt to complex transportation environment, and is an important part of modern logistics transportation. It is widely used in various types of international shipping , railways road and other transportation occasions, can meet the transportation needs of different sizes and different shapes of containers

Specification

Products Name	Skeleton Semi Trailer
Max Payload	＞30ton
Size	12400x2500x1550mm
Main Beam	Q345B Height 500mm upper plate is 14mm, Down plate is 16mm, Middle plate is 8mm.
Leaf Spring	90(w)mm13/16(thickness)mm10(layer)
Landing Gear	28t Heavy Duty Landing Gear
Brake System	Dual line brake system
Electrical System	1. Voltage: 24v waterproof 2. Receptacle: 7 ways (7 wire harness)
King Pin	2"(50mm) or 3.5"(90mm) JOST
Axle	13Ton, 3 axles FUWA
Suspension	Mechanical Suspension
Tire	12.00R22.5/315 80R22.5/11.00R20(Brand optional)
Rim	9.00-22.5
Accessory	One tooling box with a set of standard trailer tool.
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosion prime,2 coats of final paint
Packaging and delivery	by sea transfer to Qingdao or Lianyungang Port, and carry by ro-ro ship or bulk cargo ship, the freight cost depends on the volume.
Remarks	We can design model according to client's requirement

Axle

BPW/FUWA/LEAO Axle optional.Integrated advanced low-alloy axle beam,Whole axle beam no welding process.strong carrying capacity and high bending strength.Axle maintenance-free could reach 3 year/400,000 kilometers.

Landing Gear

The warranty period of Chinese brand/JOST landing gear is more than 5 years. The gearbox uses low temperature premium chassis oil and is rated for service from -30°C to 120°C.

Leaf Spring

Usually 10pcs leaf spring , 13mm thickness, 90mm width.

Can customizable according to customer requirements.

Twist Lock

ISO standard twist locks are durable with unique design, which ensures the stability of containers and ease of loading and unloading.

Suspension and break system

Suspension: Germany Type or American Type Mechanical and Air bag suspension can be choose.

Brake System: T30/30 Spring brakechamber. WABCO valve,ABS/EBS system optional. dual line brake pipe.

Tire

Double Coin / Ling Long / Michelin / Triangle / Bridgestone and other famous brand for choice. Better Performance in wear resistance.

Company Profile

About us

Qingdao Wosheng Import and Export Co., Ltd., is a company engaged in semi-trailer, truck, used semi-trailer, used-truck, auto parts and new energy vehicles’ sales and service. Our factory is Shandong Wosheng Special vehicle manufacturing co.,ltd , which has nearly 8 years of production experience in the trailer industry. Please believe that our professional technology and manufacturing experience can help your transportation be safer and efficient. we can provide high quality products and competitive prices.

Factory

Our factory commit to strict quality control and thoughtful customer service, our experienced staff can discuss your requirements at any time to ensure your full satisfaction. We not only want to be perfect in appearance, but also pursue the delicacy of detail. We have advanced modern equipment, strong technical force to ensure customer satisfaction of products and timely delivery.

Certifications

We have obtained the World material Manufacturing Factory Certificate, 3C Certificate and ISO9000 Quality Management Certification. We are also a national high-tech enterprise and have obtained more than 30 invention patents and utility model patents.

We are your most reliable cooperation partner

We are a national high-tech enterprise and have obtained more than 30 invention patents and utility model patents. We have attracted customers from all over the world, whether choosing the current product from our catalog or seeking technical support for your application, you can talk to our customer service colleagues about your procurement needs.

Packing and Loading

FAQ

Q1. Are you a factory or trade company ?

We are a comprehensive industrial and trade enterprise integrating product design, scientific research and development, production and sales. Welcome to visit our factory at any time. Q2. Could you accept special design and specification? Sure of course. As we all know that the traffic regulations are different in different areas, our professional engineers will design and our well-trained staff will produce according to customer special requirements. Such as: special Size, special control, or OEM/ODM etc. Q3. Are you looking for an agent? Yes, we're looking for the agent all over the world, you are welcome to contact us for further discussion. Q4. How to control quality? We set up all process inspection and quality control standard, include raw materials, production process, finished products. Advanced equipment and standard inspection process ensure the quality. Q5. What services can we provide? Accepted Delivery Terms: EXW, FOB, CFR, CIF Q6. What logistics ways we can work for shipment? We can ship all trailer by various transportation tools. For 90% of our shipment, we will go by sea, to all main continents such as South America, Middle East, Africa, Oceania etc, either by container or RoRo/Bulk Shipment. For neighborhood countries of China, such as Russia, Tajikistan, Kazakhstan,Mongolia etc, we can ship trucks by road or railway. For light spare parts in urgent demand, we can ship it by international courier service, such as DHL, TNT, UPS, or Fedex.
