Product Details:
|
| Use: | Truck Trailer, Truck Triler | Type: | Semi-Trailer |
|---|---|---|---|
| Material: | Steel | Size: | 930*250*345M |
| Max Payload: | >30000 Kg | Product Name: | Rear Dump Semi Trailer |
| Axle: | 2/3/4*13/16T FUWA/BPW | Function: | Cargo Transport |
| Color: | Customer's Request | Landing Gear: | 28t Heavy Duty Landing Gear |
| Leaf Spring: | 90(W)mm*13/16 (Thickness)mm*10(Layer) | Capacity: | 30 Ton - 100 Ton |
| Tools Box: | 1 Standard | Suspension: | Mechanical Suspension Air Suspension |

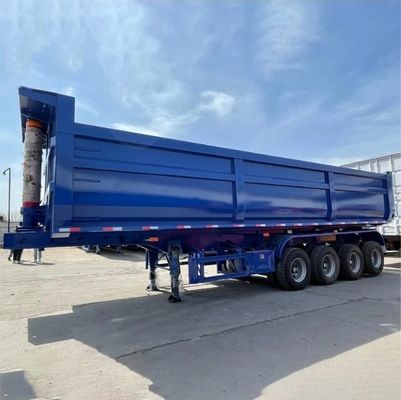

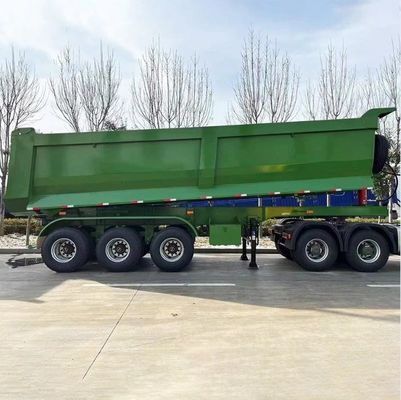

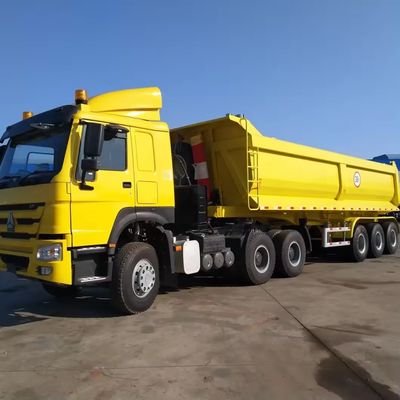

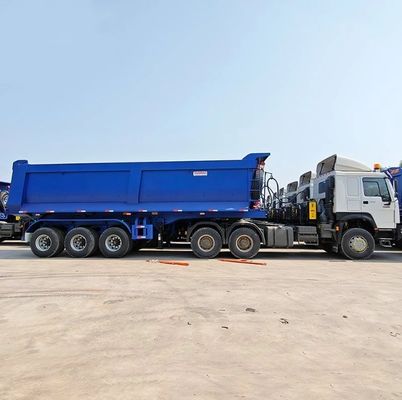

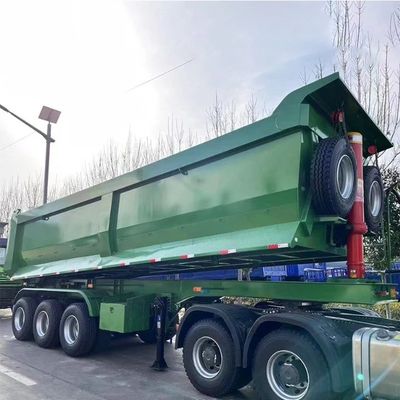

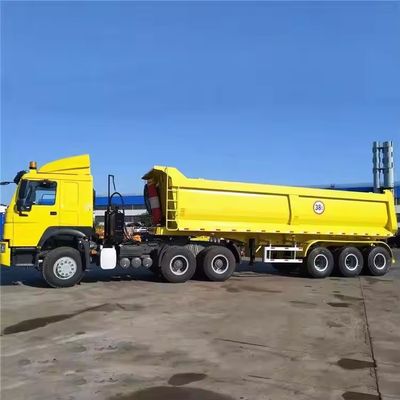

Wosheng Rear Dump Tipper Semi Trailer | ||||||||
Application | Transport all kinds of Mineral/Coal/Stone/Sand/Cargo Loading | |||||||
Model | 2 axles tipper trailer | 3 axles tipper trailer | 4 axles tipper trailer | 5 - 6 axles tipper trailer | ||||
Bucket capacity | 25 cubic meters | 30/35/40 cubic meters | 40 cubic meters | 45 cubic meters | ||||
Dimension （mm） | 8500*2500*3500 | 10000x2500x3800 | 10500*2500*3900 | 11500*2500*3950 | ||||
Rim and tires | 12.00R22.5 tires 9.0-22.5 rims | 12.00R22.5 tires 9.0-22.5 rims | 315/80R22.5 tires 9.0-22.5 rims | 12.00R20 tires 9.0-20 | ||||
Lifting system | HYVA brand FE/FC type cylinders Diameter=191 mm | HYVA brand FE/FC type cylinders Diameter=191 mm | HYVA brand FE/FC type cylinders Diameter=202 mm | HYVA brand FE/FC type cylinders Diameter=214 mm | ||||
Tipping box | T700 / Hardox | |||||||
Main Beams | T700 / Q345B double plate | |||||||
Height:500mm | ||||||||
Upper Plate: 14mm | ||||||||
Middle Plate: 8mm | ||||||||
Lower Plate: 16mm | ||||||||
Axle | 13T/16T FUWA / BPW Brand | |||||||
King Pin | JOST brand 2.0'' / 3.5'' bolt type king pin | |||||||
Landing Gear | 28T double speed JOST brand | |||||||
Suspension | Heavy duty mechanical suspension / Air bag / Bogies | |||||||
Pneumatic Braking System | WABCO RE 6 relay valve T30/30 air brake chamber | |||||||
Spring leaf | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 (special for export market ) | |||||||
Light | LED light,24V,7ways(7 wire harness) | |||||||
Tool Box | steel/aluminum One piece,1m*0.5m*0.5m(Size can be choose freely) | |||||||
Painting | 1 coat of anticorrosive prime, 2coats of final paint | |||||||
Any parts fitted could according to clients request, contact us to get more. | ||||||||
