American or German Air Suspension 60Ton 3 Axle Low Bed Semi Trailer for Wood Timber Lumber

Large Image : American or German Air Suspension 60Ton 3 Axle Low Bed Semi Trailer for Wood Timber Lumber

Product Details:

Place of Origin:	SHANDONG CHINA
Brand Name:	WOSHENG lowbed semi trailer

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$12,500.00/sets 1-19 sets
Payment Terms:	T/T, L/C

Contact Now

American or German Air Suspension 60Ton 3 Axle Low Bed Semi Trailer for Wood Timber Lumber

Description

Use:	Truck Trailer	Type:	Semi-Trailer
Material:	Steel	Size:	Buyer's Request
Max Payload:	60T	Product Name:	Lowbed Semi Trailer
Suspension:	Mechanical Suspension/Air Suspension(American Or Geman)	Function:	Multi-Use
Landing Gear:	28t Heavy Duty Landing Gear FUWA/JOST/WOSHENG	Tire:	12.00R22.5/315 80R22.5/11.00R20/12.00R20(Brand Optional)
King Pin:	2"(50mm)or3.5"(90mm) JOST Or Other Brand	Axle:	13/16/20 Ton, 4 Axles SAF /FUWA/BPW/WOSHENG
Color:	Custom's Requirement	Brake System:	Dual Line, Air Chamber T30/30,3 X 40L Gas Storage Drums
ABS System:	None Or Installed As Your Requirement

Products Description

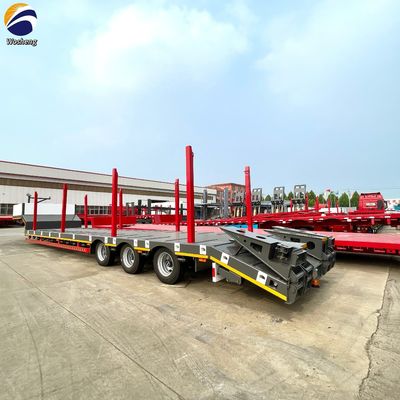

Loading 60Ton 3 Axle Low Bed Semi Trailer for Wood Timber Lumber Wood Semi Trailer

Wosheng low bed semi-trailers are usually used to transport container, heavy vehicles , rail vehicles, mining machinery, forestry machinery, construction machinery and other heavy loads. The lower the center of gravity, the better the stability and safety, the better the ability to transport super high loads and pass overhead obstacles.

According to the number of axles and the size of the tires, the load of the lowbed semi trailer is also different. The more the number of axles, the greater the load, and the load range is between 20-150 tons.

Specification

Products name	Lowbed Semi Trailer
Max payload	40-100TON
Size	12500/13000/14000/16000x2500/3000x1100/3300mm or customizable
Main Beam	Q345B upper plate is 16mm, down plate is 18mm, middle plate is 12 mm
Side Beam	20# channel steel
Leaf Spring	90(w)mm13/16(thickness)mm10(layer)
Landing Gear	28t Heavy Duty Landing Gear FUWA/JOST/WOSHENG
Brake System	Dual line brake system, Air chamber T30/30,3 X 40L gas storage drums
King Pin	2"(50mm)or3.5"(90mm) JOST or other brand
Axle	13/16/20 Ton, 4 axles SAF /FUWA/BPW/WOSHENG
Suspension	Mechanical Suspension Air Suspension(American or Geman)
Tire	12.00R22.5/315 80R22.5/11.00R20/12.00R20(Brand optional)
Rim	9.00-22.5/8.00-20/8.50-20
Bottom Platform	4mm diamond plate
Electrical SYSTEM	1. Voltage: 24v waterproof 2. Receptacle: 7 ways (7 wire harness)
Accessory	One tooling box with a set of standard trailer tool.
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosion prime,2 coats of final paint
Packaging and delivery	Overland by truck/tractor, or by sea transfer to Qingdao or Lianyungang Port, and carry by ro-ro ship or bulk cargo ship, the freight cost depends on the volume.
Remarks	We can design model according to client's requirement

Axle

BPW/FUWA/LEAO Axle optional.Integrated advanced low-alloy axle beam,Whole axle beam no welding process.strong carrying capacity and high bending strength.Axle maintenance-free could reach 3 year/400,000 kilometers.

Landing Gear

The warranty period of Chinese brand/JOST landing gear is more than 5 years. The gearbox uses low temperature premium chassis oil and is rated for service from -30°C to 120°C.

Leaf Spring

Usually 10pcs leaf spring , 13mm thickness, 90mm width.

Can customizable according to customer requirements.

Twist Lock

ISO standard twist locks are durable with unique design, which ensures the stability of containers and ease of loading and unloading.

Suspension and break system

Suspension: Germany Type or American Type Mechanical and Air bag suspension can be choose.

Brake System: T30/30 Spring brakechamber. WABCO valve,ABS/EBS system optional. dual line brake pipe.

Tire

Double Coin / Ling Long / Michelin / Triangle / Bridgestone and other famous brand for choice. Better Performance in wear resistance.

Company Profile

About us

Qingdao Wosheng Import and Export Co., Ltd., is a company engaged in semi-trailer, truck, used semi-trailer, used-truck, auto parts and new energy vehicles’ sales and service. Our factory is Shandong Wosheng Special vehicle manufacturing co.,ltd , which has nearly 8 years of production experience in the trailer industry. Please believe that our professional technology and manufacturing experience can help your transportation be safer and efficient. we can provide high quality products and competitive prices.

Factory

Our factory commit to strict quality control and thoughtful customer service, our experienced staff can discuss your requirements at any time to ensure your full satisfaction. We not only want to be perfect in appearance, but also pursue the delicacy of detail. We have advanced modern equipment, strong technical force to ensure customer satisfaction of products and timely delivery.

Certifications

We have obtained the World material Manufacturing Factory Certificate, 3C Certificate and ISO9000 Quality Management
Certification. We are also a national high-tech enterprise and have obtained more than 30 invention patents and utility model patents.

We are your most reliable cooperation partner

We are a national high-tech enterprise and have obtained more than 30 invention patents and utility model patents. We have attracted customers from all over the world, whether choosing the current product from our catalog or seeking technical support for your application, you can talk to our customer service colleagues about your procurement needs.

Packing and Loading

FAQ

Q1. Are you a factory or trade company ?

We are a comprehensive industrial and trade enterprise integrating product design, scientific research and development, production and sales. Welcome to visit our factory at any time.

Q2. Could you accept special design and specification?
Sure of course. As we all know that the traffic regulations are different in different areas, our professional engineers will
design and our well-trained staff will produce according to customer special requirements.
Such as: special Size, special control, or OEM/ODM etc.

Q3. Are you looking for an agent?
Yes, we're looking for the agent all over the world, you are welcome to contact us for further discussion.

Q4. How to control quality?
We set up all process inspection and quality control standard, include raw materials, production process, finished products.
Advanced equipment and standard inspection process ensure the quality.

Q5. What services can we provide?
Accepted Delivery Terms: EXW, FOB, CFR, CIF.

Q6. What logistics ways we can work for shipment?
We can ship all trailer by various transportation tools
For 90% of our shipment, we will go by sea, to all main continents such as South America, Middle East, Africa, Oceania etc, either by container or RoRo/Bulk Shipment.
For neighborhood countries of China, such as Russia, Tajikistan, Kazakhstan,Mongolia etc, we can ship trucks by road or railway.
For light spare parts in urgent demand, we can ship it by international courier service, such as DHL, TNT, UPS, or Fedex.
