4 Axles Hydraulic Rear Dump End Tipping Semi Trailer for Sand Stone Grain Transporting

4 Axles Hydraulic Rear Dump End Tipping Semi Trailer for Sand Stone Grain Transporting
4 Axles Hydraulic Rear Dump End Tipping Semi Trailer for Sand Stone Grain Transporting 4 Axles Hydraulic Rear Dump End Tipping Semi Trailer for Sand Stone Grain Transporting 4 Axles Hydraulic Rear Dump End Tipping Semi Trailer for Sand Stone Grain Transporting 4 Axles Hydraulic Rear Dump End Tipping Semi Trailer for Sand Stone Grain Transporting 4 Axles Hydraulic Rear Dump End Tipping Semi Trailer for Sand Stone Grain Transporting 4 Axles Hydraulic Rear Dump End Tipping Semi Trailer for Sand Stone Grain Transporting

Large Image :  4 Axles Hydraulic Rear Dump End Tipping Semi Trailer for Sand Stone Grain Transporting

Product Details:
Place of Origin: SHANDONG
Brand Name: YUNSHENG REAR DUMP SEMI TRAILER
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $8,900.00/units 1-1 units
Payment Terms: T/T, L/C
Contact Now

4 Axles Hydraulic Rear Dump End Tipping Semi Trailer for Sand Stone Grain Transporting

Description
Use: Truck Trailer Type: Semi-Trailer
Material: Steel Size: 11000x2500x3700mm(customized)
Max Payload: 20-100ton Function: Sand Stone Grain Transporting
Main Beam: Q345B / T700 Steel Color: Customer's Request
Dump Style: Rear Dump Landing Gear: 28t Heavy Duty Landing Gear
Suspension: Mechanical Suspension King Pin: 2"(50mm)or3.5"(90mm) JOST Or Other Brand
Axle: 13/16 Ton, 3 Axles FUWA/Wosheng Tire: 12.00R22.5/11.00R20(Brand Optional)
Brake System: Dual Line Brake System

Products Description
4 Axles Hydraulic Rear Dump End Tipping Semi Trailer for Sand Stone Grain Transporting 0
High Strength 4 Axles 20-100 ton U Shape Rear Dump Semi Trailer Truck For Sale
Wosheng Dump Semi Trailers are in great demand from customers, the proven product, which features reliable structure , great loading capacity, excellent power, reliable performance. This trailer model could meet the requirements of different road conditions, and could satisfy your need of long distance highway transportation.
4 Axles Hydraulic Rear Dump End Tipping Semi Trailer for Sand Stone Grain Transporting 1
4 Axles Hydraulic Rear Dump End Tipping Semi Trailer for Sand Stone Grain Transporting 2
4 Axles Hydraulic Rear Dump End Tipping Semi Trailer for Sand Stone Grain Transporting 3
4 Axles Hydraulic Rear Dump End Tipping Semi Trailer for Sand Stone Grain Transporting 4
Specification
4 Axles Hydraulic Rear Dump End Tipping Semi Trailer for Sand Stone Grain Transporting 5
Wosheng Rear Dump Tipper Semi Trailer
Application
Transport all kinds of Mineral/Coal/Stone/Sand/Cargo Loading
Model
2 axles tipper trailer
3 axles tipper trailer
4 axles tipper trailer
5 - 6 axles tipper trailer
Bucket capacity
25 cubic meters
30/35/40 cubic meters
40 cubic meters
45 cubic meters
Dimension （mm）
8500*2500*3500
10000x2500x3800
10500*2500*3900
11500*2500*3950
Rim and tires
12.00R22.5 tires
9.0-22.5 rims
12.00R22.5 tires
9.0-22.5 rims
315/80R22.5 tires
9.0-22.5 rims
12.00R20 tires
9.0-20


Lifting system
HYVA brand
FE/FC type cylinders
Diameter=191 mm
HYVA brand
FE/FC type cylinders
Diameter=191 mm
HYVA brand
FE/FC type cylinders
Diameter=202 mm
HYVA brand
FE/FC type cylinders
Diameter=214 mm
Tipping box
T700 / Hardox


Main Beams
T700 / Q345B double plate
Height:500mm
Upper Plate: 14mm
Middle Plate: 8mm
Lower Plate: 16mm
Axle
13T/16T FUWA / BPW / WOSHENG Own Brand
King Pin
JOST brand 2.0'' / 3.5'' bolt type king pin
Landing Gear
28T double speed JOST
Suspension
Heavy duty mechanical suspension / Air bag / Bogies
Pneumatic Braking System
WABCO RE 6 relay valve
T30/30 air brake chamber
Spring leaf
90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12
(special for export market )
Light
LED light,24V,7ways(7 wire harness)

Tool Box
steel/aluminum

One piece,1m*0.5m*0.5m(Size can be choose freely)
Painting
1 coat of anticorrosive prime, 2coats of final paint
Any parts fitted could according to clients request, contact us to get more.
Details Images
4 Axles Hydraulic Rear Dump End Tipping Semi Trailer for Sand Stone Grain Transporting 6
Reinforcement side plate supporting design
4 Axles Hydraulic Rear Dump End Tipping Semi Trailer for Sand Stone Grain Transporting 7

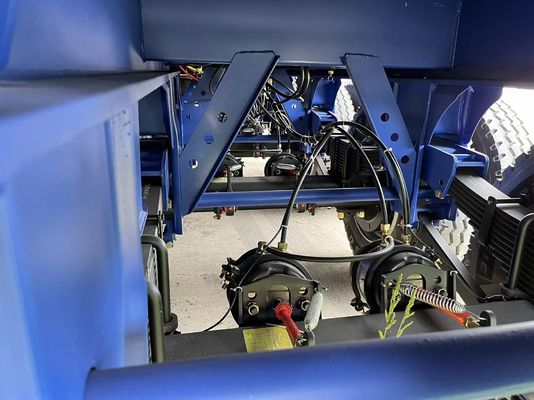

Brake system
4 Axles Hydraulic Rear Dump End Tipping Semi Trailer for Sand Stone Grain Transporting 8
Tool box with enough important emergency tools
4 Axles Hydraulic Rear Dump End Tipping Semi Trailer for Sand Stone Grain Transporting 9
Spare Tire
4 Axles Hydraulic Rear Dump End Tipping Semi Trailer for Sand Stone Grain Transporting 10
Front axle lifting
4 Axles Hydraulic Rear Dump End Tipping Semi Trailer for Sand Stone Grain Transporting 11
Libricate counteraxle
4 Axles Hydraulic Rear Dump End Tipping Semi Trailer for Sand Stone Grain Transporting 12

Hydraulic and Power takeoff box, No need to install power output device on the engine


4 Axles Hydraulic Rear Dump End Tipping Semi Trailer for Sand Stone Grain Transporting 13

Tail light guard


4 Axles Hydraulic Rear Dump End Tipping Semi Trailer for Sand Stone Grain Transporting 14
Hydraulic dust cover
4 Axles Hydraulic Rear Dump End Tipping Semi Trailer for Sand Stone Grain Transporting 15
Double Coin / LingLong / Michelin / Triangle / Bridgestone and other famous brand for choice. Better Performance in wear resistance
4 Axles Hydraulic Rear Dump End Tipping Semi Trailer for Sand Stone Grain Transporting 16

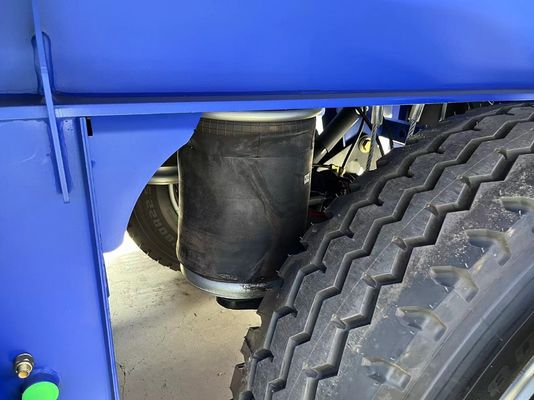

Anti-Tire abrasion Suspension

Specially designed anti-Tire abrasion suspension system,Prevent tire offset after loading, maximally avoid tire
abrasion.Meanwhile,Easy to disassemble and maintain.
4 Axles Hydraulic Rear Dump End Tipping Semi Trailer for Sand Stone Grain Transporting 17

Axle :BPW/FUWA/LEAO Axle optional.

Integrated Advanced Low-Alloy Axle Beam,Whole
Axle Beam No Welding process.Strong Carrying
Capacity and high bending Strength.Axle
maintenance-free could reach 3 Year/400,000
kilometers.
