20Ft 40Ft Container 2 Axle 3 Axle Skeleton Semi Trailer Perfect for Your Truck Needs

Large Image : 20Ft 40Ft Container 2 Axle 3 Axle Skeleton Semi Trailer Perfect for Your Truck Needs

Product Details:

Place of Origin:	SHANDONG CHINA
Brand Name:	WOSHENG Skeleton Semi Trailer

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$10,800.00/units 1-4 units
Payment Terms:	T/T, L/C

Contact Now

20Ft 40Ft Container 2 Axle 3 Axle Skeleton Semi Trailer Perfect for Your Truck Needs

Description

Use:	Truck Trailer	Type:	Semi-Trailer
Material:	Steel, Steel	Size:	12.38x2.48x1.55m(CUSTOMIZABLE), 12.38x2.48x1.55m
Max Payload:	>30000 Kg	Product Name:	Skeleton Semi Trailer
Main Beam:	Q345B	Color:	Customer's Request
Leaf Spring:	28ton/pc	King Pin:	2.00 Or 3.5 Inch Bolt In King Pin
Axle:	13Ton, 3 Axles FUWA	Tire:	12.00R22.5/315 80R22.5/11.00R20(Brand Optional)
Suspension:	Mechanical Suspension

Products Description

Best Selling 20Ft 40Ft Container 2 Axle 3 Axle Skeleton Semi Trailer For Sale

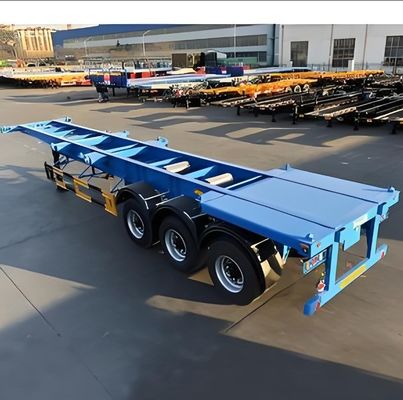

Wosheng Skeleton Semi Trailer is an semi trailer with standardizes size (customization) and steel skeleton structure, mainly used for transporting container. This model have simple structure , strong durability, can adapt to complex transportation environment, and is an important part of modern logistics transportation. It is widely used in various types of international shipping , railways road and other transportation occasions, can meet the transportation needs of different sizes and different shapes of containers

Specification

Detail Specification for skeleton semi trailer
Items	skeleton semi trailer
Tare Weight	6.5 Tons (depends on final configuration)
Payload	50000kgs（customizable)
Size	Outside 12380×2480×1550mm (customizable)
Frame	Main Beam: Opting for high strength Q345B steel, 520mm deep welded I-section main beams, Top flange thickness 14mm, Bottom flange thickness 16mm, Middle flage thickness 8mm
		Cross Beam: Heavy duty thickened 10# channel steel
		Side Beam: Heavy duty 18# channel steel
Axles	3 axles, square axle with 13 tons capacity FUWA brand , or 2 axles 5 axles, can
King pin	2"(50mm)or3.5"(90mm) JOST
Suspension	Heavy duty type tri-axles suspension with equalizers. American design
Steel Spring	Six sets of reliable famous brand , 10pcs leaf spring, thickness 13mm. width 90mm
Landing gear	28tons lifting capacity , two speed
Tire specs	12.00R22.5 Triangle brand , or another brand according to customer
Braking system	dual line pneumatic brake system, T 30 air chamber, 40 L air tanks, Emergency relay valve
Rim	9.00-22.5 brand according to customer
Paiting	Sand blasting before painting;one coats of primer, anti- corrosion; two coat of finish painting
Electrical system	Sand blasting before painting;one coats of primer, anti- corrosion; two coat of finish painting
spare tire	Two set of heavy duty spare wheel carriers, indluding a riser
Tool Box	One Piece (1.0 x 5.0 m) with 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar

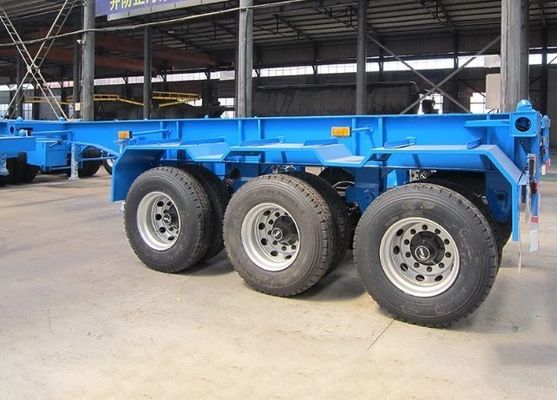

Axle

BPW/FUWA/LEAO Axle optional.Integrated advanced low-alloy axle beam,Whole axle beam no welding process.strong carrying capacity and high bending strength.Axle maintenance-free could reach 3 year/400,000 kilometers.

Landing Gear

The warranty period of Chinese brand/JOST landing gear is more than 5 years. The gearbox uses low temperature premium chassis oil and is rated for service from -30°C to 120°C.

Leaf Spring

Usually 10pcs leaf spring , 13mm thickness, 90mm width.

Can customizable according to customer requirements.

Twist Lock

ISO standard twist locks are durable with unique design, which ensures the stability of containers and ease of loading and unloading.

Suspension and break system

Suspension: Germany Type or American Type Mechanical and Air bag suspension can be choose.

Brake System: T30/30 Spring brakechamber. WABCO valve,ABS/EBS system optional. dual line brake pipe.

Tire

Double Coin / Ling Long / Michelin / Triangle / Bridgestone and other famous brand for choice. Better Performance in wear resistance.

Company Profile

About us

Qingdao Wosheng Import and Export Co., Ltd., is a company engaged in semi-trailer, truck, used semi-trailer, used-truck, auto parts and new energy vehicles’ sales and service. Our factory is Shandong Wosheng Special vehicle manufacturing co.,ltd , which has nearly 8 years of production experience in the trailer industry. Please believe that our professional technology and manufacturing experience can help your transportation be safer and efficient. we can provide high quality products and competitive prices.

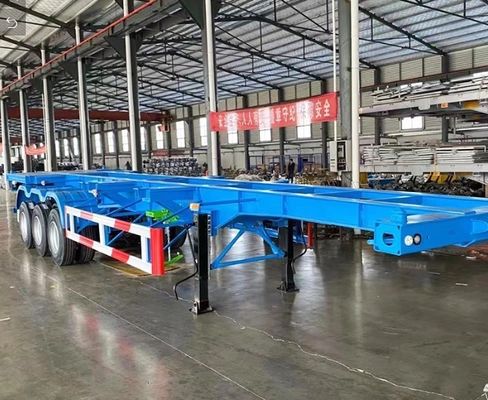

Factory
