2" 50mm Or3.5" 90mm King Pin 60 Tons 80 Ton Flatbed Semi Truck Trailers 20ft

2" 50mm Or3.5" 90mm King Pin 60 Tons 80 Ton Flatbed Semi Truck Trailers 20ft
2" 50mm Or3.5" 90mm King Pin 60 Tons 80 Ton Flatbed Semi Truck Trailers 20ft 2" 50mm Or3.5" 90mm King Pin 60 Tons 80 Ton Flatbed Semi Truck Trailers 20ft 2" 50mm Or3.5" 90mm King Pin 60 Tons 80 Ton Flatbed Semi Truck Trailers 20ft 2" 50mm Or3.5" 90mm King Pin 60 Tons 80 Ton Flatbed Semi Truck Trailers 20ft 2" 50mm Or3.5" 90mm King Pin 60 Tons 80 Ton Flatbed Semi Truck Trailers 20ft 2" 50mm Or3.5" 90mm King Pin 60 Tons 80 Ton Flatbed Semi Truck Trailers 20ft

Large Image :  2" 50mm Or3.5" 90mm King Pin 60 Tons 80 Ton Flatbed Semi Truck Trailers 20ft

Product Details:
Place of Origin: Shandong, China
Brand Name: WOSHENG
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $7,600.00/units 1-1 units
Payment Terms: T/T, L/C
Contact Now

2" 50mm Or3.5" 90mm King Pin 60 Tons 80 Ton Flatbed Semi Truck Trailers 20ft

Description
Use: Truck Trailer Type: Semi-Trailer
Material: Steel Size: 12400*2610*1550mm
Max Payload: 20T-80T Product Name: Flatbed Semi-trailer
Tare Weight: 20T-80T Axle: 4 Axle
Tire: 12R22.5 Suspension: Mechanical Suspension Air Suspension
King Pin: 2"(50mm) Or3.5"(90mm) Brake System: Dual Line Braking System

Products picture

3 axle cargo trailer flatbed semi-trailer

1.The Flatbed Container Trailer is the main product of our company. It's made of high stength full thickness Steel, titanium content 0.98‰, which ensure the toughness and strength of the beam and frame’s toughness and strength. The Max Loading Capacity:20- 100 Tons
2" 50mm Or3.5" 90mm King Pin 60 Tons 80 Ton Flatbed Semi Truck Trailers 20ft 0
2.The main beam adopts fully automatic submerged arc welding, the whole vehicle is shot blasted and rust-proof, and the floor is a 3mm thick anti-skid plate
2" 50mm Or3.5" 90mm King Pin 60 Tons 80 Ton Flatbed Semi Truck Trailers 20ft 1
3.The whole frame of the flatbed trailer should be shot blasted to effectively eliminate welding residues. The vehicle body is electrophoretic coating, resistant to coating, and the coating effect can reach more than 10+ years.
2" 50mm Or3.5" 90mm King Pin 60 Tons 80 Ton Flatbed Semi Truck Trailers 20ft 2
2" 50mm Or3.5" 90mm King Pin 60 Tons 80 Ton Flatbed Semi Truck Trailers 20ft 3
2" 50mm Or3.5" 90mm King Pin 60 Tons 80 Ton Flatbed Semi Truck Trailers 20ft 4
Products Description
2" 50mm Or3.5" 90mm King Pin 60 Tons 80 Ton Flatbed Semi Truck Trailers 20ft 5
Flatbed Semi Trailer Specification
20FT FLATBED SEMI TRAILER
40FT FLATBED SEMI TRAILER
45FT FLATBED SEMI TRAILER
Brand: Wosheng
Brand: Wosheng
Brand: Wosheng
2 Axles/3 Axles
2 Axles/3 Axles
3 Axles/4 Axles
20ft container or cargo loading
1*40ft/2*20ft Container or cargo loading
1*40ft/1*45ft container or cargo loading
Loading Capacity: 20 - 60 Tons
Loading Capacity: 30 - 80 Tons
Loading Capacity: 30 - 100 Tons
Gooseneck Type: Yes
Gooseneck Type: Yes
Gooseneck Type: Yes
Tandem Type: Yes
Tandem Type: Yes
Tandem Type: Yes
Main Beam
Material: Q345/T700
Material: Q345/T700
Material: Q345/T700
Upper Plate Thickness: 12mm
Upper Plate Thickness: 16mm
Upper Plate Thickness: 16mm
Middle Plate Thickness: 6mm
Middle Plate Thickness: 10mm
Middle Plate Thickness: 10mm
Lower Plate Thickness: 14mm
Lower Plate Thickness: 18mm
Lower Plate Thickness: 18mm
Height: 500mm
Height: 500mm
Height: 500mm
Platform Thickness: 2.5mm
Platform Thickness: 3mm
Platform Thickness: 3mm
Product Dimension
L 7000mm*W 2500mm*H 1570mm
L 12400mm*W 2500mm*H 1570mm
L 13950mm*W 2500mm*H 1600mm
Axles
2/3 Axles *13/16 Ton
WOSHENG/FUWA/BPW/Othe
2/3 Axles *13/16 Ton
WOSHENG/FUWA/BPW/Other
3/4 Axles *13/16 Ton
WOSHENG/FUWA/BPW/Other
Tire
12R22.5 (8/12 Pieces)
Linglong/Triangle/Double-Coin/Bridgestone/
Other Brand
12R22.5 (8/12 Pieces)
Linglong/Triangle/Double-Coin/Bridgestone/
Other Brand
12R22.5 (8/12 Pieces)
Linglong/Triangle/Double-Coin/Bridgestone/
Other Brand
Rim
9.00*22.5 (8/12 Pieces) Steel/Aluminum
9.00*22.5 (8/12 Pieces) Steel/Aluminum
9.00*22.5 (8/12 Pieces) Steel/Aluminum
Leaf Spring
90mm*13mm*10/90mm*16mm*10Pcs
90mm*13mm*10/90mm*16mm*10Pcs
90mm*13mm*10/90mm*16mm*10Pcs
King Pin
50#(2")/90#(3.5") JOST/Other Brand
50#(2")/90#(3.5") JOST/Other Brand
50#(2")/90#(3.5") JOST/Other Brand
Landing Gear
28 Ton Two Speed,JOST/Other Brand
28 Ton Two Speed,JOST/Other Brand
28 Ton Two Speed,JOST/Other Brand
Twist Lock
4 Sets
12 Sets
12 Sets
Vehicle Painting
Electrophoresis painting
Electrophoresis painting
Electrophoresis painting
2" 50mm Or3.5" 90mm King Pin 60 Tons 80 Ton Flatbed Semi Truck Trailers 20ft 6
Landing Gear
JOST or Wosheng landing gear can be optioned made in aluminum or steel; designed to work under both high and low temperature in the range of 30℃ to 120℃.
Axle
BPW/FUWA/Wosheng Axle optional. Integrated Advanced Low-Alloy Axle Beam, Whole Axle Beam No Welding process. Strong Carrying Capacity and high bending Strength. Axle maintenance-free could reach 3 Year/400,000 kilometers.
2" 50mm Or3.5" 90mm King Pin 60 Tons 80 Ton Flatbed Semi Truck Trailers 20ft 7
2" 50mm Or3.5" 90mm King Pin 60 Tons 80 Ton Flatbed Semi Truck Trailers 20ft 8
Brake System
T30/30 Spring brake chamber. WABCO valve,ABS/EBS system optional. dual line brake pipe.
Anti-Tire abrasion Suspension
Specially designed anti-Tire abrasion suspension system, Prevent tire offset after loading, maximally avoid tire abrasion.
Meanwhile, Easy to disassemble and maintain.
2" 50mm Or3.5" 90mm King Pin 60 Tons 80 Ton Flatbed Semi Truck Trailers 20ft 9
2" 50mm Or3.5" 90mm King Pin 60 Tons 80 Ton Flatbed Semi Truck Trailers 20ft 10
Tool Box
Located on the side of the trailer without taking up too much space, it can store necessary maintenance tools, straps and safety equipment, made of durable materials and securely locks to keep the contents safe.
Recommend Products
2" 50mm Or3.5" 90mm King Pin 60 Tons 80 Ton Flatbed Semi Truck Trailers 20ft 11

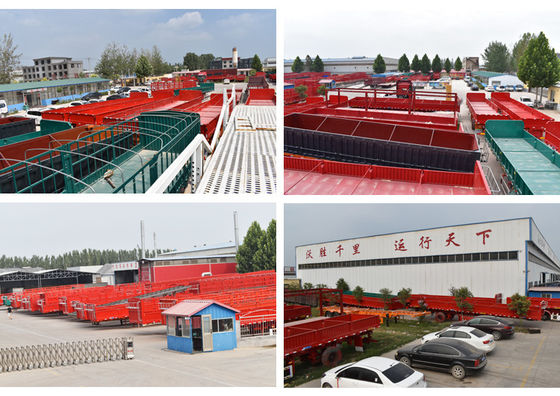

Company Profile
2" 50mm Or3.5" 90mm King Pin 60 Tons 80 Ton Flatbed Semi Truck Trailers 20ft 12
2" 50mm Or3.5" 90mm King Pin 60 Tons 80 Ton Flatbed Semi Truck Trailers 20ft 13
2" 50mm Or3.5" 90mm King Pin 60 Tons 80 Ton Flatbed Semi Truck Trailers 20ft 14
About us
Shandong Wosheng Special Vehicle Manufacturer Co., LTD. Our company focuses on the development and production of semi-trailer, engaged in the semi-trailer industry has more than 20 years of rich experience, is a real set of trade and production as one of the manufacturers.our experienced staff can discuss your requirements at any time to ensure your full satisfaction. modern equipment, strong technical force to ensure customer satisfaction of products and timely delivery.
2" 50mm Or3.5" 90mm King Pin 60 Tons 80 Ton Flatbed Semi Truck Trailers 20ft 15
2" 50mm Or3.5" 90mm King Pin 60 Tons 80 Ton Flatbed Semi Truck Trailers 20ft 16
2" 50mm Or3.5" 90mm King Pin 60 Tons 80 Ton Flatbed Semi Truck Trailers 20ft 17
Certification
2" 50mm Or3.5" 90mm King Pin 60 Tons 80 Ton Flatbed Semi Truck Trailers 20ft 18
2" 50mm Or3.5" 90mm King Pin 60 Tons 80 Ton Flatbed Semi Truck Trailers 20ft 19
2" 50mm Or3.5" 90mm King Pin 60 Tons 80 Ton Flatbed Semi Truck Trailers 20ft 20
2" 50mm Or3.5" 90mm King Pin 60 Tons 80 Ton Flatbed Semi Truck Trailers 20ft 21
2" 50mm Or3.5" 90mm King Pin 60 Tons 80 Ton Flatbed Semi Truck Trailers 20ft 22
2" 50mm Or3.5" 90mm King Pin 60 Tons 80 Ton Flatbed Semi Truck Trailers 20ft 23
2" 50mm Or3.5" 90mm King Pin 60 Tons 80 Ton Flatbed Semi Truck Trailers 20ft 24
2" 50mm Or3.5" 90mm King Pin 60 Tons 80 Ton Flatbed Semi Truck Trailers 20ft 25
2" 50mm Or3.5" 90mm King Pin 60 Tons 80 Ton Flatbed Semi Truck Trailers 20ft 26
Packing and Shipping
2" 50mm Or3.5" 90mm King Pin 60 Tons 80 Ton Flatbed Semi Truck Trailers 20ft 27
Exhibition
2" 50mm Or3.5" 90mm King Pin 60 Tons 80 Ton Flatbed Semi Truck Trailers 20ft 28
We are your most reliable cooperation partner.
We are a national high-tech enterprise and have obtained more than 30 invention patents and utility model patents. We have attracted customers from all over the world, whether choosing the current product from our catalog or seeking technical support for your application, you can talk to our customer service colleagues about your procurement needs.
2" 50mm Or3.5" 90mm King Pin 60 Tons 80 Ton Flatbed Semi Truck Trailers 20ft 29
FAQ

Q1. Are you a factory or trade company ? We are a comprehensive industrial and trade enterprise integrating product design, scientific research and development, production and sales. Welcome to visit our factory at any time.

Q2. Could you accept special design and specification? Sure of course. As we all know that the traffic regulations are different in different areas, our professional engineers will design and our well-trained staff will produce according to customer special requirements. Such as: special Size, special control, or OEM/ODM etc.

Q3. Are you looking for an agent? Yes, we're looking for the agent all over the world, you are welcome to contact us for further discussion.

Q4. How to control quality? We set up all process inspection and quality control standard, include raw materials, production process, finished products. Advanced equipment and standard inspection process ensure the quality.

Q5. what services can we provide? Accepted Delivery Terms: EXW, FOB, CFR, CIF
