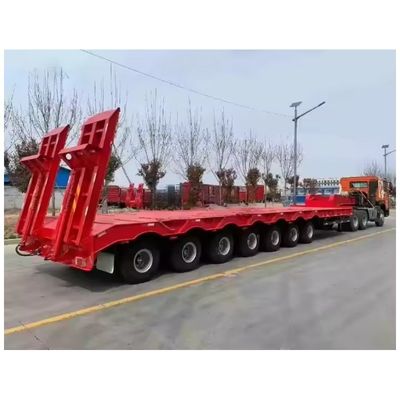

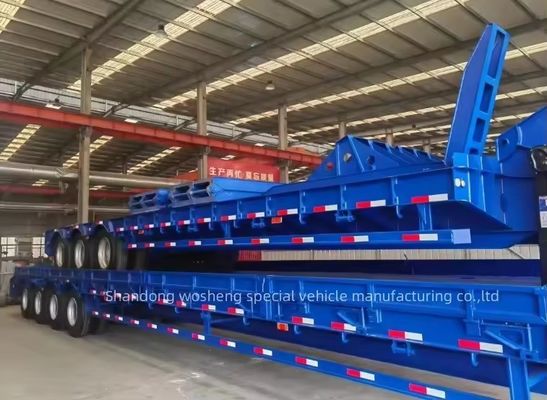

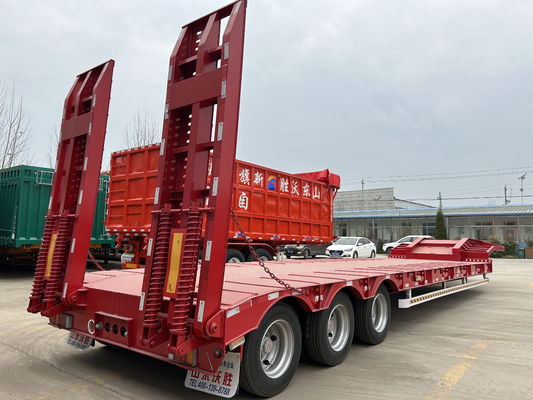

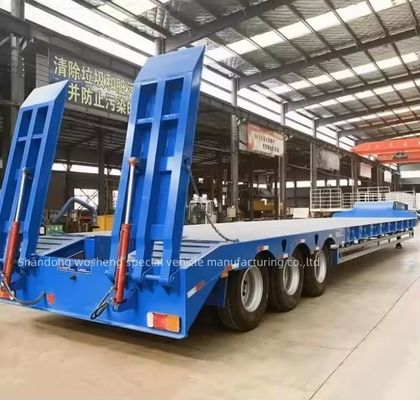

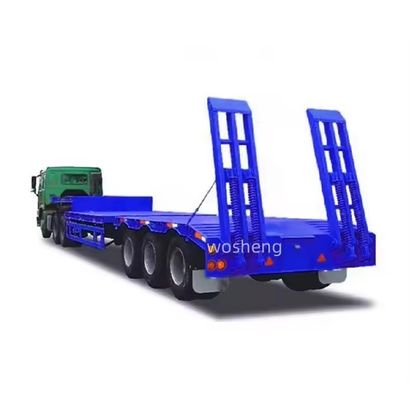

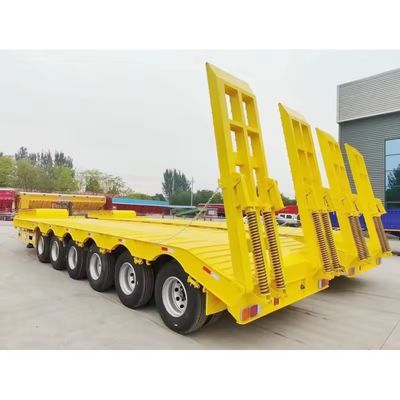

According to the number of axles and the size of the tires, the load of the lowbed semi trailer is also different. The more the number of axles, the greater the load, and the load range is between 20-150 tons.
|
Product Details:
|
| Use: | Truck Trailer | Type: | Semi-Trailer |
|---|---|---|---|
| Material: | Steel | Size: | 16000x2500x1100mm Or Customizable |
| Max Payload: | 40-100ton | Product Name: | Lowbed Semi Trailer |
| Tare Weight: | 40-100TON | Size: | 16000x2500x1100mm |
| Axle: | 4 Axle | Tire: | 12R22.5 |
| Suspension: | Mechanical Suspension Air Suspension | King Pin: | 2"(50mm) Or3.5"(90mm) |
| Brake System: | Dual Line Braking System |
Products name | 4 axles 16 wheels lowbed Semi Trailer |
Max payload | 40-100TON |
Size | 12500/13000/14000/16000x2500/3000x1100/3300mm or customizable |
Main Beam | Q345B upper plate is 16mm, down plate is 18mm, middle plate is 12 mm |
Side Beam | 20# channel steel |
Leaf Spring | 90(w)mm*13/16(thickness)mm*10(layer) |
Landing Gear | 28t Heavy Duty Landing Gear FUWA/JOST/WOSHENG |
Brake System | Dual line brake system, Air chamber T30/30,3 X 40L gas storage drums |
King Pin | 2"(50mm)or3.5"(90mm) JOST or other brand |
Axle | 13/16/20 Ton, 4 axles SAF /FUWA/BPW/WOSHENG |
Suspension | Mechanical Suspension Air Suspension(American or Geman) |
Tire | 12.00R22.5/315 80R22.5/11.00R20/12.00R20(Brand optional) |
Rim | 9.00-22.5/8.00-20/8.50-20 |
Bottom Platform | 4mm diamond plate |
Electrical SYSTEM | 1. Voltage: 24v waterproof 2. Receptacle: 7 ways (7 wire harness) |
Accessory | One tooling box with a set of standard trailer tool. |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosion prime,2 coats of final paint |
Packaging and delivery | Overland by truck/tractor, or by sea transfer to Qingdao or Lianyungang Port, and carry by ro-ro ship or bulk cargo ship, the freight cost depends on the volume. |
Remarks | We can design model according to client's requirement |
