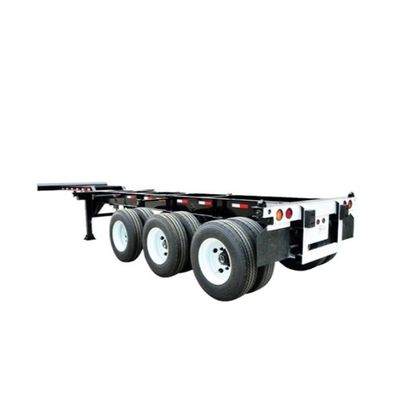

Q345B Main Beam 3 Axles 50t Skeleton Semi-trailer for 40 45 48 53FT Container Chassis

Q345B Main Beam 3 Axles 50t Skeleton Semi-trailer for 40 45 48 53FT Container Chassis
Q345B Main Beam 3 Axles 50t Skeleton Semi-trailer for 40 45 48 53FT Container Chassis Q345B Main Beam 3 Axles 50t Skeleton Semi-trailer for 40 45 48 53FT Container Chassis Q345B Main Beam 3 Axles 50t Skeleton Semi-trailer for 40 45 48 53FT Container Chassis Q345B Main Beam 3 Axles 50t Skeleton Semi-trailer for 40 45 48 53FT Container Chassis Q345B Main Beam 3 Axles 50t Skeleton Semi-trailer for 40 45 48 53FT Container Chassis Q345B Main Beam 3 Axles 50t Skeleton Semi-trailer for 40 45 48 53FT Container Chassis

Large Image :  Q345B Main Beam 3 Axles 50t Skeleton Semi-trailer for 40 45 48 53FT Container Chassis

Product Details:
Place of Origin: SHANDONG CHINA
Brand Name: WOSHENG Skeleton Semi Trailer
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $9,000.00/units 1-29 units
Payment Terms: T/T, L/C
Contact Now

Q345B Main Beam 3 Axles 50t Skeleton Semi-trailer for 40 45 48 53FT Container Chassis

Description
Use: Truck Trailer Type: Semi-Trailer
Material: Steel, Steel Size: 12.38x2.48x1.55m(CUSTOMIZABLE), 12.38x2.48x1.55m
Max Payload: 50 Ton Product Name: Skeleton Semi Trailer
Main Beam: Q345B Color: Customer's Request
Leaf Spring: 90(w)mm*13(thickness)mm*10(layer) King Pin: 2.00 Or 3.5 Inch Bolt In King Pin
Axle: 13Ton, 3 Axles FUWA Tire: 12.00R22.5/315 80R22.5/11.00R20(Brand Optional)
Suspension: Mechanical Suspension

Products Description

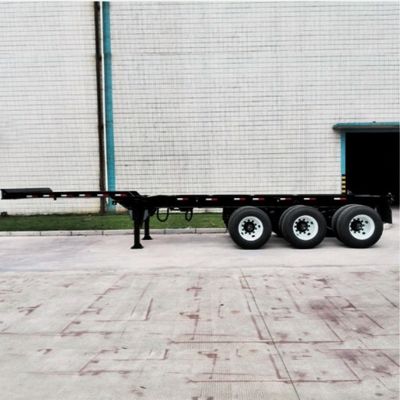

Q345B Main Beam 3 Axles 50t Skeleton Semi-trailer for 40 45 48 53FT Container Chassis 0

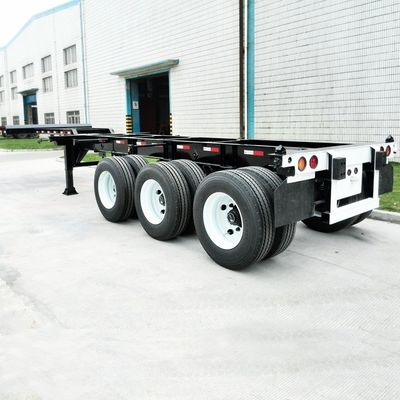

Q345B Main Beam 3 Axles 50t Skeleton Semi-trailer for 40 45 48 53FT Container Chassis 1
3 Axles 50t Skeleton 40 45 48 53FT Skeletal Shipping Container Chassis Semi Truck Trailer Skeleton Semi-trailer
Wosheng Skeleton Semi Trailer is an semi trailer with standardizes size (customization) and steel skeleton structure, mainly used for transporting container. This model have simple structure , strong durability, can adapt to complex transportation environment, and is an important part of modern logistics transportation. It is widely used in various types of international shipping , railways road and other transportation occasions, can meet the transportation needs of different sizes and different shapes of containers
Specification

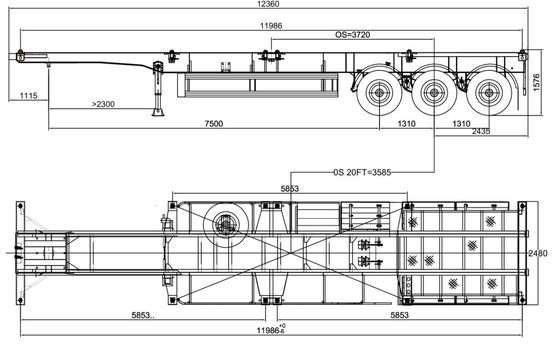

Q345B Main Beam 3 Axles 50t Skeleton Semi-trailer for 40 45 48 53FT Container Chassis 2
Detail Specification for skeleton semi trailer
Items
skeleton semi trailer
Tare Weight
6.5 Tons (depends on final configuration)
Payload
50000kgs（customizable)
Size
Outside 12380×2480×1550mm (customizable)
Frame
Main Beam: Opting for high strength Q345B steel, 520mm deep welded I-section main beams, Top flange thickness 14mm, Bottom flange
thickness 16mm, Middle flage thickness 8mm
Cross Beam: Heavy duty thickened 10# channel steel
Side Beam: Heavy duty 18# channel steel
Axles
3 axles, square axle with 13 tons capacity FUWA brand , or 2 axles 5 axles, can
King pin
2"(50mm)or3.5"(90mm) JOST
Suspension
Heavy duty type tri-axles suspension with equalizers. American design
Steel Spring
Six sets of reliable famous brand , 10pcs leaf spring, thickness 13mm. width 90mm
Landing gear
28tons lifting capacity , two speed
Tire specs
12.00R22.5 Triangle brand , or another brand according to customer
Braking system
dual line pneumatic brake system, T 30 air chamber, 40 L air tanks, Emergency relay valve
Rim
9.00-22.5 brand according to customer
Paiting
Sand blasting before painting;one coats of primer, anti- corrosion; two coat of finish painting
Electrical system
Sand blasting before painting;one coats of primer, anti- corrosion; two coat of finish painting
spare tire
Two set of heavy duty spare wheel carriers, indluding a riser
Tool Box
One Piece (1.0 x 5.0 m) with 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar
Q345B Main Beam 3 Axles 50t Skeleton Semi-trailer for 40 45 48 53FT Container Chassis 3
Q345B Main Beam 3 Axles 50t Skeleton Semi-trailer for 40 45 48 53FT Container Chassis 4

Axle

BPW/FUWA/LEAO Axle optional.Integrated advanced low-alloy axle beam,Whole axle beam no welding process.strong carrying capacity and high bending strength.Axle maintenance-free could reach 3 year/400,000 kilometers.
Q345B Main Beam 3 Axles 50t Skeleton Semi-trailer for 40 45 48 53FT Container Chassis 5

Landing Gear

The warranty period of Chinese brand/JOST landing gear is more than 5 years. The gearbox uses low temperature premium chassis oil and is rated for service from -30°C to 120°C.
Q345B Main Beam 3 Axles 50t Skeleton Semi-trailer for 40 45 48 53FT Container Chassis 6

Leaf Spring

Usually 10pcs leaf spring , 13mm thickness, 90mm width.
Can customizable according to customer requirements.
Q345B Main Beam 3 Axles 50t Skeleton Semi-trailer for 40 45 48 53FT Container Chassis 7

Twist Lock

ISO standard twist locks are durable with unique design, which ensures the stability of containers and ease of loading and unloading.
Q345B Main Beam 3 Axles 50t Skeleton Semi-trailer for 40 45 48 53FT Container Chassis 8

Suspension and break system

Suspension: Germany Type or American Type Mechanical and Air bag suspension can be choose.
Brake System: T30/30 Spring brakechamber. WABCO valve,ABS/EBS system optional. dual line brake pipe.
Q345B Main Beam 3 Axles 50t Skeleton Semi-trailer for 40 45 48 53FT Container Chassis 9

Tire

Double Coin / Ling Long / Michelin / Triangle / Bridgestone and other famous brand for choice. Better Performance in wear resistance.
Company Profile
Q345B Main Beam 3 Axles 50t Skeleton Semi-trailer for 40 45 48 53FT Container Chassis 10

About us

Qingdao Wosheng Import and Export Co., Ltd., is a company engaged in semi-trailer, truck, used semi-trailer, used-truck, auto parts and new energy vehicles’ sales and service. Our factory is Shandong Wosheng Special vehicle manufacturing co.,ltd , which has nearly 8 years of production experience in the trailer industry. Please believe that our professional technology and manufacturing experience can help your transportation be safer and efficient. we can provide high quality products and competitive prices.
Q345B Main Beam 3 Axles 50t Skeleton Semi-trailer for 40 45 48 53FT Container Chassis 11
Factory
Our factory commit to strict quality control and thoughtful customer service, our experienced staff can discuss your requirements at any time to ensure your full satisfaction. We not only want to be perfect in appearance, but also pursue the delicacy of detail. We have advanced modern equipment, strong technical force to ensure customer satisfaction of products and timely delivery.
Q345B Main Beam 3 Axles 50t Skeleton Semi-trailer for 40 45 48 53FT Container Chassis 12
Q345B Main Beam 3 Axles 50t Skeleton Semi-trailer for 40 45 48 53FT Container Chassis 13
Q345B Main Beam 3 Axles 50t Skeleton Semi-trailer for 40 45 48 53FT Container Chassis 14
Q345B Main Beam 3 Axles 50t Skeleton Semi-trailer for 40 45 48 53FT Container Chassis 15
Q345B Main Beam 3 Axles 50t Skeleton Semi-trailer for 40 45 48 53FT Container Chassis 16
Certifications
Q345B Main Beam 3 Axles 50t Skeleton Semi-trailer for 40 45 48 53FT Container Chassis 17
We have obtained the World material Manufacturing Factory Certificate, 3C Certificate and ISO9000, Quality Management
Certification. We are also a national high-tech enterprise and have obtained more than 30 invention patents and utility model patents.
Q345B Main Beam 3 Axles 50t Skeleton Semi-trailer for 40 45 48 53FT Container Chassis 18
We are your most reliable cooperation partner
We are a national high-tech enterprise and have obtained more than 30 invention patents and utility model patents. We have attracted customers from all over the world, whether choosing the current product from our catalog or seeking technical support for your application, you can talk to our customer service colleagues about your procurement needs.
Q345B Main Beam 3 Axles 50t Skeleton Semi-trailer for 40 45 48 53FT Container Chassis 19
We are your most reliable cooperation partner
We are a national high-tech enterprise and have obtained more than 30 invention patents and utility model patents. We have attracted customers from all over the world, whether choosing the current product from our catalog or seeking technical support for your application, you can talk to our customer service colleagues about your procurement needs.
Q345B Main Beam 3 Axles 50t Skeleton Semi-trailer for 40 45 48 53FT Container Chassis 20
Packing and Loading
Q345B Main Beam 3 Axles 50t Skeleton Semi-trailer for 40 45 48 53FT Container Chassis 21
Q345B Main Beam 3 Axles 50t Skeleton Semi-trailer for 40 45 48 53FT Container Chassis 22
FAQ
Q1. Are you a factory or trade company ?
We are a comprehensive industrial and trade enterprise integrating product design, scientific researchand development, production and sales. Welcome to visit our factory at any time.

Q2. Could you accept special design and specification?
Sure of course. As we all know that the traffic regulations are different in different areas, our professional engineers will design and our well-trained staff will produce according to customer special requirements.
Such as: special Size, special control, or OEM/ODM etc.

Q3. Are you looking for an agent?
Yes, we're looking for the agent all over the world, you are welcome to contact us for further discussion.

Q4. How to control quality?
We set up all process inspection and quality control standard, include raw materials, production process, finished products. Advanced equipment and standard inspection process ensure the quality.

Q5. What services can we provide?
Accepted Delivery Terms: EXW, FOB, CFR, CIF

Q6. What logistics ways we can work for shipment?
We can ship all trailer by various transportation tools
For 90% of our shipment, we will go by sea, to all main continents such as South America, Middle East,
Africa, Oceania etc, either by container or RoRo/Bulk Shipment.
For neighborhood countries of China, such as Russia, Tajikistan, Kazakhstan,Mongolia etc, we can
ship trucks by road or railway. For light spare parts in urgent demand, we can ship it by international
courier service, such as DHL, TNT, UPS, or Fedex.
