Product Details:
|
| Use: | Truck Trailer, Truck Triler | Type: | Semi-Trailer |
|---|---|---|---|
| Material: | Steel | Size: | 930*250*345M |
| Max Payload: | >30000 Kg | Product Name: | Rear Dump Semi Trailer |
| Axle: | 2/3/4*13/16T FUWA/BPW | Function: | Cargo Transport |
| Color: | Customer's Request | Landing Gear: | 28t Heavy Duty Landing Gear |
| Leaf Spring: | 90(W)mm*13/16 (Thickness)mm*10(Layer) | Capacity: | 30 Ton - 100 Ton |
| Tools Box: | 1 Standard | Suspension: | Mechanical Suspension Air Suspension |
|

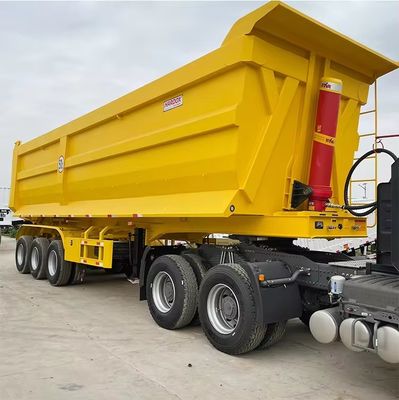

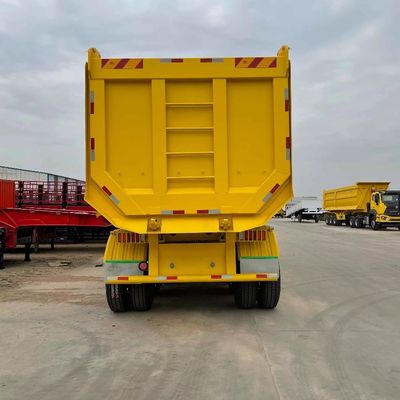

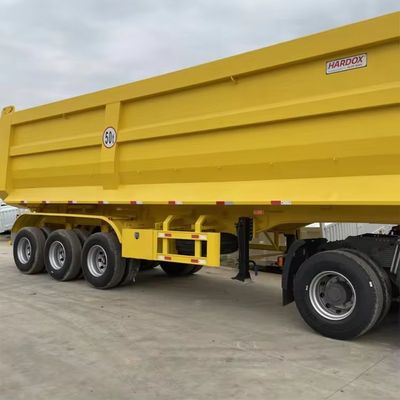

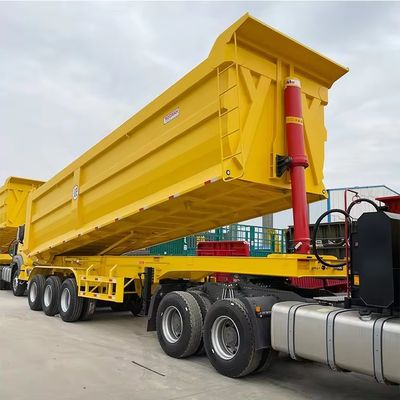

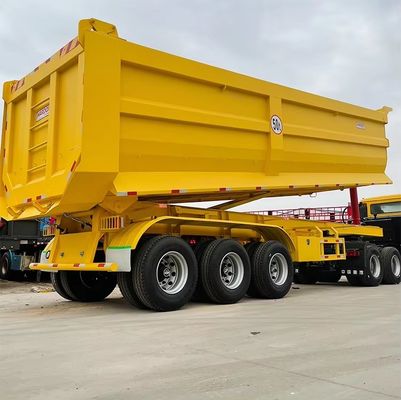

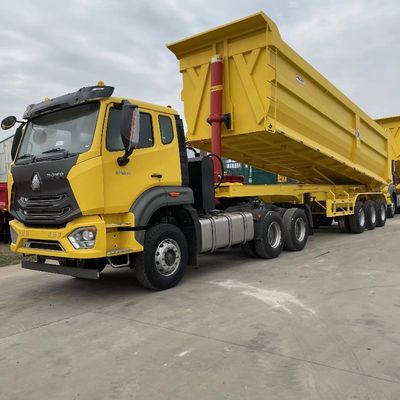

Wosheng Rear Dump Tipper Semi Trailer
|
|
|
|
|
||||
|
Application
|
Transport all kinds of Mineral/Coal/Stone/Sand/Cargo Loading
|
|
|
|
||||
|
Model
|
2 axles tipper trailer
|
3 axles tipper trailer
|
4 axles tipper trailer
|
5-6 axles tipper trailer
|
||||
|
Bucket capacity
|
25 cubic meters
|
30/35/40 cubic meters
|
40 cubic meters
|
45 cubic meters
|
||||
|
Dimension (mm)
|
8500*2500*3500
|
10000x2500x3800
|
10500*2500*3900
|
11500*2500*3950
|
||||
|
Rim and tires
|
12.00R22.5 tires
9.0-22.5 rims |
12.00R22.5 tires
9.0-22.5 rims |
315/80R22.5 tires
9.0-22.5 rims |
12.00R20 tires
9.0-20 |
||||
|
Lifting system |
HYVA brand
FE/FC type cylinders Diameter=191 mm |
HYVA brand
FE/FC type cylinders Diameter=191 mm |
HYVA brand
FE/FC type cylinders Diameter=202 mm |
HYVA brand
FE/FC type cylinders Diameter=214 mm |
||||
|
Tipping box
|
T700 / Hardox
|
|
|
|
||||
|
Main Beams |
T700 / Q345B double plate
|
|
|
|
||||
|
|
Height:500mm
|
|
|
|
||||
|
|
Upper Plate: 14mm
|
|
|
|
||||
|
|
Middle Plate: 8mm
|
|
|
|
||||
|
|
Lower Plate: 16mm
|
|
|
|
||||
|
Axle
|
13T/16T FUWA / BPW / WOSHENG Own Brand
|
|
|
|
||||
|
King Pin
|
JOST brand 2.0'' / 3.5'' bolt type king pin
|
|
|
|
||||
|
Landing Gear
|
28T double speed JOST / TAIHUA brand
|
|
|
|
||||
|
Suspension
|
Heavy duty mechanical suspension / Air bag / Bogies
|
|
|
|
||||
|
Pneumatic Braking System
|
WABCO RE 6 relay valve
T30/30 air brake chamber |
|
|
|
||||
|
Spring leaf
|
90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12
(special for export market ) |
|
|
|
||||
|
Light
|
LED light,24V,7ways(7 wire harness)
|
|
|
|
||||
|
Tool Box |
steel/aluminum
One piece,1m*0.5m*0.5m(Size can be choose freely) |
|
|
|
||||
|
Painting
|
1 coat of anticorrosive prime, 2coats of final paint
|
|
|
|
||||
|
Any parts fitted could according to clients request, contact us to get more.
|
|
|
|
|
||||
