Product Details:
|
| Use: | Truck Trailer | Type: | Semi-Trailer |
|---|---|---|---|
| Material: | Steel | Size: | 12400x2610x1550mm Or Customization |
| Max Payload: | 80tons | Color: | Customization |
| Usage: | Container Etc All Kind Of Cargo | Axle: | 3 Axles Or Customization |
| Tare Weight: | 7.0 Ton Or Customaization | Loading Capacity: | 50Tons Or Customization |
| King Pin: | 2.00" (50#)/(90#) | Tire Specs.: | 12R22.5, Triangle Brand Or According Customer Reauirements |
| Rim: | 9.0-22.5 | Main Beam: | Q345b |
| Lead Time: | One Week |

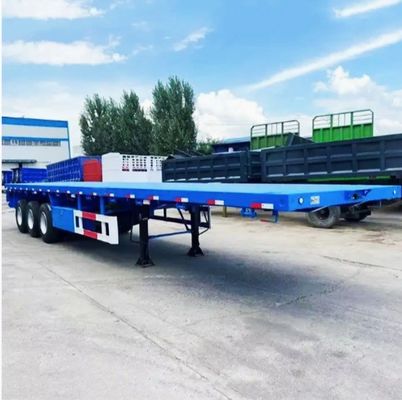

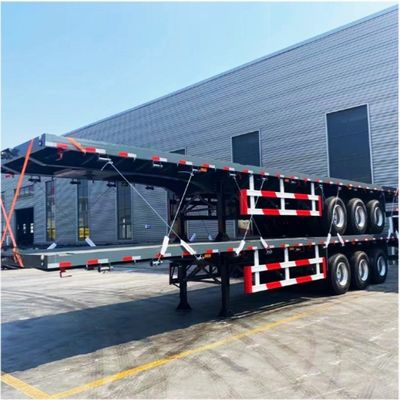

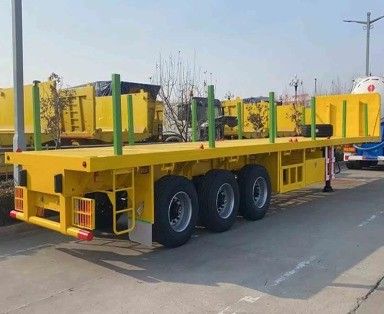

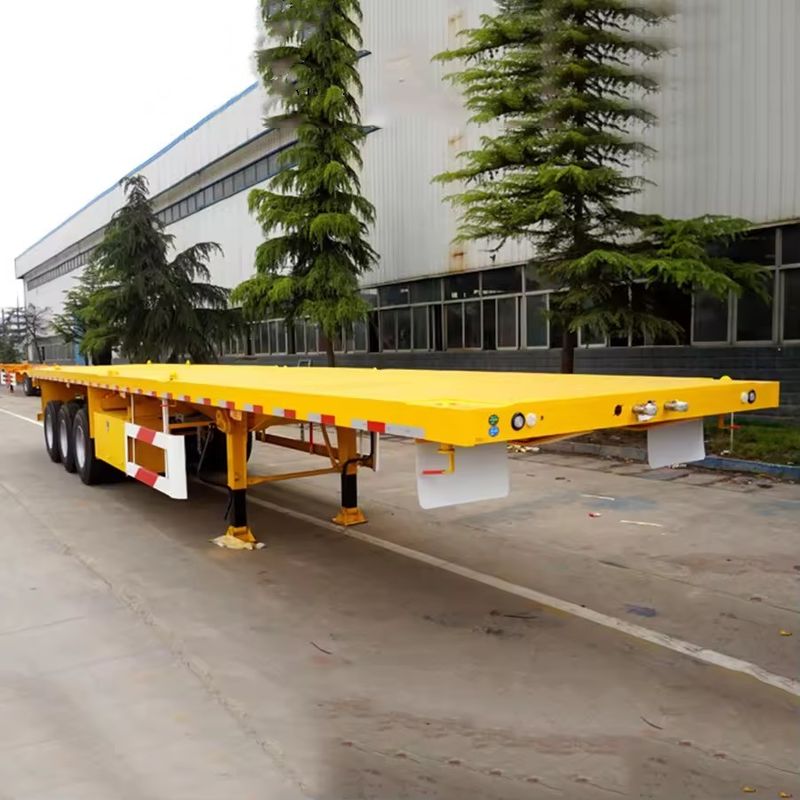

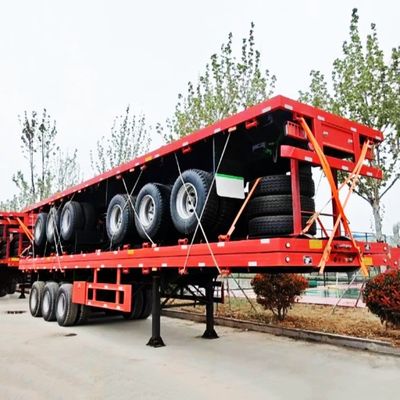

Wosheng 40Ton Flatbed Trailer 20/40/45/48ft Container Flatbed Semi-trailer Chassis | ||||||
Product name | 20 FT Flatbed Semi-trailer | 40 FT Flatbed Semi-trailer | 45 FT Flatbed Semi-trailer | |||
Product Size | 7000*2500*1570mm | 12400* 2500*1570mm | 13950*2500*1600mm | |||
Axle | 2 /3 Axles*13Ton FUWA/BPW/Wosheng/other | 2 /3 Axles*13Ton FUWA/BPW/Wosheng/other | 2 /3 Axles*13Ton FUWA/BPW/Wosheng/other | |||
Application | 1*20 ft Container or cargo Loading | 1*40ft/2*20 ft Container/Cargo Loading | 1*40ft/1*45/2*20 ft Container / Cargo Loading | |||
Capacity | 20-60 Tons | 30-80 Tons | 30-100 Tons | |||
Main Beam Material | Q345/T700 | Q345/T700 | Q345/T700 | |||
Upper Plate Thickness | 12mm | 14mm | 16mm | |||
Middle Plate Thickness | 6mm | 8mm | 10mm | |||
Down Plate Thickness | 14mm | 16mm | 18mm | |||
Height | 500mm | |||||
Platform Thickness | 3mm thick patterned steel plate | |||||
Leaf Spring | 90mm*13mm*10/90mm*16mm*10layers | |||||
Kin Pin | 50#(2")/90#(3.5") JOST/Other Brand | |||||
Landing Gear | 28 Tons Two Speed,JOST/Other Brand | |||||
Twist Lock | 4 Sets | 12 Sets | 12Sets | |||
Suspension System | Mechanical or Air Suspension | |||||
Tire | 12R22.5 (8/12 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/Other | |||||
Rim | 9.00*22.5 (8/12 Pieces) | |||||
Tool Box | Steel or Aluminum | |||||
Painting | Electrophoresis paint | |||||
If you want to know more details,please contact us directly | ||||||
