Strength Structure 80-100 Tons U Shape Rear Dump Semi Trailer for Sand Transportation

Certification
China Qingdao Wosheng Import and Export Co.,Ltd certification
China Qingdao Wosheng Import and Export Co.,Ltd certification
I'm Online Chat Now

Strength Structure 80-100 Tons U Shape Rear Dump Semi Trailer for Sand Transportation

Strength Structure 80-100 Tons U Shape Rear Dump Semi Trailer for Sand Transportation
Strength Structure 80-100 Tons U Shape Rear Dump Semi Trailer for Sand Transportation Strength Structure 80-100 Tons U Shape Rear Dump Semi Trailer for Sand Transportation Strength Structure 80-100 Tons U Shape Rear Dump Semi Trailer for Sand Transportation Strength Structure 80-100 Tons U Shape Rear Dump Semi Trailer for Sand Transportation Strength Structure 80-100 Tons U Shape Rear Dump Semi Trailer for Sand Transportation Strength Structure 80-100 Tons U Shape Rear Dump Semi Trailer for Sand Transportation

Large Image :  Strength Structure 80-100 Tons U Shape Rear Dump Semi Trailer for Sand Transportation

Product Details:
Place of Origin: Shandong, China
Brand Name: Yun Sheng
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $10,000.00/sets 1-3 sets
Payment Terms: T/T, L/C

Strength Structure 80-100 Tons U Shape Rear Dump Semi Trailer for Sand Transportation

Description
Use: Truck Trailer Type: Semi-Trailer
Material: Steel/stainless Steel Size: 9300x2500x3450mm Or Customization
Max Payload: >40000 Kg Axle: 3/4 Pcs
Suspension: Mechanical Or Air Suspension Landing Gear: 28T
Color: Customization Supply Ability: 15000 Sets Per Year

Products Description
Strength Structure 80-100 Tons U Shape Rear Dump Semi Trailer for Sand Transportation 0

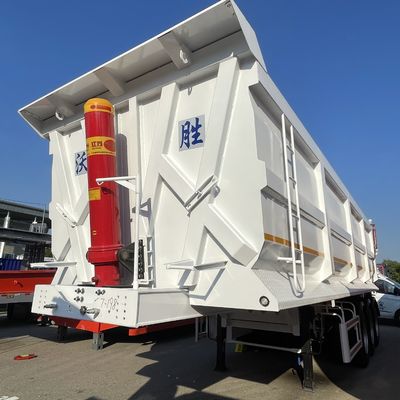

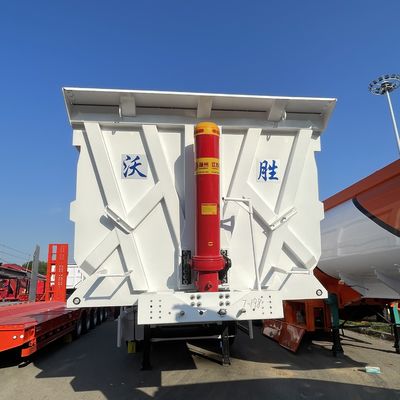

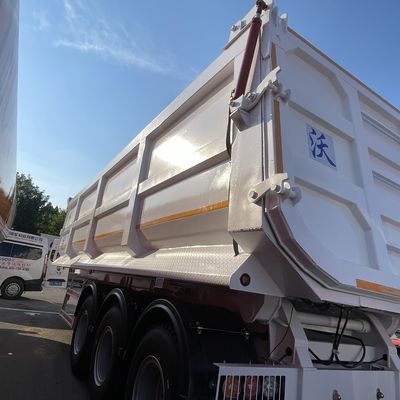

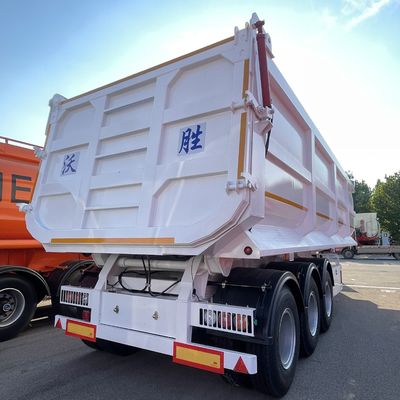

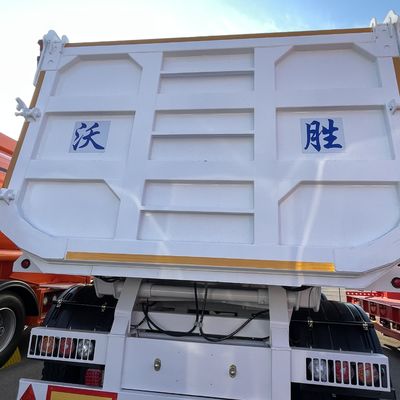

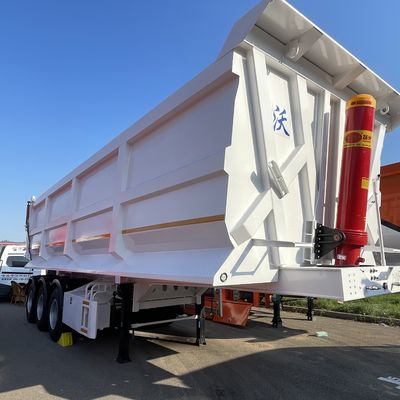

Hydraulic Rear Dump Semi Trailer
Wosheng Dump Semi Trailers are in great demand from customers, the proven product, which features reliable structure , great loading capacity, excellent power, reliable performance. This trailer model could meet the requirements of different road conditions, and could satisfy your need of long distance highway transportation.
Strength Structure 80-100 Tons U Shape Rear Dump Semi Trailer for Sand Transportation 1
Strength Structure 80-100 Tons U Shape Rear Dump Semi Trailer for Sand Transportation 2
Strength Structure 80-100 Tons U Shape Rear Dump Semi Trailer for Sand Transportation 3
Strength Structure 80-100 Tons U Shape Rear Dump Semi Trailer for Sand Transportation 4
Specification
Strength Structure 80-100 Tons U Shape Rear Dump Semi Trailer for Sand Transportation 5
Product Name
Rear Dump Semi Trailer
Dimension(Lx W x H)(mm)
9300×2500×3450mm (customizable)
Tare weight (kg)
8500 (depends on final configuration)
Max Loading Capacity (ton)
30-100ton (customizable)
Main Beam
Q345B / T700 Steel Height 500mm
upper plate is 14mm,
down plate is 16mm,
middle plate is 8mm. (customizable)
Floor Plate
Thickness 6mm
Sidewall
Thickness 4mm
Axles
13/16/20 Ton. Axle amount optional like 2/3/4axles ..., Axle brand optional like SAF /FUWA/BPW etc
Tire
12.00R22.5/315 80R22.5/11.00R20/12.00R20(Brand optional)
Rim
9.00-22.5/8.00-20/8.50-20
King Pin
2"(50mm)or3.5"(90mm) JOST or other brand optional
Suspension
Mechanical Suspension Air Suspension(American or Geman)
Leaf Spring
90(w)mm*13/16(thickness)mm*10(layer)
Landing Gear
28t Heavy Duty Landing Gear. Brand optional FUWA/JOST etc.
Brake System
Dual line brake system, Air chamber T30/30,
3 X 40L gas storage drums
ABS System
None or installed as your requirement.
Electrical system
1. Voltage: 24v waterproof 2. Receptacle: 7 ways (7 wire harness); LED light ( standard rear light, turn light, rear reflector,
side light, side reflector etc.)
Color
As per customer requirement
Spare Wheel Bracket
1 piece of Spare Wheel Bracket
Tool box
1 set of standard tool box equipped with 1 Tire spanner, 1 gudgeon sleeve and 1 cranking bar
Painting
Sand blasting before painting;one coats of primer, anti- corrosion; two coat of finish painting;
Packing
Wax painting treatment to protect the vehicles from sea water, and the chassis greased to avoid rusting during shipping.
Delivery
From China port, and carry by container ship, ro-ro ship or bulk ship, the freight cost depends on the volume.
Remarks
Our senior engineer can design semi trailer as your request, and we accept OEM/ODM projects.
Pls kindly noted that pictures and configuration information are only for your reference.The final product can be made according to specific requirements.
Details Images
Strength Structure 80-100 Tons U Shape Rear Dump Semi Trailer for Sand Transportation 6

Featured Tire

Double Coin / LingLong / Michelin / Triangle / Bridgestone and other famous brand for choice. Better Performance in wear resistance
Strength Structure 80-100 Tons U Shape Rear Dump Semi Trailer for Sand Transportation 7

Suspension and break system

Suspension: Germany Type or American Type Mechanical and Air bag suspension can be choose.
Brake System: T30/30 Spring brakechamber. WABCO valve,ABS/EBS system optional. dual line brake pipe.
Strength Structure 80-100 Tons U Shape Rear Dump Semi Trailer for Sand Transportation 8

Anti-Tire abrasion Suspension

Specially designed anti-Tire abrasion suspension system,Prevent tire offset after loading, maximally avoid tire
abrasion.Meanwhile,Easy to disassemble and maintain.
Strength Structure 80-100 Tons U Shape Rear Dump Semi Trailer for Sand Transportation 9

Axle
BPW/FUWA/LEAO Axle optional.

Integrated Advanced Low-Alloy Axle Beam,Whole
Axle Beam No Welding process.Strong Carrying
Capacity and high bending Strength.Axle
maintenance-free could reach 3 Year/400,000
kilometers.

Recommend products
Strength Structure 80-100 Tons U Shape Rear Dump Semi Trailer for Sand Transportation 10
Strength Structure 80-100 Tons U Shape Rear Dump Semi Trailer for Sand Transportation 11
Strength Structure 80-100 Tons U Shape Rear Dump Semi Trailer for Sand Transportation 12
Strength Structure 80-100 Tons U Shape Rear Dump Semi Trailer for Sand Transportation 13
Strength Structure 80-100 Tons U Shape Rear Dump Semi Trailer for Sand Transportation 14
Strength Structure 80-100 Tons U Shape Rear Dump Semi Trailer for Sand Transportation 15
Strength Structure 80-100 Tons U Shape Rear Dump Semi Trailer for Sand Transportation 16
Strength Structure 80-100 Tons U Shape Rear Dump Semi Trailer for Sand Transportation 17
Strength Structure 80-100 Tons U Shape Rear Dump Semi Trailer for Sand Transportation 18
Strength Structure 80-100 Tons U Shape Rear Dump Semi Trailer for Sand Transportation 19
Strength Structure 80-100 Tons U Shape Rear Dump Semi Trailer for Sand Transportation 20
Strength Structure 80-100 Tons U Shape Rear Dump Semi Trailer for Sand Transportation 21
Company Profile
Strength Structure 80-100 Tons U Shape Rear Dump Semi Trailer for Sand Transportation 22
About us
Qingdao Wosheng Import and Export Co., Ltd., is a company engaged in semi-trailer, truck, used
semi-trailer, used-truck, auto parts and new energy vehicles’ sales and service. Our factory is
Shandong Wosheng Special vehicle manufacturing co.,ltd , which has nearly 8 years of production
experience in the trailer industry. Please believe that our professional technology and manufacturing
experience can help your transportation be safer and efficient. we can provide high quality products
and competitive prices.
Strength Structure 80-100 Tons U Shape Rear Dump Semi Trailer for Sand Transportation 23
Strength Structure 80-100 Tons U Shape Rear Dump Semi Trailer for Sand Transportation 24
Factory
Our factory commit to strict quality
control and thoughtful customer
service, our experienced staff can
discuss your requirements at any time
to ensure your full satisfaction. We
not only want to be perfect in
appearance, but also pursue the
delicacy of detail. We have advanced
modern equipment, strong technical
force to ensure customer satisfaction
of products and timely delivery.
Strength Structure 80-100 Tons U Shape Rear Dump Semi Trailer for Sand Transportation 25
Certifications
Strength Structure 80-100 Tons U Shape Rear Dump Semi Trailer for Sand Transportation 26
Why Choose Us
Strength Structure 80-100 Tons U Shape Rear Dump Semi Trailer for Sand Transportation 27
We are your most reliable cooperation partner
We are a national high-tech enterprise and have obtained more than 30 invention patents and utility
model patents. We have attracted customers from all over the world, whether choosing the current
product from our catalog or seeking technical support for your application, you can talk to our
customer service colleagues about your procurement needs.
Strength Structure 80-100 Tons U Shape Rear Dump Semi Trailer for Sand Transportation 28
Packing and Loading
Strength Structure 80-100 Tons U Shape Rear Dump Semi Trailer for Sand Transportation 29
FAQ
Q1. Are you a factory or trade company ? We are a comprehensive industrial and trade enterprise integrating product design, scientific research
and development, production and sales. Welcome to visit our factory at any time.
Q2. Could you accept special design and specification? Sure of course. As we all know that the traffic regulations are different in different areas, our professional
engineers will design and our well-trained staff will produce according to customer special requirements.
Such as: special Size, special control, or OEM/ODM etc.
Q3. Are you looking for an agent? Yes, we're looking for the agent all over the world, you are welcome to contact us for further discussion.
Q4. How to control quality? We set up all process inspection and quality control standard, include raw materials, production process,
finished products. Advanced equipment and standard inspection process ensure the quality.
Q5. what services can we provide? Accepted Delivery Terms: EXW, FOB, CFR, CIF

Q6. What logistics ways we can work for shipment?
We can ship all trailer by various transportation tools
For 90% of our shipment, we will go by sea, to all main continents such as South America, Middle East,
Africa, Oceania etc, either by container or RoRo/Bulk Shipment.
For neighborhood countries of China, such as Russia, Tajikistan, Kazakhstan,Mongolia etc, we can
ship trucks by road or railway. For light spare parts in urgent demand, we can ship it by international
courier service, such as DHL, TNT, UPS, or Fedex.
