Product Details:
|
| Use: | Truck Trailer | Type: | Semi-Trailer |
|---|---|---|---|
| Material: | Steel | Size: | 12500/13000/14000/16000x2500/3000x1100/3300mm |
| Max Payload: | 30TON/60TON/80TON/100TON OR CUSTOMER'S REQUEST | Function: | Transport Heavy Duty Equipment |
| Main Beam: | Q345B / T700 Steel | Color: | Customized Color |
| Leaf Spring: | 90(W)mm*13/16 (Thickness)mm*10(Layer) | Brake System: | Dual Line, Air Chamber T30/30,3 X 40L Gas Storage Drums |
| King Pin: | 2"(50mm)or3.5"(90mm) JOST Or Other Brand | Axle: | 13/16/20 Ton, 4 Axles SAF /FUWA/BPW/WOSHENG |
| Suspension: | Mechanical Suspension Air Suspension(American Or Geman) | Landing Gear: | 28t Heavy Duty Landing Gear FUWA/JOST/WOSHENG |
| Tire: | 12.00R22.5/315 80R22.5/11.00R20/12.00R20(Brand Optional) |

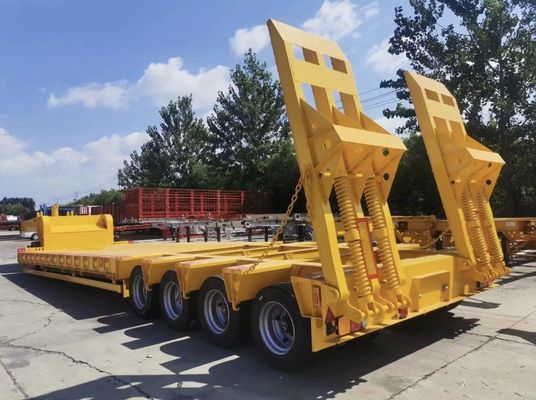

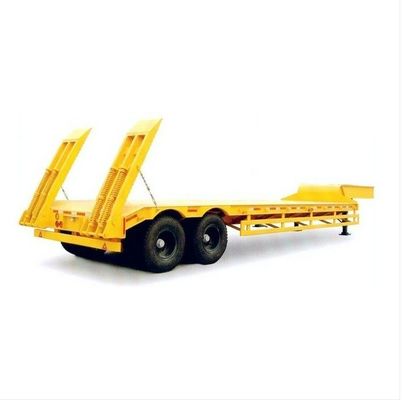

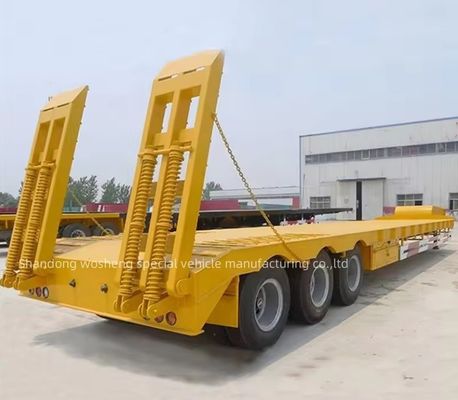

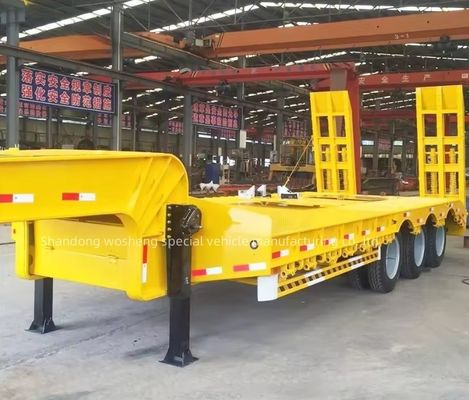

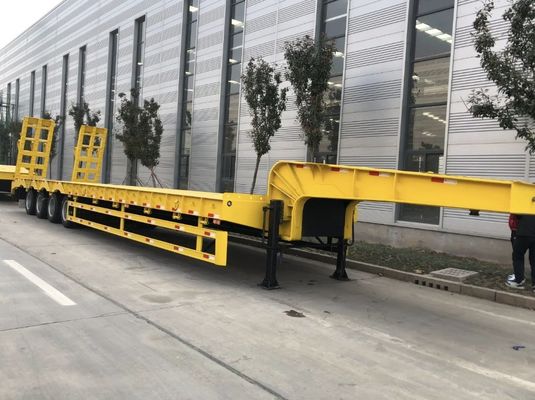

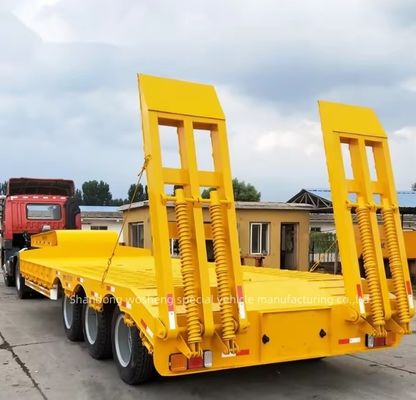

Products name | Professional Manufacturer's Heavy-Duty Lowbed Semi-Trailer with 3/4 Axle | ||||||
Max payload | 40-100TON | ||||||
SIZE | 12500/13800/14000/16000x2500/3000x1100/3300mm or customizable | ||||||
Main Beam | Q345B upper plate is 16mm, down plate is 18mm, middle plate is 12 mm | ||||||
Side Beam | 20# channel steel | ||||||
Leaf Spring | 90(w)mm*13/16(thickness)mm*10(layer) | ||||||
Landing Gear | 28t Heavy Duty Landing Gear FUWA/JOST/WOSHENG | ||||||
Brake System | Dual line brake system, Air chamber T30/30,3 X 40L gas storage drums | ||||||
King Pin | 2"(50mm)or3.5"(90mm) JOST or other brand | ||||||
Axle | 13/16/20 Ton, 4 axles | ||||||
Suspension | Mechanical Suspension Air Suspension(American or Geman) | ||||||
Tire | 12.00R22.5/315 80R22.5/11.00R20/12.00R20(Brand optional) | ||||||
Rim | 9.00-22.5/8.00-20/8.50-20 | ||||||
Bottom Platform | 4mm diamond plate | ||||||
Electrical SYSTEM | 1. Voltage: 24v waterproof 2. Receptacle: 7 ways (7 wire harness) | ||||||
Accessory | One tooling box with a set of standard trailer tool. | ||||||
Painting | Complete Chassis sand blasting to clean rust 1 coat of anti-corrosion prime 2 coats of final paint | ||||||
Packaging and delivery | Overland by truck/tractor, or by sea transfer to Qingdao,Tianjin or Lianyungang Port, and carry by ro-ro ship or bulk cargo ship, the freight cost depends on the volume. | ||||||
remarks | We can design model according to your requirement | ||||||
