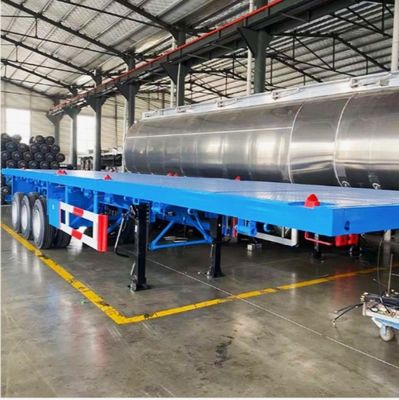

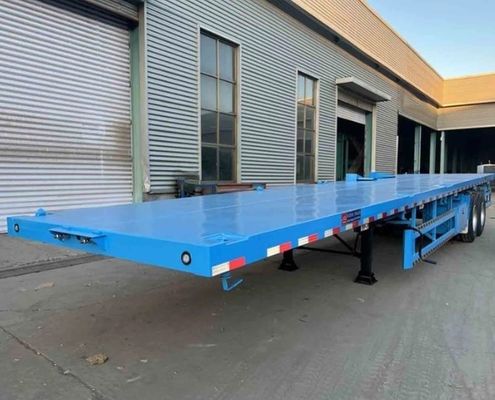

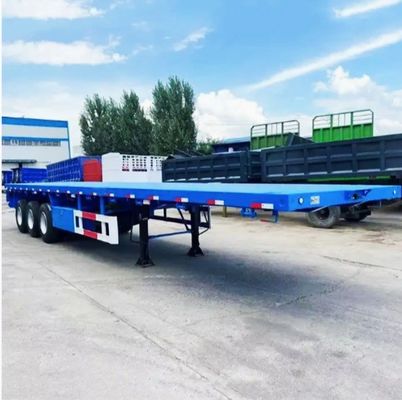

2/3/4 Axles 30-100tons Flatbed Semi Trailer for Transport Container and Heavy Cargos

Large Image : 2/3/4 Axles 30-100tons Flatbed Semi Trailer for Transport Container and Heavy Cargos

Product Details:

Place of Origin:	Shandong China
Brand Name:	WoSheng flatbed semi trailer

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$5,600.00/units 1-3 units
Payment Terms:	T/T, L/C

Contact Now

2/3/4 Axles 30-100tons Flatbed Semi Trailer for Transport Container and Heavy Cargos

Description

Use:	Truck Trailer	Type:	Semi-Trailer
Material:	Steel	Size:	12500x2500x1600-3100mm Or Customizable
Max Payload:	100tons	Product Name:	Wosheng Flatbed Semi Trailer
Function:	Transport Container And Bulk Cargos	Main Beam:	Q345B, Height 0.5m, Upper /down/middle Plate Is 14/16/8mm
Color:	Customized Color	Leaf Spring:	90(w)mm13/16(thickness)mm10(layer)
King Pin:	2"(50mm)or3.5"(90mm)	Axle:	13/16/20ton*3 Axles
Suspension:	Mechanical /Air Suspension	Landing Gear:	28t Heavy Duty Landing Gear
Tire:	12.00R22.5

Shandong Wosheng Semi Trailers

Shandong Wosheng is a professional semi-trailer manufacturer with more than ten years of production experience. With a professional R & D team, we can do special design and production according to the needs of customers, like flatbed, lowbed, fence, sidewall, side curtain, container skeleton, ,fuel tank,dump semi trailer etc. Contact us whenever you need !

Products Description

Wosheng Flatbed semi trailer is suitable for transporting large, heavy goods such as containers, steel, building materials, machinery and equipment. It has strong load capacity, convenient loading and unloading, and high transportation efficiency.

Flatbed Semi Trailer Specification
20FT FLATBED SEMI TRAILER	40FT FLATBED SEMI TRAILER	45FT FLATBED SEMI TRAILER
Brand: Wosheng	Brand: Wosheng	Brand: Wosheng
2 Axles/3 Axles	2 Axles/3 Axles	3 Axles/4 Axles
20ft container or cargo loading	140ft/220ft Container or cargo loading	140ft/145ft container or cargo loading
Loading Capacity: 20 - 60 Tons	Loading Capacity: 30 - 80 Tons	Loading Capacity: 30 - 100 Tons
Gooseneck Type: Yes	Gooseneck Type: Yes	Gooseneck Type: Yes
Tandem Type: Yes	Tandem Type: Yes	Tandem Type: Yes
Main Beam
Material: Q345/T700	Material: Q345/T700	Material: Q345/T700
Upper Plate Thickness: 12mm	Upper Plate Thickness: 16mm	Upper Plate Thickness: 16mm
Middle Plate Thickness: 6mm	Middle Plate Thickness: 10mm	Middle Plate Thickness: 10mm
Lower Plate Thickness: 14mm	Lower Plate Thickness: 18mm	Lower Plate Thickness: 18mm
Height: 500mm	Height: 500mm	Height: 500mm
Platform Thickness: 2.5mm	Platform Thickness: 3mm	Platform Thickness: 3mm
Product Dimension
L 7000mmW 2500mmH 1570mm	L 12400mmW 2500mmH 1570mm	L 13950mmW 2500mmH 1600mm
Axles
2/3 Axles *13/16 Ton WOSHENG/FUWA/BPW/Othe	2/3 Axles *13/16 Ton WOSHENG/FUWA/BPW/Other	3/4 Axles *13/16 Ton WOSHENG/FUWA/BPW/Other
Tire
12R22.5 (8/12 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/ Other Brand	12R22.5 (8/12 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/ Other Brand	12R22.5 (8/12 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/ Other Brand
Rim
9.00*22.5 (8/12 Pieces) Steel/Aluminum	9.00*22.5 (8/12 Pieces) Steel/Aluminum	9.00*22.5 (8/12 Pieces) Steel/Aluminum
Leaf Spring
90mm13mm10/90mm16mm10Pcs	90mm13mm10/90mm16mm10Pcs	90mm13mm10/90mm16mm10Pcs
King Pin
50#(2")/90#(3.5") JOST/Other Brand	50#(2")/90#(3.5") JOST/Other Brand	50#(2")/90#(3.5") JOST/Other Brand
Landing Gear
28 Ton Two Speed,JOST/Other Brand	28 Ton Two Speed,JOST/Other Brand	28 Ton Two Speed,JOST/Other Brand
Twist Lock
4 Sets	12 Sets	12 Sets
Vehicle Painting
Electrophoresis painting	Electrophoresis painting	Electrophoresis painting

Example of engineer drawing

We can design as per your requirments !

Details Images

Landing Gear

JOST or Wosheng landing gear can be optioned made in aluminum or steel;designed to work under both high and low temperature in the
range of 30℃ to 120℃.

Twist Lock

Usually 20 ft is 4 sets locks, 40 ft with 12 sets. Customers can also change the number of locks according to their needs.Customers can change the number of locks according to your own needs.

Anti-Tire abrasion Suspension

Specially designed anti-Tire abrasion suspension system,Prevent tire offset after loading, maximally avoid tire
abrasion.Meanwhile,Easy to disassemble and maintain.

Brake System

T30/30 Spring brake chamber. WABCO valve,ABS/EBS system optional. dual line brake pipe.

Tool Box

Located on the side of the trailer without taking up too much space, it can store necessary maintenance tools, straps and safety equipment. made of durable materials and securely locks to keep the contents safe.

Axle BPW/FUWA/LEAO Axle optional.

Integrated Advanced Low-Alloy Axle Beam,Whole Axle Beam No Welding process.Strong Carrying Capacity and high bending Strength.Axle
maintenance-free could reach 3 Year/400,000 kilometers.

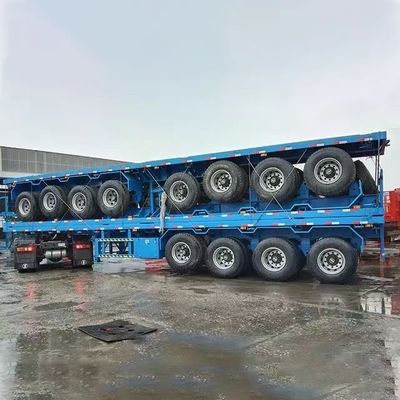

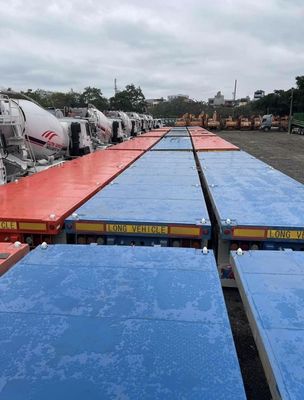

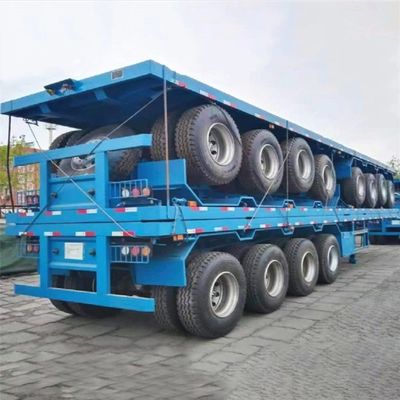

Packing and Shipping

Company Profile

About us

Qingdao Wosheng Import and Export Co., Ltd., is a company engaged in semi-trailer, truck, used semi-trailer, used-truck, auto parts and new energy vehicles’ sales and service. Our factory is Shandong Wosheng Special vehicle manufacturing co.,ltd , which has nearly 8 years of production experience in the trailer industry. Please believe that our professional technology and manufacturing experience can help your transportation be safer and efficient. we can provide high quality products and competitive prices.

Factory

Our factory commit to strict quality control and thoughtful customer service, our experienced staff can discuss your requirements at any time to ensure your full satisfaction. We not only want to be perfect in appearance, but also pursue the delicacy of detail. We have advanced modern equipment, strong technical force to ensure customer satisfaction of products and timely delivery.

Manufacturing Technique

Our Advantages

We are your most reliable cooperation partner

We are a national high-tech enterprise and have obtained more than 30 invention patents and utility model patents. We have attracted customers from all over the world, whether choosing the current product from our catalog or seeking technical support for your application, you can talk to our customer service colleagues about your procurement needs.

Certification

FAQ

Q1. Are you a factory or trade company ?

We are a comprehensive industrial and trade enterprise integrating product design,scientific research and

development, production and sales. Welcome to visit our factory at any time.

Q2. Could you accept special design and specification?

Sure of course. As we all know that the traffic regulations are different in different areas, our professional
engineers will design and our well-trained staff will produce according to customer special requirements.
Such as: special Size, special control, or OEM/ODM etc.

Q3. Are you looking for an agent?

Yes, we're looking for the agent all over the world, you are welcome to contact us for further discussion.

Q4. How to control quality?

We set up all process inspection and quality control standard, include raw materials, production process,
finished products. Advanced equipment and standard inspection process ensure the quality.

Q5. what services can we provide?

Accepted Delivery Terms: EXW, FOB, CFR, CIF

Q6. What logistics ways we can work for shipment?
We can ship all trailer by various transportation tools.
For 90% of our shipment, we will go by sea, to all main continents such as South America, Middle East,
Africa, Oceania etc, either by container or RoRo/Bulk Shipment.
For neighborhood countries of China, such as Russia, Tajikistan, Kazakhstan,Mongolia etc, we can
ship trucks by road or railway. For light spare parts in urgent demand, we can ship it by international
courier service, such as DHL, TNT, UPS, or Fedex.
