3 Axles 40 FT Flatbed Skeleton Semi-Trailer Skeletal Semi Truck Trailer for Landing Gear

3 Axles 40 FT Flatbed Skeleton Semi-Trailer Skeletal Semi Truck Trailer for Landing Gear
3 Axles 40 FT Flatbed Skeleton Semi-Trailer Skeletal Semi Truck Trailer for Landing Gear 3 Axles 40 FT Flatbed Skeleton Semi-Trailer Skeletal Semi Truck Trailer for Landing Gear 3 Axles 40 FT Flatbed Skeleton Semi-Trailer Skeletal Semi Truck Trailer for Landing Gear 3 Axles 40 FT Flatbed Skeleton Semi-Trailer Skeletal Semi Truck Trailer for Landing Gear 3 Axles 40 FT Flatbed Skeleton Semi-Trailer Skeletal Semi Truck Trailer for Landing Gear 3 Axles 40 FT Flatbed Skeleton Semi-Trailer Skeletal Semi Truck Trailer for Landing Gear

Large Image :  3 Axles 40 FT Flatbed Skeleton Semi-Trailer Skeletal Semi Truck Trailer for Landing Gear

Product Details:
Place of Origin: Shandong, China
Brand Name: YUN SHENG
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $2,500.00/units 1-9 units
Payment Terms: T/T, L/C
Contact Now

3 Axles 40 FT Flatbed Skeleton Semi-Trailer Skeletal Semi Truck Trailer for Landing Gear

Description
Use: Truck Trailer Type: Semi-Trailer
Material: Steel Size: 12400x2500x1550mm
Max Payload: 50 Ton Function: Transport 40ft Container
Main Beam: Q345B Height 500mm Upper/down/middle Plate Are 14mm /16mm/8mm Color: Customer's Request
Leaf Spring: 90(w)mm*13/16(thickness)mm*10(layer) Brake System: Dual Line Braking System
King Pin: 2"(50mm)or3.5"(90mm) JOST Axle: 13Ton, 3 Axles FUWA
Suspension: Mechanical Suspension Landing Gear: Heavy Duty Landing Gear 28t
Tire: 12.00R22.5/315 80R22.5/11.00R20(Brand Optional)

Products picture

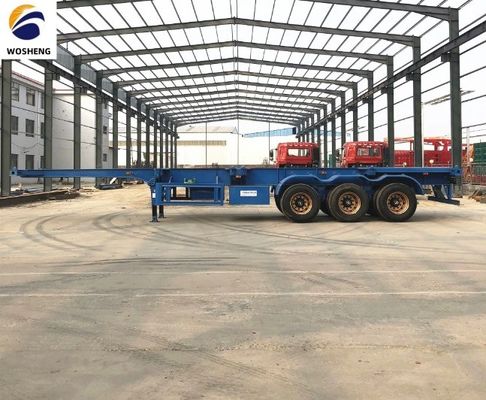

3 Axles 40 FT Flatbed Skeleton Semi-Trailer Skeletal Semi Truck Trailer for Landing Gear 0
Skeleton Semi Trailer.
Wosheng Skeleton Semi Trailer is an semi trailer with standardizes size (customization) and steel skeleton structure, mainly used for transporting container. This model have simple structure , strong durability, can adapt to complex transportation environment, and is an important part of modern logistics transportation. It is widely used in various types of international shipping ,railways road and other transportation occasions, can meet the transportation needs of different sizes and different shapes of containers.

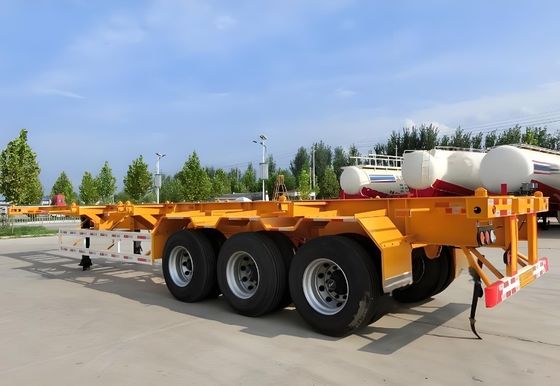

3 Axles 40 FT Flatbed Skeleton Semi-Trailer Skeletal Semi Truck Trailer for Landing Gear 1

The frame chassis of this series adopts the through-beam structure, and the frame structure includes straight and gooseneck types. The overall strength is high, the weight is light, the appearance is beautiful, and the use is safe and reliable.

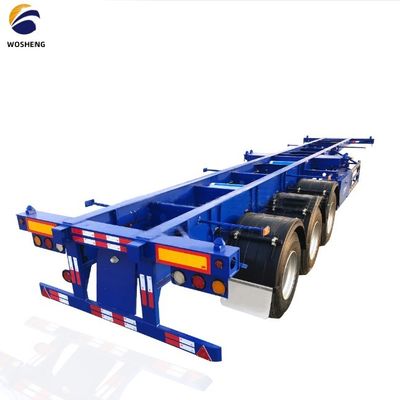

3 Axles 40 FT Flatbed Skeleton Semi-Trailer Skeletal Semi Truck Trailer for Landing Gear 2

Wosheng's raw materials ensure the quality of the products, and the procurement, inspection and use are strictly in accordance with the requirements of the quality system, which ensures the good performance of the vehicle.

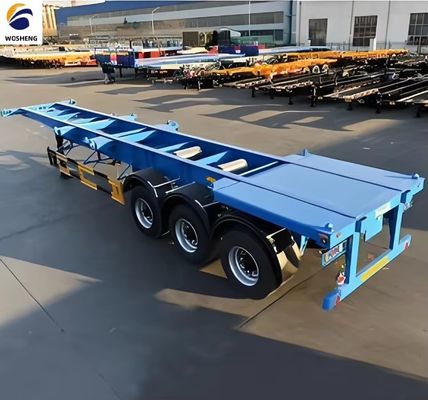

3 Axles 40 FT Flatbed Skeleton Semi-Trailer Skeletal Semi Truck Trailer for Landing Gear 3

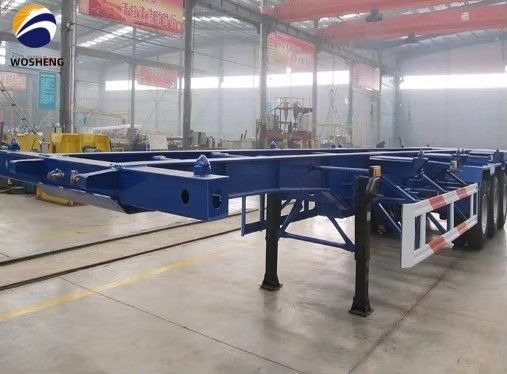

3 Axles 40 FT Flatbed Skeleton Semi-Trailer Skeletal Semi Truck Trailer for Landing Gear 4
Products Description

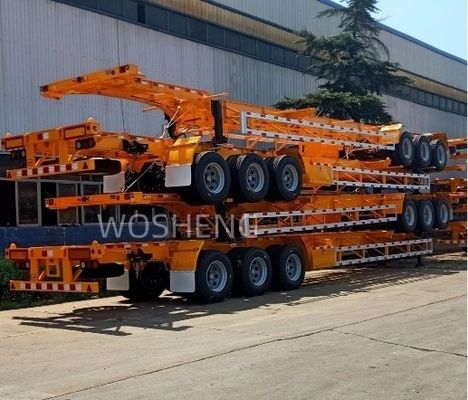

3 Axles 40 FT Flatbed Skeleton Semi-Trailer Skeletal Semi Truck Trailer for Landing Gear 5
Product Name
Skeleton Semi Trailer
Dimension(Lx W x H)（mm）

Outside 12380×2480×1550mm (customizable)
Tare weight(kg)
6500 (depends on final configuration)
Max Loading Capacity (kg)
50000 （customizable)
Main Beam
Q345B / T700 Steel Height 500mm
upper plate is 14mm,
down plate is 16mm,
middle plate is 8mm. (customizable)
Axles
13/16/20 Ton. Axle amount optional like 2/3/4axles ..., Axle brand optional like SAF /FUWA/BPW etc
Tire
12.00R22.5/315 80R22.5/11.00R20/12.00R20(Brand optional)
Rim
9.00-22.5/8.00-20/8.50-20
King Pin
2"(50mm)or3.5"(90mm) JOST or other brand optional
Suspension
Mechanical Suspension Air Suspension(American or Geman)
Leaf Spring
90(w)mm*13/16(thickness)mm*10(layer)
Landing Gear
28t Heavy Duty Landing Gear. Brand optional FUWA/JOST etc.
Twist-lock
4/8/12 units (customizable)
Brake System
Dual line brake system, Air chamber T30/30,3 X 40L gas storage drums
ABS System
None or installed as your requirement.
Electrical system
1. Voltage: 24v waterproof 2. Receptacle: 7 ways (7 wire harness);
LED light ( standard rear light, turn light, rear reflector, side light,
side reflector etc.)
Color
As per customer requirement
Spare wheel bracket
1 piece of Spare Wheel Bracket
Tool box
1 set of standard tool box equipped with 1 Tire spanner, 1gudgeon sleeve and 1 cranking bar
Painting
Sand blasting before painting;one coats of primer, anti
corrosion; two coat of finish painting
Packing
Wax painting treatment to protect the vehicles from sea water,
and the chassis greased to avoid rusting during shipping.
Delivery
From China port, and carry by container ship, ro-ro ship or bulk
ship, the freight cost depends on the volume.
Products detail
3 Axles 40 FT Flatbed Skeleton Semi-Trailer Skeletal Semi Truck Trailer for Landing Gear 6
Landing Gear
The warranty period of Chinese brand/JOST landing gear is more than 5 years.
Axle
BPW/FUWA/Wosheng Axle Optional. Integrated Advanced Low-Alloy Axle Beam,Whole Axle Beam No Welding process.Strong Carrying Capacity and high bending Strength.Axle maintenance-free could reach 3 Year/400,000 kilometers.
3 Axles 40 FT Flatbed Skeleton Semi-Trailer Skeletal Semi Truck Trailer for Landing Gear 7
3 Axles 40 FT Flatbed Skeleton Semi-Trailer Skeletal Semi Truck Trailer for Landing Gear 8
Axle suspension and brake system
BPW Fuwa worldwide best axles worki with WABCO brake valve, More effectively brake for safe and save tire cost.
Anti-Tire abrasion Suspension
Specially designed anti-Tire abrasion suspension system, Prevent tire offset after loading, maximally avoid tire abrasion.Meanwhile, Easy to disassemble and maintain.
3 Axles 40 FT Flatbed Skeleton Semi-Trailer Skeletal Semi Truck Trailer for Landing Gear 9
3 Axles 40 FT Flatbed Skeleton Semi-Trailer Skeletal Semi Truck Trailer for Landing Gear 10
Tire
12.00R22.5/315 80R22.5/11.00R20/12.00R20 Brand can be choose freely , such as Double Coin / LingLong / Michelin / Triangle /
Bridgestone and other famous brand for choice. Better Performance in wear
resistance.
