Product Details:
|
| Use: | Truck Trailer | Type: | Semi-Trailer |
|---|---|---|---|
| Material: | Steel | Size: | 12400*2610*1550mm |
| Max Payload: | 20T-80T | Product Name: | Flatbed Semi-trailer |
| Tare Weight: | 7000kg (depends On Final Configuration) | Size: | 12400*2610*1550mm (customizable) |
| Axle: | 13Ton. 3 Axle Brand Wosheng | Tire: | 12R22.5 |
| Suspension: | Mechanical Suspension Air Suspension | King Pin: | 2"(50mm) Or3.5"(90mm) |
| Brake System: | Dual Line Braking System | Leaf Spring: | 90(w)mm*13(thickness)mm*10(layer) |
| Landing Gear: | 28t Heavy Duty Landing Gear. Brand FUWA |
Flatbed Semi Trailer Specification | ||||
20FT FLATBED SEMI TRAILER | 40FT FLATBED SEMI TRAILER | 45FT FLATBED SEMI TRAILER | ||
Brand: Wosheng | Brand: Wosheng | Brand: Wosheng | ||
2 Axles/3 Axles | 2 Axles/3 Axles | 3 Axles/4 Axles | ||
20ft container or cargo loading | 1*40ft/2*20ft Container or cargo loading | 1*40ft/1*45ft container or cargo loading | ||
Loading Capacity: 20 - 60 Tons | Loading Capacity: 30 - 80 Tons | Loading Capacity: 30 - 100 Tons | ||
Gooseneck Type: Yes | Gooseneck Type: Yes | Gooseneck Type: Yes | ||
Tandem Type: Yes | Tandem Type: Yes | Tandem Type: Yes | ||
Main Beam | ||||
Material: Q345/T700 | Material: Q345/T700 | Material: Q345/T700 | ||
Upper Plate Thickness: 12mm | Upper Plate Thickness: 16mm | Upper Plate Thickness: 16mm | ||
Middle Plate Thickness: 6mm | Middle Plate Thickness: 10mm | Middle Plate Thickness: 10mm | ||
Lower Plate Thickness: 14mm | Lower Plate Thickness: 18mm | Lower Plate Thickness: 18mm | ||
Height: 500mm | Height: 500mm | Height: 500mm | ||
Platform Thickness: 2.5mm | Platform Thickness: 3mm | Platform Thickness: 3mm | ||
Product Dimension | ||||
L 7000mm*W 2500mm*H 1570mm | L 12400mm*W 2500mm*H 1570mm | L 13950mm*W 2500mm*H 1600mm | ||
Axles | ||||
2/3 Axles *13/16 Ton WOSHENG/FUWA/BPW/Othe | 2/3 Axles *13/16 Ton WOSHENG/FUWA/BPW/Other | 3/4 Axles *13/16 Ton WOSHENG/FUWA/BPW/Other | ||
Tire | ||||
12R22.5 (8/12 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/ Other Brand | 12R22.5 (8/12 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/ Other Brand | 12R22.5 (8/12 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/ Other Brand | ||
Rim | ||||
9.00*22.5 (8/12 Pieces) Steel/Aluminum | 9.00*22.5 (8/12 Pieces) Steel/Aluminum | 9.00*22.5 (8/12 Pieces) Steel/Aluminum | ||
Leaf Spring | ||||
90mm*13mm*10/90mm*16mm*10Pcs | 90mm*13mm*10/90mm*16mm*10Pcs | 90mm*13mm*10/90mm*16mm*10Pcs | ||
King Pin | ||||
50#(2")/90#(3.5") JOST/Other Brand | 50#(2")/90#(3.5") JOST/Other Brand | 50#(2")/90#(3.5") JOST/Other Brand | ||

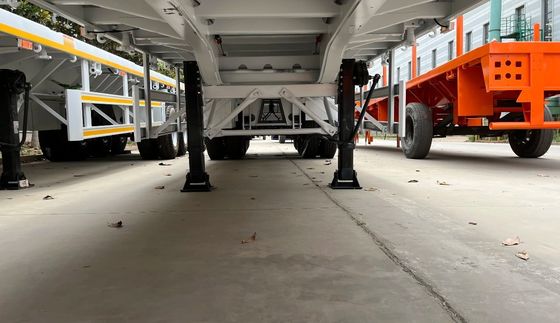

Landing Gear | ||||
28 Ton Two Speed,JOST/Other Brand | 28 Ton Two Speed,JOST/Other Brand | 28 Ton Two Speed,JOST/Other Brand | ||
Twist Lock | ||||
4 Sets | 12 Sets | 12 Sets | ||
Vehicle Painting | ||||
Electrophoresis painting | Electrophoresis painting | Electrophoresis painting | ||
