Product Details:
|
| Use: | Truck Trailer | Type: | Semi-Trailer |
|---|---|---|---|
| Material: | Steel | Size: | 16000x2500x1100mm Or Customizable |
| Max Payload: | >30000 Kg | Product Name: | Lowbed Semi Trailer |
| Tare Weight: | 80-100TON | Size: | 16000x2500x1100mm |
| Axle: | 6 Axle | Tire: | 12R22.5 |
| Suspension: | Mechanical Suspension Air Suspension | King Pin: | 2"(50mm) Or3.5"(90mm) |
| Brake System: | Dual Line Braking System | Twist Locks: | Customers Optional |
| Color: | Customers Optional |
Wosheng Lowbed Lowboy Semi Trailer (Customerize and OEM Service Available) | ||||||
Product Name | 2 axles lowbed semi trailer | 3 axles lowbed semi trailer | 4 axles lowbed semi trailer | |||
Size（mm） | 12500*3000*1100 | 13000*3000*1100 | 14000*3000*1100 | |||
Payload | 40000KG | 60000KG | 80000KG | |||
Plate | 4mm checked plate | 4mm checked plate | 5mm checked plate | |||
Axles | 2 * 13ton capacity (Brand optional) | 3 * 13ton capacity (Brand optional) | 4 * 13ton capacity (Brand optional) | |||

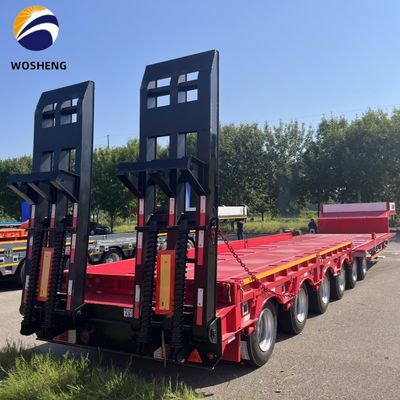

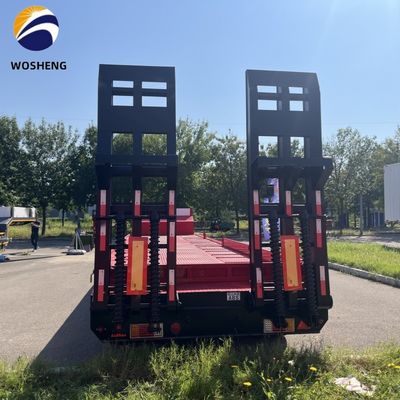

Ladder | Hydraulic ladder or Mechanical spring ladder | |||||
Main beam | Height: 500mm, upper plate is 16mm, middle plate is 8mm, down plate is 18mm ; Material is Q345B Steel. | |||||
Side beam | 250mm I beam; 20mm channel steel ( Material is Q235steel ). | |||||

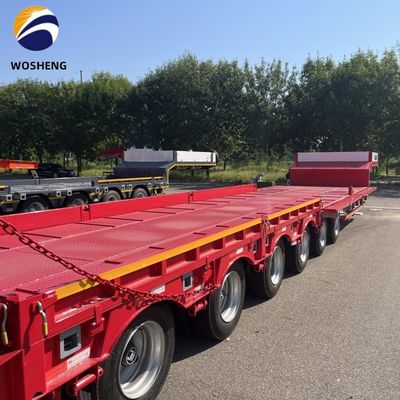

Bottom Platform | 4mm thickness diamond steel plate | |||||
Suspension | Mechanical suspension (Air suspension optional) | |||||
Leaf spring | 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets) | |||||
Tire | 12R22.5 / 11.00R20 8pcs (Other size optional) | |||||
Rim | 9.00-22.5 / 11.00R20 8pcs (Other size optional) | |||||
Kin pin | 2’’/3.5’’ bolt type | |||||
Landing gear | 28 Ton two speed | |||||
Braking system | Double air chamber ,brake valve,45L air tanks ;ABS optional | |||||
Electrical | LED light , 7 ways ,24V | |||||
Accessory | One tooling box with a set of standard trailer tool | |||||
Painting | 1.Sand blasting processing clean rust. 2.Coat of anticorrosive primer. 3.Coats of finish urethane paint. 4.Color as customer choice. | |||||
Other Descriptions | The cargo platform is lower than others, it is applicable for unsound road condition, and ensuring the stablenessof the transportation. | |||||
Usage | It is applicable for the transportations of the mechanical equipment, large objects, highway construction equipment, large tanks, power plant equipment or machine, and all sorts of steel products. | |||||
Other Specifications | It's concave structured with tyre appeared style, the height of the cargo's carrying platform from ground is 900mm, (ladders belong to optional components), with the overall height of 1710 mm. | |||||
Remark | We can design model according to client's requirement | |||||
