Product Details:
|
| Use: | Truck Trailer | Type: | Full Trailer |
|---|---|---|---|
| Material: | Steel | Size: | 7600X2450X2500mm(customizable) |
| Max Payload: | 40-100tons | Product Name: | Draw Bar Full Trailer |
| Usage: | Truck Trailer | Tare Weight: | 6.6ton |
| Color: | Customer's Request | Axle: | 13/16 Ton, 2/3/4 Axles FUWA |
| Tire: | 12R22.5/11.00R20/12.00R20/315/80R22.5/12.00R22.5/385/65R22.5 | Main Beam: | Height 500mm Q345 Carbon Steel |
| Brake System: | T30/30 Spring Brake Chamber 2 X 40L Air Tanks | Suspension System: | Mechanical /Air Suspension |
| Function: | Transport Bulk Cargo,Grain,Sand,Coal Etc. |

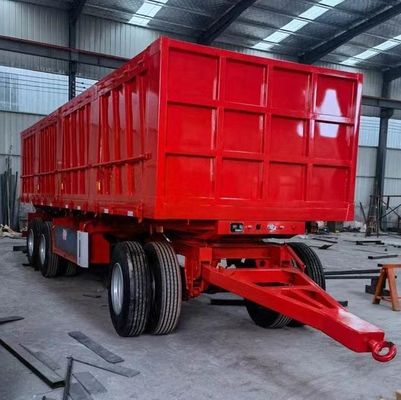

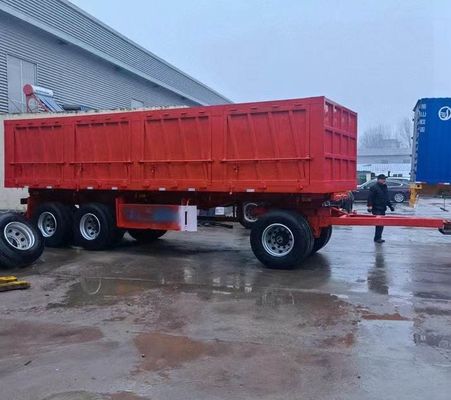

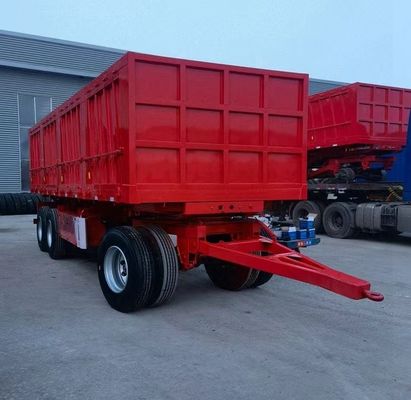

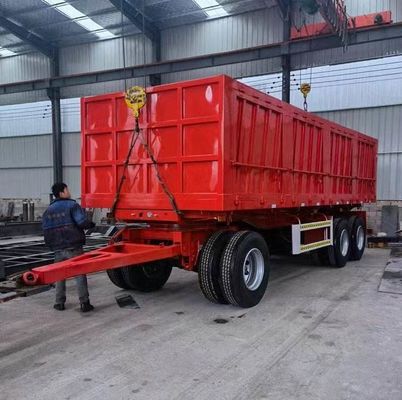

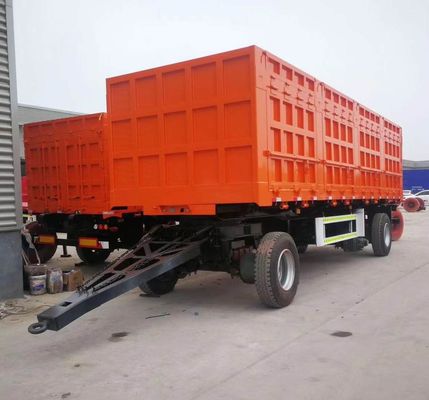

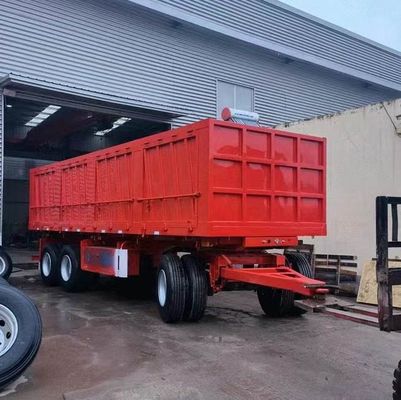

Products Name | Wosheng 2/3/4 Axle Draw Bar Side Wall Full Trailer |
Max Payload | 40-100 tons |
Box Size | 7600X2450X1500mm |
Tare weight | 6600kg |
Axle | 3 axles 13ton FUWA |
Suspension | AIR or Mechanical Suspension |
leaf spring | 90(w)mm*13(thickness)mm*10(layer) |
platform plate | 2.5mm |
logo | According to customer's requirment |
Braking system | T30/30+T30 spring brake chamber; two units of 40L air tanks |
Electrical SYSTEM | 1. Voltage: 24v waterproof 2. Receptacle: 7 ways (7 wire harness); LED light ( standard rear light, turn light, rear reflector, side light, side reflector etc.) |
Spare Wheel Bracket | 1 piece of Spare Wheel Bracket |
Accessory | 1 set of standard tool box equipped with 1 Tire spanner, 1 gudgeon sleeve and 1 cranking bar |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosion prime,2 coats of final paint |
Packaging and delivery | Wax painting treatment to protect the vehicles from sea water, and the chassis greased to avoid rusting during shipping.From China port, and carry by container ship, ro-ro ship or bulk ship, the freight cost depends on the volume. |
remarks | Our senior engineer can design semi trailer as your request, and we accept OEM/ODM projects. |
