3 Axle Drawbar Towing Dolly Full Truck Trailer With Fence Stake Customer's Request

Large Image : 3 Axle Drawbar Towing Dolly Full Truck Trailer With Fence Stake Customer's Request

Product Details:

Place of Origin:	SHANDONG
Brand Name:	YUNSHENG FULL TRAILER

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$3,600.00/units 1-1 units
Payment Terms:	T/T, L/C

Contact Now

3 Axle Drawbar Towing Dolly Full Truck Trailer With Fence Stake Customer's Request

Description

Use:	Truck Trailer	Type:	Full Trailer
Material:	Steel	Size:	7600X2450X1500mm(customizable)
Max Payload:	40-100tons	Product Name:	Draw Bar Full Trailer
Usage:	Truck Trailer	Tare Weight:	6.6ton
Color:	Customer's Request	Axle:	13/16 Ton, 3 Axles FUWA
Tire:	12R22.5/11.00R20/12.00R20/315/80R22.5/12.00R22.5/385/65R22.5	Main Beam:	Height 500mm Q345 Carbon Steel
Brake System:	T30/30 Spring Brake Chamber 2 X 40L Air Tanks	Suspension System:	Mechanical /Air Suspension
Function:	Transport Bulk Cargo,Grain,Sand,Coal Etc.

Products Description

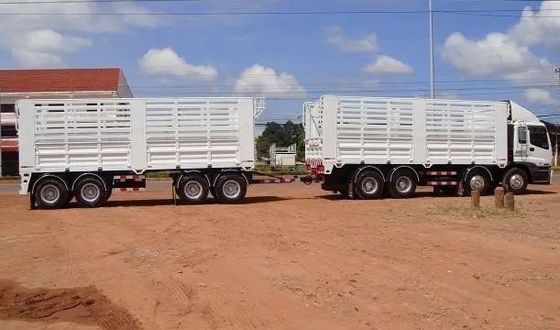

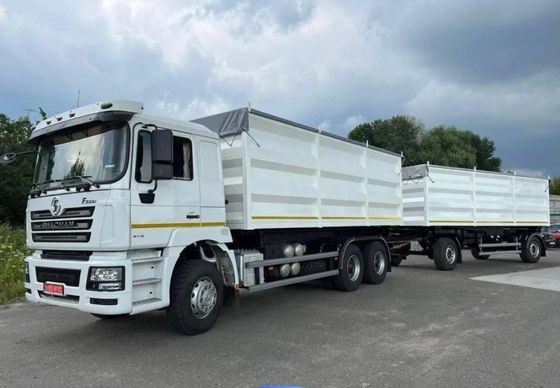

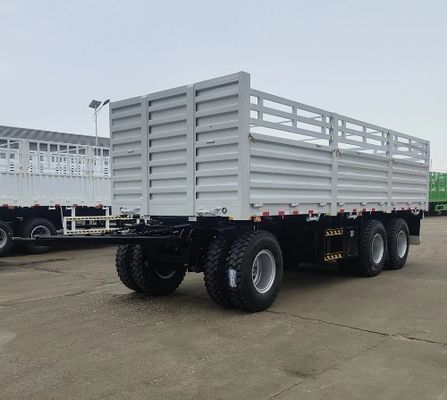

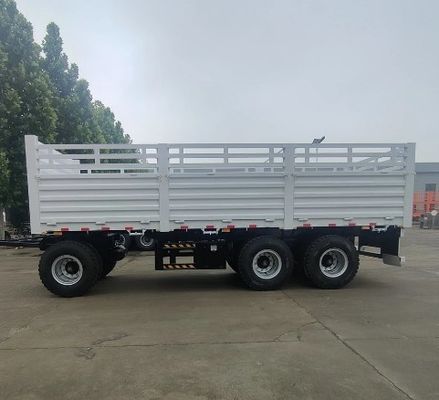

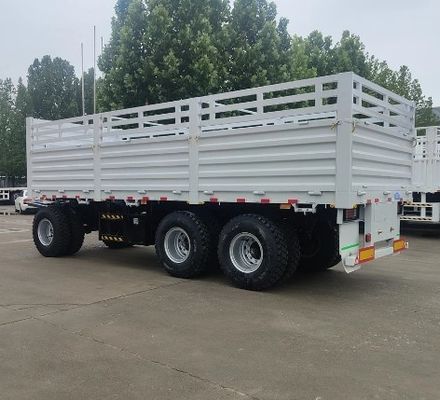

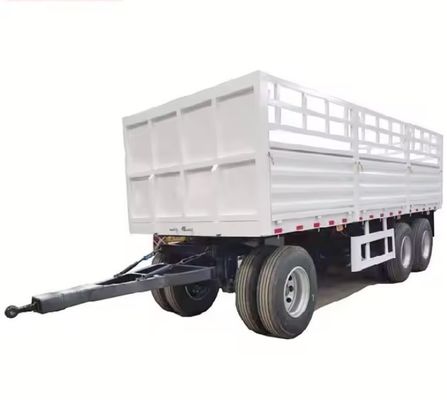

3 Axle Draw Bar Fence Full Trailer

Wosheng Draw Bar Fence Full Trailer is designed for transporting cargo that requires secure containment and partial protection from external elements. These trailers can be used for a wide range of cargo types, including agricultural products, building materials, and other bulk goods. The fence design offers flexibility in terms of cargo loading and securing.

Specification

Products Name	Wosheng 3 Axle Draw Bar Fence Full Trailer
Max Payload	40-100 tons
Box Size	7600X2450X1500mm
Tare weight	6600kg
Axle	3 axles 13ton FUWA
Suspension	AIR or Mechanical Suspension
leaf spring	90(w)mm13(thickness)mm10(layer)
platform plate	2.5mm
logo	According to customer's requirment
Braking system	T30/30+T30 spring brake chamber; two units of 40L air tanks
Electrical SYSTEM	1. Voltage: 24v waterproof 2. Receptacle: 7 ways (7 wire harness); LED light ( standard rear light, turn light, rear reflector, side light, side reflector etc.)
Spare Wheel Bracket	1 piece of Spare Wheel Bracket
Accessory	1 set of standard tool box equipped with 1 Tire spanner, 1 gudgeon sleeve and 1 cranking bar
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosion prime,2 coats of final paint
Packaging and delivery	Wax painting treatment to protect the vehicles from sea water, and the chassis greased to avoid rusting during shipping.From China port, and carry by container ship, ro-ro ship or bulk ship, the freight cost depends on the volume.
remarks	Our senior engineer can design semi trailer as your request, and we accept OEM/ODM projects.

Details Images

Anti-Tire abrasion Suspension

Specially designed anti-Tire abrasion suspension system,Prevent tire offset after loading, maximally avoid tire
abrasion.Meanwhile,Easy to disassemble and maintain.

Axle
BPW/FUWA/LEAO Axle optional.

Integrated Advanced Low-Alloy Axle Beam,Whole

Axle Beam No Welding process.Strong Carrying

Capacity and high bending Strength.Axle

maintenance-free could reach 3 Year/400,000

kilometers.

Featured Tire

Double Coin / LingLong / Michelin / Triangle / Bridgestone and other famous brand for choice. Better Performance in wear resistance

Brake System

T30/30 Spring brake chamber. WABCO valve,

ABS/EBS system optional. dual line brake pipe.

TWIST LOCK

Usually 20 ft is 4 sets locks, 40 ft with 12 sets. Customers can also change the number of locks according to their needs Customers can change the number of locks according to your own needs.

Landing Gear

The warranty period of Chinese brand/JOST landing

gear is more than 5 years. The gearbox uses low temperature premium chassis oil and is rated for

service from -30°C to 120°C.
